Quick installation guide

- Trench Spade/Shovel

- Wire Cutter

- Measuring Tape

- Outdoor Volume Control (Optional)

- Direct Burial Cables

- Silicon Cable Connectors (Optional)

Tools needed for installation

To determine the length and the gauge of speaker wire, you will need to

measure the distance between your receiver/amplifier and the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

Speaker wire

Step 1

Select your location

Designate the general area where the rock speakers would be most

ideal. The speakers should face the general listening area and

spaced about15 – 20 feet apart for good stereo sound. (See

Diagram1) Furthermore, the realistic rock shape and finish would

blend particularly well in your landscape if it is placed near a rock

wall, water fountain, open plantation or swimming pool.

Avoid placing the speakers in low spots that would make the

speakers vulnerable to water accumulation.

Step 2

Trenching and Cable Burying

Measure the distance from the designated speaker location to your

stereo receiver. Try to minimize your distance without compromis-

ing on your overall appeal and safety concern. Once the route is

determined, use your spade or trench to dig the route with width

between 8”-12” once the trench route is completed, lay the cable in

the route. If using the PVC pipe, cut the pipe to length, ensure all

electrical connections are watertight with silicone burial connec-

tors. Once the cable layout is done, refill the trench. (See Diagram 2)

Step 3

Making the connection

Rock speakers are easily connec

ted to any audio amplifier or stereo

receiver using the sealed speaker wire pigtail from the back of the

speaker enclosure. Please note, the red lead indicates positive signal

(+) and the black indicates negative signal (-). Connecting the positive

and negative leads incorrectly will cause it to be out of phase and will

result in weaker bass response.

Receiver/Amp

Center of Reference

Diagram 1

Diagram 3

15’ - 20’

Remove 2”- 3” of the outer layer of the speaker wire coming out from the source amplifier. Carefully strip ½” of the insulation covering the

speaker conductors within the outer layer. Twist the bare speaker wire leads together and seal with burial connector. Do not use Eletrical tape

as a means of weatherproofing the wire connection. (See Diagram 3)

Diagram 3

Rock Speaker

Diagram 2

Burial Connectors

Speaker Cable

+ +

- -

12-2AWG - from …………………………………………… 50 to 100ft

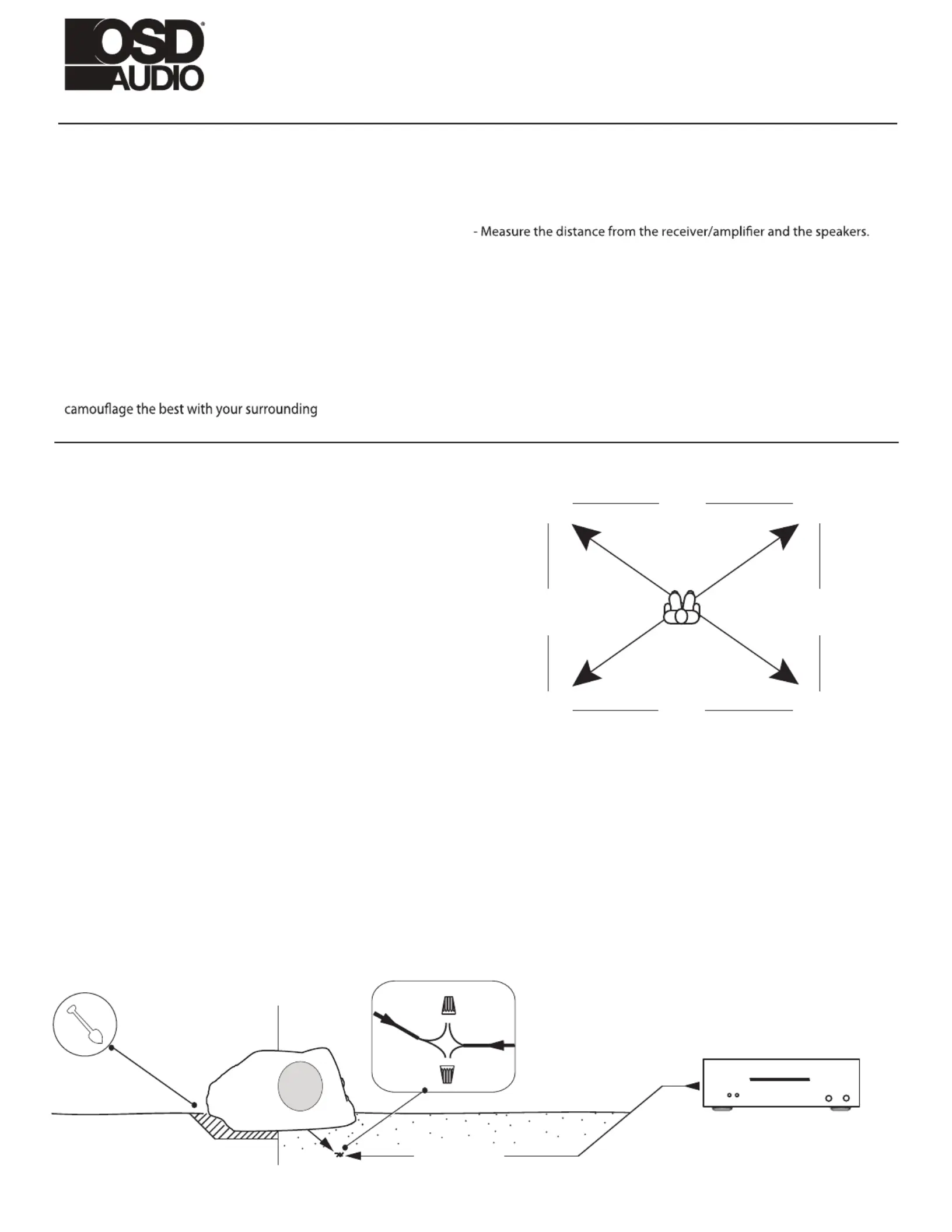

Rock Speaker Install Guide
