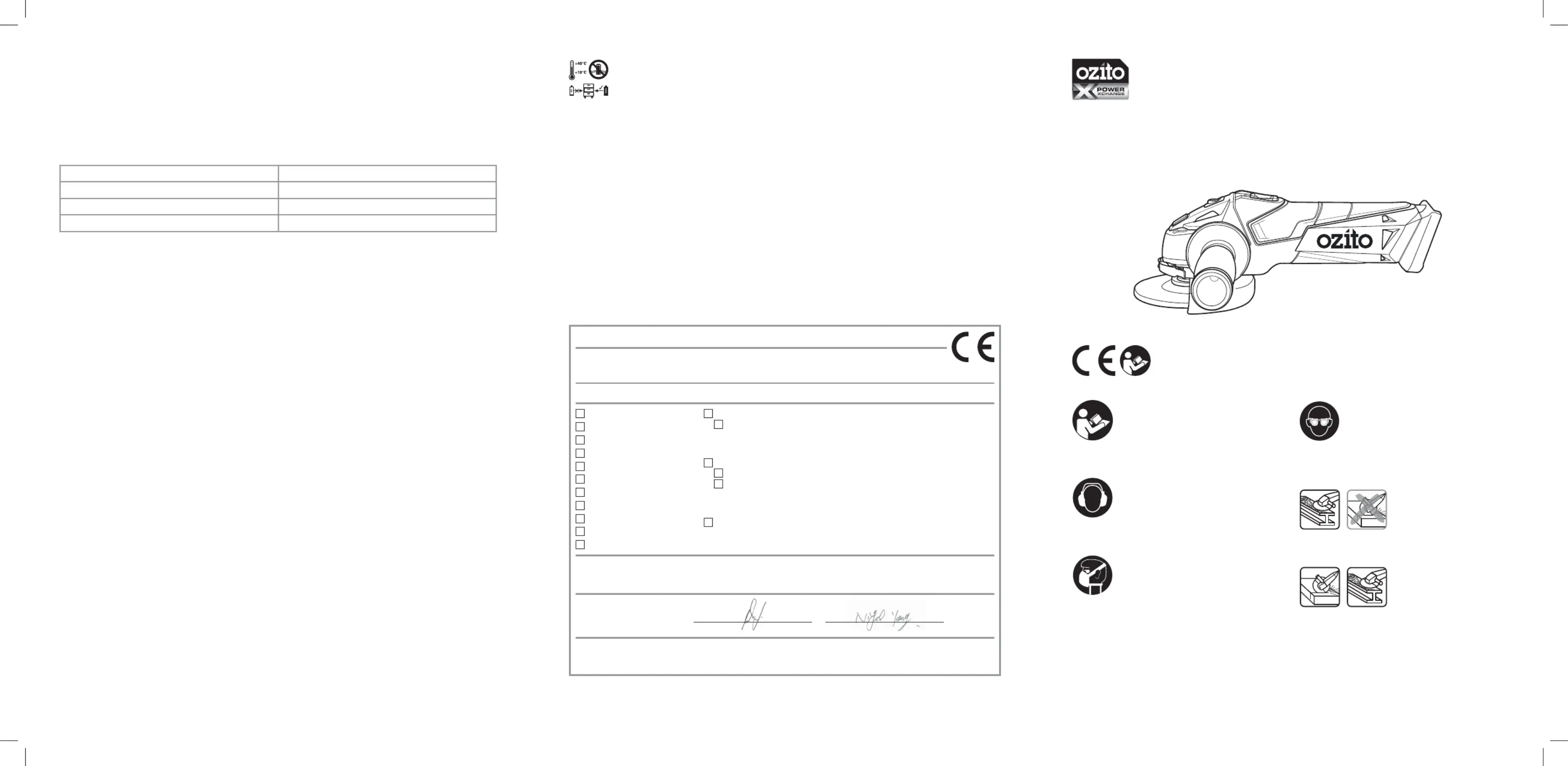

Side 1/2
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Caution! Wear ear-muff s. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
Caution! Wear safety goggles. Sparks gene-
emitted by the device can cause loss of sight.
This safety guard is designed for sanding/
grinding.
This safety guard is designed for cutting and
grinding/sanding.
(not included in items supplied)
PXAGS-500U
GB Additonal operating & safety instructions Cordless Angle Grinder
Service information
We have competent service partners in all countries named on the guarantee certifi cate whose contact
details can also be found on the guarantee certifi cate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Carbon brushes, Battery
Consumables* Cutting wheels, grinding wheels
Missing parts
* Not necessarily included in the scope of delivery!
In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
•
Did the equipment work at all or was it defective from the beginning?
•
Did you notice anything (symptom or defect) prior to the failure?
•
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Yang/Product-ManagementWeichselgartner/General-Manager
explains the following conformity according to EU directives and norms for
the following product
Cordless Angle Grinder PXAGS-500U / Fast Charger PXCG-030U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X
2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X
2011/65/EU
X
2006/42/EC
Annex IV
Notifi ed Body:
Notifi ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L
WA
= dB (A); guaranteed L
WA
= dB (A)
P = KW; L/Ø = cm
Notifi ed Body:
2004/26/EC
Emission No.:
Standard references: EN 60745-1; EN 60745-2-3; EN 60335-1; EN 60335-2-29;
EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 13.03.2019
First CE: 19 Archive-File/Record: NAPR020949
Art.-No.: 44.311.16 I.-No.: 11029 Georg RiedelDocuments registrar:
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of confi rmity
Store the battery only in dry rooms with an am-
bient temperature of +10°C to +40°C. Place only
charged batteries in storage (charged at least
40%). (not included in delivery)
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
Beiblatt_PXAGS_500U.indd 1
Beiblatt_PXAGS_500U.indd 1
Beiblatt_PXAGS_500U.indd 1
Beiblatt_PXAGS_500U.indd 1Beiblatt_PXAGS_500U.indd 1 09.05.2019 10:39:41
09.05.2019 10:39:41
09.05.2019 10:39:41
09.05.2019 10:39:4109.05.2019 10:39:41
Charger indicator / Fast Charger
Indicator status
Explanations and actions
Red LED Green LED
Off Flashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On Off Charging
The charger is charging the battery pack in quick charge mode.
Off On The battery is 85% -100% charged and ready for use.
(Charging time for 1.5 Ah battery: 30 min)
(Charging time for 2.0 Ah battery: 40 min)
(Charging time for 3.0 Ah battery: 60 min)
(Charging time for 4.0 Ah battery: 80 min)
(Charging time for 5.2 Ah battery: 105 min)
Action:
Take the battery pack out of the charger. Disconnect the charger from
the mains supply.
Flashing Off Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes
more than 1 hour. The reasons can be:
- The battery pack has not been used for a very long time or an already
fl at battery was further discharged (exhaustive discharge).
- The battery pack temperature is outside the ideal range (between 25°
C and 45° C).
Action:
Wait for the charging to be completed; you can still continue to charge
the battery pack.
Flashing Flashing Fault
Charging is no longer possible. The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20°
C) for one day .
Items supplied
Please check that the article is complete as
specifi ed in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
•
Open the packaging and take out the equip-
ment with care.
•
Remove the packaging material and any
packaging and/or transportation braces (if
available).
•
Check to see if all items are supplied.
•
Inspect the equipment and accessories for
transport damage.
•
If possible, please keep the packaging until
the end of the guarantee period.
Battery and charger sold separately. This tool is
compatible with all 18V battery and chargers from
the Power X Change range.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suff ocating!
Proper use
and stone when using the appropriate grinding
wheel and guard.
Warning! To cut metal and stone the grinder/san-
der may only be used when the guard (available
as an accessory) is mounted.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Motor power supply: ............................... 18 V DC
Rated speed: ........................................ 8500/min
Max. wheel diameter: ............................. 115 mm
Grinding wheels: ....................... 115 x 22 x 6 mm
Cutting wheel: ........................... 115 x 22 x 3 mm
Mounting spindle thread: .............................. M14
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
L
pA
sound pressure level ..................... 76.1 dB(A)
K
pA
uncertainty ............................................. 3 dB
L
WA
sound power level ....................... 87.1 dB(A)
K
WA
uncertainty ............................................. 3 dB
Wear ear-muff s.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 60745.
Handle
Vibration emission value a
hAG
= 3.1 m/s
2
K uncertainty = 1.5 m/s
2
Additional handle
Vibration emission value a
h
= 2.59 m/s
2
K uncertainty = 1.5 m/s
2
The specifi ed vibration value was established in
accordance with a standardized testing method. It
ment is used and may exceed the specifi ed value
in exceptional circumstances.
The specifi ed vibration value can be used to
compare the equipment with other electric power
tools.
The specifi ed vibration value can be used for initi-
al assessment of a harmful eff ect.
Keep the noise emissions and vibrations to a
minimum.
•
Only use appliances which are in perfect wor-
king order.
•
Service and clean the appliance regularly.
•
Adapt your working style to suit the appliance.
•
Do not overload the appliance.
•
Have the appliance serviced whenever
necessary.
•
Switch the appliance off when it is not in use.
•
Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment. The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
Beiblatt_PXAGS_500U.indd 2
Beiblatt_PXAGS_500U.indd 2
Beiblatt_PXAGS_500U.indd 2
Beiblatt_PXAGS_500U.indd 2Beiblatt_PXAGS_500U.indd 2 09.05.2019 10:39:47
09.05.2019 10:39:47
09.05.2019 10:39:47
09.05.2019 10:39:4709.05.2019 10:39:47

Produkt Specifikationer

Mærke: Ozito
Kategori: Kværn
Model: PXAGS-500U

Har du brug for hjælp?

Hvis du har brug for hjælp til Ozito PXAGS-500U stil et spørgsmål nedenfor, og andre brugere vil svare dig


Kværn Ozito Manualer

Ozito

Ozito LRT-4100U Manual

9 August 2025
Ozito

Ozito EGR-2050U Manual

9 August 2025
Ozito

Ozito PXAGS-500U Manual

9 August 2025
Ozito

Ozito RTR-040U Manual

9 August 2025
Ozito

Ozito RTR-2000U Manual

9 August 2025
Ozito

Ozito AGB-1201 Manual

29 November 2023
Ozito

Ozito AGM-5005U Manual

19 Oktober 2023
Ozito

Ozito AGS-4050U Manual

1 Oktober 2023
Ozito

Ozito AGL-9100U Manual

12 September 2023
Ozito

Ozito PXAGS-500 Manual

27 Juli 2023

Kværn Manualer

Nyeste Kværn Manualer

Milwaukee

Milwaukee M12 Fuel 2486-20 Manual

13 August 2025
Flex

Flex L 1606 VR Manual

13 August 2025
Milwaukee

Milwaukee M18 Fuel 2888-20 Manual

13 August 2025
Milwaukee

Milwaukee M12 Fuel 3485-20 Manual

13 August 2025
Milwaukee

Milwaukee M12 Fuel 3485-22 Manual

13 August 2025
Graef

Graef ABSOLUTE Manual

13 August 2025
Milwaukee

Milwaukee M18 Fuel 2889-20 Manual

13 August 2025
Milwaukee

Milwaukee M18 Fuel 2887-20 Manual

12 August 2025
Camry

Camry CR 4301 Manual

12 August 2025
Makita

Makita DCC500 Manual

12 August 2025
