INSTRUCTIONS FOR PANAMAX SIGNAL LINE PROTECTION MODULES - PREMIUM SERIES
When properly installed, the base unit’s Connected Equipment Protection Policy
remains valid. All modules include a small rectangular bracket and mounting screws. This
bracket replaces the small triangular wall-mount bracket that comes with the models listed in
the CURRENT PRODUCTS above.
Module
Bracket
AC Base Unit
Ground
Connector
Ground
Connector
Ground
Connector
Pull Out Card
The MOD-AT4 module is designed to pro-
tect standard phone lines and DSL (ADSL,
G.Lite) lines. Multiple input & output jacks
provide complete installation flexibility. The
following diagram shows how the
jacks/wires are interconnected. Different
cables/connections can be split or com-
bined to accommodate a variety of installa-
tions. For example:
• Incoming lines can be punched-down on
the 110 jack on the side and four RJ11LINE
(single-line) cords will connect from the
EQUIP side to the equipment.
• Two RJ14 (dual-line) cords connected to
the LINE side (upper 2 jacks) can be split to
four RJ11 (single-line) cords on the EQUIP
side.
• Four RJ11 (single-line) cords connected
to the side can be combined into aLINE
single RJ45 (8 wire) cord (upper jack) on the
EQUIP side.
Caution: Never install telephones
during a lightning storm.
The MOD-AT8110 module is designed to
protect up to 8 standard phone lines using
110 punchdown connectors on both the
input LINE EQUIPand output .
1. Cut the cable from the primary protector
to the correct length and punch down the
cable to the punchdown block onLINE IN
the module.
2. Punch down another cable to the EQUIP
OUT punchdown block on the module and
connect to the phone equipment.
MOD-AT4
EQUIP
OUT
RJ-45
LINE
IN
RJ-45
EQUIP
OUT
RJ-14
LINE
IN
RJ-14
EQUIP
OUT
RJ-11
LINE
IN
RJ-11
LINE
IN
RJ-11
EQUIP
OUT
RJ-11
EQUIP
OUT
S110D
Pull Out
LINE
IN
S110D
MOD-AT4
EQUIP
OUT
RJ-45
LINE
IN
RJ-45
EQUIP
OUT
RJ-14
LINE
IN
RJ-14
EQUIP
OUT
RJ-11
LINE
IN
RJ-11
LINE
IN
RJ-11
EQUIP
OUT
RJ-11
EQUIP
OUT
S110D
Pull Out
LINE
IN
S110D
Bl Bl
Or Or
Gr Gr
Br Br
1 - 8 1 - 41 - 41 - 4
1 - 8
1 - 41 - 41 - 4
WIRING DIAGRAM AND SPECIFICATIONS
MOD-AT4
For Analog
Telephone
Lines
• 4 Pairs (8 wires) Protected
• 260 Volt Clam
ping • Straight-Through Pinout
Blue
Blue Blue
Blue
Orange
Orange Orange
Orange
Green
Green Green
Green
Brown
Brown Brown
Brown
MOD-AT8110
For Analog Telephone Lines
• 16 Wires (two 110 punch-downs) Protected
• 260 Volt Clamping
• Auto-resetting PTC's
110
IDC
110
IDC
WIRING DIAGRAM AND SPECIFICATIONS
LINE
IN
S110D
EQUIP
OUT
S110D
MOD-AT8110
Pull Out
LINE
IN
S110D
EQUIP
OUT
S110D
MOD-AT8110
Pull Out
The MOD-AT2 module is designed to protect
standard phone lines connected to computer
modems, telephones, pay-per-view ports, etc.
It will also protect DSL lines (ADSL, G.Lite)
going into the DSL modem. The MOD-AT2
module will protect a single phone line using
an RJ-11 (2 wire) cord or a dual phone line
using an RJ-14 (4 wire) cord.
1. Connect the telephone line to the LINE
jack on the module.
2. Use a modular cord to connect the
EQUIP modular jack to the equipment to be
protected.
1 - 8
MOD-AT2
For Analog Telephone Lines
• 4 Wires (1 RJ-14) Protected
• 260 Volt Clamping
• Auto-resetting PTC's
1 - 8
WIRING DIAGRAM AND SPECIFICATIONS
L
I
Pull Out
MOD-AT2
EQUIP
OUT
LINE
IN
Pull Out
SAT
/
CATV
It is very important to connect
telephone signal lines properly.
1. Mount the rectangular bracket to the back
of the AC base unit with the #8-32 x 5/16”
machine screws.
Note: The brass ground connector must be
used with the bracket in order to bond the
module ground to the base unit’s ground.
2. Mount the signal line module to the
bracket (screws provided with the module).
3. Optional – The assembled base unit and
module(s) may be wall mounted if desired.
4. Connect the wiring to the signal line
module as shown in the appropriate follow-
ing section.
MOD-AT2 MOD-AT4 MOD-AT8110 MOD-DT4
MOD-UTP MOD-CAT5 MOD-DBSTV MOD-SPKP
These modules are approved accessories for use with compatible Panamax AC
base units. Compatible base units include the following:
There are no designated
input/output connections
on coaxial protection
modules. These are
bi-directional modules
in both transmission fre-
quency and voltage.
All telephone input/output connections will
be labeled with LINE EQUIP.and
Model: MOD-AT8110 (Secondary Protector)
Model: MOD-AT4 (Secondary Protector)
Installation Instructions
Model: MOD-AT2 (Secondary Protector)
MOD-DT4
EQUIP
OUT
RJ-45
LINE
IN
RJ-45
EQUIP
OUT
RJ-14
LINE
IN
RJ-14
EQUIP
OUT
RJ-11
LINE
IN
RJ-11
LINE
IN
RJ-11
EQUIP
OUT
RJ-11
EQUIP
OUT
S110D
Pull Out
LINE
IN
S110D
EQUIP.
OUT
LINE
IN
MOD-UTP
Pull Out
Pul Out
MOD-CAT5
MOD-DBSTV
E UIPQ
OUT
RJ-11
LINE
IN
RJ-11
SAT /
CATV
P tul l Ou
Card
SAT /
CATV
SAT /
CATV
OUTSIDE LINES
MOD-SPKP
1
2
3
4
5
6
7
8
RECEIVER
Pull Out
1
2
3
4
5
6
7
8
An easy access
PULL OUT card
is included on
the back of each
module for wiring
diagrams and
specifications.
1
CURRENT PRODUCTS
AC Base Units
DISCONTINUED PRODUCTS
AC Base Units
PM8-EX
PM8T-EX
PM8C-EX
PM8DBS-EX
M4-EX
M4T-EX
M8-EX
M8C-EX
M8HT-PRO
M8-HT
PM8-HT
M8C-EX
M8DBS-EX
M8C-Pro
M8HC-Pro
M4
M4T
M4L
M8
M8T
M8C
M8KSU
M8COM
M8KSU
LINE
IN
EQUIP.
OUT
The MOD-DT4 module is designed to pro-
tect Digital Station (DS) Set phone lines.
Station Set lines that leave the building are a
pathway for surges (backdoor) to enter the
phone system. This is why the lines FROM
the Station Sets are connected to the LINE
side of the module and the side ofEQUIP
the module is connected to the phone sys-
tem. Multiple input & output jacks provide
complete installation flexibility. The follow-
ing diagram shows how the jacks/wires are
interconnected. Different cables/connec-
tions can be split or combined to accommo-
date a variety of installations.
For example:
• Station Set lines from the phone system
can be punched-down on the 110 jack on
the EQUIP side and four RJ11 (2 wire)
cords will connect from the LINE side to the
Station Sets.
• Station Set lines from the phone system
can be punched-down on the 110 jack on
the EQUIP side and two RJ14 (4 wire) cords
will connect from the LINE side (upper 2
jacks) to the Station Sets.
Caution: Never install telephones
during a lightning storm.
The MOD-DBSTV module provides protec-
tion for 3 SAT / CABLE / ANT and 1 tele-
phone line.
1. Connect the Satellite LNB or Cable TV
coax cable from the wall/floor jack to one of
the “F” connectors labled SAT/CATV on the
module
2. Use a coax patch cord to connect the
other SAT/CATV labeled modular “F” con-
nector to the equipment to be protected.
3. Repeat steps 1 and 2 for up to 2 addi-
tional satellite or cable TV lines.
4.Connect the telephone line to the LINE
jack on the module.
5. Use a modular cord to connect the
EQUIP modular jack to the equipment to be
protected.
Note: This reminder is provided to call the
CATV installer’s attention to Article 820-40
of the NEC that provides guidelines for
proper grounding and, in particular, speci-
fies that the cable ground shall be connect-
ed to the grounding system of the building
as close to the point of entry as possible.
The MOD-SPKP module is designed to
protect outdoor speaker, keypad, control and
security wires (8 wires or 4 pairs).
Equipment lines that lead outside the build-
ing are pathways for surges (sometimes
called backdoor surges) to enter the equip-
ment. This is why the lines the out-FROM
door equipment is connected to the LINE
side of the module and the side ofEQUIP
the module is connected to the equipment.
1. Strip the ends of the individual wires
about 1/4 inch. The screw clamp terminals
will work with a range of wire sizes (up to
12AWG). Spade lugs are not required, but
may be used.
2. Connect the wires from the outdoor
equipment to terminals on the side ofLINE
the module.
3. Connect the wires from the EQUIP side
of the module to the equipment.
4. If the cable has a shield or drain wire,
connect it to the modules bonding-strap
connection located on the upper right por-
tion of the module. If more than one mod-
ule is connected to the AC base unit, placing
this module at the top may allow for easier
connection of shield or drain wires.
The MOD-UTP module is designed to pro-
tect networked computer equipment. It will
protect one Ethernet 10/100 Base-T, Token
Ring, Arcnet, or AppleTalk network line.
1. Connect the network line from wall/floor
jack to the jack on the module.LINE
2. Use a modular cord to connect the
EQUIP modular jack to the equipment to be
protected.
Please note: The protection circuitry
will not work if the signal lines are
reversed.
The MOD-CAT5 module is designed for
high-speed data applications-networks
including CAT 5, fast Ethernet, ATM, and
other high-speed active transport devices.
1. Connect the CAT 5 cable connected on
either side on the module to the wall/floor
jack and then to the equipment to be protect-
ed. There is no “IN” or “OUT”. MOD-CAT5 is
bi-directional.
MOD-DT4
EQUIP
OUT
RJ-45
LINE
IN
RJ-45
EQUIP
OUT
RJ-14
LINE
IN
RJ-14
EQUIP
OUT
RJ-11
LINE
IN
RJ-11
LINE
IN
RJ-11
EQUIP
OUT
RJ-11
EQUIP
OUT
S110D
Pull Out
LINE
IN
S110D
Bl Bl
Or Or
Gr Gr
Br Br
1 - 4
MOD-DT4
For Digital
Telephone Lines
• 4 Pairs (8 wires) Protected
• 70 Volt Clamping • Straight-Through Pinout
1 - 8
1 - 41 - 4 1 - 8
1 - 4 1 - 4 1 - 4
WIRING DIAGRAM AND SPECIFICATIONS
MOD-UTP
For 10/100 Base-T Ethernet
• 4 Wires (Pins 1, 2, 3, 6) Protected
• 7 Volt Clamping
1- 8
1 - 8
WIRING DIAGRAM AND SPECIFICATIONS
EQUIP.
OUT
LINE
IN
MOD-UTP
Pull Out
MOD-CAT5
For 10/100/1000 Base-T Ethernet
• 8 Wires (4 Pairs) Protected
• 19 Volt Clamping
• CAT5E Compliant
SPECIFICATIONS
Pul Out
MOD-CAT5
Coax protectors are bi-directional.
There is no "IN" or "OUT".
LINEEQUIP
MOD-DBSTV
For Digital Satellite & CATV Systems
3 Sat/CATV Lines Protected
75 Volt Clamping
<1 0.5dB 0 MHz to 2.2 GHz
1 Phone Line Protected
260 Volt Clamping
SAT 1
SAT 2 CATV
RJ-11
PINS 3, 4

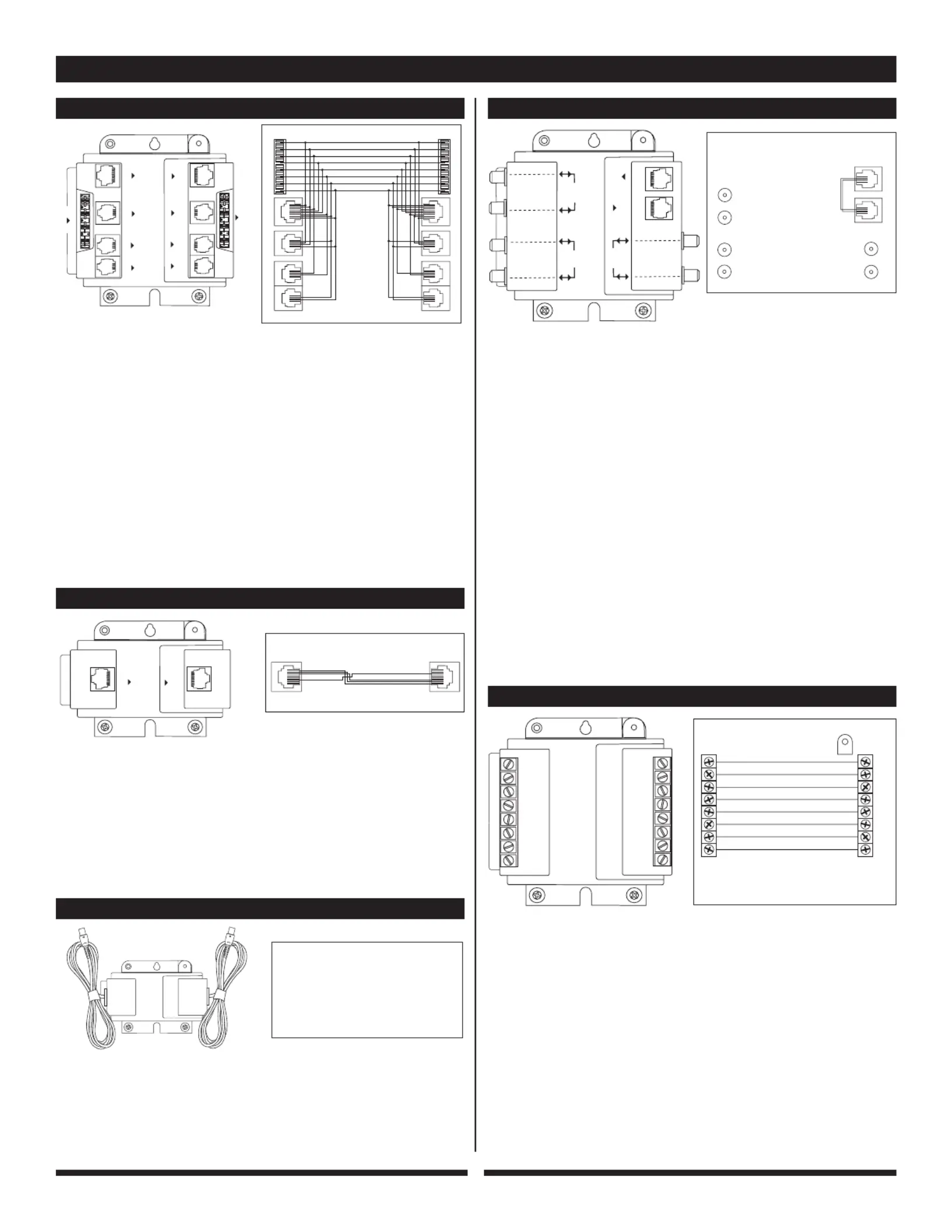

WIRING DIAGRAM AND SPECIFICATIONS
Use modules bonding-strap connection
to attach ground, shield or drain wires.
MOD-SPKP
For Outdoor Speaker, Keypad, Control & Security Wires
• 8 Wires Protected, 47 Volt Clamping
• 7 Amp (per wire) Capacity,
• 12 AWG Max. Wire Size
WIRING DIAGRAM AND SPECIFICATIONS
MOD-DBSTV
E UIPQ
OUT
RJ-11
LINE
IN
RJ-11
SAT /
CATV
P tull Ou
Card
SAT /
CATV
SAT /
CATV
OUTSIDE LINES
MOD-SPKP
1
2
3
4
5
6
7
8
RECEIVER
Pull Out
1
2
3
4
5
6
7
8

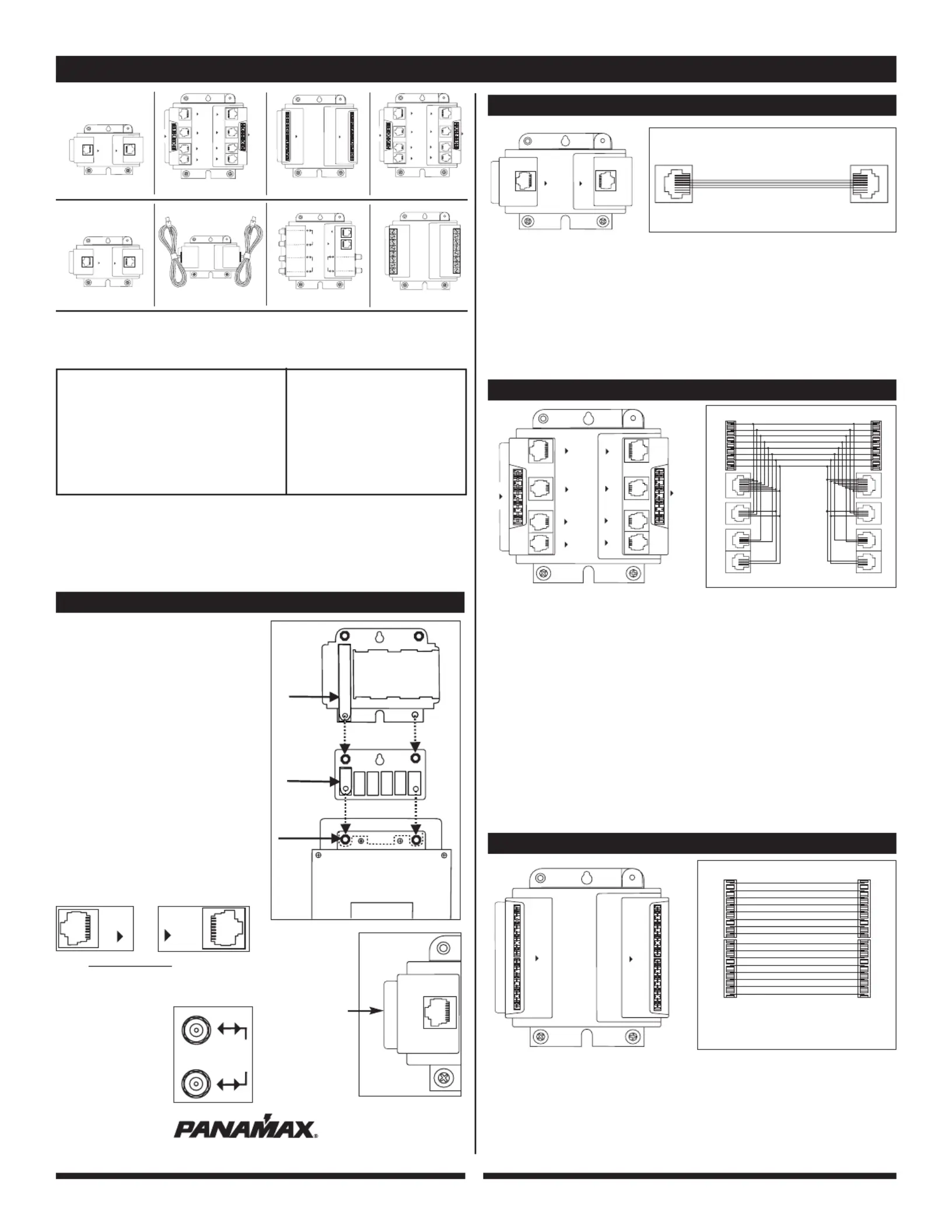

INSTRUCTIONS FOR PANAMAX SIGNAL LINE PROTECTION MODULES - PREMIUM SERIES
2
Model: MOD-DT4 (Secondary Protector) Model: MOD-DBSTV (Secondary Protector)
Model: MOD-UTP (Isolated Loop Circuit Protector)
Model: MOD-SPKP (Isolated Loop Circuit Protector)
Model: MOD-CAT5 (Isolated Loop Circuit Protector)
INS0769 REV .D 06/07

Produkt Specifikationer

Mærke: Panamax
Kategori: Ikke kategoriseret
Model: MOD-AT4

Har du brug for hjælp?

Hvis du har brug for hjælp til Panamax MOD-AT4 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Panamax Manualer

Panamax

Panamax MIP-20LT Manual

11 December 2024
Panamax

Panamax MD2-AV Manual

10 December 2024
Panamax

Panamax MD2-TL Manual

10 December 2024
Panamax

Panamax MOD-DT4 Manual

10 December 2024
Panamax

Panamax MOD-AT8110 Manual

10 December 2024
Panamax

Panamax MOD-AT4 Manual

10 December 2024
Panamax

Panamax M4LT-EX Manual

10 December 2024
Panamax

Panamax SEP-200 Manual

4 September 2024
Panamax

Panamax MR5100 Manual

29 August 2024
Panamax

Panamax SM3-PRO Manual

29 August 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

ENTES

ENTES GEMO-10-DR-4G Manual

14 Juni 2025
Marshall

Marshall VAC-12SH Manual

14 Juni 2025
Rane

Rane MX 22 Manual

14 Juni 2025
Vulcan

Vulcan VCH88 Manual

14 Juni 2025
Fluke

Fluke SB140 Manual

14 Juni 2025
Blodgett

Blodgett BCT-101G Manual

14 Juni 2025
Rival

Rival 11570 Manual

14 Juni 2025
CDN

CDN MT1 Manual

14 Juni 2025
Savage Bros.

Savage Bros. FireMixer-14 Manual

14 Juni 2025
HMS Premium

HMS Premium STR01 Manual

14 Juni 2025
