800-472-5555 www.panamax.com

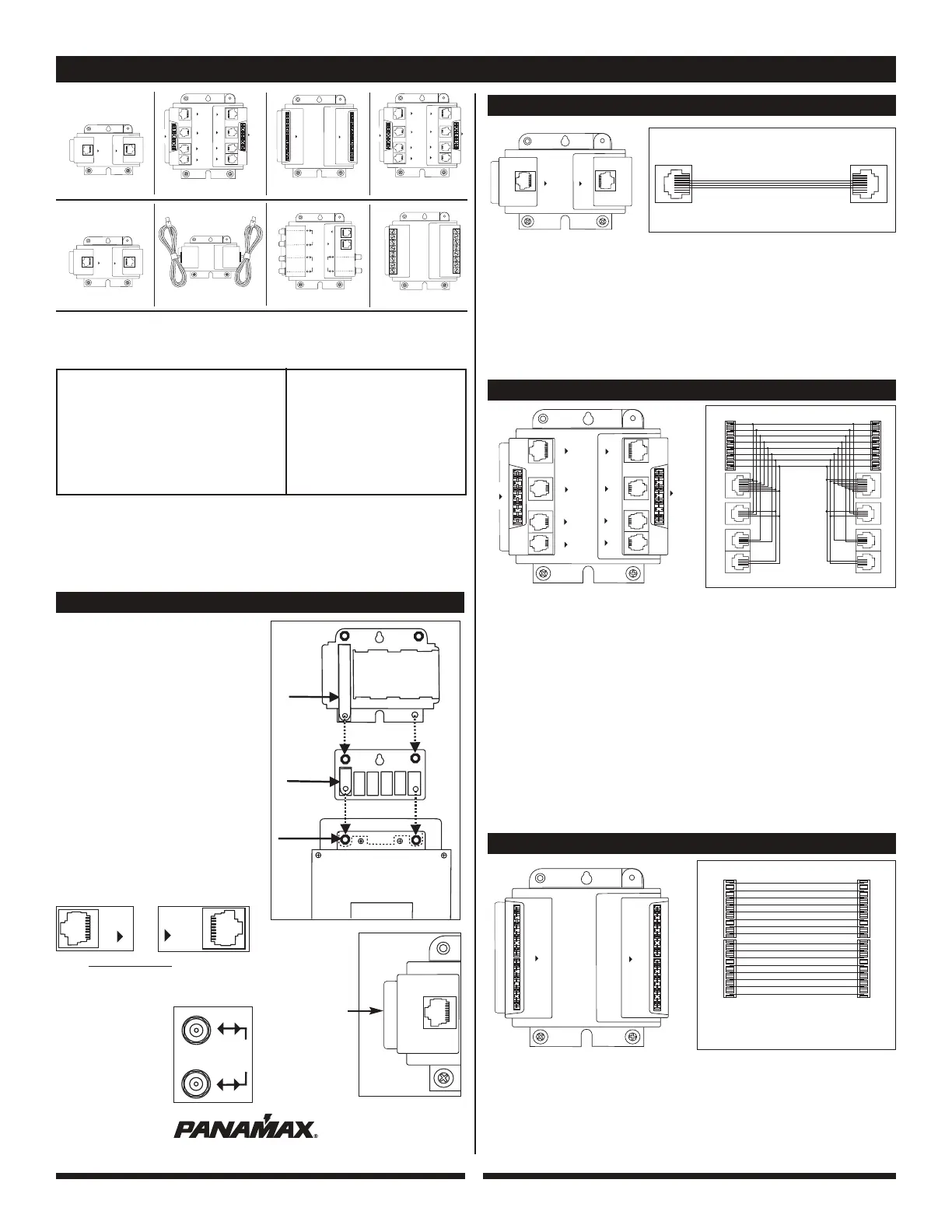

INSTRUCTIONS FOR PANAMAX SIGNAL LINE PROTECTION MODULES - PREMIUM SERIES

When properly installed, the base unit’s Connected Equipment Protection Policy

remains valid. All modules include a small rectangular bracket and mounting screws. This

bracket replaces the small triangular wall-mount bracket that comes with the models listed in

the CURRENT PRODUCTS above.

Module

Bracket

AC Base Unit

Ground

Connector

Ground

Connector

Ground

Connector

Pull Out Card

The MOD-AT4 module is designed to pro-

tect standard phone lines and DSL (ADSL,

G.Lite) lines. Multiple input & output jacks

provide complete installation flexibility. The

following diagram shows how the

jacks/wires are interconnected. Different

cables/connections can be split or com-

bined to accommodate a variety of installa-

tions. For example:

• Incoming lines can be punched-down on

the 110 jack on the LINE side and four RJ11

(single-line) cords will connect from the

EQUIP side to the equipment.

• Two RJ14 (dual-line) cords connected to

the LINE side (upper 2 jacks) can be split to

four RJ11 (single-line) cords on the EQUIP

side.

• Four RJ11 (single-line) cords connected

to the LINE side can be combined into a

single RJ45 (8 wire) cord (upper jack) on the

EQUIP side.

Caution: Never install telephones

during a lightning storm.

The MOD-AT8110 module is designed to

protect up to 8 standard phone lines using

110 punchdown connectors on both the

input LINE and output EQUIP.

1. Cut the cable from the primary protector

to the correct length and punch down the

cable to the LINE IN punchdown block on

the module.

2. Punch down another cable to the EQUIP

OUT punchdown block on the module and

connect to the phone equipment.

MOD-AT4

EQUIP

OUT

RJ-45

LINE

RJ-45

EQUIP

OUT

RJ-14

LINE

RJ-14

EQUIP

OUT

RJ-11

LINE

RJ-11

LINE

RJ-11

EQUIP

OUT

RJ-11

EQUIP

OUT

S110D

Pull Out

LINE

S110D

MOD-AT4

EQUIP

OUT

RJ-45

LINE

RJ-45

EQUIP

OUT

RJ-14

LINE

RJ-14

EQUIP

OUT

RJ-11

LINE

RJ-11

LINE

RJ-11

EQUIP

OUT

RJ-11

EQUIP

OUT

S110D

Pull Out

LINE

S110D

Bl Bl

Or Or

Gr Gr

Br Br

1 - 8

1 - 4

1 - 8

1 - 4

WIRING DIAGRAM AND SPECIFICATIONS

MOD-AT4

For Analog

Telephone

Lines

• 4 Pairs (8 wires) Protected

• 260 Volt Clam

ping • Straight-Through Pinout

Blue

Orange

Green

Brown

MOD-AT8110

For Analog Telephone Lines

• 16 Wires (two 110 punch-downs) Protected

• 260 Volt Clamping

• Auto-resetting PTC's

110

IDC

110

IDC

WIRING DIAGRAM AND SPECIFICATIONS

LINE

S110D

EQUIP

OUT

S110D

MOD-AT8110

Pull Out

LINE

S110D

EQUIP

OUT

S110D

MOD-AT8110

Pull Out

The MOD-AT2 module is designed to protect

standard phone lines connected to computer

modems, telephones, pay-per-view ports, etc.

It will also protect DSL lines (ADSL, G.Lite)

going into the DSL modem. The MOD-AT2

module will protect a single phone line using

an RJ-11 (2 wire) cord or a dual phone line

using an RJ-14 (4 wire) cord.

1. Connect the telephone line to the LINE

jack on the module.

2. Use a modular cord to connect the

EQUIP modular jack to the equipment to be

protected.

1 - 8

MOD-AT2

For Analog Telephone Lines

• 4 Wires (1 RJ-14) Protected

• 260 Volt Clamping

• Auto-resetting PTC's

1 - 8

WIRING DIAGRAM AND SPECIFICATIONS

MOD-AT2

EQUIP

OUT

LINE

Pull Out

MOD-AT2

EQUIP

OUT

LINE

Pull Out

SAT

CATV

It is very important to connect

telephone signal lines properly.

1. Mount the rectangular bracket to the back

of the AC base unit with the #8-32 x 5/16”

machine screws.

Note: The brass ground connector must be

used with the bracket in order to bond the

module ground to the base unit’s ground.

2. Mount the signal line module to the

bracket (screws provided with the module).

3. Optional – The assembled base unit and

module(s) may be wall mounted if desired.

4. Connect the wiring to the signal line

module as shown in the appropriate follow-

ing section.

MOD-AT2 MOD-AT4 MOD-AT8110 MOD-DT4

MOD-UTP MOD-CAT5 MOD-DBSTV MOD-SPKP

These modules are approved accessories for use with compatible Panamax AC

base units. Compatible base units include the following:

There are no designated

input/output connections

on coaxial protection

modules. These are

bi-directional modules

in both transmission fre-

quency and voltage.

All telephone input/output connections will

be labeled with LINE and EQUIP.

Model: MOD-AT8110 (Secondary Protector)

Model: MOD-AT4 (Secondary Protector)

Installation Instructions

Model: MOD-AT2 (Secondary Protector)

MOD-DT4

EQUIP

OUT

RJ-45

LINE

RJ-45

EQUIP

OUT

RJ-14

LINE

RJ-14

EQUIP

OUT

RJ-11

LINE

RJ-11

LINE

RJ-11

EQUIP

OUT

RJ-11

EQUIP

OUT

S110D

Pull Out

LINE

S110D

EQUIP.

OUT

LINE

MOD-UTP

Pull Out

MOD-CAT5

MOD-DBSTV

EQUIP

OUT

RJ-11

LINE

RJ-11

SAT /

CATV

Pull Out

Card

SAT /

CATV

SAT /

CATV

OUTSIDE LINES

MOD-SPKP

RECEIVER

Pull Out

An easy access

PULL OUT card

is included on

the back of each

module for wiring

diagrams and

specifications.

CURRENT PRODUCTS

AC Base Units

DISCONTINUED PRODUCTS

AC Base Units

PM8-EX

PM8T-EX

PM8C-EX

PM8DBS-EX

M4-EX

M4T-EX

M8-EX

M8C-EX

M8HT-PRO

M8-HT

PM8-HT

M8C-EX

M8DBS-EX

M8C-Pro

M8HC-Pro

M4T

M4L

M8T

M8C

M8KSU

M8COM

M8KSU

LINE

EQUIP.

OUT

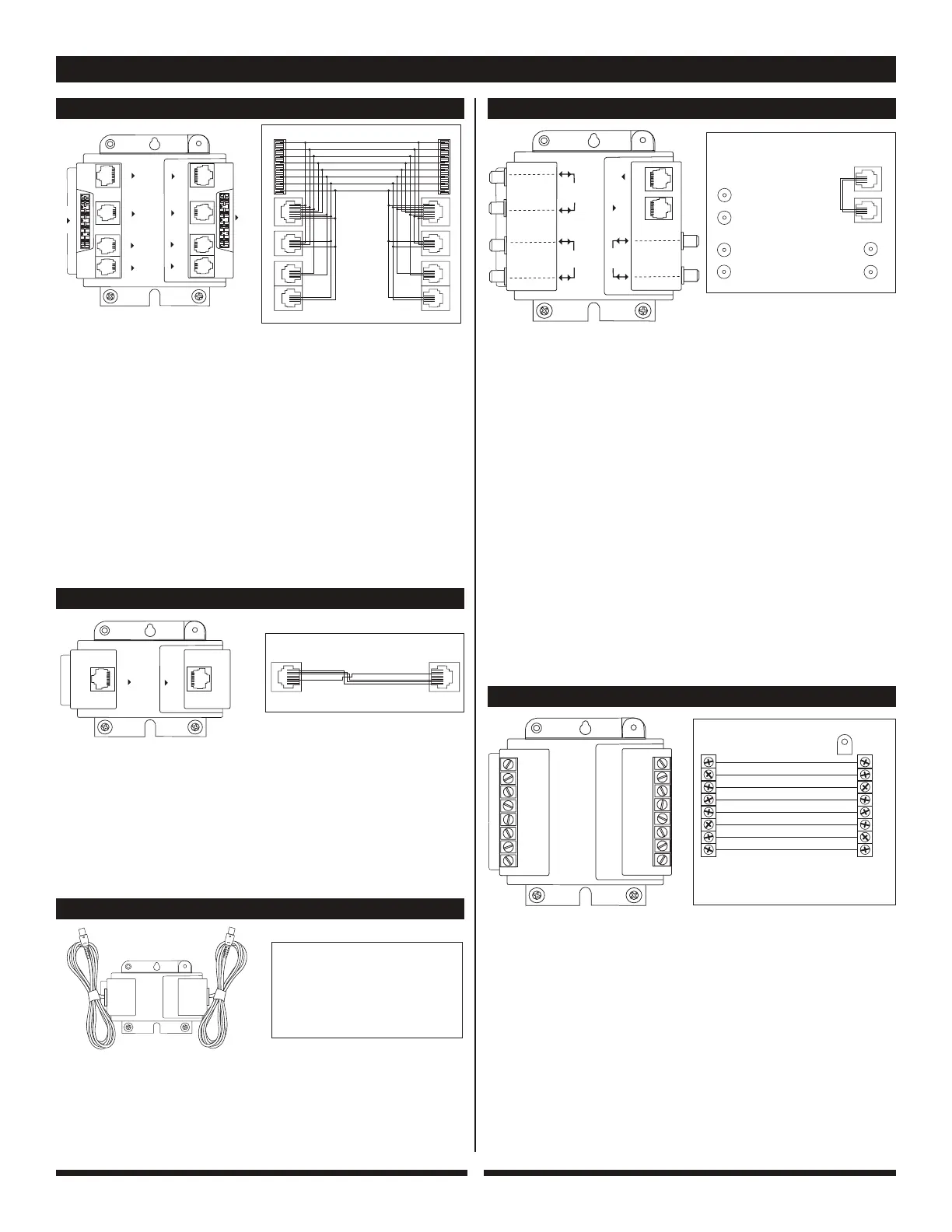

The MOD-DT4 module is designed to pro-

tect Digital Station (DS) Set phone lines.

Station Set lines that leave the building are a

pathway for surges (backdoor) to enter the

phone system. This is why the lines FROM

the Station Sets are connected to the LINE

side of the module and the EQUIP side of

the module is connected to the phone sys-

tem. Multiple input & output jacks provide

complete installation flexibility. The follow-

ing diagram shows how the jacks/wires are

interconnected. Different cables/connec-

tions can be split or combined to accommo-

date a variety of installations.

For example:

• Station Set lines from the phone system

can be punched-down on the 110 jack on

the EQUIP side and four RJ11 (2 wire)

cords will connect from the LINE side to the

Station Sets.

• Station Set lines from the phone system

can be punched-down on the 110 jack on

the EQUIP side and two RJ14 (4 wire) cords

will connect from the LINE side (upper 2

jacks) to the Station Sets.

Caution: Never install telephones

during a lightning storm.

The MOD-DBSTV module provides protec-

tion for 3 SAT / CABLE / ANT and 1 tele-

phone line.

1. Connect the Satellite LNB or Cable TV

coax cable from the wall/floor jack to one of

the “F” connectors labled SAT/CATV on the

module

2. Use a coax patch cord to connect the

other SAT/CATV labeled modular “F” con-

nector to the equipment to be protected.

3. Repeat steps 1 and 2 for up to 2 addi-

tional satellite or cable TV lines.

4.Connect the telephone line to the LINE

jack on the module.

5. Use a modular cord to connect the

EQUIP modular jack to the equipment to be

protected.

Note: This reminder is provided to call the

CATV installer’s attention to Article 820-40

of the NEC that provides guidelines for

proper grounding and, in particular, speci-

fies that the cable ground shall be connect-

ed to the grounding system of the building

as close to the point of entry as possible.

The MOD-SPKP module is designed to

protect outdoor speaker, keypad, control and

security wires (8 wires or 4 pairs).

Equipment lines that lead outside the build-

ing are pathways for surges (sometimes

called backdoor surges) to enter the equip-

ment. This is why the lines FROM the out-

door equipment is connected to the LINE

side of the module and the EQUIP side of

the module is connected to the equipment.

1. Strip the ends of the individual wires

about 1/4 inch. The screw clamp terminals

will work with a range of wire sizes (up to

12AWG). Spade lugs are not required, but

may be used.

2. Connect the wires from the outdoor

equipment to terminals on the LINE side of

the module.

3. Connect the wires from the EQUIP side

of the module to the equipment.

4. If the cable has a shield or drain wire,

connect it to the modules bonding-strap

connection located on the upper right por-

tion of the module. If more than one mod-

ule is connected to the AC base unit, placing

this module at the top may allow for easier

connection of shield or drain wires.

The MOD-UTP module is designed to pro-

tect networked computer equipment. It will

protect one Ethernet 10/100 Base-T, Token

Ring, Arcnet, or AppleTalk network line.

1. Connect the network line from wall/floor

jack to the LINE jack on the module.

2. Use a modular cord to connect the

EQUIP modular jack to the equipment to be

protected.

Please note: The protection circuitry

will not work if the signal lines are

reversed.

The MOD-CAT5 module is designed for

high-speed data applications-networks

including CAT 5, fast Ethernet, ATM, and

other high-speed active transport devices.

1. Connect the CAT 5 cable connected on

either side on the module to the wall/floor

jack and then to the equipment to be protect-

ed. There is no “IN” or “OUT”. MOD-CAT5 is

bi-directional.

MOD-DT4

EQUIP

OUT

RJ-45

LINE

RJ-45

EQUIP

OUT

RJ-14

LINE

RJ-14

EQUIP

OUT

RJ-11

LINE

RJ-11

LINE

RJ-11

EQUIP

OUT

RJ-11

EQUIP

OUT

S110D

Pull Out

LINE

S110D

Bl Bl

Or Or

Gr Gr

Br Br

1 - 4

MOD-DT4

For Digital

Telephone Lines

• 4 Pairs (8 wires) Protected

• 70 Volt Clamping • Straight-Through Pinout

1 - 8

1 - 4

1 - 8

1 - 4

WIRING DIAGRAM AND SPECIFICATIONS

MOD-UTP

For 10/100 Base-T Ethernet

• 4 Wires (Pins 1, 2, 3, 6) Protected

• 7 Volt Clamping

1- 8

1 - 8

WIRING DIAGRAM AND SPECIFICATIONS

EQUIP.

OUT

LINE

MOD-UTP

Pull Out

MOD-CAT5

For 10/100/1000 Base-T Ethernet

• 8 Wires (4 Pairs) Protected

• 19 Volt Clamping

• CAT5E Compliant

SPECIFICATIONS

Pull Out

MOD-CAT5

Coax protectors are bi-directional.

There is no "IN" or "OUT".

LINEEQUIP

MOD-DBSTV

For Digital Satellite & CATV Systems

3 Sat/CATV Lines Protected

75 Volt Clamping

<1 0.5dB 0 MHz to 2.2 GHz

1 Phone Line Protected

260 Volt Clamping

SAT 1

SAT 2

CATV

RJ-11

PINS 3, 4

WIRING DIAGRAM AND SPECIFICATIONS

Use modules bonding-strap connection

to attach ground, shield or drain wires.

MOD-SPKP

For Outdoor Speaker, Keypad, Control & Security Wires

• 8 Wires Protected, 47 Volt Clamping

• 7 Amp (per wire) Capacity,

• 12 AWG Max. Wire Size

WIRING DIAGRAM AND SPECIFICATIONS

MOD-DBSTV

EQUIP

OUT

RJ-11

LINE

RJ-11

SAT /

CATV

Pull Out

Card

SAT /

CATV

SAT /

CATV

OUTSIDE LINES

MOD-SPKP

RECEIVER

Pull Out

INSTRUCTIONS FOR PANAMAX SIGNAL LINE PROTECTION MODULES - PREMIUM SERIES

Model: MOD-DT4 (Secondary Protector) Model: MOD-DBSTV (Secondary Protector)

Model: MOD-UTP (Isolated Loop Circuit Protector)

Model: MOD-SPKP (Isolated Loop Circuit Protector)

Model: MOD-CAT5 (Isolated Loop Circuit Protector)

INS0769 REV .D 06/07

Produkt Specifikationer

Mærke:	Panamax
Kategori:	Ikke kategoriseret
Model:	MOD-SPKP
Produktfarve:	Metallic
Certificering:	cUL us
Kan monteres på væggen:	Ja
Maksimal strøm:	450 W
Nominel indgangsspænding:	- V
AC udgange, antal:	- AC stikkontakt(er)
Overspænding energivurdering:	- J
Spændingsblokering:	47 V
Audio/videolinje beskyttelse:	Ja
