Side 1/2

LAN SURGE PROTECTION 1 PAIR OF RJ-45 IN/OUT CONNECTORS

The protection circuit will only function if connected properly.

(IN from wall outlet and OUT to equipment)

COAXIAL SURGE PROTECTION

2 PAIRS UNIVERSAL IN/OUT

CONNECTORS

RACK MOUNTABLE.

RACK EARS NOT INCLUDED,

SOLD SEPARATELY

MR4300

BANK 1 BANK 2

CATV / SAT 1

UNIVERSAL COAX PROTECTION

MAIN POWER

120 VAC/15A

15 AMP

CIRCUIT

BREAKER

CATV / SAT 2

LAN

OUT

TEL

OUT

LAN

TEL

OUT

GROUND

LUG

BANK 2 - HIGH CURRENT OUTLETS BANK 1 - LINEAR FILTRATION

MR4300

BANK 1 BANK 2

CATV / SAT 1

UNIVERSAL COAX PROTECTION

MAIN POWER

120 VAC/15A

15 AMP

CIRCUIT

BREAKER

CATV / SAT 2

LAN

OUT

TEL

OUT

LAN

TEL

OUT

GROUND

LUG

BANK 2 - HIGH CURRENT OUTLETS BANK 1 - LINEAR FILTRATION

Speciﬁcations subject to change due to product upgrades and improvements.

Go to www.panamax.com for detailed noise ﬁltering information.

Español - Para la versión en español de este documento, vaya a www.panamax.com/products

Français - Pour la version espagnole de ce document, allez à www.panamax.com/products

DIN-00015 - REV. C

TEL SURGE PROTECTION 1 PAIR OF RJ-11 IN/OUT CONNECTORS

The protection circuit will only function if connected properly.

(IN from wall outlet and OUT to equipment)

Note to CATV Installers:

This reminder is provided to call attention to Article 820-40 of the NEC. That article provides

speciﬁc guidelines for proper grounding.It speciﬁes that the cable ground shall be connected

to the grounding system of the building and as close to the point of entry as practical.

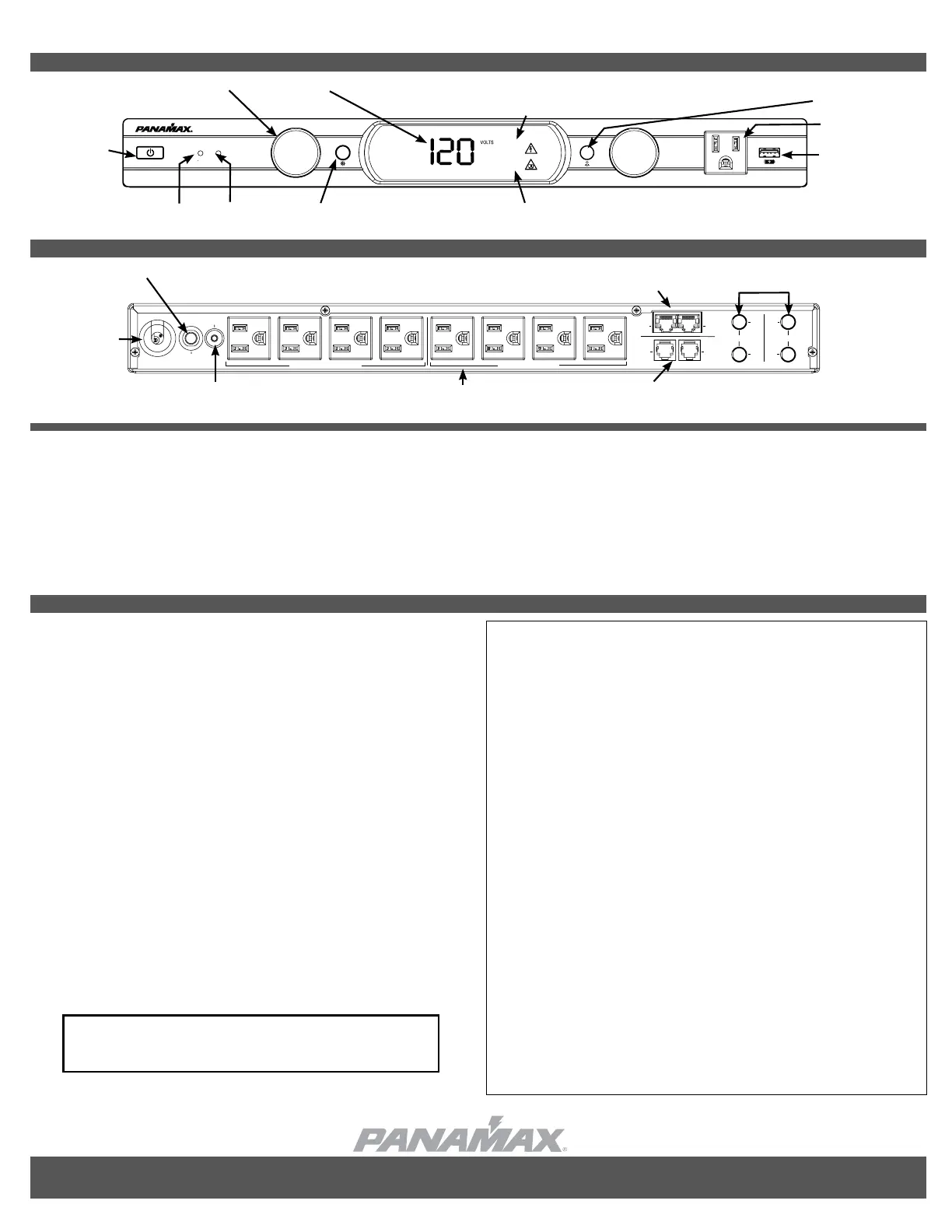

Front Panel Features

Back Panel Features

MR4300 Features and Speciﬁcations

Panamax LLC, 1690 Corporate Circle, Petaluma, CA 94954 • 707-283-5900 • 800-472-5555 • www.panamax.com

Model MR4300 Reference Guide

AC PROTECTION

Protect or Disconnect Circuitry_________________________________________________Yes

Patented Power Management Circuit____________________________________________Yes

Overvoltage Shutoff____________________________________________________ 140V ±4

Undervoltage Shutoff___________________________________________________ 95V ±3V

Thermal Fusing___________________________________________________________Yes

Line Voltage___________________________________________________120VAC, 50/60HZ

Initial Clamping Level__________________________________________ 200V Peak, 141VRMS

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)____________________________330V

Protection Modes_________________________________________________ L-N, L-G, N-G

Maximum Current Rating_____________________________________________15A (1800W)

EMI/RFI Noise Filtration______________________________ Panamax Level 3 Noise Filtration*

Response Time__________________________________________________________< 1ns

Single Pulse Energy Dissipation_________________________________________1350 Joules

Peak Impulse Current___________________________________________________52,000 A

LAN PROTECTION

Clamping Level____________________________________________________ 62±6V @ 1 mA

Compatibility____________________________________________________10/100/1000bT

Wires Protected _______________________________________________________8-Wires

Connectors____________________________________________________________RJ-45

TEL PROTECTION

Fuseless/Auto-Resetting________________________________________________Yes

Clamping Level__________________________________________________________260V

Wires Protected _________________________________________________ 2 wire, 1 pair (4, 5)

Connectors_________________________________________________________RJ-11

UNIVERSAL COAX PROTECTION

HD 1080 i/p Ready_________________________________________________________Yes

Bidirectional__________________________________________________________Yes

Shielded____________________________________________________________Yes

Clamping Level___________________________________________________________75V

Frequency Range_________________________________________________OMHz - 2.2 GHz

Insertion Loss_________________________________________________________ <0.5 dB

15A RESETTABLE CIRCUIT BREAKER

POWER ON / OFF

FOR ALL OUTLETS

8 ft. POWER CORD

with Right Angle

45° Low Proﬁle Plug

ALL AC OUTLETS (FRONT AND BACK) INCLUDE

SURGE PROTECTION AND POWER FILTRATION

ON / OFF CONTROL FOR DECORATIVE BLUE LIGHTS

(Blue lights can be illuminated when power is off)

VOLT METER

UNSAFE VOLTAGE INDICATOR normally OFF; when lit, indicates that incoming voltage is unsfe

and the surge protector has disconnected the power to protect your equipment.

LINE FAULT INDICATOR Normally not lit.

However, if it is LIT call a licensed electrician for proper and safe wiring for your wall outlet.

FRONT PANEL

CONVENIENCE OUTLET

Key Features

Exclusive Automatic Voltage Monitoring (AVM)

Panamax’s patent pending power monitoring

circuitry constantly monitors the AC line voltage

for unsafe voltage conditions such as momentary

spikes, prolonged over-voltages and undervoltag-

es (brownouts). These unsafe conditions pose a

very dangerous threat to all electronic equipment

within the home. If the MR4300 senses an unsafe

power condition, it will automatically disconnect

power from your equipment from the to protect

equipment from damage. The front panel indica-

tor will also alert users to the power condition.

Once the voltage returns to a safe level, the

MR4300 will automatically reconnect the power

to the outlets.

Protect or Disconnect™ Technologies

In the event of a catastrophic surge such as light-

ning, it completely disconnects AC power to con-

nected equipment.

Front Panel Outlet

MR4300 features a protected and noise ﬁltered

convenience outlet located on the front panel.

Perfect for temporary gaming systems, por-

table electronics (such as music players or smart

phones), or other personal electronics.

Front Panel Decorative Lights

Blue decorative lights add an attractive look at feel

to your equipment rack or TV cabinet.

Antenna, Cable, Sat and LAN Signal protection

Coaxial protection circuits prevent damaging

surges from entering through signal paths and

have the smallest signal loss on the market - less

than 0.5 db of attenuation from 0Hz to 2.2GHz.

Our coaxial protection has been speciﬁcally

designed to virtually eliminate signal loss. The

clamping level of 75V will meet and exceed the

demands of both cable and satellite voltages

while minimizing exposure to damaging spikes

and surges. LAN protection allows for 10/100

base-T Ethernet equipment to integrate into an

audio/video system without the risk of upstream

surge damage from a gateway, switch, router or

other network device.

Eight Protected and Filtered Power Outlets (see

speciﬁcations)

Eight Foot Power Cable with Low Proﬁle Plug

This 45° angle low proﬁle plug allows your

equipment to be as close as it can get to the wall

outlet while not blocking an adjacent outlets.

The 8’ power cord means your installation loca-

tion isn’t restricted by wall outlet location. Don’t

let your electronics control your lifestyle.

TO GET STARTED

1. Turn OFF the power to all equipment that will be plugged into the MR4300.

2. Plug the MR4300 into the wall outlet then turn it ON.

3. Verify that the LINE FAULT INDICATOR LED is NOT lit, indicating that the wall outlet is properly wired and

grounded. (If it is LIT call a licensed electrician to inspect and implement proper and safe wiring).

4. Plug the equipment to be proteced into the MR4300 AC outlets and leave everything off until after the

LAN, TELEPHONE and COAX Lines are connected and then proceed to turn on your connected equipment.

IMPORTANT SAFETY POINTS

Panamax surge protectors and the connected equipment must be indoors, in a dry location and in the same

building. Although your Panamax protector is very durable, its internal components are not isolated from the

environment. Do not install any Panamax product near heat emitting appliances such as a radiator or heat register.

Do not install this product where excessive moisture is present; for example near a bath tub, sink, pool basement

ﬂoor, ﬁsh tank, etc. It is not uncommon for a building to be improperly grounded. In order to protect your equipment,

Panamax products must be plugged into a properly wired and grounded 3-wire outlet. Additionally, building wiring

and grounding must conform to applicable NEC (USA) or CEC (Canada) codes for the Panamax protection policy to

be valid. Do not use 2-blade adapters or any other “power strips” with this product. Use only Panamax extension

cord, or a UL / CSA recognized power cord.

GROUND LUG

MEDIA LIGHTS - Can be rotated 45° left or right.

USB CHARGER

MEDIA LIGHTS

CONTROL

ON / OFF INDICATORS FOR OUTLET BANKS 1 AND 2
