SmartNode 4520 & 4110 Series

VoIP Gateway Routers

User Manual

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: support@patton.com

WWW: www.patton.com

Part Number: 07MD4524-GS, Rev. I

Revised: June 21, 2012

Important

This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial

or residential environment.

Introduction 21

SmartNode 4520 & 4110 Series User Manual 2 • Applications overview

Introduction

Patton’s SmartNode Media Gateway Routers deliver the features you need for advanced multiservice voice and

data network applications. They combine high quality voice-over-IP with powerful quality of service routing

functions to build professional and reliable VoIP networks. This chapter describes typical applications for

which the SmartNodes are uniquely suited.

Note

Detailed configuration information for SmartNode applications can be

found online at www.patton.com/smartnode.

Applications for SmartNode 4110 Series

The SmartNode 4110 Series device, equipped with a single Ethernet port, provides gateway and over-IP line

extension services.

SIP and H.323 terminal and PSTN gateways

All models provide voice-over-IP and FAX-over-IP services for integration into a VoIP network running the SIP

or H.323 protocol (see figure 8). The SmartNode 4110 Series supports automatic registration to a Gatekeeper

or SIP server to provide analog extension services or PSTN breakout connectivity.

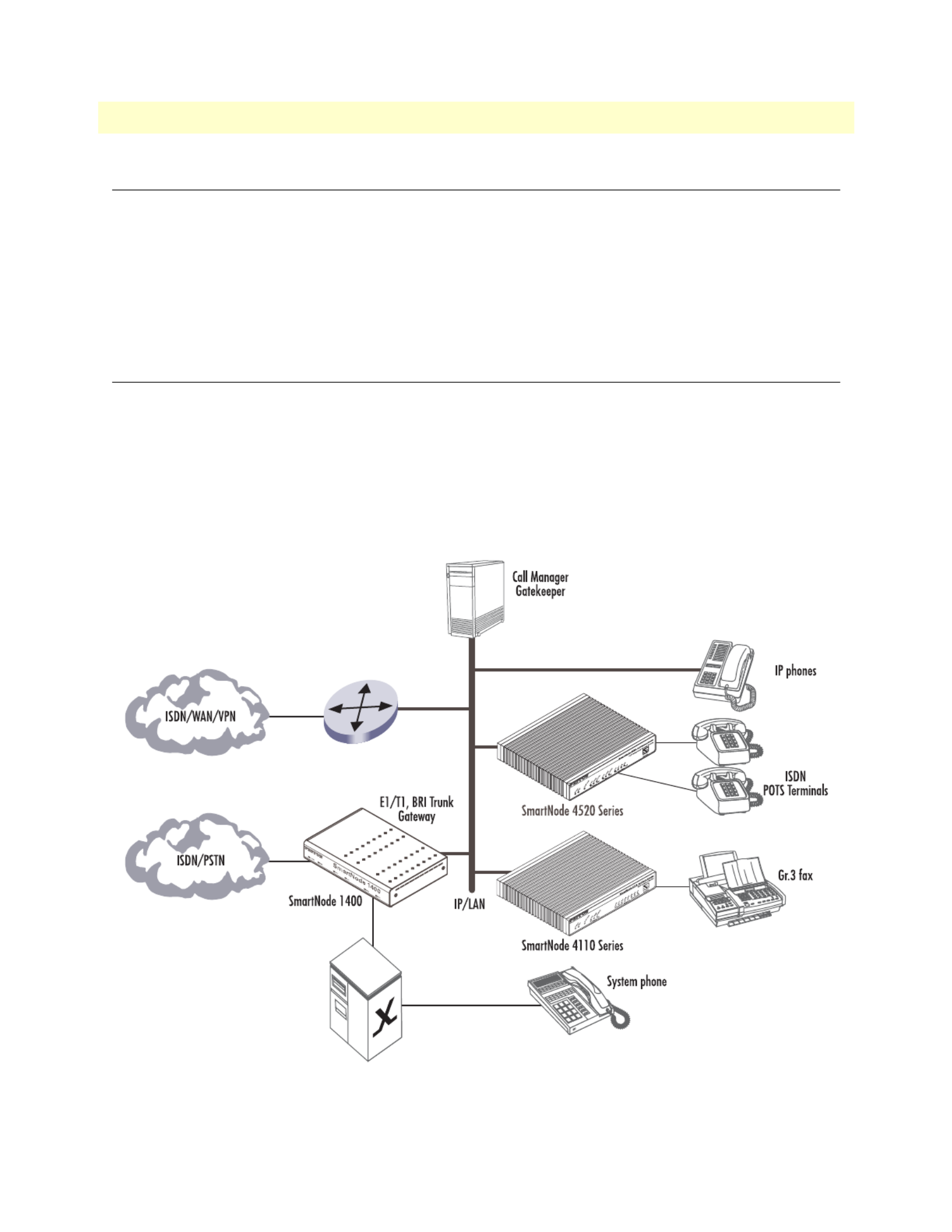

Figure 8. PSTN and Terminal gateways

Installing the gateway router 33

SmartNode 4520 & 4110 Series User Manual 3 • Hardware installation

Figure 18. Analog FXO connection

Figure 19. RJ-11 pinout diagram

Table 6. RJ-11 socket

Pin Signal

3 Ring (-)

4 Tip (+)

10/100 Ethernet

ETH 0/0

ETH 0/1 0/3 0/2 0/1 0/0

Voice Ports

FXS

Produkt Specifikationer

Mærke:	Patton
Kategori:	Ikke kategoriseret
Model:	SN4114
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Ethernet LAN-porte (RJ-45):	1
Driftstemperatur (T-T):	0 - 50 °C
Sikkerhedsalgoritmer:	3DES, DES
Intern hukommelse:	32 MB
Certificering:	EMC, Safety, CE, FCC Part 15 Class A, TBR21 (FXS), RoHS
Kabelteknologi:	10/100Base-T(X)
Netværksstandarder:	IEEE 802.1p, IEEE 802.1q, IEEE 802.3, IEEE 802.3u
LED-indikatorer:	Strøm
Indgangsspænding:	100 - 240 V
Processorfrekvens:	66 Mhz
Grænseflade:	SmartNode 4110
Flashhukommelse:	8 MB
Voice codecs:	G.711, G.711a, G.723, G.726, G.729A, G.729B
Indgangsfrekvens:	50/60 Hz
Indbygget processer:	MPC870
Administrationsprotokoller:	HTTP, CLI, TFTP, SNMP MIB II
Diagnostik:	Trace, debug, call generator
