1 Introduction

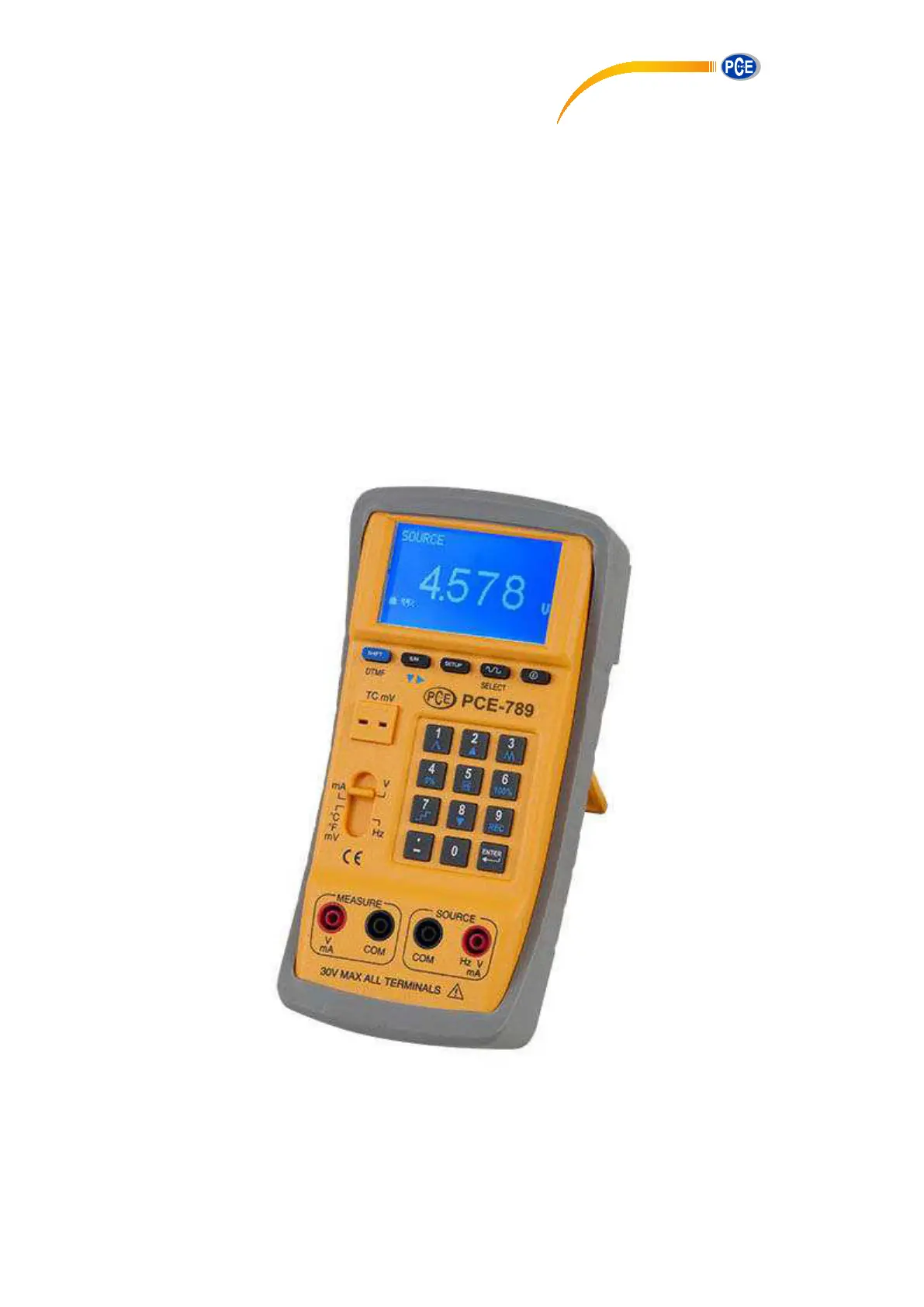

Thank you for purchasing a calibrator PCE-789 from PCE Instruments.
The multifunctional calibrator PCE-789 is a versatile instrument for measuring and simulating of the
process signals. Both current and voltage signals can be simulated and measured with the multifunctional
calibrator. The characteristics of many thermocouple types are stored in this
Multifunction calibrator and permit the entry and display of values in ° C. a special feature in this device is
an integrated functional generator. Besides the waveforms sine, triangle, square and cut sine 10 further
curve forms are stored in the multifunctional calibrator. In addition, due to the supplied software, also
specific waveforms can be created and stored in the device. Furthermore, this device can output two
superimposed frequencies. This functionality is combined with a robust plastic housing and allows
applying this multifunctional calibrator in many areas. For maintenance engineer in industry, the engineer
in the laboratory, as well as for the technicians in the service area this Multifunction Calibrator is a useful
tool, with the help of which many tasks can be completed. For mobile use, in addition to the power supply
via a power adapter the operation on battery is also possible.
1.1 Delivery
1 x Carrying case
1 x Manual
1 x AC Adapter
1 x USB cable
1 x Software CD
1 x Software Guide
1 x K-type thermocouples
2 x Alligator clip (red and black)
2 x Test leads (black and red)
1 x Rechargeable Lithium Battery (11,1V / 1600mAh)
2 Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device
may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no
warranty of damages or injuries caused by non-observance of the manual.
2.1 Warning Symbols
Warning about dangerous electrical voltage
