Manual

Vibration Meter Sensor Switch

PCE-VS 10

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

FL-33458

USA

From outside US: +1

Tel: (561) 320-9162

Fax: (561) 320-9176

info@pce-americas.com

www.pce-instruments.com/english

www.pce-instruments.com

PCE Instruments UK Ltd.

Units 12/13

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: (0) 2380 98703 0

Fax: (0) 2380 98703 9

info@industrial-needs.com

Instruction Manual

Vibration Switch VS103&(

Application and Operation

The instrument enables simple and cost efficient monitoring of vibration on rotating machines, for example,

in the frame of preventative maintenance to DIN/ISO 10816. Likewise, it can be used as a limit switch for a

diverse range of processes involving vibration and shock. Thanks to its inbuilt piezoelectric accelerometer

and signal processing, by means of a micro controller, the vibration switch operates reliably and with high

reproducibility.

Selectable filters and integrators, variable alarm settings and the high level of protection IP67 make VS103&(

ideal for a variety of applications, for example:

·Monitoring compressors, pumps, fans, generators

·Rail vehicles

·Quality control

·Transporting fragile goods

·Surveillance of doors and gates

·Impact and drop testing

By means of the inbuilt piezoelectric accelerometer, VS10 monitors vibrations perpendicular to the lid of its3&(

casing. It measures both positive and negative excitation.

3&(VS10 has a digital signal processor and a relay output for signalization. It indicates alarm status via green

and red LED's.

Parametrization

The parametrization is carried out with PC software via a common micro

USB cable. To connect the USB cable, unscrew the four socket head screws

and remove the lid. Inside you will see the USB connector (Figure 1).

Caution: If a USB cable is connected, the power will be supplied by the PC.

Make sure the power is never supplied via a USB cable and the connection

terminals simultaneously.

When connecting VS10 to a PC for the first time, you will be prompted 3&(

install the driver. The driver file “MMF_VCP.zip” can be found on our

website:

Unzip and save both the enclosed files to a directory on the computer.

When Windows requests the location of the instrument driver, enter this di-

rectory. The instrument driver is signed and runs with Windows XP, Vista, 7, 8 and 10.

The driver installs a virtual COM Port on the PC and operates in CDC mode, thus enabling simple control

via the ASCII commands.

To setup the VS10 the PC-Software is available under the above link. Unzip the file vs1x.zip into a di-3&( VS1x

rectory on your PC and then start . The installation directories can be changed if needed. The pro-setup.exe

gram is a LabView application and for this reason installs several components of the LabView Run-Time en -

vironment from National Instruments.

Once installed, the program is located under in the start menu of your computer. (Figure 2).Metra Radebeul

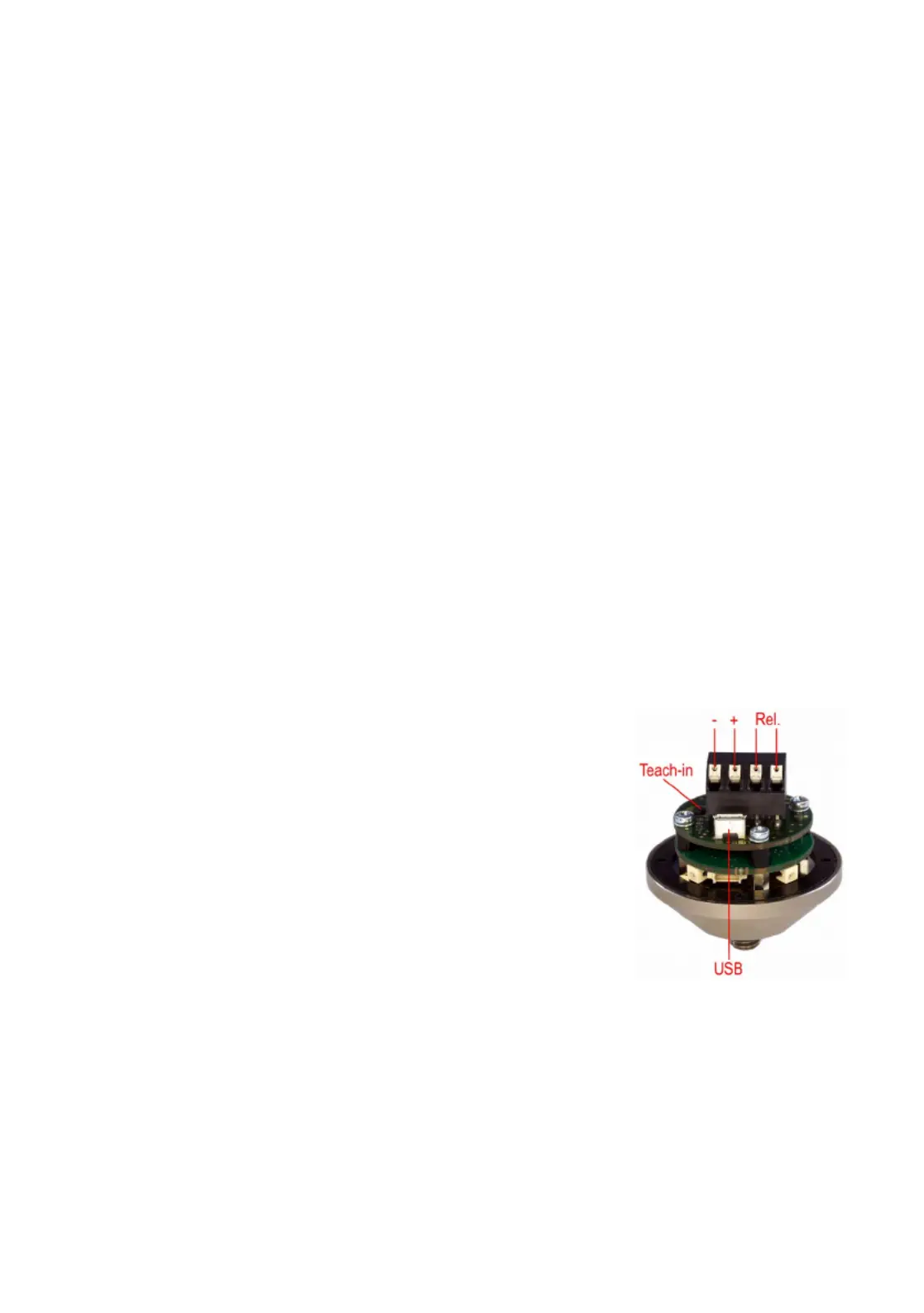

Figure 1: Connections
