ISSUED: 11-15-11 SHEET #: 021-9014-2 10-15-12

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com

Max Load Capacity:

5 lbs (2.2 kg)

Installation and Assembly:

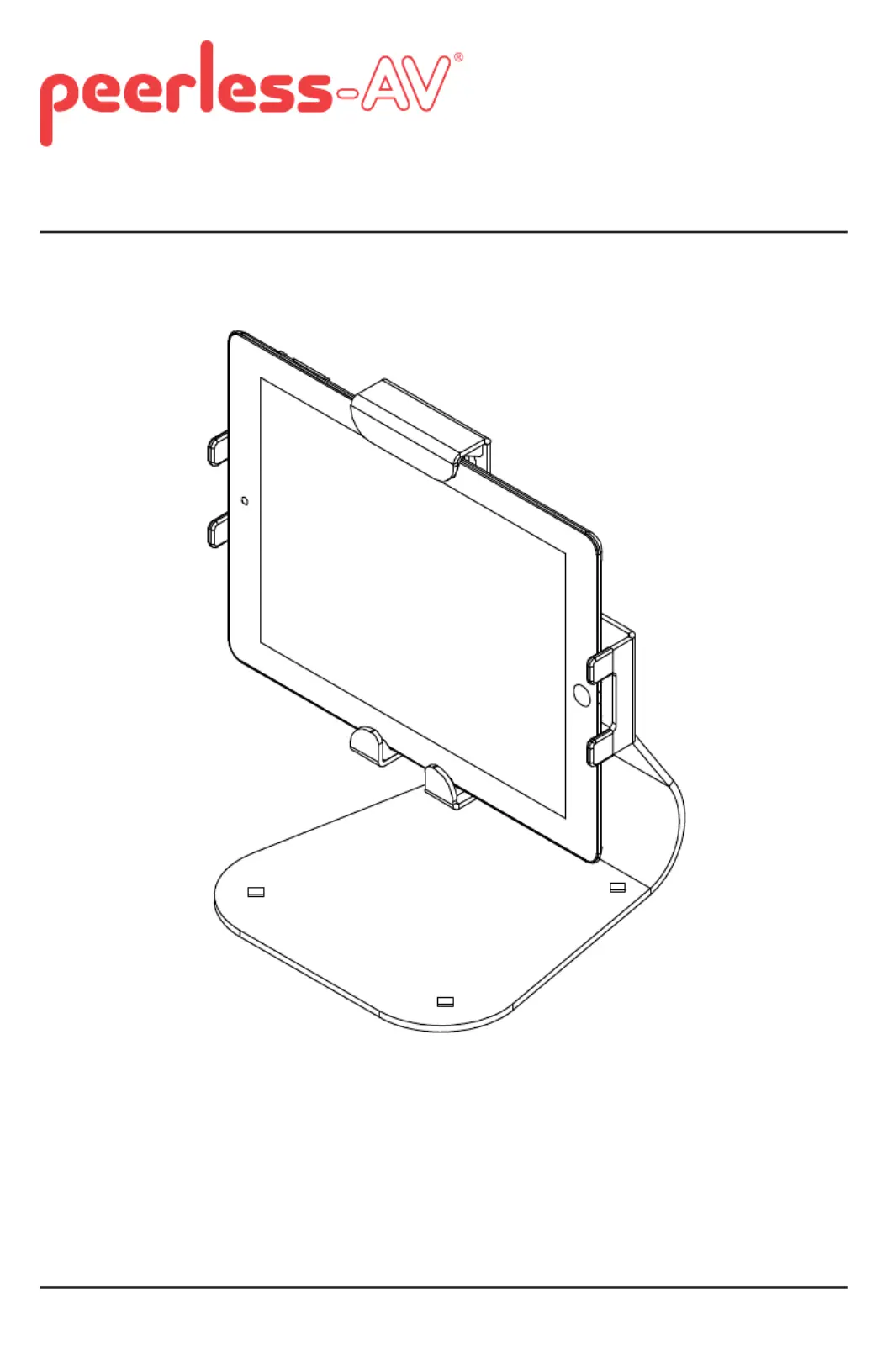

Universal Tablet Mount

Models: PTM400, PTM400S

PTM400-W, PTM400S-W

Features:

• Adjustable height and width allows mount to ﬁ t virtually any tablet

• Quick and easy installation onto desktop

• 30° of tilt and 360° of roll allows for a variety of positions in order to achieve the perfect viewing

angle

• Theft resistant security kit available

• Allows for cable management

2 of 8

ISSUED: 11-15-11 SHEET #: 021-9014-2 10-15-12

NOTE: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List................................................................................................................................................ 3

Cradle Assembly.................................................................................................................................4-5

Attaching Cradle Assembly to Mount..................................................................................................... 6

Tools Needed for Assembly

•phillips screwdriver

Accessories

•ACC954 (security fasteners kit)

• Do not begin to install your Peerless product until you have read and understood the instructions

and warnings contained in this Installation Sheet. If you have any questions regarding any of the

instructions or warnings, for US customers please call Peerless customer care at

1-800-865-2112, for all international customers, please contact your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience

with basic building construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and

all attached hardware and components.

• Never exceed the Maximum Load Capacity. See page one.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly

reducing their holding power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product

failure and personal injury.

WARNING

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	Ikke kategoriseret
Model:	PTM400S
Bredde:	170 mm
Dybde:	178 mm
Højde:	288 mm
Vægt:	2270 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	2270 g
Pakkedybde:	254 mm
Pakkebredde:	254 mm
Pakkehøjde:	203 mm
Materiale:	Polyester
Harmoniseret systemkode (HS):	84733080
Drejevinkel område:	-30 - 30 °
Hældningsvinkelområde:	-30 - 30 °
Rotationsvinkel:	360 °
Skærmstørrelse kompatibilitet:	7.68 - 13.75 "
Maksimal vægtkapacitet:	2.27 kg
Hældningsindstilling:	Ja
Højde (front):	237 mm
Højde (bagside):	288 mm
Maksimal skærmstørrelse kompatibilitet:	11.42 "
Minimal skærmstørrelse kompatibilitet:	6.92 "
Minimum kompatibilitet med tabletskærmstørrelse:	7.68 "
