XTREME

™

HIGH BRIGHT OUTDOOR DISPLAY

MODEL: XHB432-EUK, XHB492-EUK, XHB552-EUK

User Guide

ENG

2018-08-10 #:180-9120-1

SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS

Electrical Code

Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of

the National Electric Code that provides guidelines for proper grounding and, in particular, species

that the cable ground shall be connected to the grounding system of the facility. Outlet shall be

installed near the equipment and shall be easily accessible.

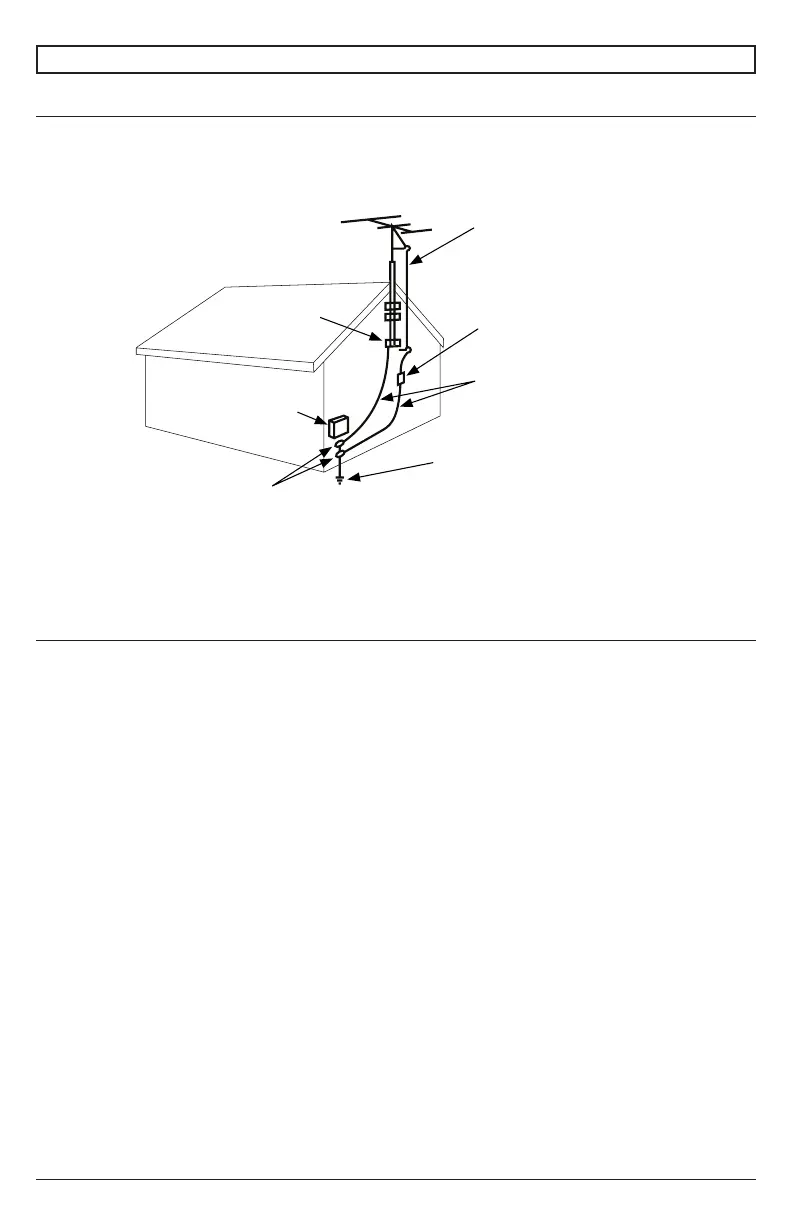

Antenna discharge unit

(NEC Section 810-20)

NEC National Electric Code

Ground clamp

Electric service

equipment

Ground clamps

Power service grounding

electrode system

(NEC Art 250 Part H)

Grounding conductors

(NEC Section 810-21)

Antenna lead-in wire

Note: Installation shall incorporate UL Listed external surge protection rated 2500 Vpk or less, for 150

to 300 Vac mains, installed in accordance with Article 285 of ANSI/NFPA 70 or applicable local codes.

Power Source

The display must be connected to a mains socket outlet with a protective grounding connection.

The mains plug is used as the disconnect device and shall remain readily accessible.

Electrical installation shall be in accordance with the applicable parts of Chapter 8 of ANSI/NFPA70.

An outdoor antenna should not be located near overhead electrical lines or any electrical circuits.

If an outside antenna is connected to the receiver, conrm that the antenna system is grounded to

protect against voltage surges and built up static charges. Section 810 of the National Electric Code,

ANSI/NFPA No 70-1984, provides information with respect to proper grounding for the mast and

supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding

connectors, location of antenna discharge unit, connection to grounding electrodes and requirements

for the grounding electrode.

This display operates on 100-240 volts 50-60 Hz, AC current. Insert the power cord into a 220-240

volt 50 Hz outlet. Never connect the display to direct current or anything other than the specied

voltage.

To prevent electric shock from the display, do not use with an extension cord, receptacle, or other

outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

All secondary lines must be routed through grounded conduit and kept separate from AC line.

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	overvåge
Model:	XHB552-EUK
Kode for international beskyttelse (IP):	IP68
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	1272 mm
Dybde:	100 mm
Højde:	742 mm
Vægt:	60000 g
Produktfarve:	Sort
Pakkevægt:	65770 g
Pakkedybde:	270 mm
Pakkebredde:	1413 mm
Pakkehøjde:	867 mm
Skærm diagonal:	54.63 "
Skærmopløsning:	1920 x 1080 pixel
Berøringsskærm:	Ingen
USB-port:	Ja
HD-type:	Fuld HD
Skærmteknologi:	LED
Naturligt aspektforhold:	16:9
Skærmens lysstyrke:	2500 cd/m²
Responstid:	12 ms
Synsvinkel, horisontal:	178 °
Synsvinkel, vertikal:	178 °
Antal HDMI-porte:	3
DVI-port:	Ingen
Ethernet LAN-porte (RJ-45):	1
Komponentvideo (YPbPr/YCbCr) indgang:	1
Ethernet LAN:	Ja
Skærmvisning (OSD):	Ja
VESA montering:	Ja
Panel montering grænseflade:	400 x 200,400 x 400 mm
Strømforbrug (standby):	- W
Strømforbrug (typisk):	186 W
Driftstemperatur (T-T):	-35 - 60 °C
Kabler inkluderet:	Vekselstrøm
Oprindelig opdateringshastighed:	60 Hz
Sammensat videoindgang:	1
Fjernbetjening inkluderet:	Ja
Certificering:	FCC Class A
Sensor for omgivende lys:	Ja
DC-in-stik:	Ja
USB version:	2.0
Understøttet placering:	Indendørs/udendørs
Antal USB-porte:	1
Farvedybde:	8 Bit
Formål:	Universel
Støjreduktion:	Ja
Kontrastforhold (typisk):	1300:1
Pixel pitch:	0.21 x 0.63 mm
Antal DisplayPorts:	1
Produktdesign:	Digital fladpaneldisplay
VGA (D-Sub) indgangsporte:	1
Driftstimer (timer/dage):	24/7
RS-232 grænseflade:	Ja
Antal HDMI-indgangsporte:	3
Justerbar farvetemperatur:	Ja
