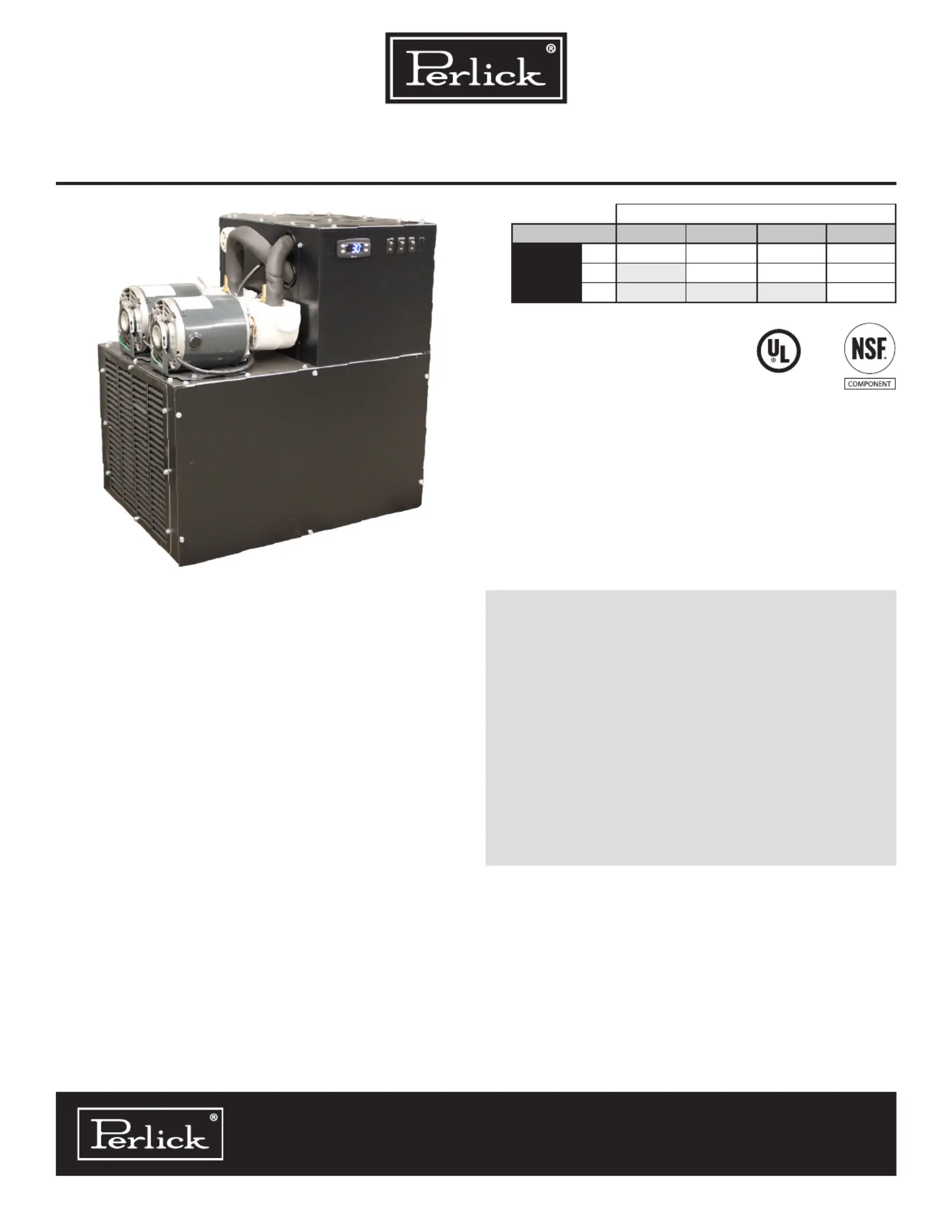

Side 1/8

INSTALLATION AND OPERATION INSTRUCTIONS

4400QC SERIES POWER PAKS

IMPORTANT INFORMATION

To register your product, visit our web site at

perlick.com Commercial Service. Click on , then .

You will see the link to Warranty Registration Form.

You must complete and submit this form or the

installation date will revert back to the ship date.

Permanently mount the enclosed Warning/Safety

Instruction label in a visible location near the CO2

regulator.

This manual has been prepared to assist you in the

installation of your 4400QC Series Power Pak and to

acquaint you with its operation and maintenance.

We dedicate considerable time to ensure that our

products provide the highest level of customer

satisfaction. If service is required, your dealer can

provide you with a list of qualified service agents.

For your own protection, never return merchandise

for credit without our approval.

We thank you for selecting a Quick Chill product and

assure you of our continuing interest in your

satisfaction.

8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414.353.7060 • Fax 414.353.7069

Toll Free 800.558.5592 • E-Mail perlick@perlick.com • www.perlick.com

Table of Contents

Sizes & Specications ............................................2-3

General Information 3 ..........................................

Installation 3-4 .....................................................

Connecting Power Pak to Trunk Housing 4-5 ...........

Power Pak Start-Up 5-6 ................................................

LEDS 6-7 ......................................................................

Preventative Maintenance 6-7 ......................................

Replacement Parts 7 ....................................................

Wiring Diagrams 8 ........................................................

Form No. Z0507QC

Rev. 06.01.23

MODELS

Compressor Size 1/3 HP 1/2 HP 3/4 HP 1-1/2 HP

# of

Circulating

Pumps

1 4404QC 4410QC 4414QC 4420QC

2 4410QC-2 4414QC-2 4420QC-2

3 4420QC-3

MODEL NOS. 4404QC 4410QC 4410QC-2 4414QC 4414QC-2 4420QC 4420QC-2 4420QC-3

DIMENSIONS:

EXTERIOR

(mm)*

Length “A” 24-1/4" (616) 26-3/4" (680)

Width “B” 17-1/4" (439) 20-1/4" (515)

Height “C” 25-1/2" (648) 31" (788)

* A minimum of six inches of clearance should be allowed around the entire unit for proper performance. Additional Clearance should be considered for above the

unit and in front of the unit for serviceability.

ELECTRICAL Voltage 120V 115-208/230V **

Frequency 60 Hz

Phase 1 Ø

RLA (Rated

Load Amps) 14.4 15.7 21.8 20.6 26.2 21.9 24.7 27.5

MCA (Min. Circuit

Ampacity) 16.4 18.0 24.1 24.0 29.6 26.6 29.2 32.0

MOCP (Max. Over-

Current Protection) 20 25 30 35 40 40 45 50

COMPRESSOR (Horse Power) 1/3 1/2 3/4 1-1/2

EVAPORATOR RATING @ 20°F (BTUH) 2550 3800 6000 12000

HEAT of REJECTION MAX (BTUH) 4080 6080 9600 19200

REFRIGERATION Constant Pressure Expansion Valve, Condensing Unit with Service Valves

REFRIGERANT (TYPE) R-134a

REFRIGERANT CHARGE 14.0 oz/397g 12.0 oz/340g 14.0 oz/397g 16.0 oz/454g

SHIPPING WEIGHT LBS (kg) 140 (64) 138 (63) 150 (69) 167 (76) 180 (82) 217 (99) 230 (105) 245 (112)

CABINET Black Vinyl Clad Galvanized Steel

CIRCULATING PUMP 70 GPH / 80 PSIG (MAX)

RESERVOIR CAPACITY 1.75 Gallons

GLYCOL CONCENTRATION 30%

OPTIONAL ACCESSORIES

(Sold Separately)

• C22296A-20 - Power Cord Kit for 4404QC & 4410QC Single Pump Units Only (NEMA 5-20P)

• 57782 - Adjustable Legs (Set of 4)

• 61468 - Overow Bottle Kit

• 63299-1 - Food Grade Glycol Pre-Mix (1 gallon)

• 61790A2 - Dual Tier Rack

• 61790A3 - Triple Tier Rack

• C21499SS - Stainless Steel Table Stand

• 4408SS - Wall Bracket for 4404QC & 4410QC Only

**4-WIRE AC POWER SOURCE REQUIRED

AC - 115-208/240V, 60Hz, Split Single Phase

(Ground, Neutral, Hot-Power, Hot-Power)

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice

4400QC SERIES POWER PAKS  AIR COOLED

 INSTALLATION AND OPERATING INSTRUCTIONS

WARNING: California Prop 65 Noce

These products may expose you to chemicals including

Chromium, which are known to the state of California

to cause cancer and birth defects or other reproducve

harm. For more informaon on whether a product in this

list contains these chemicals, please refer to the specic

product page at perlick.com. Or to nd out more about

Prop 65, go to P65Warnings.ca.gov.
