Side 1/12

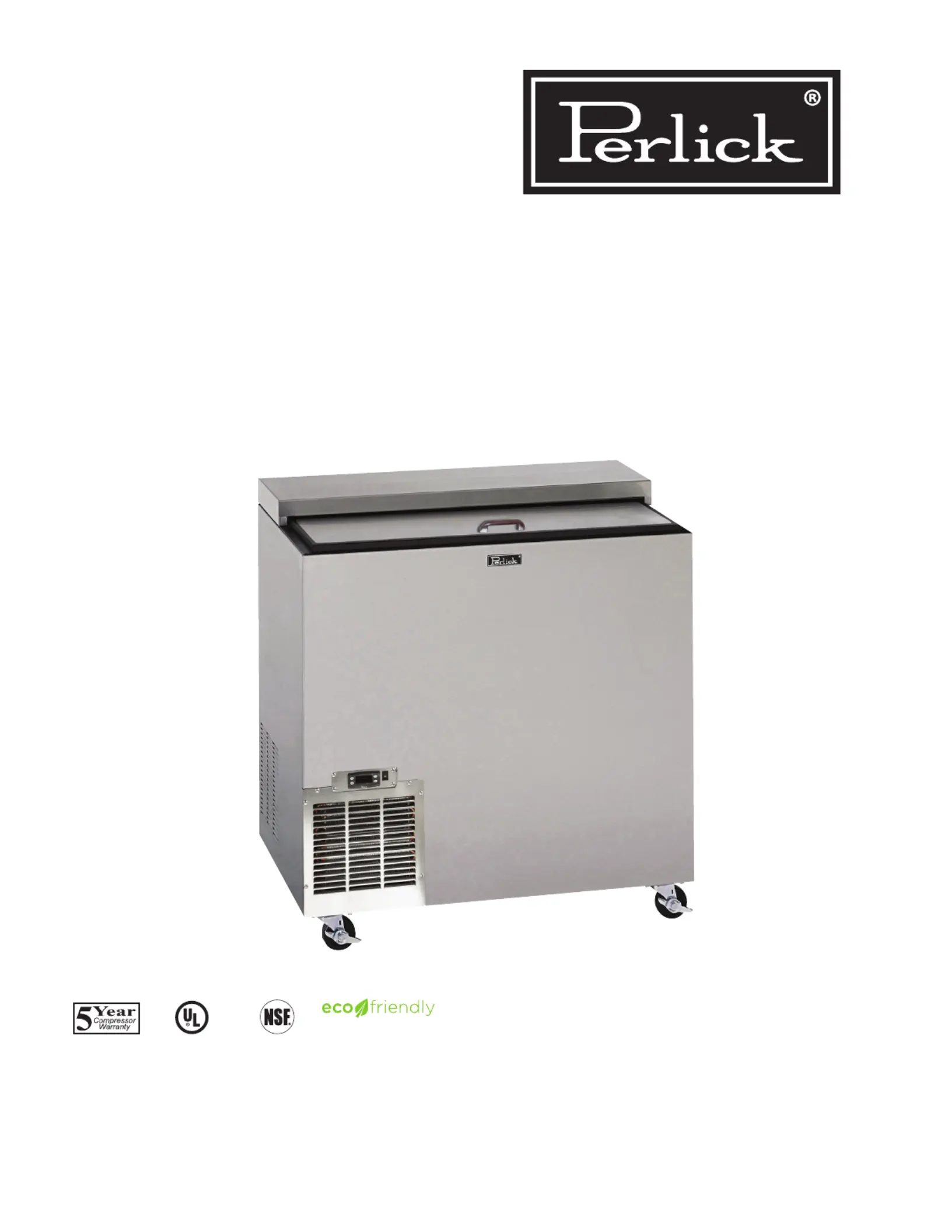

Installation &
Operation Manual
Glass/Mug Frosters
FR Series
Form No. Z2633
Rev. 04.20.23
C
US
R290
FR36 shown
The Perlick Corporaon veries this product does not contain a prohibited refrigerant as dened by the California Air Resource Board (CARB),
the state of New York, and any other state with HFC prohibion laws. This product does not contain HFC’s. The following disclosure statement is
provided to comply with the CARB regulaon:
This equipment is prohibited from use in California with any refrigerants on the “List Of Prohibited Substances” for
that specic end use, in accordance with the California Code of Regulaons, tle 17, secon 95374. This disclosure
statement has been reviewed and approved by the Perlick Corporaon and the Perlick Corporaon aests under
penalty of perjury, that these statements are true and accurate.
Printed in USA 2
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
Glass Frosters Installation & Operation Manual
JOB
AREA
ITEM NO.
MODEL NO.
FR24 SERIES
FR36 SERIES
FR48 SERIES
FR60 SERIES
C
US
FR24 shown
R290
Refrigerant
MODEL NUMBERS FR24 FR36 FR48 FR60
EXTERIOR CABINET
DIMENSIONS
Length - in. (mm) 24 (610) 36 (914) 48 (1219) 60 (1524)
Depth - in. (mm) 24 (610) 24 (610) 24 (610) 24 (610)
Height - in. (mm) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866)
INTERNAL NET VOLUME - cubic ft. (liters) 4.2 (118) 8.6 (242) 12.5 (353) 16.3 (462)
PLATE CAPACITY * 135 Plates 215 Plates 300 Plates 400 Plates
GLASS CAPACITY * 90 Glasses 142 Glasses 214 Glasses 286 Glasses
W/ OPTIONAL THIRD SHELF N/A 172 Glasses 273 Glasses 363 Glasses
SHIPPING WEIGHT LBS. KG. 190 (86) 245 (111) 300 (136) 353 (160)
CABINET CONSTRUCTION (INTERIOR) All models have stainless steel walls and oor.
CABINET CONSTRUCTION (EXTERIOR)
Choice of black, stainless steel and all stainless.
Black Option: Front and ends are black vinyl coated steel, back and bottom are galvanized.
Stainless Steel Option: Front and ends are stainless steel, back and bottom are galvanized.
All Stainless Option: Front, ends, back and bottom are all stainless steel.
DOORS AND HARDWARE Sliding style open. Stainless steel top and bottom pans. Die cast handle
PLUMBING No drain required. Condensate evaporates automatically.
INSULATION 2 inch foamed-in-place, environmentally friendly Ecomate® polyurethane insulation.
VENTILATION
FR24 model is front vented, all other models require 2” clearance from wall on either left end
or back of cabinet for proper air ow.
TEMPERATURE
SPECIFICATIONS
Default Temperature Setpoint:
Standard Temp Models - °F [°C]
0 [-17.75]
Adjustable Setpoint Range:
Standard Temp Models - °F [°C]
(-) 10 to (+)10 [-23.3 to -12.2]
ELECTRICAL
SPECIFICATIONS
Supply 120 VAC/60 Hz/1 Ph
Running Load Amps 3.8 3.8 3.8 3.8
Power Cord 6-foot length with NEMA 5-15 plug.
Thermostat NSF Listed electronic control.
Automatic Defrost Automatic electric defrost every 4 hours for approximately 20 minutes.
Manual Defrost
Push button defrost system, manually initiated at the end of each day.
Automatically terminates after six hours.
REFRIGERATION
SPECIFICATIONS
Condensing Unit Hermetic condensing unit pulls out for service and cleaning.
Expansion Device Capillary Tube
Refrigerant R290
Refrigerant Charge (g) 80 100 100 115
Compressor H.P. 1/4 1/4 1/4 1/4
Total Heat of Rejection At 75°F ambient (BTU/h) 1530 1625 1625 1670
OPTIONAL ACCESSORIES
Flat shelving • Divider shelving • Roller basket shelving
Set of 4 Adjustable legs (Multiple sizes available)
Set of 4 Casters w/ brakes (Multiple sizes available) • 2’, 3’, 4’,and 5’ Bottle Rail (eld Installed)
#
FR48 shown
* Capacity based on use of 3" diameter glass and 9-1/2" diameter X 1/2" thick plate.
# This product is evaluated by NSF for the chilling of glassware and plates. This product is not intended for the storage of food products.
