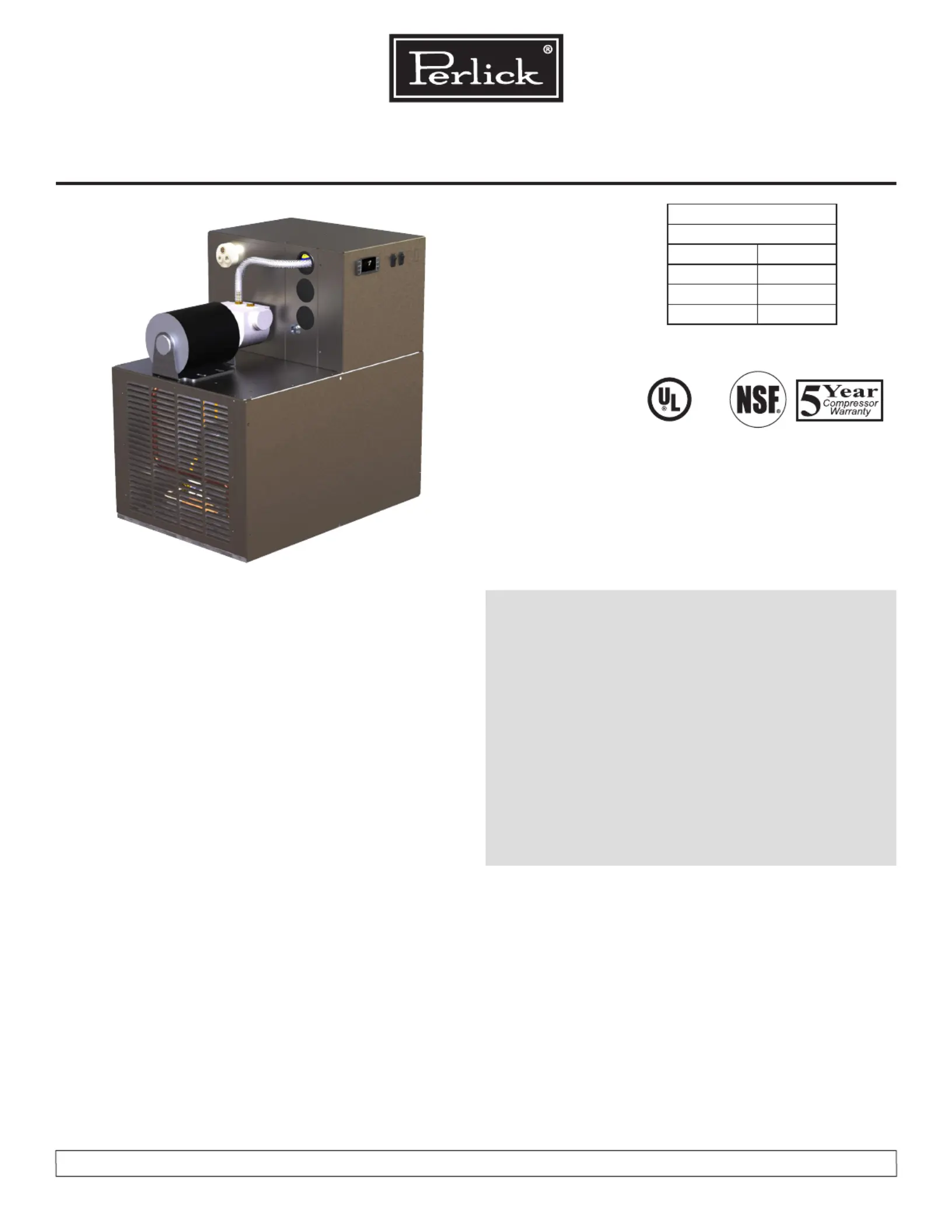

PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
MODELS
4400 Series
4404 4414-230
4410 4410W
4414 4414W
4420 4420W
C
US
INSTALLATION AND OPERATION INSTRUCTIONS
4400 SERIES POWER PAKS
IMPORTANT INFORMATION
To register your product, visit our web site at www.
perlick.com Commercial Service. Click on , then .
You will see the link to Warranty Registration Form.
You must complete and submit this form or the
installation date will revert back to the ship date.
Permanently mount the enclosed Warning/Safety
Instruction label in a visible location near the CO2
regulator.
This manual has been prepared to assist you in the
installation of your Century Remote Beer System and
to acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.
We thank you for selecting a Perlick product and assure
you of our continuing interest in your satisfaction.
Table of Contents
Sizes & Specications ............................................ 2-3
Air-Cooled Models 2 .................................................
Water-Cooled Models 3 ............................................
General Information 4 ..........................................
Installation 5 ........................................................
Connecting Power Pak to Trunk Housing 6 ..............
Connecting to Trunk Housing 7 ................................
Power Pak Start-Up 8 ...................................................
LEDS 9 .........................................................................
Preventative Maintenance 9 .........................................
Replacement Parts 10 ..................................................
Wiring Diagrams ...................................................... 11
Form No. Z2020
Rev. 11.30.2022
** 4 WIRE AC POWER SOURCE REQUIRED
(Ground, Neutral, Hot-Power, Hot-Power)
AC: 115 - 208/240v, 60 HZ, Split Single Phase
MODEL NOS. 4404 4410 4414 4414-230 4420
DIMENSIONS:
EXTERIOR (mm)
Length “A” 24¼” (616) 24¼” (616) 24¼” (616) 26¾” (679) 26¾” (679)
Width “B” 17¼” (438) 17¼” (438) 17¼” (438) 20¼” (519) 20¼” (519)
Height “C” 25½” (648) 25½” (648) 25½” (648) 31” (782) 31” (782)
A minimum of six inches of clearance should be allowed around the entire unit for proper performance.
Additional clearance should be considered for above the unit and in front of the unit for servicability.
ELECTRICAL Voltage 115 - 208/230 V** 115 - 208/230 V**120 V 120 V 120 V
Frequency 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Phase 1 Ø 1 Ø 1 Ø 1 Ø** 1 Ø**
SINGLE PUMP RLA (Rated Load Amps) 15.1 15.7 17.1 10.5 21.9
MCA (Min. Circuit Ampacity) 17.2 18.0 19.6 12.2 26.4
MOCP (Max. over Current Protection) 25 25 25 15 40.0
DUAL PUMPS
(add -2 to model #)
RLA (Rated Load Amps) N/A 21.8 22.7 13.3 24.7
MCA (Min. Circuit Ampacity) N/A 24.1 29.6 15.0 29.2
MOCP (Max. over Current Protection) N/A 30.0 40.0 20.0 45.0
TRIPLE PUMPS
(add -3 to model #)
RLA (Rated Load Amps) N/A N/A N/A 16.1 27.5
MCA (Min. Circuit Ampacity) N/A N/A N/A 17.8 32.0
MOCP (Max. over Current Protection) N/A N/A N/A 20.0 50.0
COMPRESSOR 1/3 HP 1/2 HP 3/4 HP 3/4 HP 1.5 HP
EVAPORATOR RATING
@ 20°F (BTUH)
3420 3800 6000 6300 12000
HEAT REJECTION (MAX) 4080 6080 9600 10080 19200
REFRIGERANT R-134a R-134a R-134a R-134a R-134a
SHIPPING WEIGHT LBS (kg) 140 (64) 153 (69) 180 (82) 205 (93) 255 (116)
CABINET Stainless Steel
CIRCULATING PUMP 100 GPH/130 PSIG
RESERVOIR CAPACITY 1.75 gal 1.75 gal 1.75 gal 1.75 gal 1.75 gal
REFRIGERATION Constant Pressure Expansion Valve, Condensing Unit with Service Valves
REFRIGERANT CHARGE (grams) 14.0 oz/397 g 12.0 oz/340 g 9.5 oz/269 g 11.0 oz/312 g 16.0 oz/453 g
GLYCOL CONCENTRATION 30% 30% 30% 30% 30%
OPTIONAL
ACCESSORIES
4430 115V pump kit for 4410 Power Pak (eld installed) 61790 Dual Tier Rack
4431 115V pump kit for 4414 Power Pak (eld installed) 61790P1 Triple Tier Rack
4432 208/230V pump kit for 4414/230V and 4420 Power Paks (eld installed) C22296A-20 Cord Kit for 120V single pump Power Paks only (Field installed)
4435 BLM Receptacle
4408SS Wall Bracket for 4404 and 4410 only
C21499BSS Stainless Steel Table Stand
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice
2
