Installation

Instructions

Dispensing Towers

Draft Arm, Lucky, Panther or Tee Towers

PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com

Form No. Z2351

Rev. 11.2.22

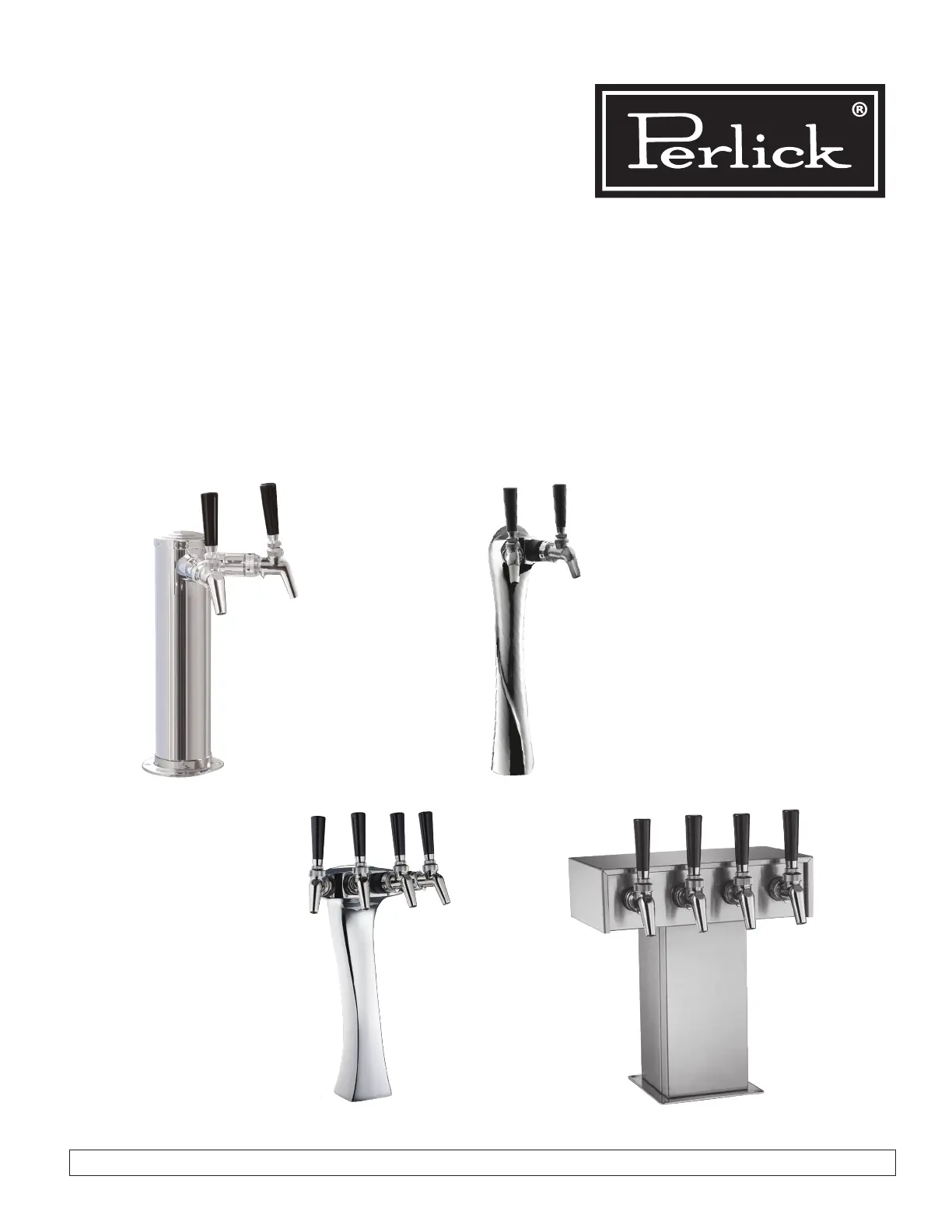

Tee Tower

Lucky Tower

Panther Tower

Draft Arm

PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com

PRODUCT INSTALLATION INSTRUCTIONS Dispensing Towers

DISPENSING TOWERS

DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS

TABLE OF CONTENTS

Beer and Wine Kits ............................................................................................................................................................................... 3

Tools and Materials Required ......................................................................................................................................................... 3

Dispensing Kit Component Parts .................................................................................................................................................. 3

Air Scoops for Field Retrot Kits ................................................................................................................................................... 7

General Installation and Field Retrot Installation ............................................................................................................. 8

Safety Information ............................................................................................................................................................................... 8

About Wine Dispensing ..................................................................................................................................................................... 8

Air Distributor and Air Scoop Installation - Field Retrot Instructions ...................................................................... 9

Air Tubing to Air Scoop Attachment 9 ............................................................................................................................................

Air Distributor Assembly Attachment to Cabinet 9 ....................................................................................................................

Draft Arm and Tee Tower Instructions ..................................................................................................................................... 10

Draft Arm Preparation 10 ....................................................................................................................................................................

Tee Tower Preparation 10 ....................................................................................................................................................................

Mounting Draft Arms or Tee Towers to a Cabinet Top 10 ........................................................................................................

Mounting Draft Arms or Tee Towers to a Counter Top 11 .......................................................................................................

Attaching Faucets to Draft Arms or Tee Towers 11 ....................................................................................................................

Mounting the Beer/Wine Drainer to a Cabinet Top 11 .............................................................................................................

Mounting the Beer/Wine Drainer to a Counter Top 12 ............................................................................................................

Running the Air Scoop Tubing to the Draft Arms or Tee Towers 12 ....................................................................................

Attaching the Beer Line to the Draft Arms or Tee Towers 13 .................................................................................................

Attaching the Wine Line to Draft Arms or Tee, Lucky or Panther Towers 13 ....................................................................

Attaching the Gas Line Tubing 14 ...................................................................................................................................................

Attaching the Tapping Hole Covers .......................................................................................................................................... 14

Attaching the Air Distributor Cover 14 ...........................................................................................................................................

Checking the System for Leaks 14 ...................................................................................................................................................

Lucky and Panther Tower Instructions ................................................................................................................................... 15

Lucky and Panther Tower Preparation 15 .....................................................................................................................................

Mounting Lucky or Panther Towers to a Cabinet Top 15 .........................................................................................................

Mounting Lucky or Panther Towers to a Counter Top 15 ........................................................................................................

Attaching Faucets to Lucky or Panther Towers ..................................................................................................................... 15

Mounting the Beer/Wine Drainer to a Cabinet Top 16 ............................................................................................................

Mounting the Beer/Wine Drainer to a Counter Top 17 ............................................................................................................

Running the Air Scoop Tubing to the Lucky or Panther Towers 17 .....................................................................................

Attaching the Beer Line to the Lucky or Panther Towers 18 ..................................................................................................

Attaching the Gas Line Tubing 18 ....................................................................................................................................................

Attaching the Tapping Hole Covers .......................................................................................................................................... 18

Attaching the Air Distributor Cover 19 ..........................................................................................................................................

Checking the System for Leaks 19 ...................................................................................................................................................

Appendix ............................................................................................................................................................................................... 20
