PACKAGE CONTENTS For latest version check www.Phanteks.com

INSTALLATION GUIDE V1.0

PH-GB3090TIASBP_BK01/CR01

GLAC IER G3090Ti ASUS BACKPLATE

WARNING - This product is intended for advanced users. Improper installation may result in damage to your equipment. While all eorts

have been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s)

occurring to your components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below

instructions, or due to failure or defect in the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.

Turn o the power to your system and discharge your body’s static electric charge before proceeding with the installation procedure. If you do not

feel comfortable with performing the installation procedure, consult a qualied computer technician.

GLACIER BACKPLATE

QTY: 1

This product requires the PH-GB3090TIAS GPU water block. Please follow step 1 to 3 of the GPU

water block’s installation guide before proceeding.

M2.5x8 Flush Screws

QTY: 9

Thermal Pads

QTY: 3

FINISH STEPS 1 TO 3 FROM THE WATER BLOCK INSTALLATION GUIDE BEFORE PROCEEDING:

STEP 4. APPLYING THERMAL PADS

Remove the protective lm and place the

thermal pads on the correct position on

the backplate.

Make sure to remove the protective lm on

both sides of the thermal pads.

6 7

10 11

14 14

1 1

8 10

3 2

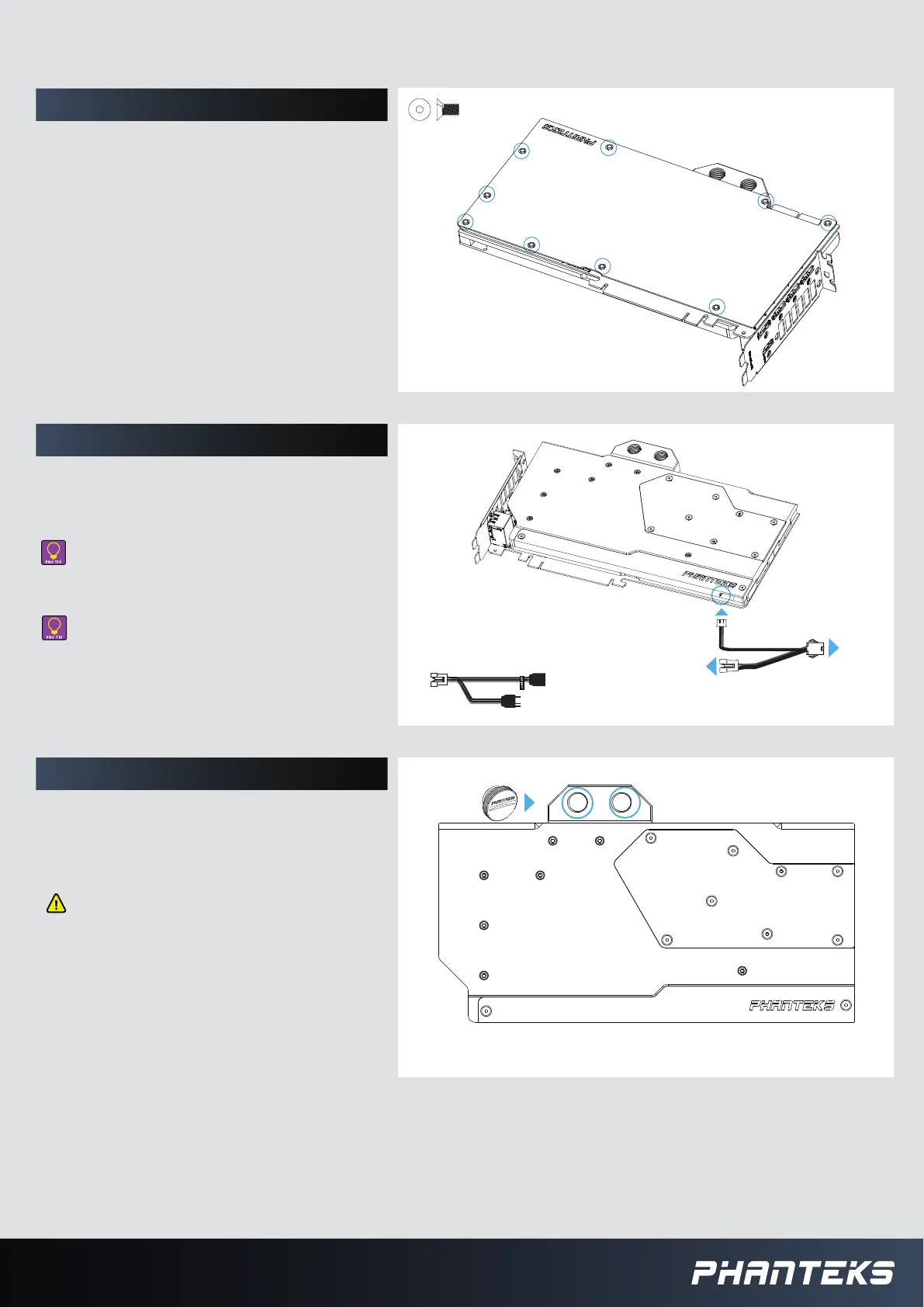

STEP 5. INSTALL THE GLACIER BACKPLATE

Carefully position the backplate onto the

graphics card. Align the mounting holes on

the PCB with the holes on the backplate.

Secure the backplate with 9 M2.5x8mm

ush screws to the PCB.

STEP 6. CONNECT D-RGB LIGHTING

Connect the D-RGB cable to the D-RGB strip

in the water block.

STEP 7. INSTALLING FITTINGS

Install G1/4 threaded male ttings and

close the remaining ports with the two

included Stop Fittings.

Connect to

Phanteks Case / Motherboard Cable

Always perform a leak test before providing

power to any system components.

You can connect the D-RGB cable to a

compatible motherboard with the D-RGB

Motherboard Adapter.

All Phanteks D-RGB products can be

daisy-chained together.

D-RGB Motherboard Adapter
