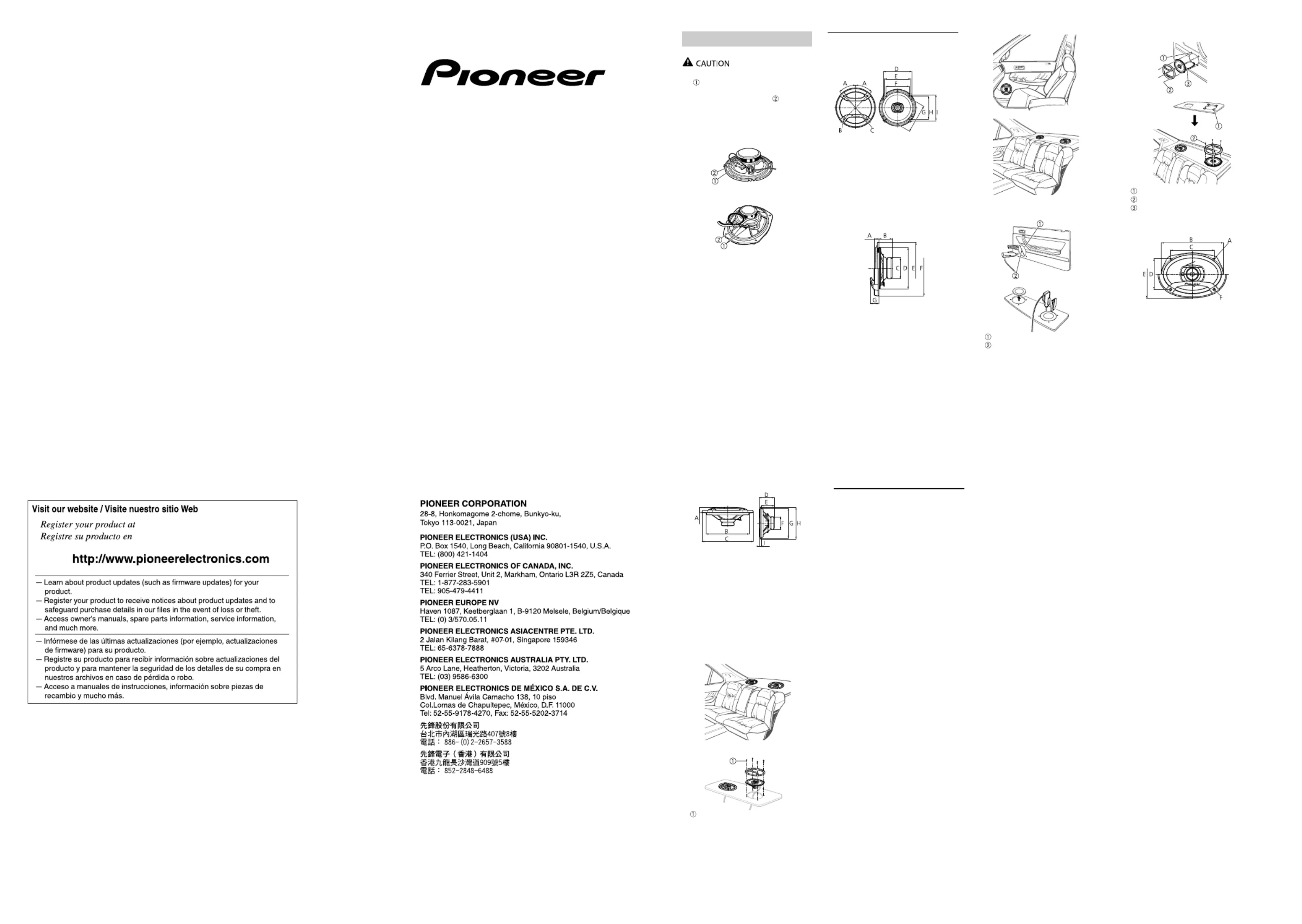

TWO 6-1/2" 2-WAY SPEAKERS AND TWO 6" × 9" 3-WAY SPEAKERS

DOS 6-1/2" ALTAVOCES DE 2 VÍAS Y DOS ALTAVOCES DE 3 VÍAS DE 6" × 9"

TS-165P

TS-695P

Installation Manual

Manual de instalación

English

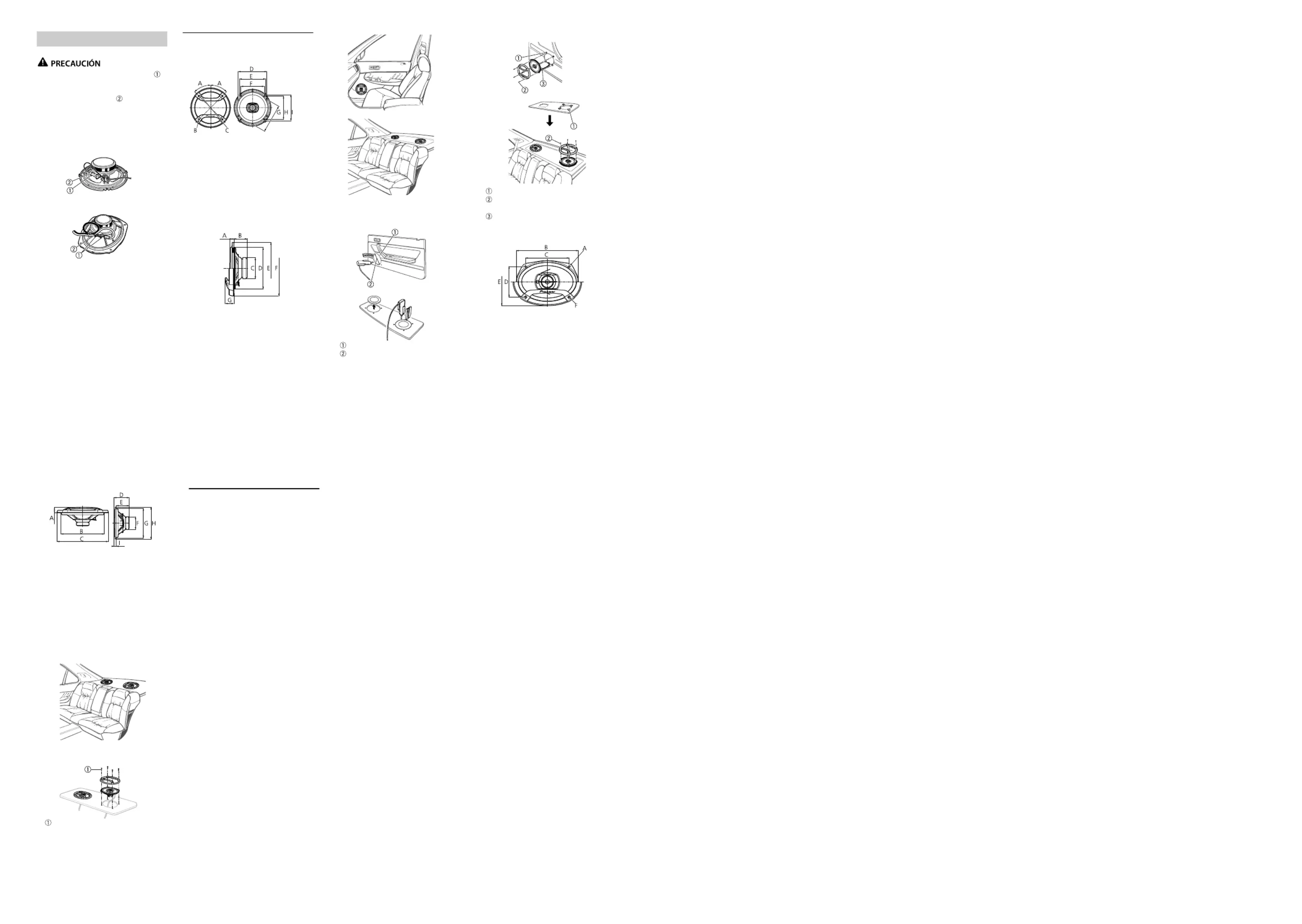

Speaker installation

16 cm 2-way speakers

1Determine the location of the speaker

as illustrated.

16 cm 2-way speakers

6" × 9" 3-way speakers

Do not touch the speaker flexible wire

Do not change the direction of the

speaker terminal assembly .

Make sure lead and speaker terminals do

not contact metal.

When making connections, refer also to

the instruction manual of the car stereo

used.

Front

45°

ф 4.3 mm holes (3/16 in. Dia.)

ф 142 mm (5-5/8 in. Dia.)

123 mm (4-7/8 in.)

113 mm (4-1/2 in.)

100 mm (3-7/8 in.)

123 mm (4-7/8 in.)

100 mm (3-7/8 in.)

113 mm (4-1/2 in.)

Side

13 mm (1/2 in.)

41 mm (1-5/8 in.)

ф 65 mm (2-5/8 in. Dia.)

ф 128 mm (5 in. Dia.)

ф 158 mm (6-1/4 in. Dia.)

ф 170 mm (6-3/4 in. Dia.)

27 mm (1 in.)

2Make holes as illustrated. (If needed,

remove the door upholstery.)

3Install the speakers as illustrated.

6" × 9" 3-way speakers

ф 4.3 mm (3/16 in. Dia.)

ф 128 mm (5 in. Dia.)

Speed nut

Tapping-screws (4 mm × 25 mm)

Cable (gray or white)

Front

5.6 mm × 8.7 mm holes

(3/16 in. × 5/16 in.)

237 mm (9-3/8 in.)

166.6 mm (6-1/2 in.)

117.5 mm (4-5/8 in.)

182 mm (7-1/4 in.)

ф 4.8 mm holes (3/16 in. Dia.)

1Determine the location of the speaker

as illustrated.

2Install the speakers as illustrated.

Specifications

16 cm 2-way speakers

Reproduction system: Coaxial two way

Woofer: ф 158 mm (6-1/4 in. Dia.)

Water-resistant

Injection-molded polypropylene cone

High compliance, rolled edge

Heat-resistant voice coil

Magnet: 130 g (4.4 oz)

Tweeter: ф 30 mm (1-3/16 in. Dia.)

Dome

Nominal impedance: 4 Ω

Sensitivity: 88 dB (±1.5 dB)

Frequency response: 31 Hz to 16 kHz

(–20 dB)

Maximum music power: 200 W

Nominal power: 25 W

Grille material: Heat-proof resin

Weight (per speaker including accessory

parts): 0.45 kg (16 oz)

6" × 9" 3-way speakers

Reproduction system: Coaxial three way

Woofer: 163 mm × 237 mm

(6-3/8 in. × 9-3/8 in.)

Injection-molded polypropylene cone

High compliance, rolled edge

Heat-resistant voice coil

Magnet: 150 g (5.3 oz)

Midrange: ф 52 mm (2 in. Dia.)

Magnet: 12 g (0.5 oz)

Tweeter: ф 11 mm (3/8 in. Dia.)

Nominal impedance: 4 Ω

Sensitivity: 88 dB (±1.5 dB)

Frequency response: 28 Hz to 32 kHz

(–20 dB)

Maximum music power: 230 W

Nominal power: 30 W

Grille material: Heat-proof resin

Weight (per speaker including accessory

parts): 0.63 kg (1 lb 6 oz)

NOTE

Specifications and the design are subject

to modifications without notice.

Side

28.3 mm (1-1/8 in.)

222 mm (8-5/8 in.)

262 mm (10-3/8 in.)

77.6 mm (3 in.)

66.3 mm (2-5/8 in.)

ф 65 mm (2-5/8 in. Dia.)

153 mm (6 in.)

163 mm (6-3/8 in.)

11 mm (3/8 in.)

Tapping-screws (4 mm × 30 mm)

<CYR1184-A> <127075007111> US
