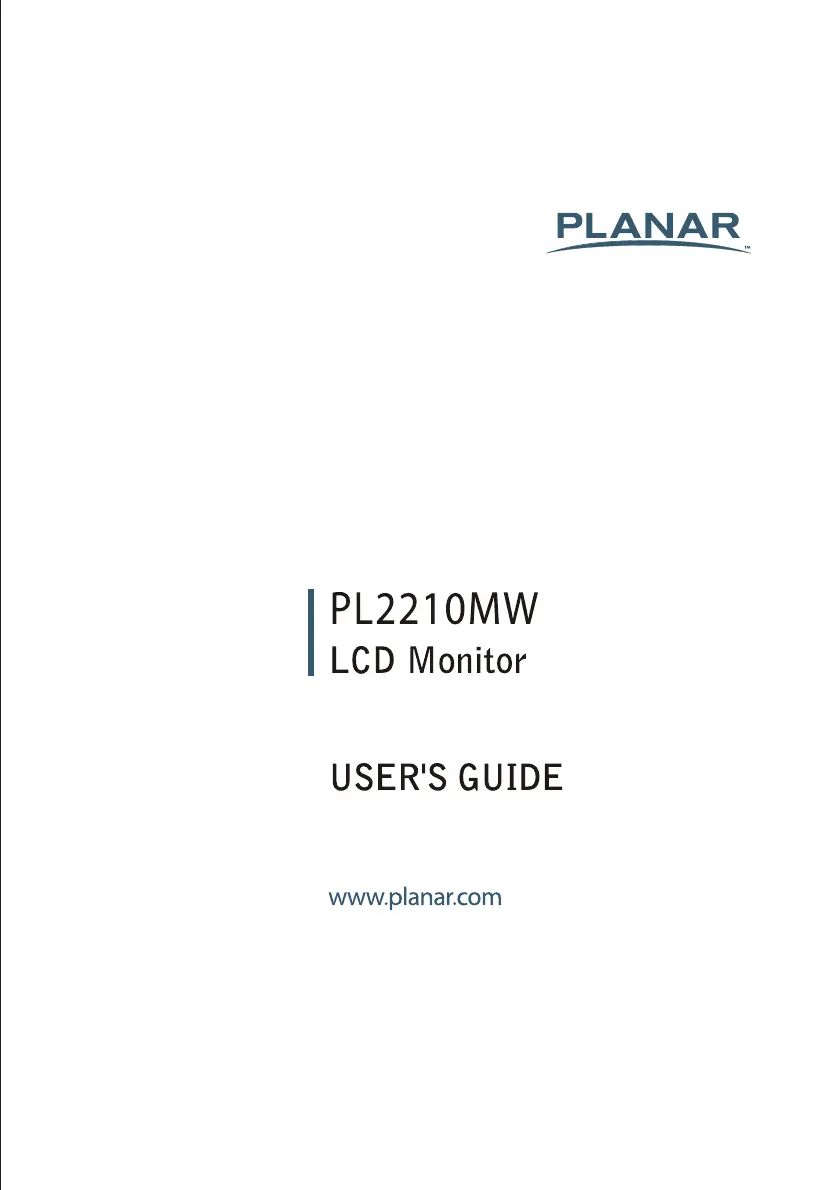

Planar PL2210MW Manual

Planar overvåge PL2210MW

Læs gratis den danske manual til Planar PL2210MW (18 sider) i kategorien overvåge. Denne vejledning er vurderet som hjælpsom af 49 personer og har en gennemsnitlig bedømmelse på 4.7 stjerner ud af 25 anmeldelser. Har du et spørgsmål om Planar PL2210MW, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/18

Contents

............................................................................................................1

Preface ................................................................................................................2

Installation ...........................................................................................................4

Unpacking.......................................................................................................................................................................................4

Connecting the LCD Monitor and Base.................................................................................................................................5

Viewing Angle Adjustment .......................................................................................................................................................5

Detaching LCD Monitor from Its Stand.................................................................................................................................5

Interface for Arm Applications .................................................................................................................................................5

Connecting the Display..............................................................................................................................................................5

Connecting the AC Power .........................................................................................................................................................6

Connecting the Audio Cable ....................................................................................................................................................6

Setting Up the LCD Monitor......................................................................................................................................................6

Power Management System.....................................................................................................................................................6

Display Controls ..................................................................................................7

User Controls..................................................................................................................................................................................7

Adjusting the Monitor's Display ..............................................................................................................................................8

Technical Information ........................................................................................11

Specifications.............................................................................................................................................................................. 11

Standard Timing Table......................................................................................13

Troubleshooting.................................................................................................15

Product Registration and Technical Support.....................................................16

Produkt Specifikationer

Mærke:	Planar
Kategori:	overvåge
Model:	PL2210MW
Produktfarve:	Sort
Skærm diagonal:	22 "
Skærmopløsning:	1680 x 1050 pixel
Berøringsskærm:	Ingen
Naturligt aspektforhold:	16:10
Responstid:	5 ms
Synsvinkel, horisontal:	170 °
Synsvinkel, vertikal:	160 °
Udgangseffekt (RMS):	2 W
HDCP:	Ja
Udgange til hovedtelefoner:	1
Panel montering grænseflade:	100 x 100 mm
Strømforbrug (standby):	2 W
Strømforbrug (typisk):	52 W
Bredde (uden stativ):	505.2 mm
Dybde (uden stativ):	60.95 mm
Højde (uden stativ):	385.3 mm
Vægt (uden stativ):	5300 g
Bredde (med stativ):	505.2 mm
Dybde (med stativ):	221 mm
Højde (med stativ):	390.5 mm
Certificering:	CB, UL/cUL, CE, FCC
Effektkrav:	AC 100/240 VAC
Indbygget kamera:	Ingen
Mikrofonindgang:	Ja
Lydindgang:	Ja
Understøttede Mac-operativsystemer:	Ja
Billedformat:	16:10
Skærmens lysstyrke (typisk):	300 cd/m²
Kontrastforhold (typisk):	1000:1
Pixel pitch:	0.282 x 0.282 mm
Synlig størrelse, horisontal:	474 mm
Synlig størrelse, vertikal:	296 mm
Antal VGA-porte (D-sub):	1
Hældningsvinkelområde:	-5 - 20 °
TV-tuner, integreret:	Ingen
