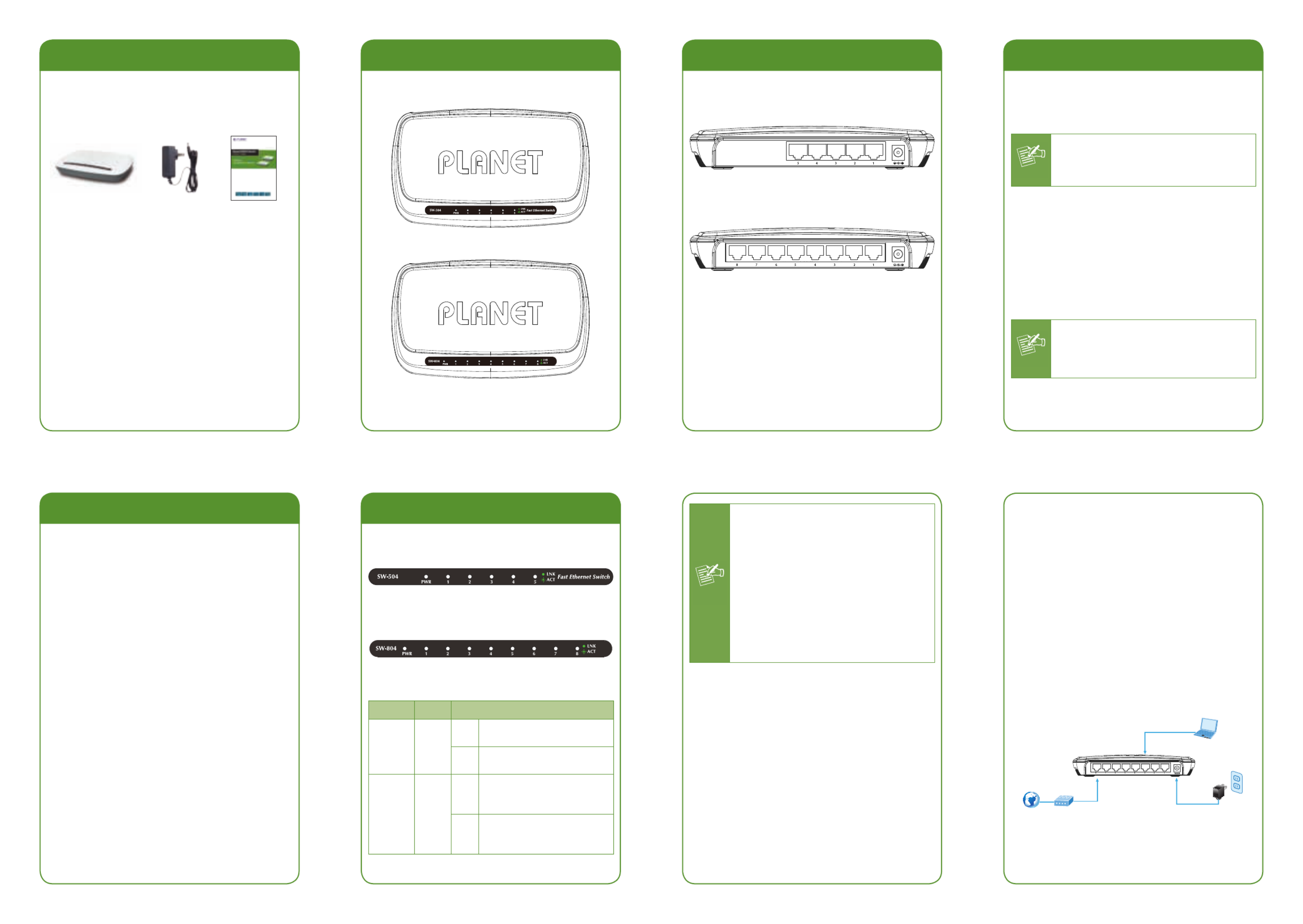

1. Package Contents

Check the contents of your package for the following

parts:

Fast Ethernet

Switch x 1

5V DC

1A Power

Adapter x 1

User’s

Manual x 1

If any of these are missing or damaged, please contact

your dealer immediately; if possible, retain the carton

including the original packing material, and use them

again to repack the product in case there is a need to

return it to us for repair.

3. Switch Top Panel

Figures 3-1 and 3-2 show the top panel of SW-504 and

SW-804, respectively.

Figure 3-1: SW-504 Top Panel

Figure 3-2: SW-804 Top Panel

6. Installing the Switch

This part describes how to install your Fast Ethernet

Switch and make connections to it. Please read the

following topics and perform the procedures in the order

being presented.

Note

This Switch does not need software configu-

ration.

 Desktop Installation

To install the Switch on desktop, simply follow the

following steps:

Step 1: Place the Switch on the desk near a power

source.

Step 2: Keep some ventilation space between the

Switch and the surrounding objects.

Note

When choosing a location, please keep in

mind the environmental restrictions dis-

cussed in Chapter 7 under Product Specifi-

cations.

5. Switch Rear Panel

Figures 5-1 and 5-2 show the rear panel of SW-504 and

SW-804, respectively.

Figure 5-1: SW-504 Rear Panel

Figure 5-2: SW-804 Rear Panel

2. Product Features

RJ-45 Interface

 5/8 10/100Mbps Fast Ethernet ports

 Complies with IEEE 802.3, 10Base-T, IEEE 802.3u

100Base-TX Ethernet standards

 Supports Auto MDI/MDI-X function

Switching

 Hardware based 10/100Mbps, half / full duplex, ow

control and auto-negotiation

 Features Store-and-Forward mode with wire-speed

lteringandforwardingrates

 IEEE802.3xowcontrolfor fullduplexoperationand

backpressure for half duplex operation

 Integrated address look-up engine, supporting 2K /

1K absolute MAC addresses (SW-504 / SW-804)

 Handles up to 1536bytes packet

 Automatic address learning and address aging

 Supports CSMA/CD protocol

Hardware

 Made from plastic, desktop size and wall-mount

design

 LED indicators for system power, per port Link / Act

 5V DC, 1A external power adapter

 FCC, CE Class B compliant

4. LED Indicators

Figures 4-1 and 4-2 show the LED panel of SW-504 and

SW-804, respectively.

Figure 4-1: SW-504 LED Panel

Figure 4-2: SW-804 LED Panel

LED Color Function

PWR Green

Light Indicates that the Switch is

powered ON.

OFF Indicates that the Switch is

powered OFF.

Link/ACT Green

Light

Indicates the link through

that port is successfully

established at 10/100Mbps.

Blink

Indicates the Switch is

actively sending or receiving

data over that port.

Step 3: Connect your Switch to network devices.

A. Connect one end of a standard network

cable to the 10/100 RJ-45 ports on the rear

panel of the Switch.

B. Connect the other end of the cable to the

network devices such as printer servers,

workstations or routers, etc.

Step 4: Supply power to the Switch.

A. Connect one end of the power cable to the

Switch.

B. Connect the 5V DC power adapter to a

standard wall outlet.

When the Switch receives power, the Power LED should

remain solid Green.

PC/Laptop

xDSL/Cable RouterInternet Power Adapter

RJ-45

Power

00110 101 0

Power

Notice

1. The device is a power-required device,

meaning it will not work till it is powered.

If your networks should be active all

the time, please consider using UPS

(Uninterrupted Power Supply) for your

device. It will prevent you from network

data loss or network downtime.

2. In some area, installing a surge suppres-

sion device may also help to protect your

Switch from being damaged by unregu-

lated surge or current to the Switch or

the power adapter.

Produkt Specifikationer

Mærke:	Planet
Kategori:	Skifte
Model:	SW-504
Vekselstrømsindgangsspænding:	5 V
Bredde:	168 mm
Dybde:	100 mm
Højde:	29 mm
Vægt:	142 g
Produktfarve:	Hvid
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 90 %
Strømforbrug (typisk):	3.7 W
Driftstemperatur (T-T):	0 - 50 °C
Strømkilde:	DC
Certificering:	FCC Part 15 Class B, CE
Netværksstandarder:	IEEE 802.3,IEEE 802.3u,IEEE 802.3x
LED-indikatorer:	Ja
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
DC indgangsspænding:	5 V
Indgangsstrøm:	1 A
Strøm over Ethernet (PoE):	Ingen
10G understøttelse:	Ingen
Auto MDI/MDI-X:	Ja
Basis omskiftning RJ-45 Ethernet porte, antal:	5
Basis omskiftning RJ-45 Ethernet porttype:	Fast Ethernet (10/100)
Opbevar-og-frem:	Ja
MAC adresselabel:	2000 entries
Switch kapacitet:	1 Gbit/sek.
Gennnemløb:	0.744 Mpps
