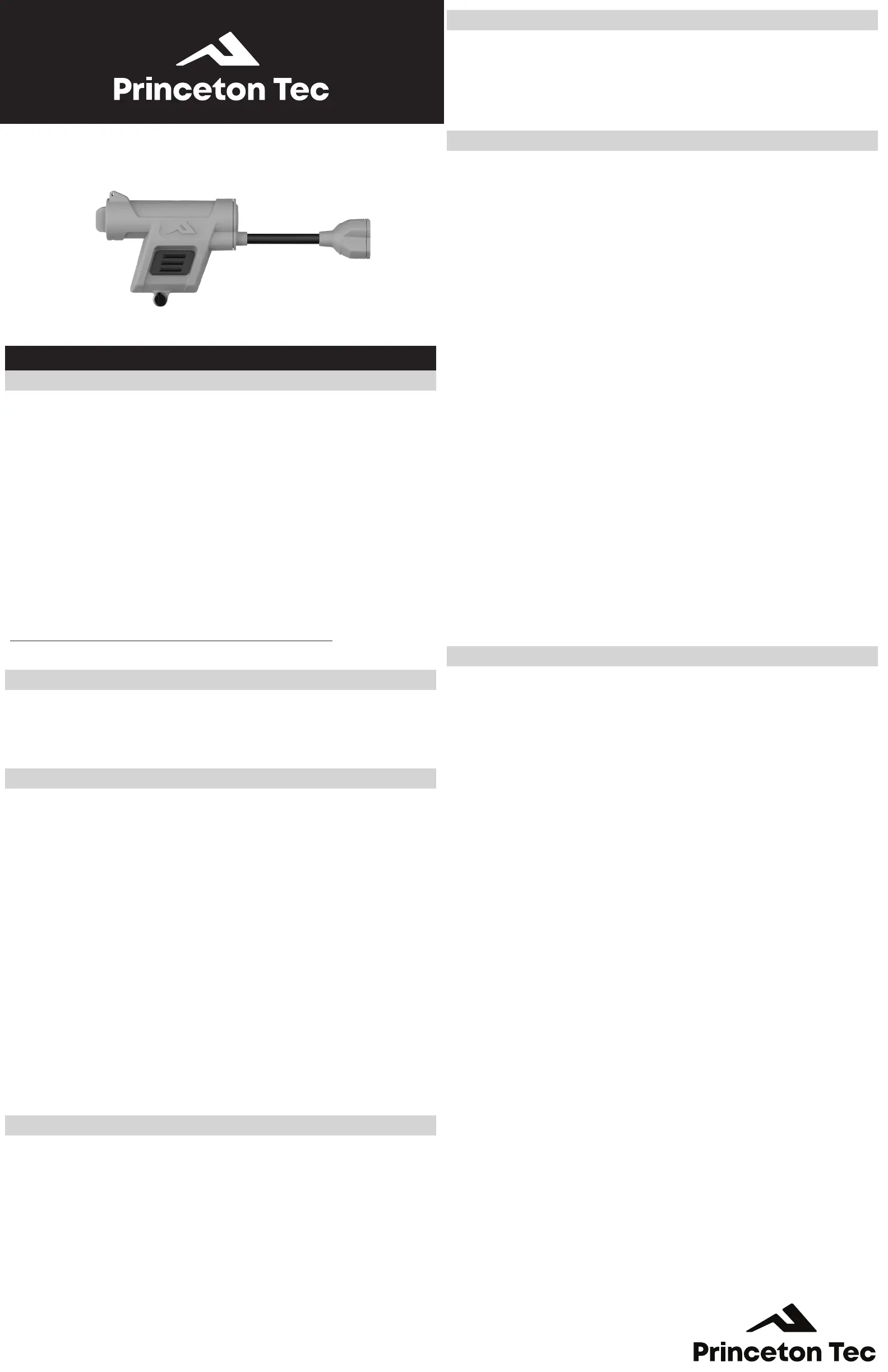

CHARGE

MPLS HELMET LIGHT

Operating and Maintenance Instructions

English

Battery Installation

See Figure 1

(1) CR123 Lithium Battery or (1) AA Lithium or (1) AA Alkiline.

Lithium preferred for better performance

To install battery, grip the light in either hand with the battery door

facin

g straight up. Slide battery door latch forward with your thumb

and use your free hand to open the battery door. With a battery

installed, spring tension will make this operation possible with one

hand. To close the battery door, push it closed and then slide the

latch toward you to lock.

Princeton Tec cares about the environment and recommends recycling

batteries. For more information about battery recycling, please go to:

https://www.epa.gov/recycle/used-household-batteries

WARNING !

• Always remove drained batteries immediately.

• Remove batteries during long periods of storage.

Switch Operation

See Figure 2

Charge X ships with red light selected rst.

Press 1x: Red

Press 2x: Green

Press 3x: Blue

Press 4x: Off

Press & Hold from color mode: White 80%

Press & Hold from white: Dimming

Next Press: Off

Press & Hold 2s from off: IR

Press & Hold 1s: IR strobe

Press & Hold 5s: Lock / unlock

Lock indicated by 3 ashes from red LED. While locked, any press

yields one red blink

Programming Mode

See Figure 3

The Charge X ships with red light selected rst. The user can program

the order in which the 3 color LEDs activate.

Press & Hold 8s from off Programming mode

Current color LED will blink rapidly.

1x press: cycle through red, green, or blue

Press & Hold 8s on desired color: locks in selection & exits mode

Troubleshooting

If the Charge X fails to light:

• Check the battery for proper installation.

• Replace battery if proper installation is conrmed.

USA– International 1-Year Warranty

WARRANTY – Princeton Tec warrants this product to be free from

defects in workmanship and materials under normal use for one year.

This warranty covers all of the component parts of the product except

batteries. This warranty does not cover deterioration due to normal

wear or damage due to misuse, alteration, negligence, accidents, or

unauthorized repair. Princeton Tec will repair or replace parts which are

defective in workmanship or materials. Your authorized Princeton Tec

Dealer and Princeton Tec are the only facilities authorized to repair the

product. After (3) unsuccessful attempts (within the warranty

period) to repair the product, you have the right to elect replacement

of the product or a refund of the purchase price less allowance for use

of the product. NO INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARE INCLUDED IN THIS WARRANTY. (Some states do not allow the

exclusion or limitation of incidental or consequential damages, so the

above limitations or exclusions may not apply to you.) This warranty

gives you specic legal rights, and you may also have other rights which

vary from state to state.

Princeton Tec reserves the right to change product specications

without notice.

FOR CALIFORNIA RESIDENTS

WARNING: This product contains Bisphenol A (BpA) a chemical

known to the State of California to cause birth defects or other

reproductive harm.

Return Policy

If your light fails to operate, follow these simple steps:

1. Check batteries. Replace if necessary.

2. To send your light in for repair or replacement, rst contact

Princeton Tec customer service on

1-800-257-9080 to request an RMA number. Please have your

light model, date of purchase and a brief description of the fault

your are experiencing. No warranty repairs will be accepted

without an RMA number.

3. Return the light to: Princeton Tec, PO Box 8057 Trenton NJ

08650. Postage due and freight collect items will not be accepted.

4. Upon receipt your light will be processed in about two weeks.

Please allow additional time for return transportation from NJ.

Princeton Tec

PO Box 8057, Trenton, NJ 08650

Phone: 609-298-9331

Fax: 609-298-9601

princetontec.com

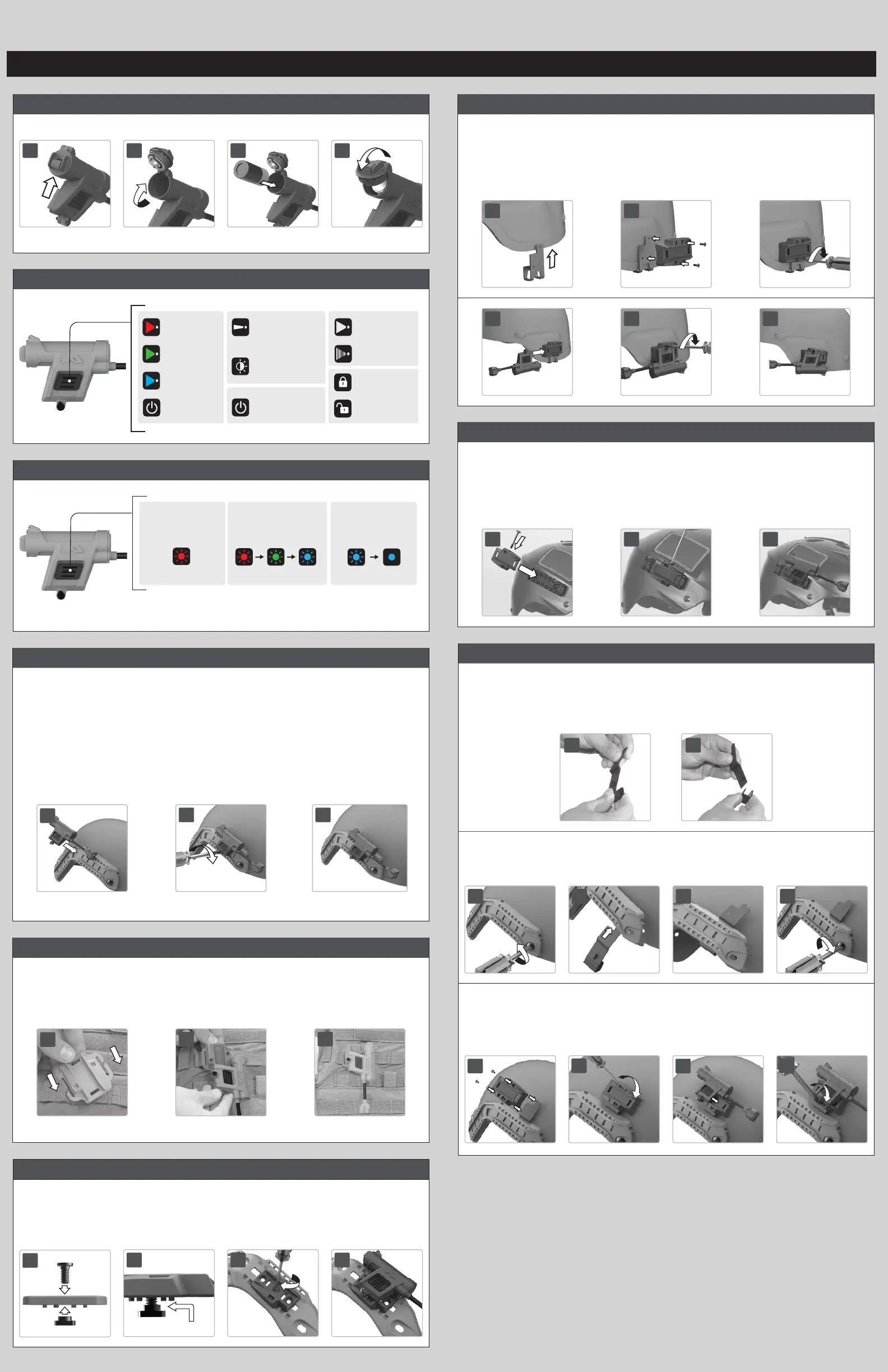

Figure 1 – Battery Installation

1 2 3 4

Figure 2 – Switch Operation

Press 2x:

Green

Press 4x:

O

Press 5s from Lock:

Unlock

Press 5s:

Lock-Out

Press 1x:

Red

Press 3x:

Blue

1s hold in any mode:

White 80%

After 1s in any mode:

Press 1x:

O

From white:

Hold:

Dimming

2s hold from o:

1s hold from IR:

IR Strobe

Figure 3 – Programming Mode

8s hold from o:

Programming Mode

Press & cycle

to desired color:

8s hold on

desired color:

Save color

Figure 4 – ARC Rail Installation

Charge X is designed to attach directly to the ARC Rail – Helmet Rail System.

Charge X can mount to either left or right helmet rail. Using a athead

screwdriver, back the set screw out approximately 5 turns, then slide Charge

dovetail into open end of helmet rail. The spring-loaded ball bearing will engage

detents. When the light is situated to your preference, hand tighten set screw to

secure Charge X.

2 3

Figure 5 – MOLLE Mount

Slide clip inside any strap position, pinch MOLLE strap to hook the lower end of

the metal clip onto the strap.

2 3

Figure 6 – M-LOK

Mount

Insert screw and T-nut into M-LOK

mount. T-Nut “gap” must be slightly greater

than the thickness of the mounting surface. Slide mount on to M-LOK

rail and

tighten with screwdriver.

SET GAP

3 4

Figure 7 – MICH Mount Installation

Back the screw out so the end of screw is ush with metal U-clip. Slide the

exposed U-clip over the bottom edge of your helmet with the metal clip on the

inside and the plastic base exposed on the outside of your Helmet. Holding Mount

rmly upward, tighten center slotted screw until it stops.

4 5 6

Figure 8 – Picatinny Rail Mount

Remove the center through screw from the side of the Picatinny base mount.

Slide Picatinny to desired position and insert side locking screw aligning with any

slot in Picatinny rail and tighten to clamp in place.

DO NOT OVERTIGHTEN this screw.

1 2 3

Figure 9 – (ABR) Above Rail Mount

A. If using Charge X ABR on a ballistic helmet, skip to step B. For use with

nonballistic helmets, begin by snapping off unneeded portion of ABR mount by

hand or with a pair of pliers, and discarding the smaller ‘hook’ portion

1a 2a

B. Loosen or remove front rail screw, and slide ABR into desired position beneath

rail. Retighten front rail screw.

3b 4b

C. Select Charge X mount and secure with included machine screws, gently

tightening with a Phillips screwdriver. Install Charge X and tighten set screw

onto mount.
