OWNER’S MANUAL
INDOOR / OUTDOOR SPEAKERS
AW500TTblk • AW500TTwht • AW525blk • AW525wht
AW650blk • AW650wht

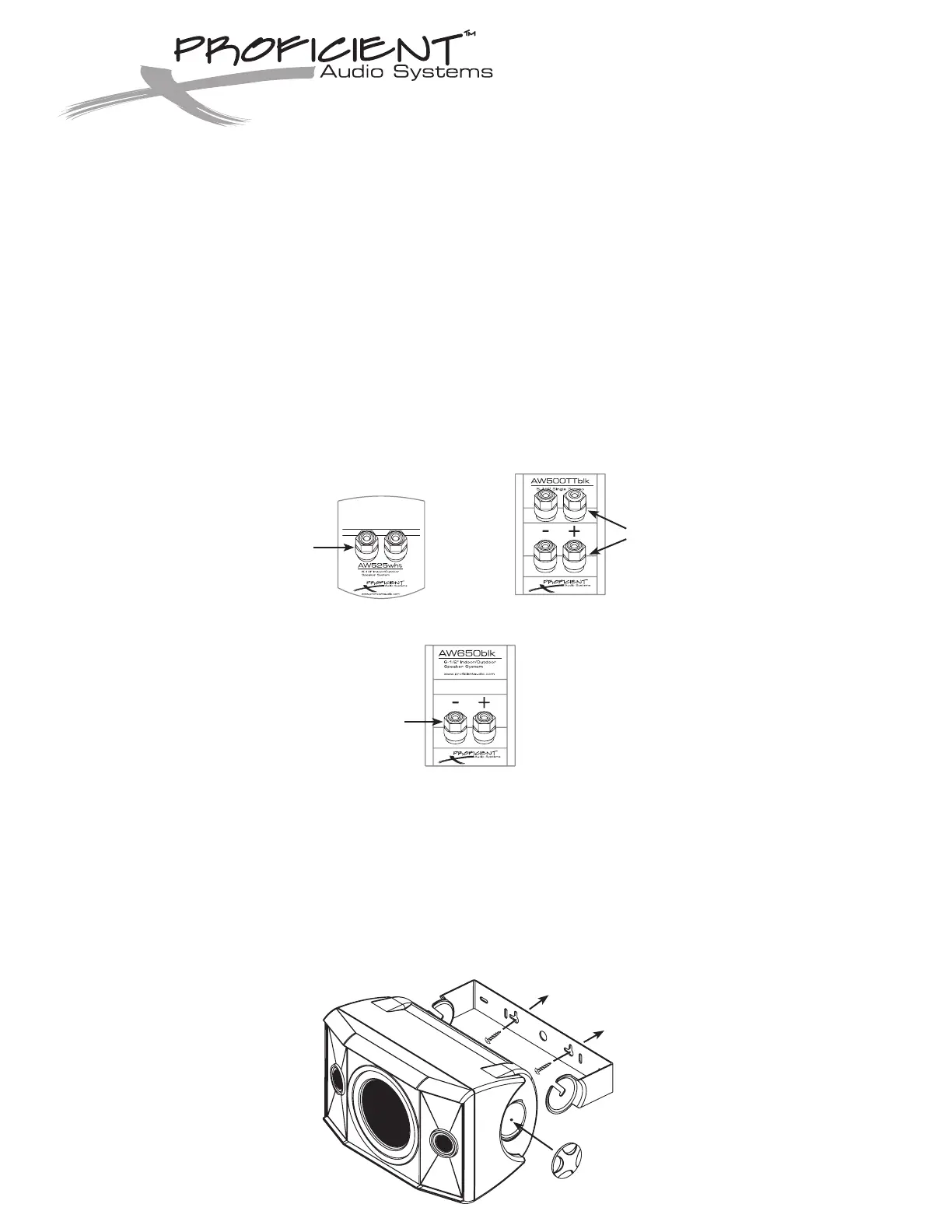

Please use below to familiarize yourself with Diagram 1
the rear panel of your outdoor speaker.
AW525blk / AW525wht / AW650blk / AW650wht: Attach
the speaker cable to the speaker cable terminals, observing
the proper polarity with your amplifier, + to + (red) and – to
– (black). Make sure to connect the right channel to the right
speaker and the left channel to the left speaker.
AW500TTblk / AW500TTwht: Attach the speaker cable,
observing the proper polarity with your amplifier, + to +
(red) and – to – (black). Either channel may be attached
to either terminal set, however, be sure that polarity (+
and –) is correct on each channel or the performance of
the speaker will be seriously affected as one channel will
cancel out the other.
WIRING
Diagram 1:
Speaker Cable Terminals
AW525blk / AW525wht AW500TTblk / AW500TTwht
AW650blk / AW650wht
Speaker Cable Terminal
(Red = +, Black = –)
Connect left channel to one
terminal set; connect right
channel to the other
Speaker Cable
Terminal
Placement Under Eaves and Outdoors
When mounting your speakers outdoors, the eaves of the
roof provide an ideal location. They reduce the exposure
of constant direct sunlight, salt spray, and precipitation. If
installing speakers on a boat, the wheelhouse provides
the best location for the same reasons. Following these
suggestions will help to ensure that your speakers will last
a lifetime.
Placement on a Wall or BookShelf
When placing your speakers on a wall or bookshelf,
optimal sound will be achieved if they are mounted at ear
level or slightly higher. The usual listening area should be
no closer to the speakers than the distance between the
speakers themselves.
PLACEMENT
Screw mounting bracket to wall
either horizontally or vertically
Secure speaker to mounting brack-
et by tightening knobs
Diagram 2:
Installing Mounting Bracket
94 0 C o l u m b ia Av en u e , Riv e rsi d e, CA 9 250 7
80 0.4 48.09 76 • F ax 9 09. 78 7.8 747 • pro f i ci e n tau d i o.c o m
AW500TTblk/AW500TTwht AW525blk/AW525wht AW650blk/AW650wht
Type: Single Stereo Speaker 2-Way Stereo Pair 2-Way Stereo Pair
Woofer: 5 1⁄4" Dual Voice Coil Polypropylene Cone 5 1⁄4" Polypropylene Cone 61⁄2" Polypropylene Cone
Tweeter: Two Pivoting 1" Soft Dome Pivoting 1" Soft Dome Pivoting 1" Soft Dome
Impedance: 4 8 8Ω Ω Ω
Sensitivity: 89dB 1W/1m 88dB 1W/1m 89dB 1W/1m
Frequency Response: 38Hz - 20kHz 45Hz - 20kHz 37Hz - 20kHz
Power Recommendations: 5 - 100 watts 5 - 125 watts 5 - 150 watts
Dimensions (H x W x D): 11" x 7" x 6 1⁄4" 93⁄16" x 61⁄2" x 63
⁄8" 11" x 7" x 6 1⁄4"
Should you have any questions regarding this, or any other Proficient Audio Systems product, please call our service hotline at
800.448.0976. We are available to assist you every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
SPEAKER SPECIFICATIONS
Features and specifications are subject to change without notice.
Proficient Audio Systems warrants to the original retail purchaser only
that this product will be free from defects in materials and workmanship
for a period of ten years, provided the speaker was purchased from a
Proficient Audio Systems Authorized Dealer.
Defective products must be shipped, prepaid and insured, together with
proof of purchase, to the Proficient Audio Systems Authorized Dealer
from whom they were purchased, or to Proficient Audio Systems at the
address listed on this installation instruction manual. Freight collect ship-
ments will be refused. It is preferable to ship this product in the original
shipping container to lessen the chance of transit damage. In any case,
the risk of loss or damage in transit is to be borne by the purchaser.
If, upon examination at the Factory or Proficient Audio Systems Authorized
Dealer, it is determined that the unit was defective in materials or work-
manship at any time during this warranty period, Proficient Audio Systems
or the Proficient Audio Systems Authorized Dealer will, at its option,
repair or replace this product at no additional charge, except as set forth
below. If this model is no longer available and can not be repaired effec-
tively, Proficient Audio Systems, at its sole option, may replace the unit
with a current model of equal or greater value. In some cases where a
new model is substituted, a modification to the mounting surface may
be required. If mounting surface modification is required, Proficient
Audio Systems assumes no responsibility or liability for such modifica-
tion. All replaced parts and product become the property of Proficient
Audio Systems. Products replaced or repaired under this Warranty will be
returned to the original retail purchaser, within a reasonable time, freight
prepaid.
This Warranty does not include service or parts to repair damage caused
by accident, disaster, misuse, abuse, negligence, inadequate packing
or shipping procedures, commercial use, voltage inputs in excess of the
rated maximum of the unit, or service, repair or modification of the product
which has not been authorized or approved by Proficient Audio Systems.
This Warranty also excludes normal cosmetic deterioration caused by
environmental conditions. This warranty will be void if the Serial Number
on the product has been removed, tampered with or defaced.
This Warranty is in lieu of all other expressed warranties. If the product is
defective in materials or workmanship as warranted above, the purchas-
er’s sole remedy shall be repair or replacement as provided above. In no
event will Proficient Audio Systems be liable for any incidental or conse-
quential damages arising out of the use or inability to use the product,
even if Proficient Audio Systems. or a Proficient Audio Systems Authorized
Dealer has been advised of the possibility of such damages, or for any
claim by any other party. Some states do not allow the exclusion or limita-
tion of consequential damages, so the above limitation and exclusion may
not apply.
All implied warranties on the product are limited to the duration of this
expressed Warranty. Some states do not allow limitation on the length of
an implied warranty. If the original retail purchaser resides in such a state,
this limitation does not apply.
LIMITED TEN-YEAR WARRANTY
Depending upon your listening area, you may find the
sound more pleasing by pointing the tweeters in a particu -
lar direction. If additional treble is desired, simply point the
tweeter(s) towards that area; if less treble is required, point
the tweeter(s) away.
ADJUSTING THE PIVOTING TWEETER(S)
Push gently at the edge of the
tweeter to point the tweeter in
the desired direction.
Diagram 3:
Pivoting Tweeter
1300-41000(rev2)
