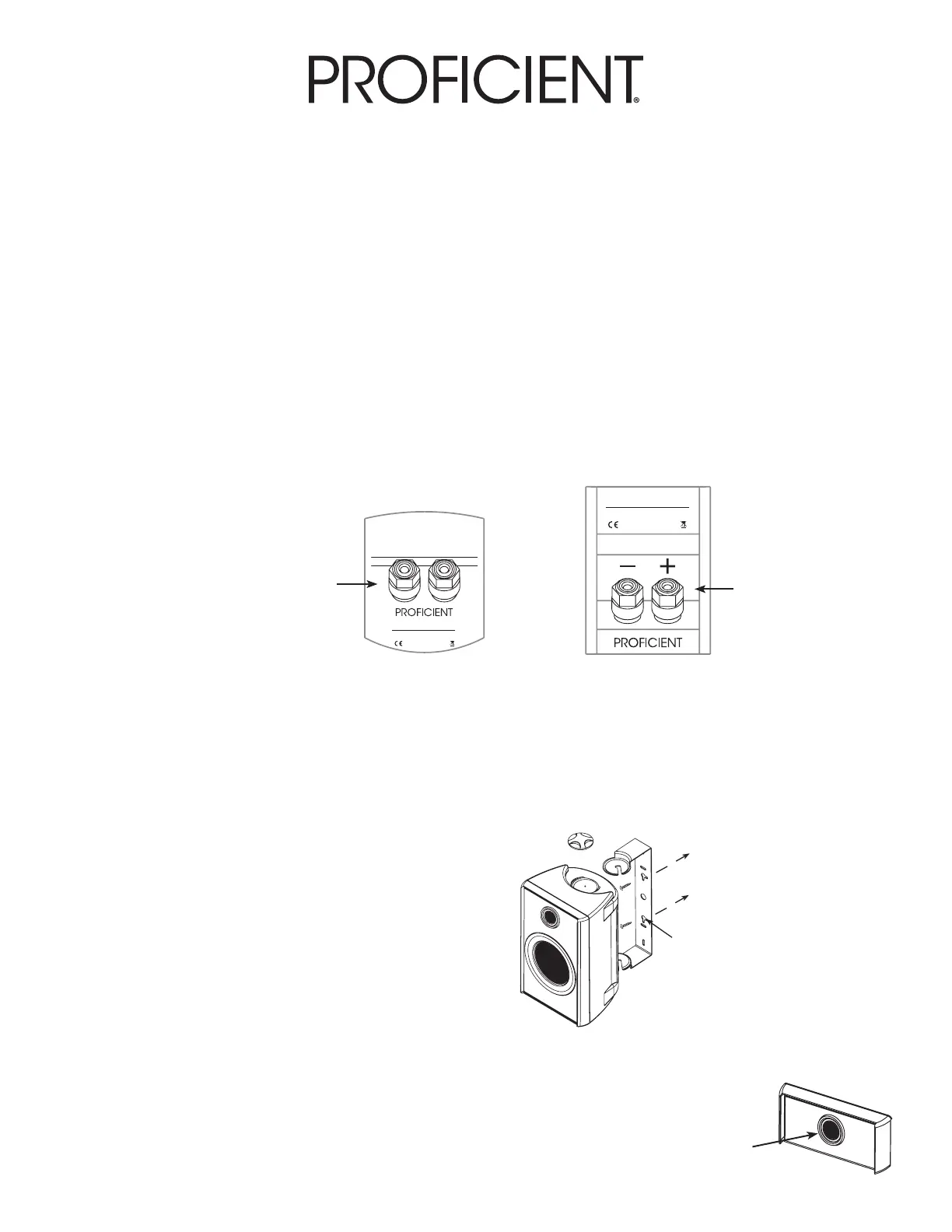

Please use below to familiarize yourself with the rear panel of your outdoor speaker.Diagram 1

WIRING

Placement Under Eaves and Outdoors

When mounting your speakers outdoors, the eaves of the roof

provide an ideal location. They reduce the exposure of constant

direct sunlight, salt spray, and precipitation. If installing speak-

ers on a boat, the wheelhouse provides the best location for the

same reasons. Following these suggestions will help to ensure

that your speakers will last a lifetime.

Placement on a Wall or Bookshelf

When placing your speakers on a wall or bookshelf, optimal

sound will be achieved if they are mounted at ear level or slightly

higher. The usual listening area should be no closer to the speak-

ers than the distance between the speakers themselves.

PLACEMENT

Diagram 2:

Installing Mounting Bracket

Diagram 1:

Speaker Cable Terminals

prof ic ie nt a udi mo.c o

Petal um a, CA U SA

Mad e i n Ch in a

5¼" Ou ootd r/Indoor Speaker

AW525wht

AW525

AW400

Speaker Cable Terminal

(Red = +, Black = –)

Speaker Cable

Terminal

pr of icient audio.com

Pet aluma , CA USA

Mad e in China

6½" rOu ootd r/Indoor Speake

AW650wht

AW830

AW650

Depending upon your listening area, you may nd the sound

more pleasing by pointing the tweeter in a particular direction. If

additional treble is desired, simply point the tweeter towards that

area; if less treble is required, point the tweeter away.

ADJUSTING THE PIVOTING TWEETER

Push gently at the edge

of the tweeter to point

the tweeter in the desired

direction. Do not touch

tweeter dome.

Diagram 3:

Pivoting Tweeter

Screw mounting bracket to wall

either horizontally or vertically

Secure speaker to mounting

bracket by tightening knobs

Attach the speaker cable to the speaker cable terminals, observing the proper polarity with your amplier, + to + (red) and – to –

(black). Make sure to connect the right channel to the right speaker and the left channel to the left speaker.

Outdoor / Indoor Speakers

AW830 • AW650 • AW525 • AW400

OWNER’S MANUAL

5919 Sea Otter Place, Suite 100 • Carlsbad, CA 92010

800.472.5555 • Fax 707.283.5901 • proficientaudio.com

Proficient® is a registered trademark of Nortek Security & Control, LLC.

SPEAKER SPECIFICATIONS

Features and specications are subject to change without notice.

AW830

3-Way Stereo Pair

8" Polypropylene Cone

3" Graphite

1" Pivoting Soft Dome

175 Watts

35Hz - 20kHz

4

89dB 1W/1m

153⁄4" x 83⁄4" x 83⁄ "4

White or Black

Type:

Woofer:

Tweeter:

Power Handling:

Frequency Response:

Impedance:

Sensitivity:

Dimensions (H x W x D):

Colors:

AW650

2-Way Stereo Pair

61⁄2" Polypropylene Cone

N/A

1" Pivoting Supernil Soft Dome

150 Watts

37Hz - 20kHz

8

89dB 1W/1m

11" x 7" x 61⁄ "4

White or Black

Type:

Woofer:

Midrange:

Tweeter:

Power Handling:

Frequency Response:

Impedance:

Sensitivity:

Dimensions (H x W x D):

Colors:

Procient Audio Systems (“Procient”) warrants to the original retail

purchaser only (“you”) that this product will be free from defects in materials

and workmanship for a period of ten years (the “Warranty Period”), subject

to the limitations and exclusions set out in this Limited Warranty. This war-

ranty is not transferable to subsequent owners of the product. If you discover

a defect in material or workmanship within the Warranty Period, you can

obtain warranty service by contacting Procient during the Warranty Period

at 800.472.5555 or techsupport@procientaudio.com or by contacting the

dealer from whom you purchased the product. Defective products must be

shipped, prepaid and insured, together with proof of purchase. Warranty ser-

vice requests made without proof of date of purchase will be denied. Freight

collect shipments will be refused. It is preferable to ship this product in the

original shipping container to lessen the chance of transit damage. In any case,

the risk of loss or damage in transit is to be borne by the purchaser.

If, upon examination by Procient or its authorized dealer, it is determined that

the unit is in fact defective, Procient will, at its option:

• Repair or replace the product at no additional charge; or

• If the model is no longer available and can not be repaired eectively, replace

the unit with a current model of equal or greater value. In some cases where

a new model is substituted, a modication to the mounting surface may be

required. If mounting surface modication is required, Procient assumes no

responsibility or liability for such modication.

Procient will bear the cost of returning the repaired or replaced product to

you, freight prepaid. All replaced parts and product become the property of

Procient Audio Systems. The foregoing is your sole and exclusive remedy for

breach of warranty. If the product is not found to be defective, Procient will

contact you to arrange for return of the product to you, at your expense.

EXCLUSIONS:

• This Warranty does not include service or parts to repair damage caused by

accident, disaster, misuse, abuse, negligence, inadequate packing or shipping

procedures, commercial use, voltage inputs in excess of the rated maximum

of the unit, or service, repair or modication of the product by unauthorized

dealers. This Warranty also excludes normal cosmetic deterioration caused by

environmental conditions.

• This Warranty will be void if:

• the Serial Number on the product has been removed, tampered with or defaced.

• the product was not purchased from an authorized dealer.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER

EXPRESSED AND IMPLIED WARRANTIES. PROFICIENT EXPRESSLY DISCLAIMS

ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE

AND NON-INFRINGEMENT. In no event will Procient be liable for any incidental

or consequential damages arising out of the use or inability to use the product,

even if Procient has been advised of the possibility of such damages, or for any

claim by any other party. Notwithstanding the above, if you qualify as a “con-

sumer” under the Magnuson-Moss Warranty Act, then you may be entitled to any

implied warranties allowed by law for the Warranty Period. Further, some states

do not allow limitations on how long an implied Limited Warranty lasts or allow

the exclusion or limitation of consequential damages, so such limitations may not

apply to you.

ATTENTION TO OUR VALUED CONSUMERS:

To ensure that consumers obtain quality pre-sale and after-sale support and

service, Procient products are sold exclusively through Authorized Installing

Dealers and Authorized Internet Sellers. Please be advised that Procient war-

ranties are void if product is purchased from an Unauthorized Internet Seller.

LIMITED TEN-YEAR WARRANTY

For technical inquires, please call 800.472.5555 or e-mail us at techsupport@procientaudio.com. We are available to assist you every weekday, except

holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.

AW525 AW400

2-Way Stereo Pair 2-Way Stereo Pair

51⁄4" Polypropylene Cone 4" Polypropylene Cone

1" Pivoting Supernil Soft Dome " Supernil Soft Dome¾

125 Watts 100 Watts

45Hz - 20kHz 55Hz - 20kHz

8 8

88dB 1W/1m 87dB 1W/1m

9⁄" x 61⁄ ⁄2" x 6 " 73⁄4" x 51⁄2" x 51⁄ "2

White or Black White or Black

P/N: 1300-41000 (Rev B)

Produkt Specifikationer

Mærke:	Proficient
Kategori:	Højttaler
Model:	AW525
