Side 1/2

www.PyleUSA.com

Features:

•

In-Wall / In-Ceiling System

• Quick Connect Spring-Loaded Speaker Terminals

• 1/2'' High Compliance Polymer Tweeter

• Polypropylene Cone with Rubber Edge

• Cut-Out Size Template for Easy Installation

• Environmentally Friendly ABS Construction

• Perfect for Custom Installations & Applications

• Includes Stain Resistant Grills

• Impedance: 16 Ohms

Visit Our Website

SCA

PyleU

IN-CEILING SPEAKERS

USER GUIDE

California Prop 65 Warning

WARNING:

This product can expose you to chemicals, which is known to

the state of California to cause cancer birth defects and other

reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

Questions or Comments?

We are here to help!

Phone: 1.718.535.1800

PyleUSA.com/ContactUs

PDIC1651RD PDIC1661RD PDIC1681RD

(2) 5.25-inch Speakers (2) 6.5-inch Speakers (2) 8.0-inch Speakers

MAX Power Output

150 Watt 200 Watt 250 Watt

Sensitivity

88 dB 88 dB 89 dB

Frequency Response

80Hz-20kHz 70Hz-20kHz 50Hz-20kHz

Total Unit Dimensions

(Diameter x Depth)

8.0'' x 3.0'' 9.0'' x 3.1'' 10.7'' x 3.5''

Cutout Diameter

6.5'', Cutout Mounting

Depth: 2.6''

7.6'', Cutout Mounting

Depth: 2.8''

9.3'', Cutout Mounting

Depth: 3.0''

Single Speaker Weight

4.7 lbs. 6.6 lbs. 9.14 lbs.

Both Speaker Weight

10.0 lbs. 13.7 lbs. 18.79 lbs.

www.PyleUSA.com

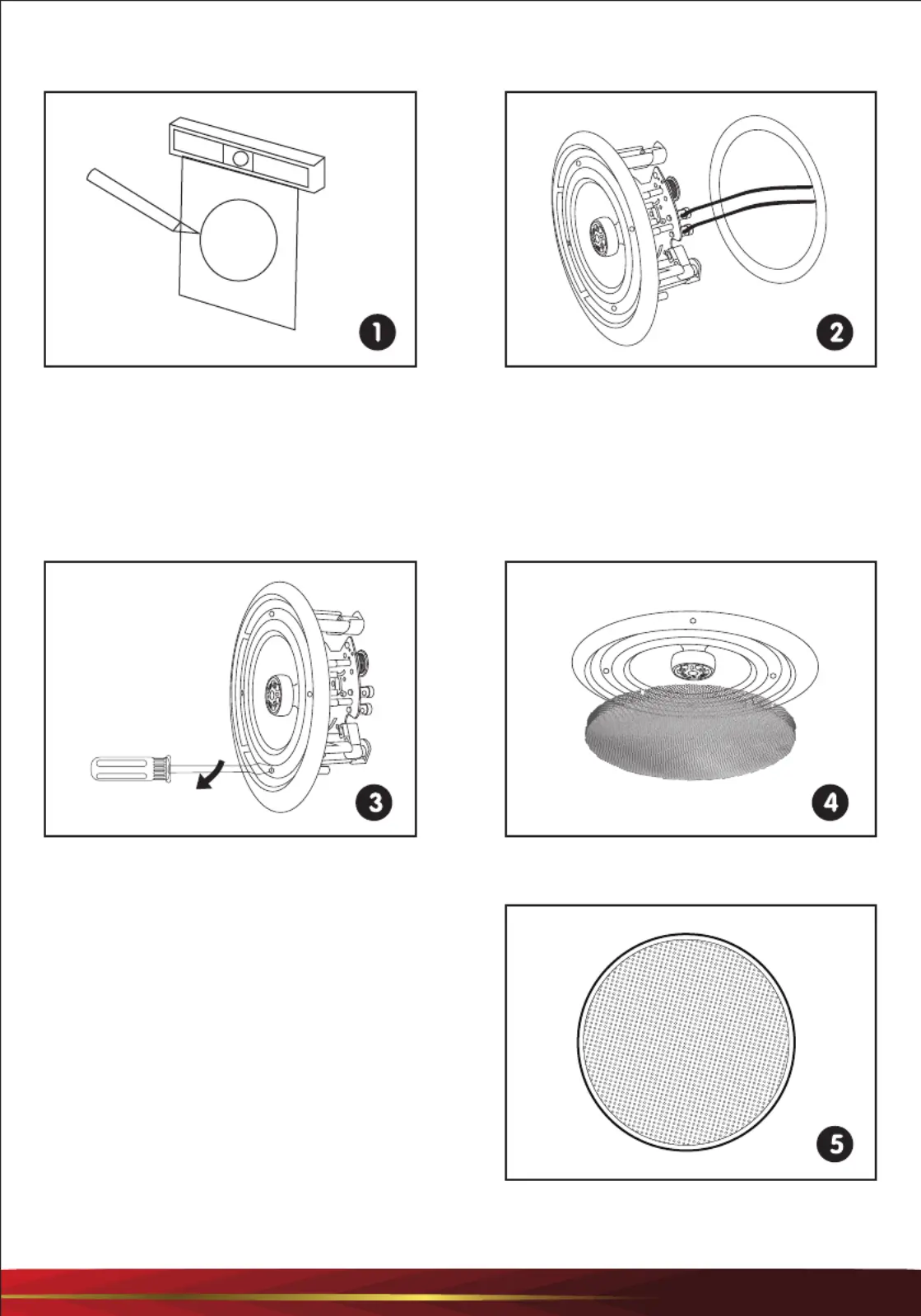

Installation

Cut the drywall.

Note: Always allow at least one-half

inch between a wall stud and the

speaker cutout, or the locking tabs

will not be able to swivel into place.

Connect the speaker wires to the

speaker.

Screw down each of the four Phillips

head screws. The locking tabs will

swivel into place and secure the unit

to the rear surface of the drywall.

Put in the strips of adhesive to secure

the grille.

Replace the metal grille.

Complete

Produkt Specifikationer

Mærke:	Pyle
Kategori:	Højttaler
Model:	PDIC1681RD
Bredde:	- mm
Dybde:	91 mm
Højde:	- mm
Vægt:	4096 g
Produktfarve:	Hvid
Udgangseffekt (RMS):	- W
Anbefalet brug:	Universel
Frekvensområde:	50 - 20000 Hz
Impedens:	16 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	I væggen/i loftet
Diameter:	254 mm
Antal drivere:	1
Driver diameter:	203 mm
Diskanthøjttaler:	Ja
Antal drivere til diskant:	1
Peak Music-Udgangseffekt (PMPO):	250 W
Sensitivitet:	89 dB
Diskant diameter:	0.5 "
Subwoofer driver diameter (britisk):	8 "
