TYPE CABLE LENGHT CONDUCTORS PROTECTION

A96C 5 Mt. 2+ IP68

A96D 15 Mt. 2+ IP68

TYPE Voltage

EA32F 24 V - 50Hz Un protected IP40

contacts

EA31M 220 V - 50Hz NA/NC voltage free IP40

Entry from

hazardous area

Outletto

hazardous areas

Applications

Protection

5679456

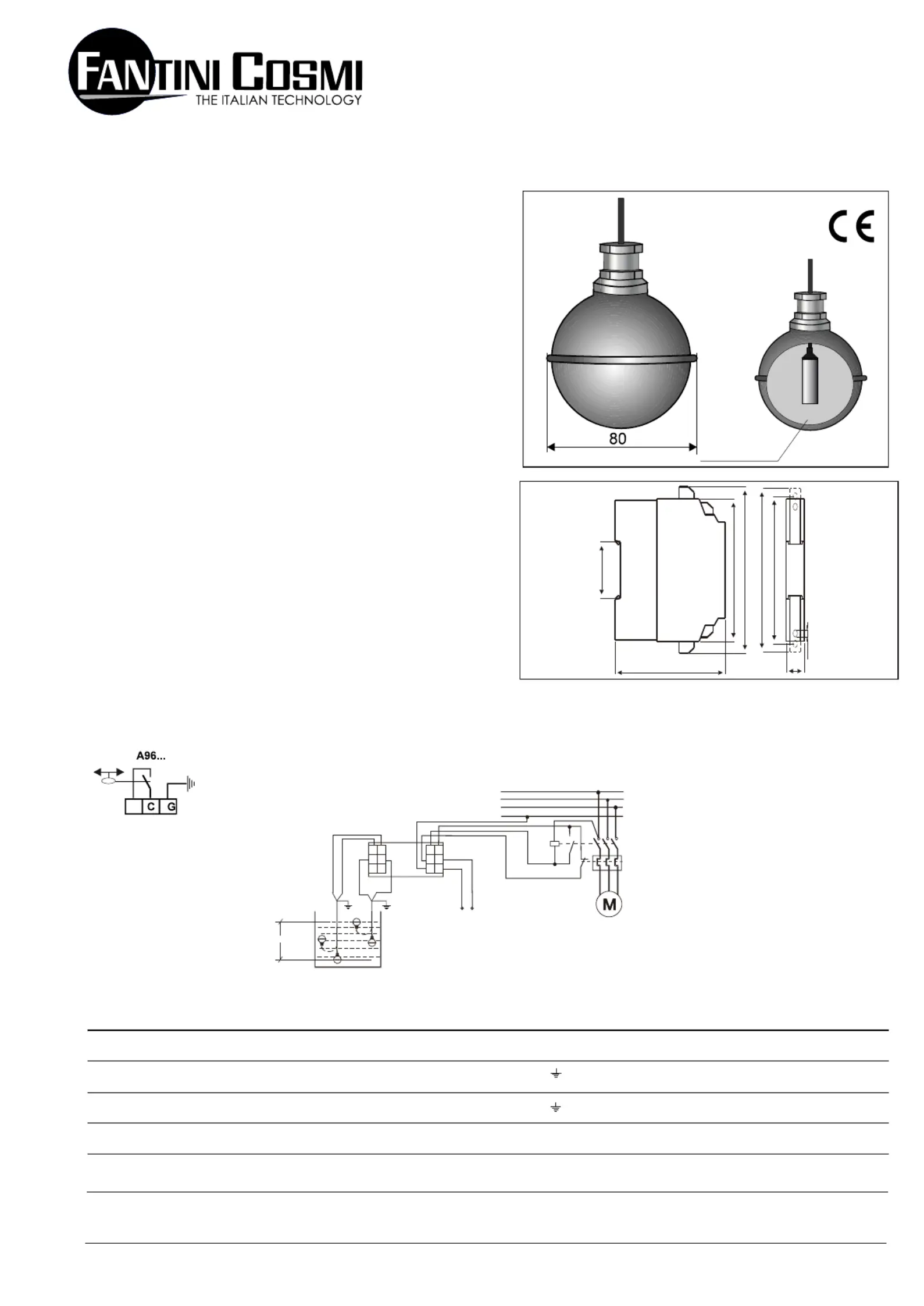

LEVEL REGULATOR FOR HAZARDOUS AREAS

A96

EA3--

GENERALITY

To guarantee the working safety in areas with fire or explosion risks, like diesel

tanks or cesspools which develop flammable or explosive vapors, it is necessary

that you connect the float to the electric circuit through an EEEx-i active safe

barrier.

The system we propose is composed of :

- float level regulator A96

- control unit with a safe barrier EA31M/32F

FLOAT LEVEL REGULATOR A96

GENERAL CHARACTERISTICS

Float level regulator to control directly the diesel or high temperature liquids level

(max. 60° C and 4 bar).

The external body is in stainless steel AISI 304 and the electric cable has inner

and outer sheathes suitable to diesel and

temperature range.

To control the minimum OR the maximum level you use just one regulator, but to

control both the minimum and the maximum liquid level more than 1,5-2 cm. then

you need two regulators one

mounted level with the minimum point and the other level with the maximum

point.

TECHNICAL CHARACTERISITCS

Electric cable section 2x1mm +T with silicon sheathes suitable to a maximum

temperature of 60° C.

Outer body in stainless steel AISI 304

Switch with self-cleaning contacts 10 A - 250 V. To control the coil of the contactor,

it is not suitable to control directly the motor.

Max. working pressure 4 bar.

CONTROL UNIT WITH INTRINSICALLY EEx-i SAFE BARRIER CODE EA3--

For mounting on DIN RAIL;

Protection (EEx-i) IIC certified by CESI according to CENELEC/CEI regulations

Active barrier suitable to 0, 1, 2 division (valid for 0 division).

Voltage 24V or 230V 50Hz

Galvanic insulation at the entry, outlet and voltage circuit.

LED lamp and facilitated harness.

Enclosure in plastic material, autoextinguishing and not dripping, SE1.

It can be connected to 1 or 2 regulators, so it is possible to control just one

regulator or a pump between a minimum and a maximum.

A96 regulator can be directly connected to the coil of the contactor

if you have not to control any liquid with explosion or fire risk without employing

the EA31M/EA32F control unit.

FLOAT LEVEL REGULATOR FOR DIESEL AND HIGH TEMPERATURE LIQUIDS

CONTROL UNIT WITH AN INTRINSICALLY SAFE ACTIVE BARRIER

WIRING DIAGRAM FOR EMPTING PUMP

WIRING DIAGRAM FOR

FILLING PUMP

DENSE

POLYURETHANE

Galvanic de-coupling of unprotected

contacts from a hazardous area

Outlet through a relay towards a sure area.

2 relay with 1

deflection contacts

250V-2,5A-100VA

Via dell'Osio, 6 20090 Caleppio di Settala MI

International calls Tel.+39 02 95682222 Fax.+39 02 95307006

E-mail: export@fantinicosmi.it http//www.fantinicosmi.com

Livello

dim. aum.

A96-EA31

Differenziale

ARRESTO

POMPA

MARCIA

POMPA

1 3 5

G.V.

EA3.

Alimentazione

1110

104

100

4,5

110
