Heatit Controls AB can not be held liable for typographical errors, other errors or

omittances in our information. Product specifications may change without further notice.

All electrical installations must be carried out by a licensed electrician. The product must

be installed in accordance with national building codes and our installers manual.

Heatit Controls AB l Läkarvägen 4, 454 31 BRASTAD, SWEDEN

Phone: +47 61 18 77 77 l post@heatit.com – heatit.com

INTRODUCTION

Heatit Z-Smoke Multisensor is a wireless smoke sensor with built-in

PIR motion sensor, temperature sensor and emergency light.

INSTALLATION

Installation must be done by a qualiﬁed electrician in accordance

with the National Building Codes. Before installation, disconnect

any power to the smoke detector. During installation of the smoke

detector, power to the smoke detector must be disconnected AT

ALL TIMES!

• Screw the mounting bracket onto the wall/ceiling. If used with

• cable trunkings mount the adapter with the bracket mounted

• on the bottom.

• Unscrew the connection cover.

• Connect the ”L” phase to one of the Wago connectors on the

• back of the smoke detector and connect the ”N” phase to the

• other Wago connector.

• Switch on the switch. Illustrated below.

• Align the four notches on the smoke detector with the hooks

• on the mounting bracket. Rotate clockwise to lock the hook.

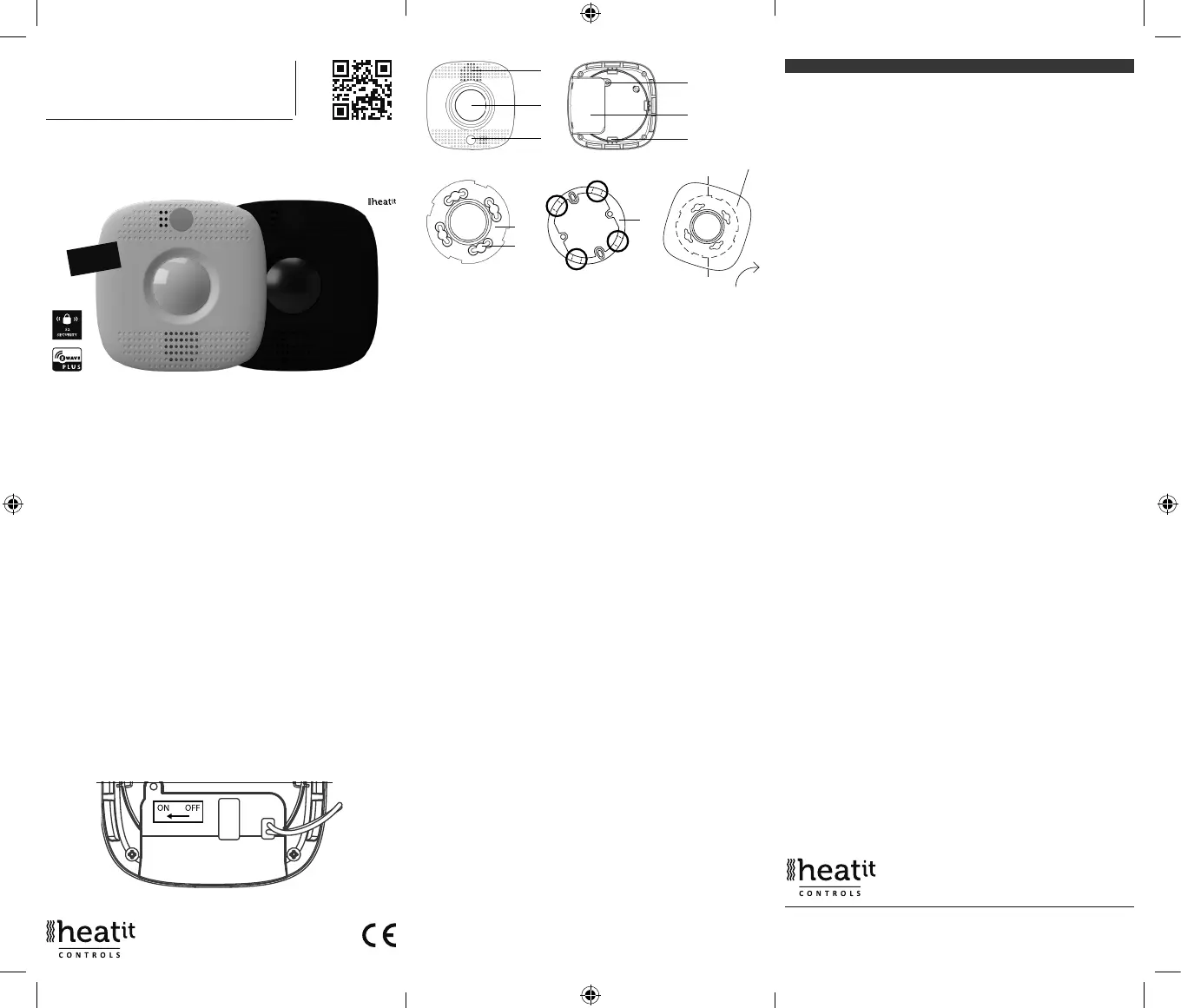

a. LED-indicator/function button/emergency light

b. IR-lens

c. Buzzer

d. Connection compartment ﬁxing screw

e. Connection compartment

f. Hooks

g. Mounting bracket

h. Mounting holes (for the hooks on the mounting bracket)

i. Cable channel adapter

j. Mount by aligning notches and hooks

ADD/REMOVE

After power is appli ed, the smoke detector initiates a 1-minute

warm-up period. During this minute, the device will automatically

enter add/remove mode, and may now be added to the system

via the primary controller/gateway.

Please refer to your primary controller/gateway manual on how to

enter add/remove mode.

SERIAL CONNECTION

1. Add all smoke detectors to the same network.

2. Assign the smoke detectors to the correct zone/room in primary

controller.

3. Access associations from the primary gateway (please refer to

primary controller manual).

4. Assign associations from each device using association group 2

(Sensor Basic Set) to all other smoke detectors.

TECHNICAL DATA

Protocol Z-Wave

Chip Z-Wave 500 chip

Battery 230V AC 50Hz

200mAh, NiMh back-up battery

Temp. sensitivity ±1°C

Alarm 85dB at 3 meters distance

Smoke sensor Photoelectric

Ambient temp. 0°C to 50°C

Humidity Max. 85% RH

Range, PIR Up to 8m at 3m mounting height

IP Code IP 20

Size (LxWxH) 105mm x 105mm x 41mm (ex. adapter)

Approvals Z-Wave Plus

CE, RoHS,

EN 14604:2005, 14604/AC:2008

Read the full manual at:

manuals.heatit.com

HEATIT Z-SMOKE

MULTISENSOR 230V

Quick Guide

Ver 2022-A

230V

Lock

Cable slots

dimensions 10x12mm
