Side 1/4

www.PyleUSA.com

Visit Our Website

SCAN ME

PyleUSA.com

In-Wall / In-Ceiling Dual 6.5-inch

Speaker System, Dire

2-Way, Flush Mount

PDIC60

USER GUIDE

PRODUCT DESCRIPTION

The Pyle PDIC speaker system delivers stereo

sound to any room in your home or oce without

cluttering oor space. This pair of speakers can be

used for in-wall and in-ceiling applications as they

mount ush for a clean look. Perfect for custom

installations, the PDIC series speakers feature

polymer dome tweeters, impressive power

handling capability, high-temperature voice coils

and high-eciency response rates – all to produce

more full and rich sound. Convenient speaker

terminals allow for quick and hassle-free speaker

wire connection. System includes cut-out template

for easy installation. Achieve wide-ranged sound

performance and add audio to any room with

the PDIC Speaker Systems.

Features:

• In-Wall / In-Ceiling System

• 2-Way Stereo Sound Speakers

• 6.5'' Midbass Speaker

• 1'' High Temperature Voice Coil

• Directable 1'' Titanium Dome Tweeter

• 250 Watts Rated Peak Power

• Frequency Response: 65Hz - 22kHz

• 4-8 Ohm Impedance

• Mounts Flush on Walls or Ceilings

• Perfect for Custom Installations & Applications

• Includes Cut-Out Template for Easy Installation

• Cut-Out Dimensions: 7 7/8'' Diameter x 2 3/4''

Depth

• Overall Dimensions: 9'' Diameter x 2 3/4'' Depth

Questions or Comments?

We are here to help!

Phone: 1.718.535.1800

PyleUSA.com/ContactUs

California Prop 65 Warning

WARNING:

This product may expose you to chemicals, which is known to

the state of California to cause cancer, birth defects and other

reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

www.PyleUSA.com

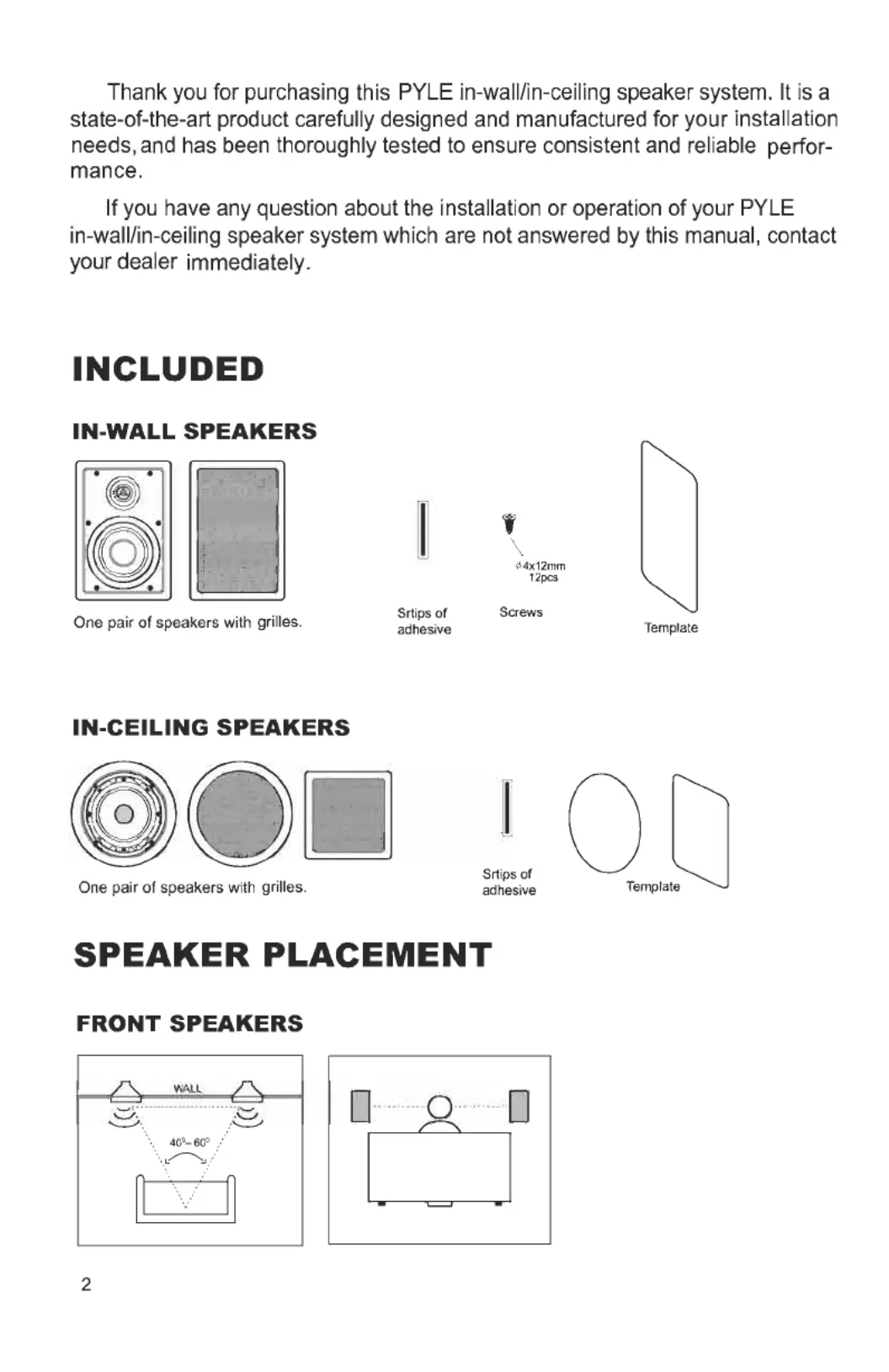

SPEAKER PLACEMENT

FRONT SPEAKERS REAR SPEAKERS

IN-CEILING

• Proper placement of speakers is crucial for achieving the

most realistic soundstage.

• Front speakers should be equidistant from each other and

the listening position, with tweeters aimed at ear-level

height.

• In a home theater setup, surround speakers are ideally

placed slightly behind the listening position, facing each other at a level higher

than the listener’s ears.

• If facing each other isn't feasible, they can be placed in a wall or ceiling behind the

listener, facing forward.

• Surround speakers should provide ambient sound without drawing attention to

themselves, accompanying the main program material from the front speakers.

• In Dolby Digital and DTS systems, tweeters should be aimed toward the listening

position at ear-level height.

SPEAKER CONNECTIONS

CONNECTION TIPS

40 60

0 0

WALL

5-6FT

WALL WALL WALL WALL

LEFT RIGHT

Front or Rear Speaker Outputs

• Ensure that the wires for both speakers are of the same

length.

• If one speaker is closer to the amplier than the other,

hide the excess wire behind the wall.

• Speakers and electronics terminals have corresponding

(+) and (-) terminals, usually denoted by red for (+) and

black for (-).

• Connect both speakers identically, with the (+) terminal

on the speaker to the corresponding (+) terminal on the

amplier, and the (-) terminal on the speaker to the

corresponding (-) terminal on the amplier.
