Side 1/4

www.PyleUSA.com

Visit Our Website

SCAN ME

PyleUSA.com

USER GUIDE

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Waterproof Marine Bluetooth

Powered Speakers

PLATV65BT - PLATV85BT

Product Technical Parameters

PLATV85BT

Technical Specs:

• Speakers: 8.0'' (x2) Poly Injection Cone Speakers

• Tweeters: 1.0'' (x2) Titanium Dome Diaphragms

• MAX Power Output: 1000 Watt (500 x 2)

• RMS Power Output: 500 Watt (250 x 2)

• Frequency Response: 20-25kHz

• Signal-to-Noise Ratio: 91 dB

• Marine Grade IP-44 Rating

• Amplier Class: AB

• Power: DC 12V

• Total Dimensions: 32.5'' x 12.2'' x 9.3''

• Bluetooth Console Dimensions: 4.6'' x 1.6'' x 1.0''

PLATV65BT

Technical Specs:

• Speakers: 6.5'' (x2) Poly Injection Cone Speakers

• Tweeters: 1.0'' (x2) Titanium Dome Diaphragms

• MAX Power Output: 800 Watt (400 x 2)

• RMS Power Output: 400 Watt (200 x 2)

• Frequency Response: 45-25kHz

• Signal-to-Noise Ratio: 90 dB

• Marine Grade IP-44 Rating

• Amplier Class: AB

• Power: DC 12V

• Total Dimensions: 28.7'' x 11.2'' x 7.7''

• Bluetooth Console Dimensions: 4.6'' x 1.6'' x 1.1''

System Features:

• Universal Vehicle Mounting Ability

• Bluetooth Wireless Music Streaming

• Weatherproof & Water Resistant Housing

• Rugged Heavy-Duty Construction Design

• Full Range Stereo Sound Reproduction

• Dual Speaker 2-Way Audio System

• Built-in 2-Channer Digital Amplier

• 'Plug & Play' Connection for Easy Installation

• Instant Connect & Stream Audio Ability

• Can be hard-wired or powered through a cigarette lighter port

• Engineered 'Tube' Design for Maximum Sound Projection

• Perfect for ATV, UTV, 4x4, Golf Carts, Jetski, Snowmobile & More!

• Includes Bluetooth Controller/In-Line Volume Control

Bluetooth Music Streaming:

• Wireless Audio Streaming Ability

• Works with All of Your Favorite Devices

(iPhone, Android, Smartphones, iPad, Tablet, etc.)

• Bluetooth Version: 4.0

• Bluetooth Network Name: Pyle

• Bluetooth Network Password: ' '0000

• Bluetooth Wireless Range: 30'+ Feet

Color-Changing LED Lights:

• Built-in Dancing / Flashing Lights

• 19 Dynamic Color Changing Modes

• Speed & Color Brightness Adjustable

• Multi-Color LED Lights: Red/Green/Blue

• Includes LED Lighting Remote Control

www.PyleUSA.com

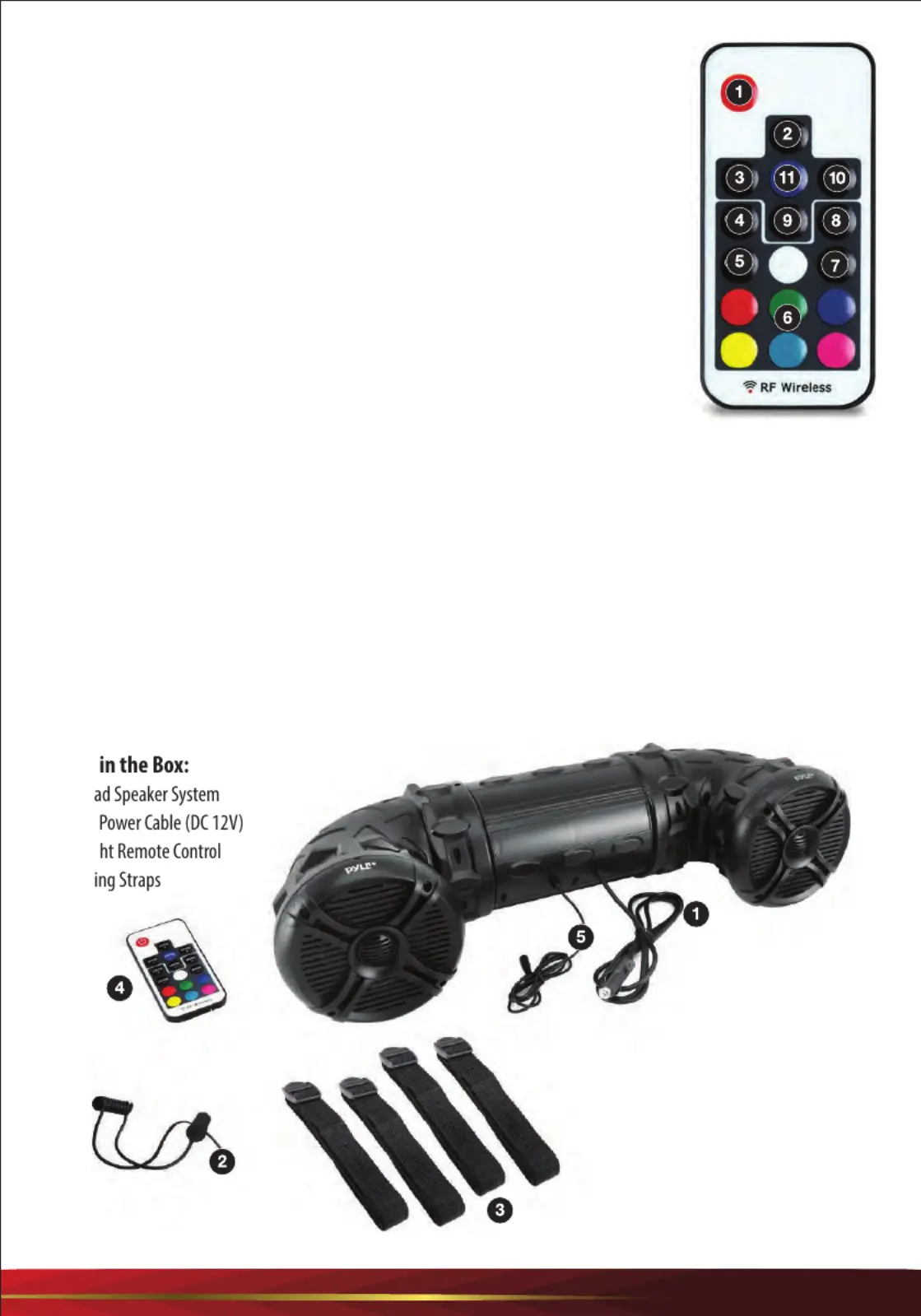

Remote Control Features

11. Press this key to switch to Demo mode. In demo mode, it plays 17 dynamic modes in a loop, each mode Demo Mode:

repeating 3 times.

IMPORTANT

• Please remember to remove plastic insulator from remote unit battery compartment.

• This remote uses a 3volt CR2025 type battery. When replacing the battery, be sure to use only the same type of battery.

• The remote signal can pass through most obstacles.

• DO NOT install the unit in areas surrounded by metal as the remote signal will not reach the unit.

1. Turn On/Standby: Press this key to turn unit or switch to stand by mode.ON

At power-on, the unit will automatically turn on and restore to the previous status.

2/9. Switch to dynamic mode from static color, or switch between Dynamic Mode Adjust:

dynamic modes.

3/10. Adjust dynamic playing speed. Press to increase Dynamic Speed Adjust: SPEED+

speed and press to decrease. The unit will switch to dynamic mode if this key is SPEED-

pressed in static color mode.

4/5. Switch to static color mode from dynamic mode, or switch between Static Color Adjust:

static colors.

6. Shortcut key to static colors. When pressing the specic color key, the Direct Color Select:

LED will play the same static color. The direct colors are included in 'COLOR+ COLOR-' and ' '

operation.

7/8. Adjust static color brightness. Press to increase brightness Brightness Adjust: BRIGHT+

and press BRIGHT- to decrease. The unit will switch to static color mode if this key is

pressed in dynamic mode.

What's

• O-Ro

• Wiring

• LED Lig

• Fasten

1. Cigarette Lighter

2. DC12V

3. Ribbon

4. RGB Remote Controller

5. 3.5mm Aux-in

Produkt Specifikationer

Mærke:	Pyle
Kategori:	Højttaler
Model:	PLATV65BT
Kode for international beskyttelse (IP):	IP44
Bredde:	284.5 mm
Dybde:	729 mm
Højde:	195.5 mm
Vægt:	- g
Produktfarve:	Sort
Produkttype:	Bærbar stereohøjttaler
Antal højttalere:	1
Udgangseffekt (RMS):	400 W
Bluetooth-version:	4.0
Anbefalet brug:	Universel
Frekvensområde:	45 - 20000 Hz
Forbindelsesteknologi:	Trådløs
Højttaler, type:	2-vejs
Lyd-output kanaler:	- kanaler
LED-indikatorer:	Ja
Strømkilde type:	Batteri
Antal drivere:	2
Diskanthøjttaler:	Ja
Peak Music-Udgangseffekt (PMPO):	800 W
Sensitivitet:	90 dB
Bærehåndtag:	Ja
Baggrundslys:	Ja
Diskant diameter:	1 "
Forstærker:	Indbygget
Forstærker klasse:	A/B
Bluetooth-område:	9 m
