Acoustic Design Series

Quick Start Guide

AD-P.SUB

AD-P.SAT

TD-001564-01

*TD-001564-01*

EXPLANATION OF SYMBOLS

The term “WARNING” indicates instructions regarding personal safety. Failure to follow them may result in bodily injury or death.

The term “CAUTION” indicates instructions regarding possible damage to physical equipment. Failure to follow them may result in equipment damage

to equipment that may not be covered under the warranty.

The term “IMPORTANT” indicates instructions or information that are vital to the successful completion of theprocedure.

The term “NOTE” indicates additional useful information.

The lightning ﬂash with arrowhead symbol in a triangle alerts the user to the presence of uninsulated dangerous voltage within the product’s

enclosure that may constitute a risk of electric shock to humans.

The exclamation point within a triangle alerts the user to important safety, operating, and maintenance instructions in this manual.

1. Read these instructions and keep a copy for future reference.

2. Strictly follow and heed all instructions and warnings.

3. Consult a licensed and qualiﬁed professional engineer to devise and/or review an appropriate pendant mounting scheme.

4. Do not use or submerge this loudspeaker product in or near water or liquids.

5. Clean only with a dry cloth. Do not use any aerosol spray, cleaner, disinfectant or fumigant on, near, or into the loudspeaker product.

6. Do not block any ventilation opening. Install in accordance with the manufacturer’s instructions.

7. Do not install the loudspeaker near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers).

8. Do not use any attachments, accessories, mounts, or brackets that are not speciﬁed or approved by QSC, LLC.

9. Refer all service to qualiﬁed personnel. Service is required if the hanging mechanism or loudspeaker have been damaged in any way, such as liquid

having been spilled or objects have fallen into the loudspeaker or the loudspeaker has been exposed to rain or moisture, does not operate normally,

or has been dropped.

10. Observe all applicable local codes.

11. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

Maintenance and Repair

Advanced technology—e.g., the use of modern materials and powerful electronics—requires specially adapted maintenance and repair methods. To

avoid subsequent damage to the equipment, personal injury, and/or creation of additional safety hazards, have all maintenance or repair work on the

equipment performed only by a QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm,

or related damages that arise from any failure of the customer, owner, or user of the equipment to facilitate those repairs.

Warranty

For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com

IMPORTANT SAFETY INSTRUCTIONS

TD-001564-01

Suspend the Subwoofer

WARNING!: Do not attach the snap hook to

the loudspeaker or any other load until the

hanger cable has been anchored to a suitable

structural member.

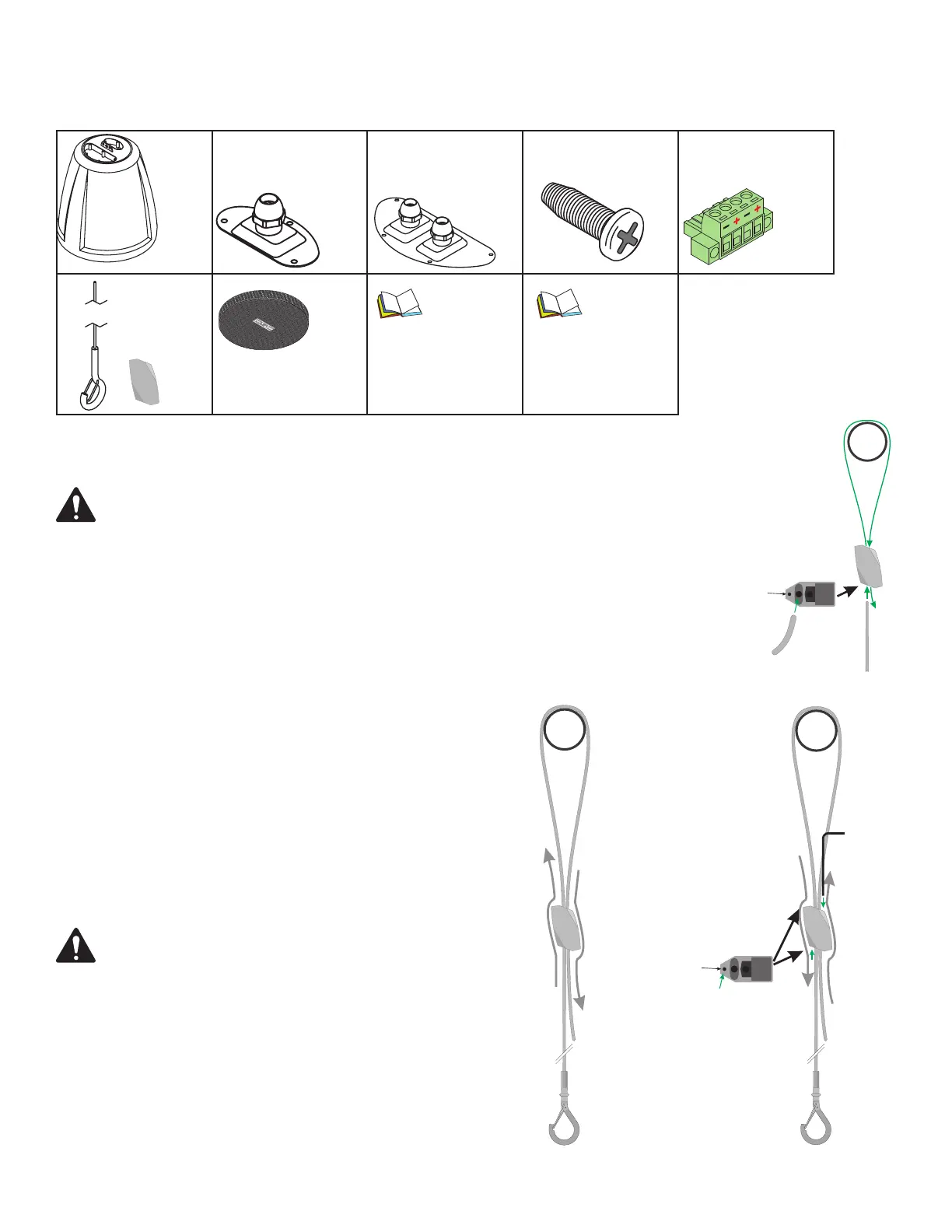

1. Insert the wire cable into the appropriate hole in the slip-lock fastener

(see Figure 1). The fastener’s two holes are directional, so cable will

only insert one way; if it will not go through, the cable is inserted into

the wrong hole.

2. Loop the cable over the structural member where the subwoofer is

to hang. The structure must be capable of supporting at least 5× the

weight of the subwoofer—AD-P.SUB: 17.5 lb or 8 kg.

NOTE: Building codes in some jurisdictions

may require higher safety factors.

Note that the subwoofer uses two hanger cables.

3. Insert the cable through the other hole in the fastener.

4. Adjust the length of the cable hang so the snap hook is at the desired

height. To shorten the hang, simply pull the cable further through one

or both holes in the fastener (Figure 2). To lengthen the hang or to

remove the cable from the structural member, insert the release key

into the appropriate release key hole; this will unlock that hole in the

fastener and allow the cable to move in the other direction (Figure3).

WARNING!: Never insert the release key while

there is a load on the hanger cable.

5. Repeat for the other hanger cables.

6. Attach both snap hooks to the suspension tab on the subwoofer

(Figure 4). Make sure the safety latch on the hook closes fully with the

subwoofer attached before you transfer the weight of the subwoofer to

the cables.

Install the AD-P.SUB Subwoofer

What’s in the AD-P.SUB Box

— Figure 1 —

Insert cable

here

Release

key hole

End view

— Figure 2 — — Figure 3 —

Structural

member

Pull cable to

shorten hang.

Insert release

key to lengthen

hang or remove.

Insert cable

here

Release

key hole

End view

Structural

member

Structural

member

1×

AD-P.SUB

1×

Cover 1

1×

Cover 2

8×

Screw

2×

Hanger cable

with slip-lock

fastener

3×

Euro-style plug

1×

Magnetic

grille

1×

Warranty

1×

Quick Start

Guide

TD-001547
