E Series

Quick Start Guide

Input Conﬁguration

E Series two-way loudspeakers and subwoofers are designed for externally powered operation. Pass-throughs permit connection to multiple loudspeakers. The

two-way models feature internal passive crossovers for full-range operation. To use them with subwoofers, use an active crossover and separate ampliﬁcation to

split the subwoofer frequencies and the remainder of the audio spectrum.

PLD and GXD Series ampliﬁers have E Series voicings available in their presets and loudspeaker proﬁles. TouchMix digital mixers also have E Series voicings

available, for use in systems that don't have PLD or GXD Series ampliﬁers.

E Series E110, E112, E115, E215 Block Diagram and Input Plate

— Figure 1 —

LF

E215 only

DEEP LPF

HPF

HF

LPF

LF

NL4

Barrier

Strip

NL4

1

1

1

1

2

2

2

2

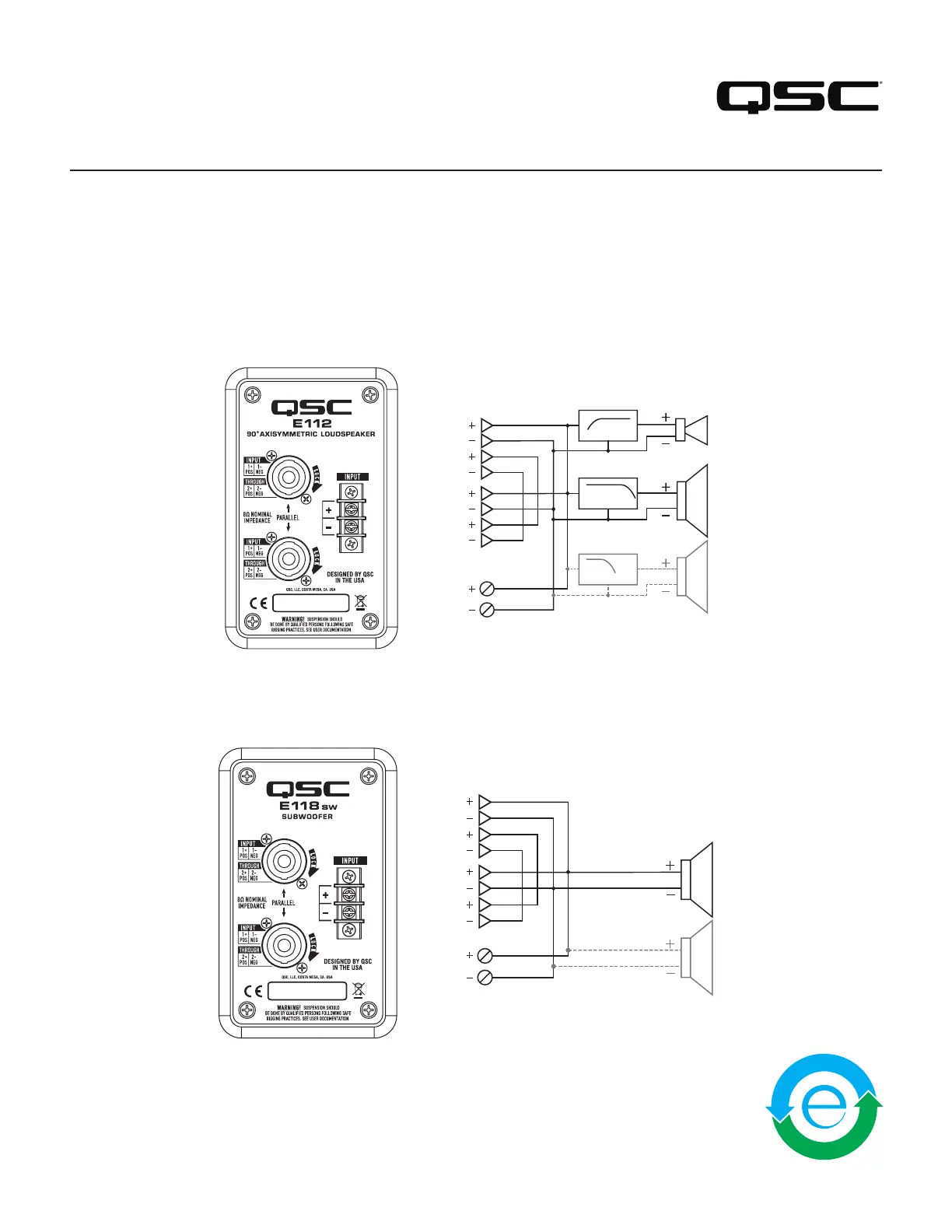

E Series E118sw, E218sw Block Diagram and Input Plate

— Figure 2 —

LF

LF

NL4

Barrier

Strip

NL4

1

1

1

1

E218sw only

2

2

2

2

TD-000525-00-E

*TD-000525-00*

2

TD-000525-00-E

Connections

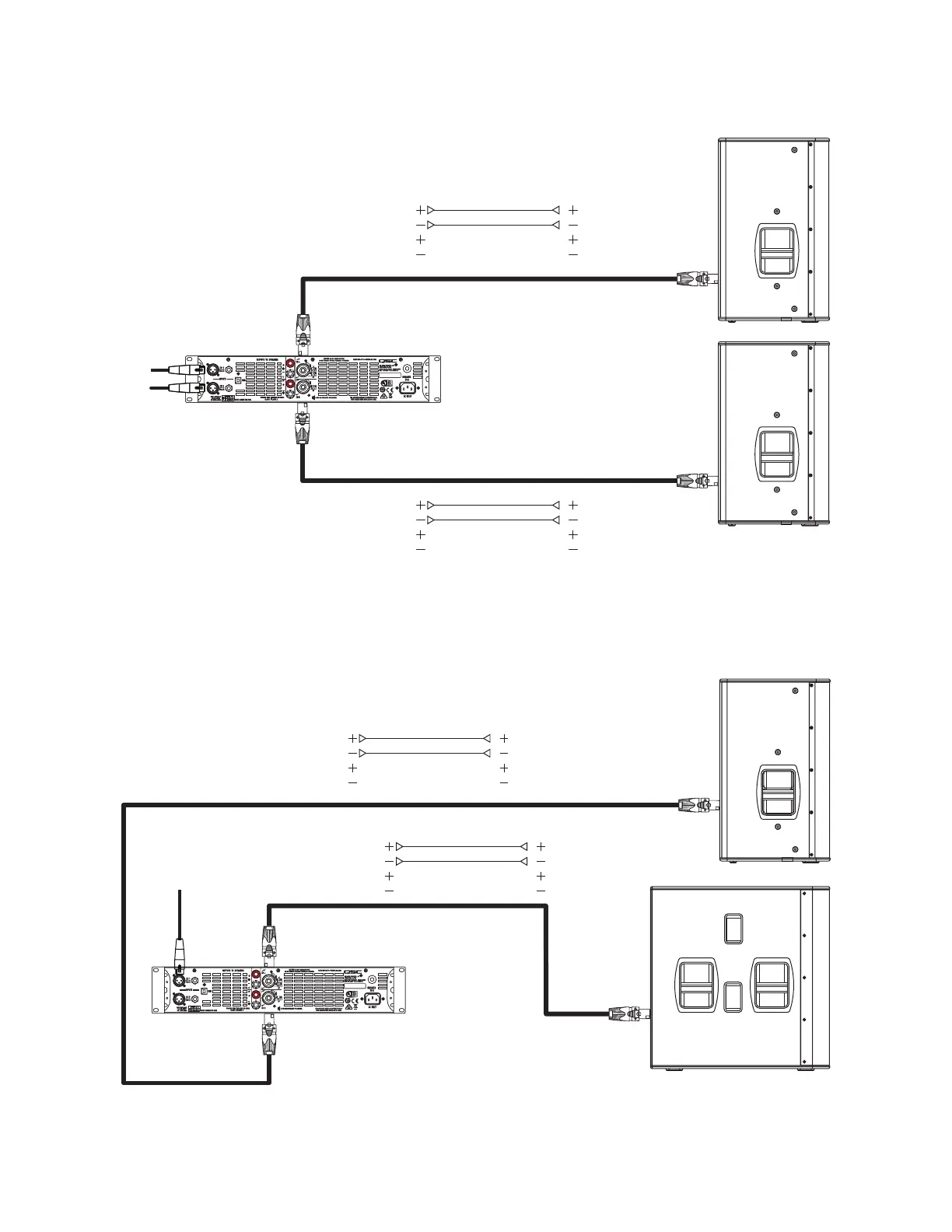

Full Range Stereo System

— Figure 3 —

Input

NL4

Ampliﬁer

1

1

2

2

NL4

Loudspeaker

1

1

2

2

NL4

Ampliﬁer

1

1

2

2

NL4

Loudspeaker

1

1

2

2

Right

Left

Single Channel, Sub / Satellite Option 1

— Figure 4 —

Input

NL4

Ampliﬁer

1

1

2

2

NL4

Loudspeaker

1

1

2

2

NL4

Ampliﬁer

1

1

2

2

NL4

Loudspeaker

1

1

2

2

GXD Series power amplier preset:

P6 ST E110 (stereo E110)

P10 ST E112 (stereo E112)

P12 ST E112 DANCE (stereo E112 dance)

P14 ST E115 (stereo E115)

P16 ST E115 DANCE (stereo E115 dance)

GXD Series power amplier preset:

P3 SUB SAT 80HZ
