DLT-V4 Tape Drive

Quick Start Guide

English- - - - - - - - - - - 1

German - - - - - - - - - - 5

Spanish - - - - - - - - - - 9

French - - - - - - - - - - 13

Japanese - - - - - - - - 17

Korean - - - - - - - - - - 21

Simplified Chinese - 25

Introduction 0

This guide provides instructions on how to configure and install the DLT-V4 tape

drive in the following configurations:

•Internal Tape Drive — SCSI, SATA, and USB versions

•Tabletop Tape Drive — SCSI and USB/eSATA versions

Internal Tape Drive 0

1Inspect the shipping box and contents of the box for damage. If you find any

damage, report it to the shipping company.

2Select a server or workstation to host the tape drive.

3Download the device driver from the following Web site:

http://www.quantum.com/ServiceandSupport/

SoftwareandDocumentationDownloads/DLTV4/Index.aspx.

4Shut down and power off the host and all peripheral devices attached to the

selected host.

5 SCSI Tape Drives Only — If necessary, change the SCSI ID using the SCSI

jumpers (see figure 1). (For complete instructions, see the DLT-V4 Product

Manual.)

NOTE:See the last page of this document for additional resources.

NOTE:Save the packing materials in case you need to move or ship the

tape drive. You must ship the tape drive in the original or equivalent

packing materials to preserve your warranty.

NOTE:The factory default SCSI ID is .5

DLT-V4 Tape Drive Quick Start Guide

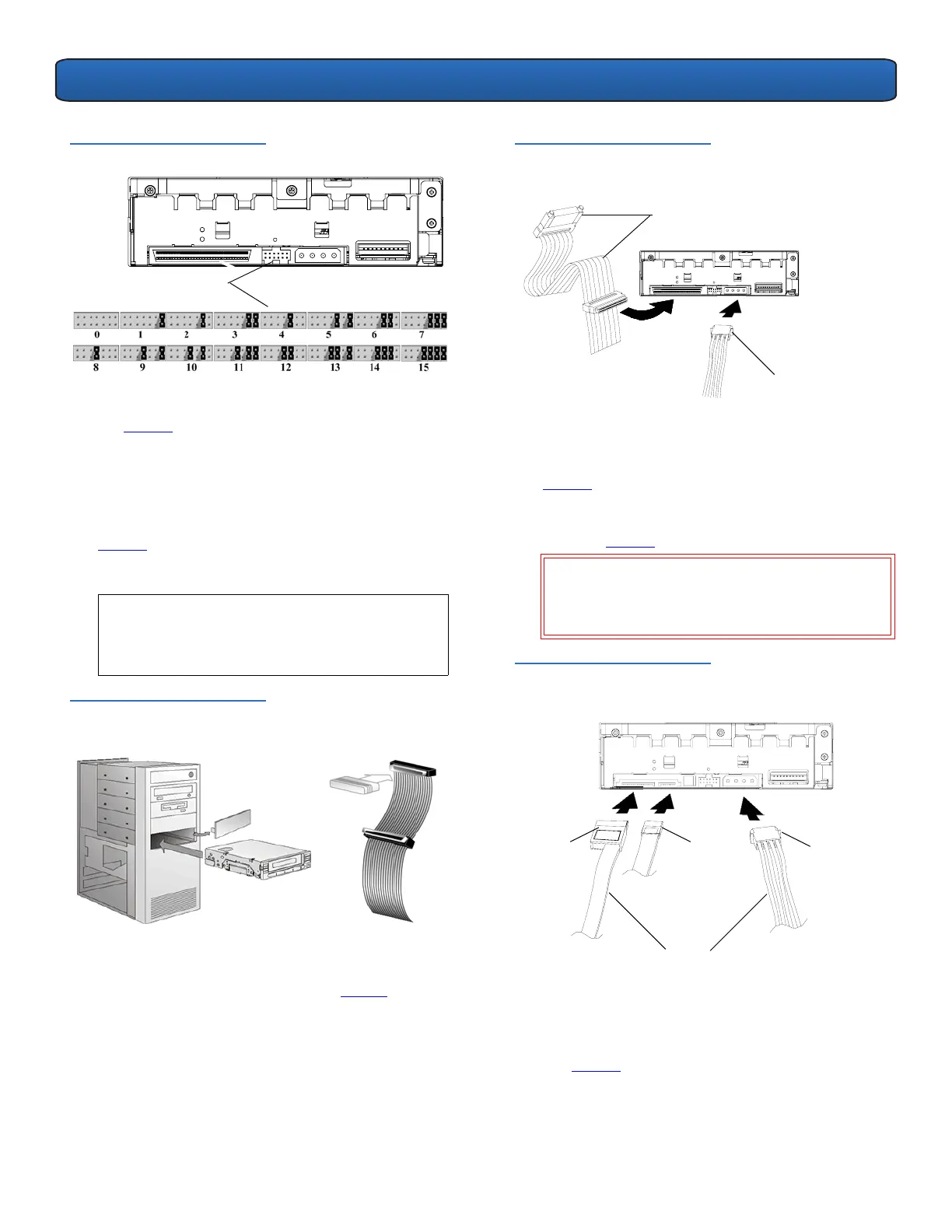

Figure 1 Setting the SCSI ID

6Remove the cover from the server or workstation as

described in the server or workstation’s documentation.

See figure 2.

7 SCSI Tape Drives Only — If necessary, install an LVD/SE

host bus adapter in the server or workstation.

8 SCSI Tape Drives Only — Connect an active LVD/SE

terminator onto one end of the SCSI cable, if the tape

drive is the last or only device on the SCSI bus (see

figure 2). If the SCSI cable that came with the SCSI host

bus adapter already has a terminator built into it, do

not use an additional terminator.

Figure 2 Removing the Cover,

Installing, and Terminating

9 SCSI Tape Drives Only —Connect the SCSI cable to the

tape drive and to the SCSI host bus adapter. Connect

the power cable to the tape drive (see figure 3).

NOTE:If the tape drive is not the last or only device

on the SCSI bus, make sure the last device on

the SCSI bus is properly terminated is and

powered on whenever you use the tape drive.

SCSI ID jumpers

Figure 3 Connecting the SCSI

Cables to Rear of Tape Drive

10 SATA Tape Drives Only — Connect one end of the

SATA data cable to the tape drive and the other end of

the SATA data cable to the SATA host bus adapter (see

figure 4).

11 SATA and USB Tape Drives Only — Connect either the

SATA power cable drive power cable to the tape or

drive (see figure 4).

Figure 4 Connecting the SATA

Cables to Rear of Tape Drive

12 Secure the tape drive in the selected server or

workstation with the appropriate M3 mounting screws

(see figure 5). Contact the computer manufacturer if

the server or workstation uses mounting rails for

internal tape drives.

CAUTION:Connect only one power cable to the

drive. Connecting both the SATA power cable

and drive power cable to the tape drive may

damage the drive.

SCSI cable (with terminator)

Drive power cable

SATA

power

cable

SATA

data

cable

Drive

power

cable

Install EITHER

(not both)
