Side 1/6

1. Do not use reel at higher pressures or temperatures than listed on

the back of this bulletin.

2. Remove all spring tension before beginning dissassembly process.

SAFETY

INSTALLATION:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible

misalignment and binding.

LUBRICATION:

Hose reel spring and bearings are factory lubricated and require no further lubrication.

REPLACING HOSE:

1. Wind spool flange clockwise-facing swivel-until spring is tight.

2. Back off three turns and latch.

3. Insert hose through roller guide.

4. Connect hose fitting to swivel joint and secure hose with clamps.

ADJUSTMENTS:

To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is

obtained.

REPAIRS:

Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may

void your warranty. Remove all spring tension before beginning disassembly process.

Operating Instructions

Series 4000 Spring Driven Hose Reels

Low Pressure Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

Form# 828-696 Rev: 3/2018

MOUNTING:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or

ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing

the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the

reel at the desired position and replace the screws. For proper installation in wall mount applications, ensure NOTE:

reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause latching issues.

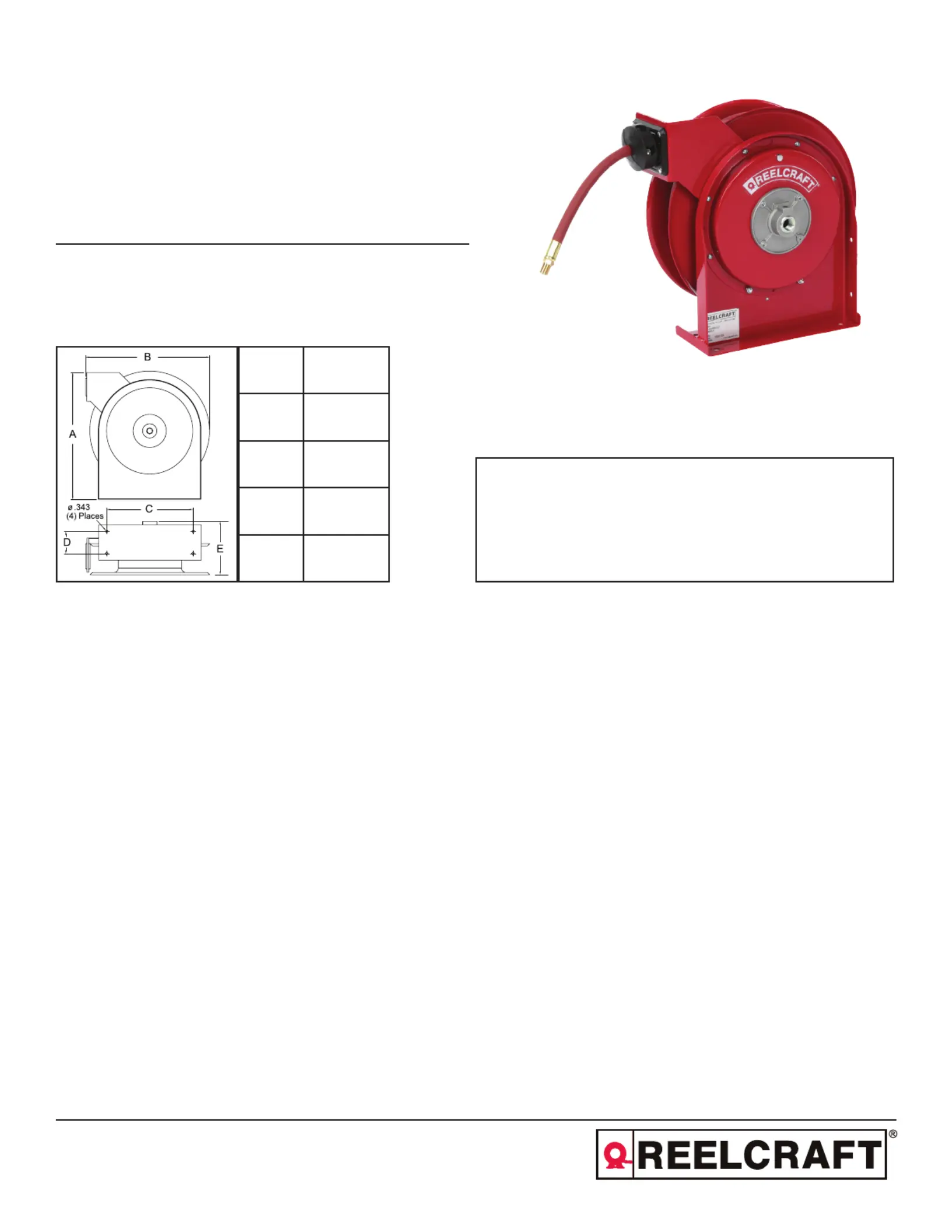

Dimensions

A 12 7/8”

B 12 3/8”

C 8”

D 2 1/2”

E 5 5/8”

4400 OLP 4430 OLP 4615 OLP 4620 OLP

4420 OLP 4435 OLP 4617 OLP 4625 OLP

4425 OLP 4600 OLP

Series 4000 Spring Driven Hose Reels

Page 2

www.reelcraft.com

Item # Part # # Req. Item # Part # # Req. Item # Part # # Req.Description Description Description

1 S600886 1 12 S400107 1 23 S400018 1Swivel Assembly Guide Arm Assembly Latch Spring

2 300031 2 13 400101 1 25 400020 1 O-ring1” Snap Ring Base Assembly

3 300034 2 15 S261360 1 26 S400109 1Spacing Washer Spring Case Stud Latch Plate Assembly

4 S295-102 3 17 300006 1 27 300035 11/4” Plastite Hex Screw 3/8-16 x 1/2” Set Screw 10-32 x 1” Mach. Screw

5 400005 1 18 S400103 1 28 3-117440 1 U-boltFlange Assembly Spring Case Assembly

6 400006 1 19 S82-15 8 29 261650-1 2Sheave Disk 10-32 x 3/8” Nyloc Nut 1/4-20 Zinc Nyloc Nut

7 S400019 1 20 S400021 1 30 S400015 1Latch Cam Latch Bumper Main Shaft

8 S260648 1 21 S32-136 1Spring Arbor 10-24 x 3/8” Mach. Screw

9 300002 7 22 S400012 110-32 x 1/2” Screw Latch Bushing

Item

Description

Req.

4400 OLP 4420 OLP 4425 OLP 4430 OLP 4435 OLP 4600 OLP 4615 OLP 4617 OLP 4620 OLP 4625 OLP

10 1 None 1-HR1004A 1-HR1004A 1-HR1004A 1-HR1004A None 1-HR1004 1-HR1004 1-HR1004 1-HR1004Bumper Stop Assembly

11 1 None S601001-20 S601001-25 601000-30 S601001-35 None 601013-15 601011-17 601011-20 S601013-25Hose Assembly

14 1 S400030 S400030 S400030 S400030 S400030 S404230 S404230 S404230 S404230 S404230Drive Spring Assembly

Hose I.D. and Length 1/4” x 20’ 1/4” x 25’ 1/4” x 30’ 1/4” x 35’ 3/8” x 15’ 3/8” x 17’ 3/8” x 20’ 3/8” x 25’None None

Reel Inlet Connection 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T.

Max. Operating Pressure 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I.

Max. Operating Temperature 210 °F 150 °F 150 °F 150 °F 150 °F 210 °F 150 °F 150 °F 150 °F 150 °F
