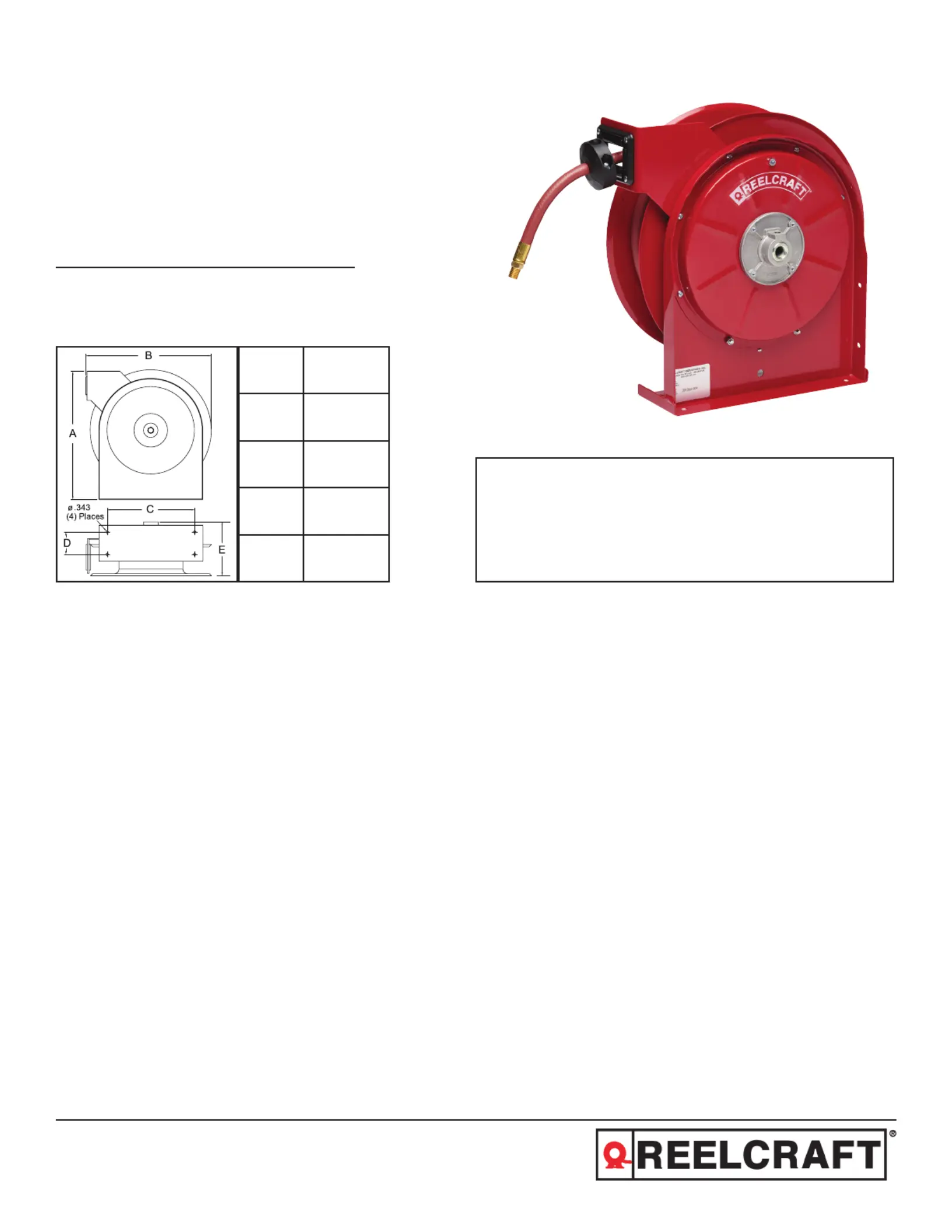

Side 1/6

1. Do not use reel at higher pressures or temperatures than listed on

the back of this bulletin.

2. Remove all spring tension before beginning dissassembly process.

SAFETY

Operating Instructions

Series 5000 Spring Driven Hose Reels

Low Pressure Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

Form# 831-696 Rev: 2/2023

Dimensions

A 14 3/8”

B 14”

C 9 3/4”

D 2 1/2”

E 6 1/8”

INSTALLATION:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible

misalignment and binding.

LUBRICATION:

Hose reel spring and bearings are factory lubricated and require no further lubrication.

REPLACING HOSE:

1. Wind spool flange clockwise-facing swivel-until spring is tight.

2. Back off three turns and latch.

3. Insert hose through roller guide.

4. Connect hose fitting to swivel joint and secure hose with clamps.

ADJUSTMENTS:

To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is

obtained.

REPAIRS:

Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may

void your warranty. Remove all spring tension before beginning disassembly process.

MOUNTING:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or

ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing

the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the

reel at the desired position and replace the screws. For proper installation in wall mount applications, ensure NOTE:

reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause latching issues.

5400 OLP 5630 OLP

5635 OLP 5600 OLP

5450 OLP

Series 5000 Spring Driven Hose Reels

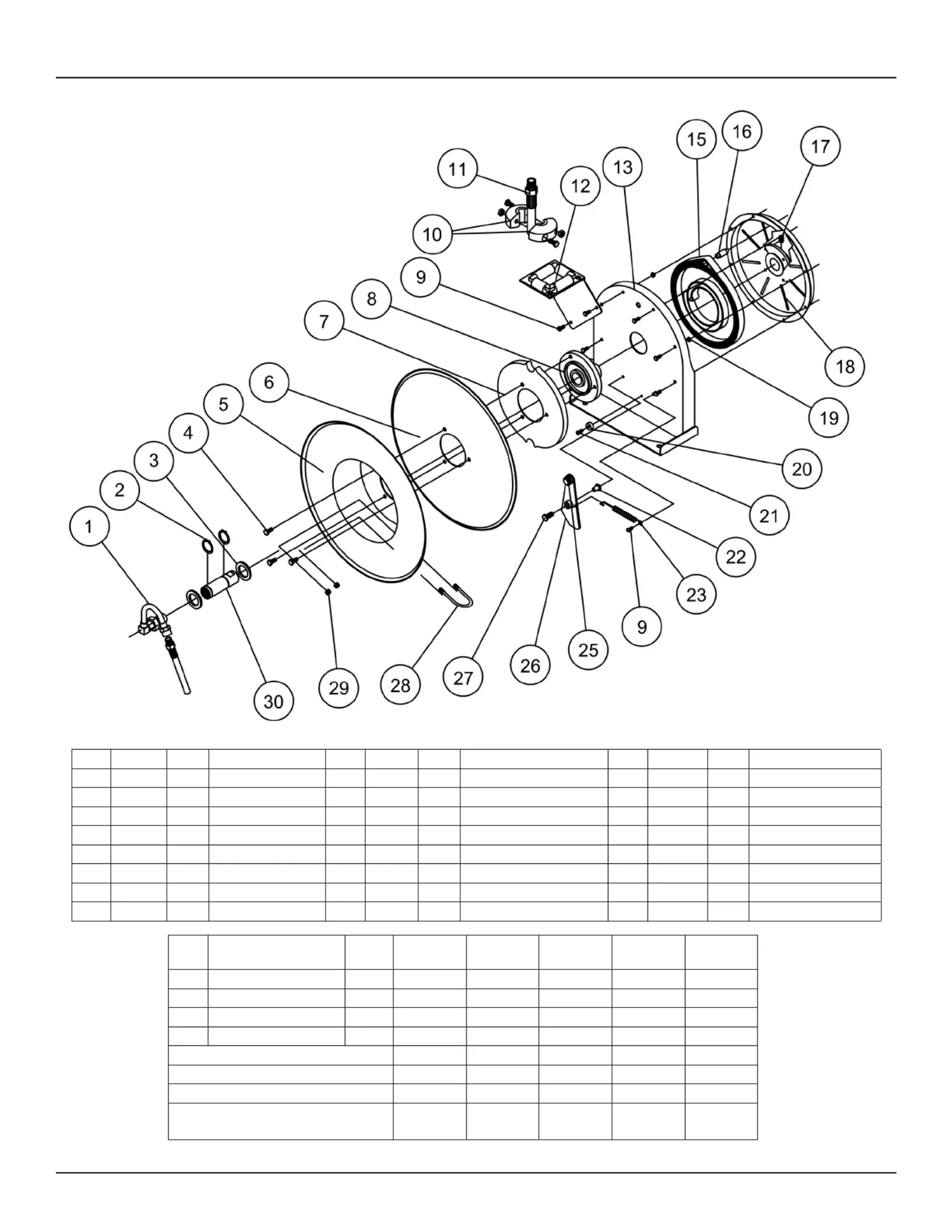

Page 2

www.reelcraft.com

Item # Part # # Req. Item # Part # # Req. Item # Part # # Req.Description Description Description

1 S600886 1 9 300002 7 21 S32-136 1Swivel Assembly 10-32 x 1/2” Screw 10-24 x 3/8” Mach. Screw

2 300031 2 12 S500107 1 22 S400012 11” Snap Ring Guide Arm & Roller Assembly Latch Bushing

3 300034 2 13 500101 1 23 S400018 1Spacing Washer Base Assembly Latch Spring

4 S295-102 3 16 S261360 1 25 400020 1 O-ring1/4” Plastite Hex Screw Spring Case Stud

5 260022 1 17 300006 1 26 S400109 1Sheave Flange 3/8-16 x 1/2” Set Screw Latch Plate Assembly

6 500006 1 18 S500103 1 27 300035 1Sheave Disk Spring Case Assembly 10-32 x 1” Mach. Screw

7 S500019 1 19 S82-15 8 29 261650-1 2Latch Cam 10-32 x 3/8” Nyloc Nut 1/4-20 Zinc Nyloc Nut

8 S260648 1 20 S400021 1 30 S400015 1Spring Arbor Latch Bumper Main Shaft

Item # # Req. 5400 OLP 5450 OLP 5600 OLP 5630 OLP 5635 OLPDescription

10 1 None 1-HR1004-A None 1-HR1004 1-HR1004Bumper Stop Assembly

11 1 None 601001-50 None S601011-30 S601013-35Hose Assembly

15 1 S503755 S503755 S504240 S504240 S504240Drive Spring Assembly

28 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440

Hose I.D. and Length 1/4” x 50’ 3/8” x 30’ 3/8” x 35’None None

Reel Inlet Connection 3/8” NPT(F) 3/8” NPT(F) 3/8” NPT(F) 3/8” NPT(F) 3/8” NPT(F)

Max. Operating Pressure 500 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 300 P.S.I.

Max. Operating Temperature 210 °F 150 °F 210 °F 150 °F 150 °F
