1. Do not use reel at higher pressures or temperatures than listed on

the back of this bulletin.

2. Remove all spring tension before beginning dissassembly process.

SAFETY

5605 OLP 5650 OLP

Operating Instructions

Series 5005 Spring Driven Hose Reels

Low, Medium and High Pressure Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

Form# 872-297 Rev: 2/2023

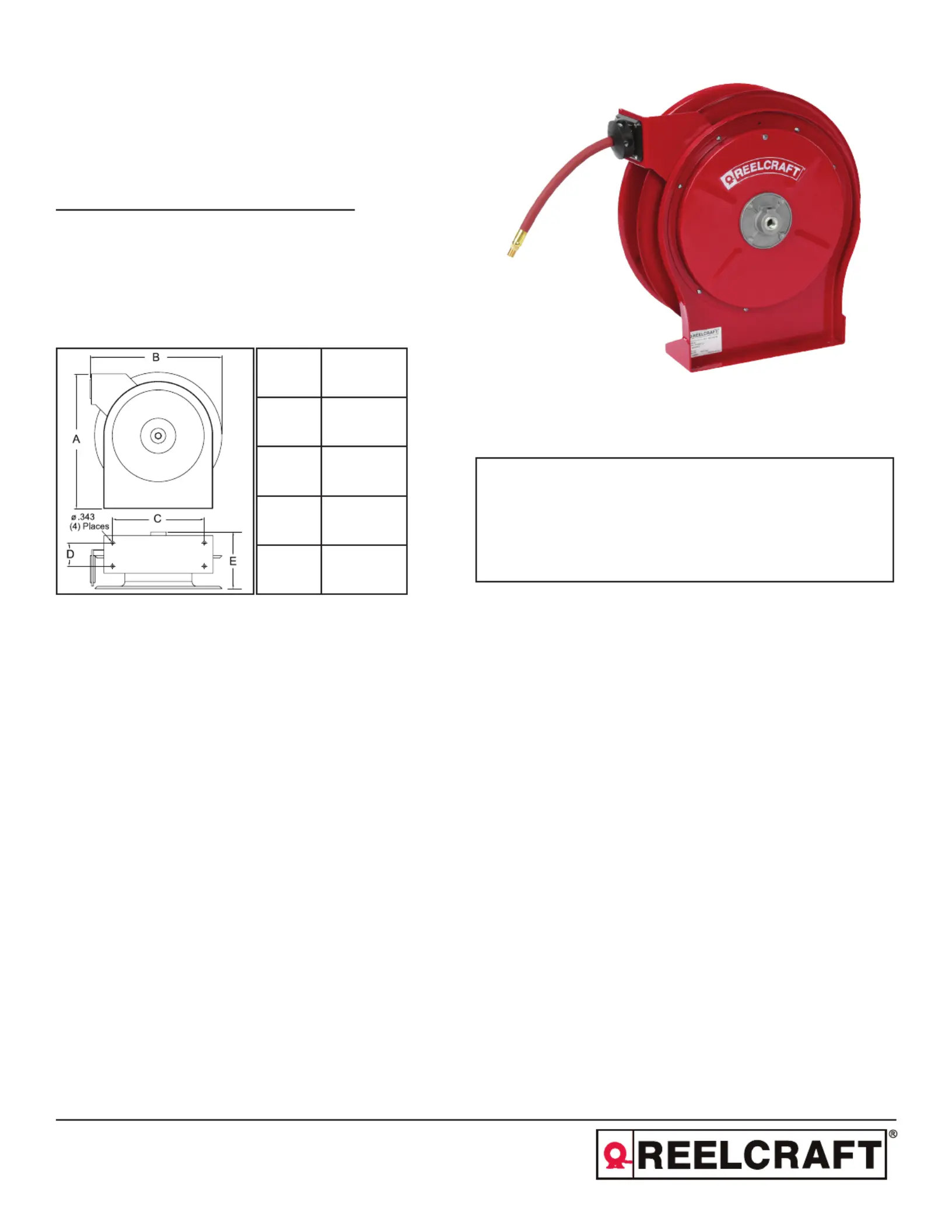

Dimensions

A 17 5/8”

B 16 1/2”

C 9 3/4”

D 2 1/2”

E 5 7/8”

INSTALLATION:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible

misalignment and binding.

LUBRICATION:

Hose reel spring and bearings are factory lubricated and require no further lubrication.

REPLACING HOSE:

1. Wind spool flange clockwise-facing swivel-until spring is tight.

2. Back off three turns and latch.

3. Insert hose through roller guide.

4. Connect hose fitting to swivel joint and secure hose with clamps.

ADJUSTMENTS:

To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is

obtained.

REPAIRS:

Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may

void your warranty. Remove all spring tension before beginning disassembly process.

MOUNTING:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or

ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing

the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the

reel at the desired position and replace the screws. For proper installation in wall mount applications, ensure NOTE:

reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause latching issues.

Series 5005 Spring Driven Hose Reels

Page 2

www.reelcraft.com

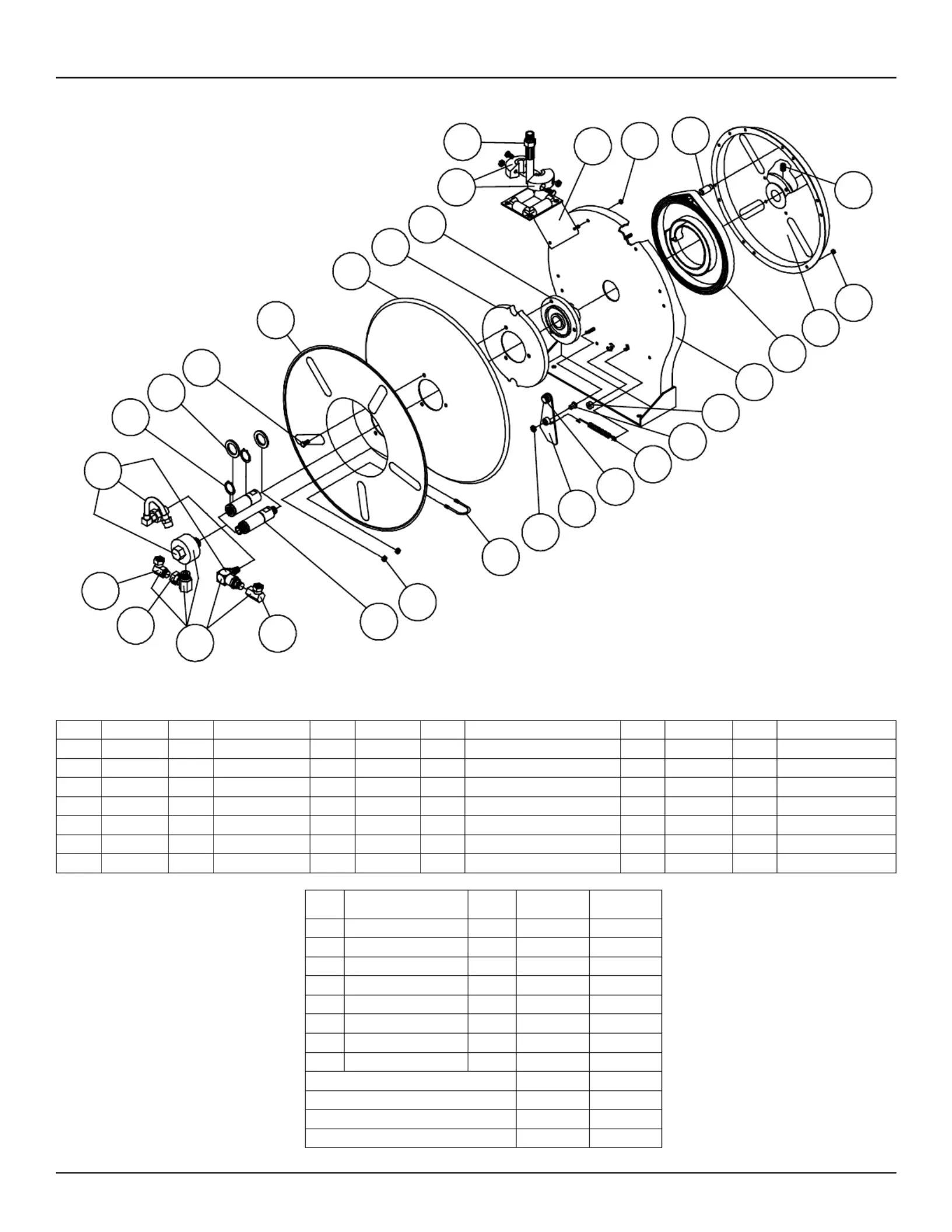

Item # # Req.Description

5605 OLP 5650 OLP

8 Assembly 1 None 1-HR1004Bumper Stop

9 Hose Assembly 1 None S601013-50

15 Assembly 1 S600050 S600050Drive Spring

25 1 602555 602555Main Shaft

26 Assembly 1 None NoneSwivel & Ell

27 1 None None90° Elbow

28 1 None None90° Elbow

29 Swivel Assembly 1 S600886 S600886

Hose I.D. and Length 3/8” x 50’None

Reel Inlet Connection 3/8” F.P.T. 3/8” F.P.T.

Max. Operating Pressure 300 P.S.I.500 P.S.I.

Max. Operating Temperature 210 °F 150 °F

Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description

1 300031 2 1” Snap Ring 10 S500107 1 Guide Arm Assembly 19 S400018 1 Latch Spring

2 300034 2 Spacing Washer 12 S261360 1 Spring Case Stud 20 400020 1 O-ring

3 S295-102 3 Hex Screw 13 300006 1 3/8-16 x 1/2” Set Screw 21 S400109 1 Latch Plate Assembly

4 260149 1 Reel Flange 14 S600094 1 Spring Case & Hub Assembly 22 2-117440 1 U-Bolt Hose Clamp

5 260151 1 Sheave Disk 16 600029 1 Base Assembly 24 261650-1 2 1/4-20 Nylock Nut

6 S500019 1 Latch Cam 17 S400021 1 Latch Bumper 30 S82-15 9 Nyloc Nut 10-32 x 3/8”

7 S260648 1 Spring Arbor 18 S400012 1 Latch Bushing
