1. Do not use reel at higher pressures or temperatures than listed on

the back of this bulletin.

2. Remove all spring tension before beginning dissassembly process.

SAFETY

Operating Instructions

Series 5000 Spring Driven Hose Reels

Pre-Rinse Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

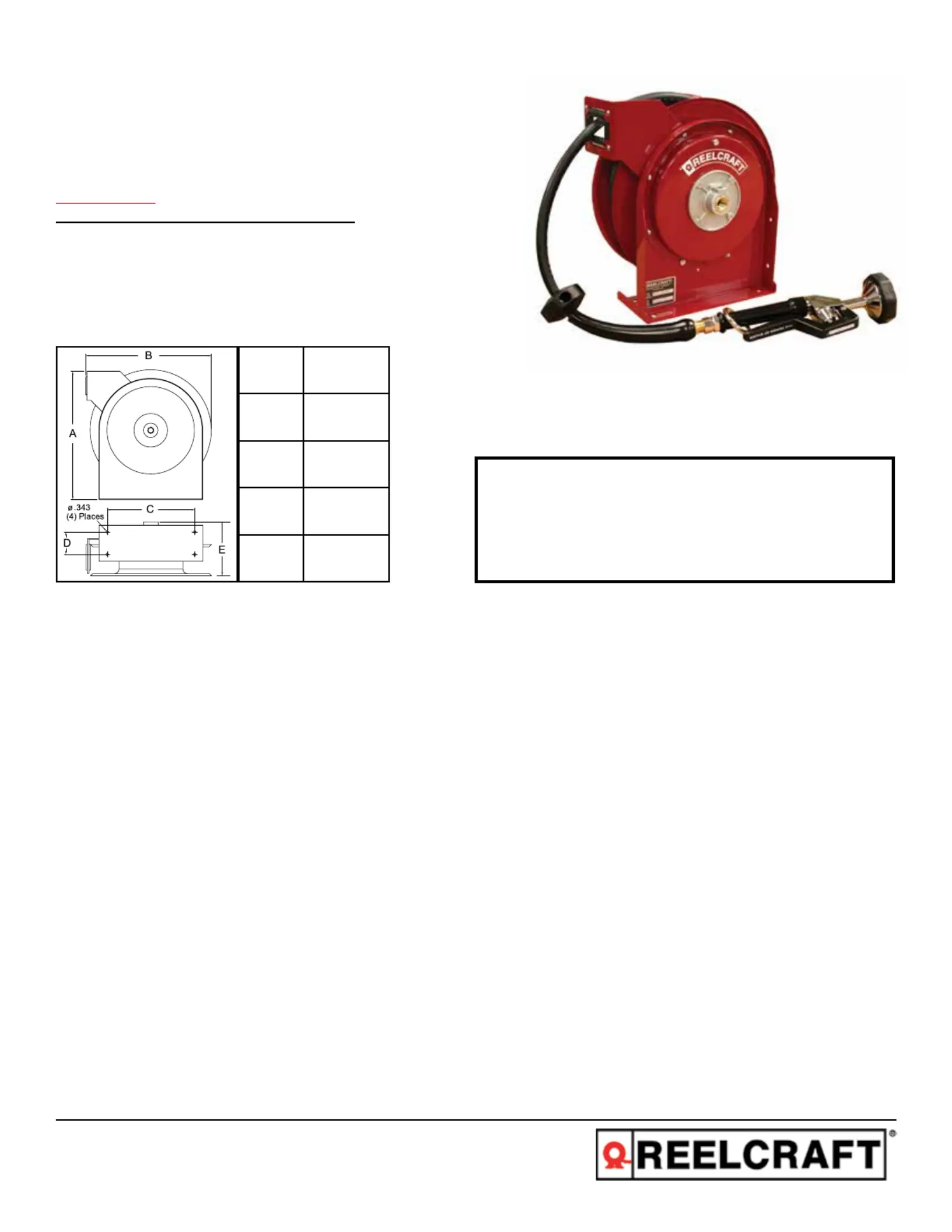

Dimensions

A 14 3/8”

B 14”

C 9 3/4”

D 2 1/2”

E 6 1/8”

5635 OLPSW5

INSTALLATION:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible

misalignment and binding.

LUBRICATION:

Hose reel spring and bearings are factory lubricated and require no further lubrication.

REPLACING HOSE:

1. Wind spool flange clockwise-facing swivel-until spring is tight.

2. Back off three turns and latch.

3. Insert hose through roller guide.

4. Connect hose fitting to swivel joint and secure hose with clamps.

ADJUSTMENTS:

To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is

obtained.

REPAIRS:

Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may

void your warranty. Remove all spring tension before beginning disassembly process.

MOUNTING:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or

ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing

the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the

reel at the desired position and replace the screws. For proper installation in wall mount applications, ensure NOTE:

reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause latching issues.

Form #1260-314 Rev: 5/2018

Series 5000 Spring Driven Hose Reels

Page 2

www.reelcraft.com

Item

Part # # Req. Description

Item

Part # # Req. Description

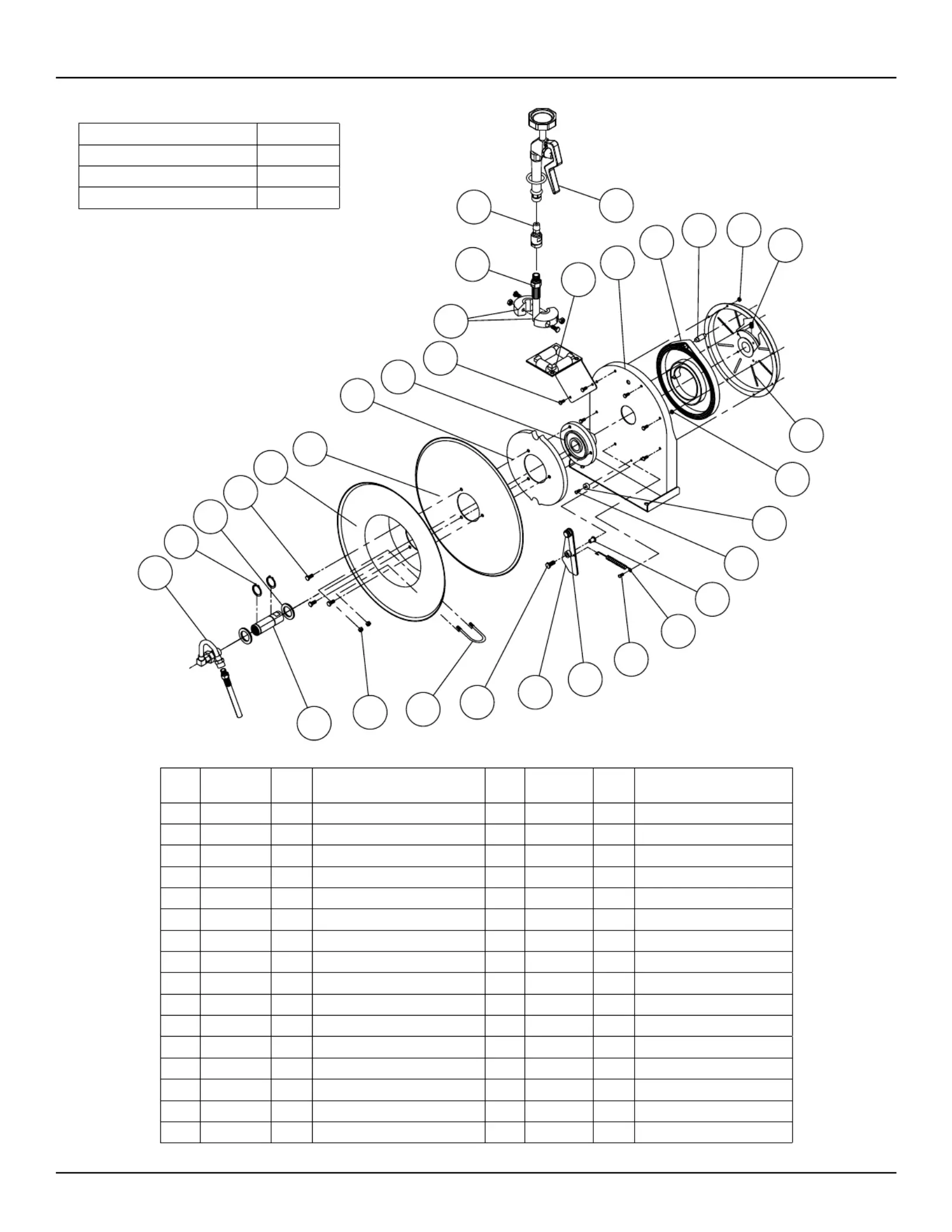

1 S600886 1 17 300006 1Swivel Assembly 3/8-16 x 1/2” Set Screw

2 300031 1 18 S500103 11” Snap Ring Spring Case Assembly

3 300034 2 19 S82-15 1Spacing Washer 10-32 x 3/8” Nyloc Nut

4 S295-102 3 20 S400021 11/4” Plastite Hex Screw Latch Bumper

5 260022 1 21 S32-136 1Sheave Flange 10-24 x 3/8” Mach. Screw

6 500006 1 22 S400012 1Sheave Disk Latch Bushing

7 S500019 1 23 S400018 1Latch Cam Latch Spring

8 S260648 1 24 300001 5Spring Arbor 10-32 x 3/8” Screw

9 300002 2 25 400020 1 O-ring10-32 x 1/2” Screw

10 1-HR1004 1 26 S400109 1Bumper Stop Assembly Latch Plate Assembly

11 601052-35 1 27 300035 1Hose Assembly 10-32 x 1” Mach. Screw

12 S500107 1 28 3-117440 1 U-boltGuide Arm & Roller Assembly

13 500101 1 29 261650-1 2Base Assembly 1/4-20 Zinc Nyloc Nut

14 S504240 7 30 S400015 1Drive Spring Assembly Main Shaft

15 S300011 1 31 S600080 110-32 Hex Lock Nut Spray Valve

16 S261360 1 32 600248 *Spring Case Stud 360° Swivel (Optional)

Hose I.D. and Length 3/8” x 35’

Reel Inlet Connection 3/8” (F)NFPT

Max. Operating Pressure 250 PSI

Max. Operating Temperature 210° F
