Personal injury and/or equipment
damage may result if proper safety
precautions are not observed.
• Ensure that the reel has been properly
installed before connecting supply line
(see installation instructions).
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line
ensure that supply line pressure does
not exceed maximum rated working
pressure of reel.
• Do not play pranks on other personnel.
Even low pressure is very dangerous
and can cause irrepairable damage or
death.
• Do not wear loose fitting clothing while
operating reel.
• Be aware of other personnel in work
area.
• Be aware of other machinery in work
area.
• If a leak occurs in the hose or reel,
remove supply line pressure
immediately.
• If the reel is power driven check for
loose, frayed, and/or broken wires before
operating.
• Treat and respect a hose reel as any
other piece of machinery, observing all
common safety practices.
Operating Instructions
Series 30000 Hand Crank Reels
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
Form# 837-696A Rev: 10/2016
CA30106 L CA32106 M CA32128 L CA33118 M
CA30112 L CA32112 L CA33106 L CA33122 L
CA30118 L CA32112 M CA33106 M CA33128 L
CA30122 L CA32118 L CA33112 L
CA30128 L CA32118 M CA33112 M
CA32106 L CA32122 L CA33118 L

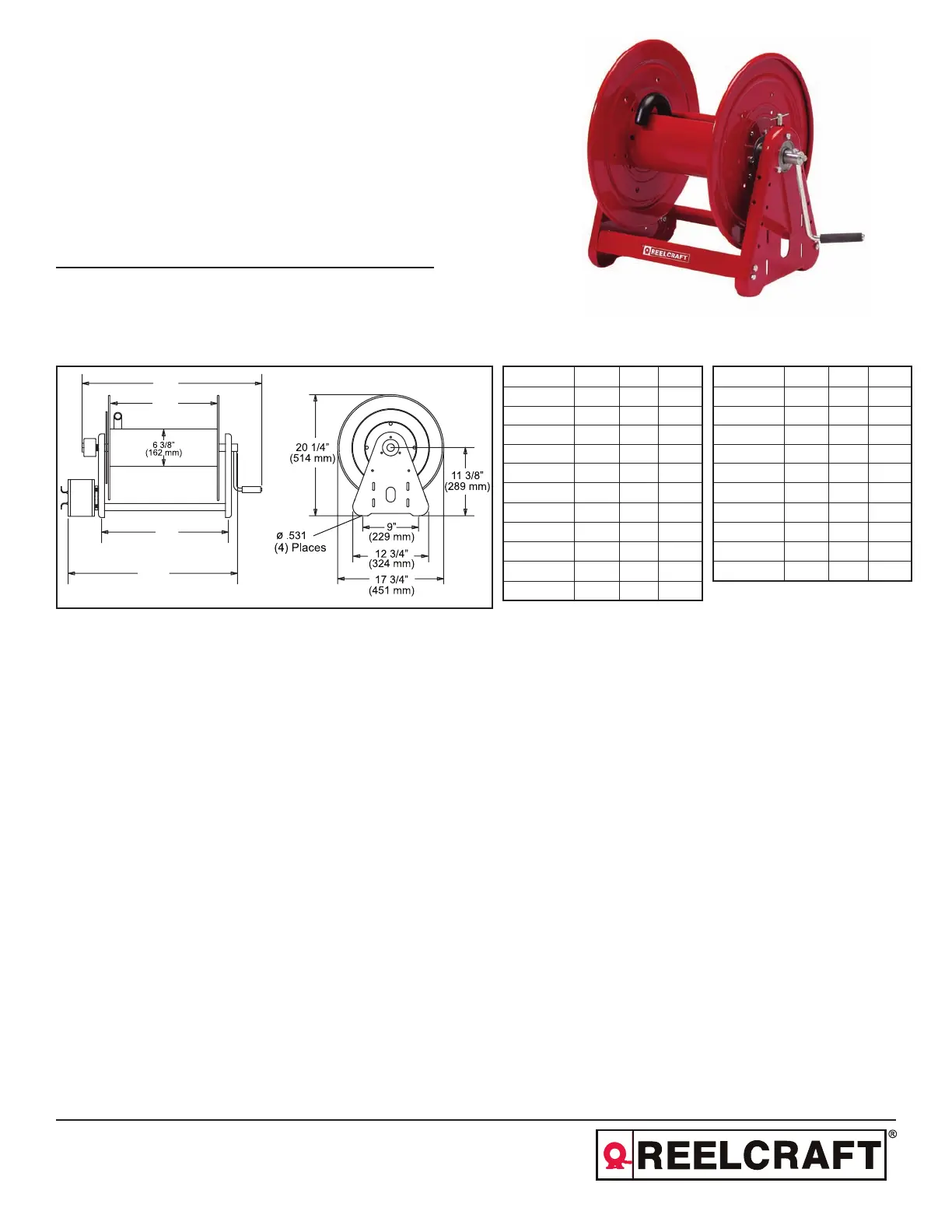

Dimensional Data
Part # A B D
CA30106 L 19 3/4” 6” 9 3/4”
CA30112 L 25 3/4” 12” 15 3/4”
CA30118 L 31 3/4” 18” 21 3/4”
CA30122 L 35 3/4” 22” 25 3/4”
CA30128 L 40 3/4” 27” 30 3/4”
CA32106 L 19 3/4” 6” 9 3/4”
CA32106 M 19 3/4” 6” 9 3/4”
CA32112 L 25 3/4” 12” 15 3/4”
CA32112 M 25 3/4” 12” 15 3/4”
CA32118 L 31 3/4” 18” 21 3/4”
CA32118 M 31 3/4” 18” 21 3/4”
Part # A B D
CA32122 L 35 3/4” 22” 25 3/4”
CA32128 L 40 3/4” 27” 30 3/4”
CA33106 L 19 3/4” 6” 9 3/4”
CA33106 M 19 3/4” 6” 9 3/4”
CA33112 L 25 3/4” 12” 15 3/4”
CA33112 M 25 3/4” 12” 15 3/4”
CA33118 L 31 3/4” 18” 21 3/4”
CA33118 M 31 3/4” 18” 21 3/4”
CA33122 L 35 3/4” 22” 25 3/4”
CA33128 L 40 3/4” 27” 30 3/4”
Safety Precautions
A
A
B
D
