Read this manual carefully before installing,

operating or servicing this equipment.

IMPORTANT

Operating Instructions

Series DP7000 Spring Driven Hose Reels

Low Pressure Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

Form# 1196-1106 Rev: 5/2018

DP7400 OLP DP7600 OLP DP7800 OLP

DP7450 OLP DP7650 OLP DP7850 OLP

SAFETY

Personal injury and/or equipment damage may result if proper safety precautions are not observed.

• Ensure that reel is properly installed before connecting input and output hoses.

• Bleed fluid/gas pressure from system before servicing reel.

• Before connecting reel to supply line, ensure that pressure does not exceed maximum working pressure rating of reel.

• Remember, even low pressure is very dangerous and can cause personal injury or death.

• Be aware of machinery and personnel in work area.

• If a leak occurs in the hose or reel, remove system pressure immediately.

• A high tension spring assembly is contained within the reel. Exercise extreme caution.

• Pull hose from reel by grasping the hose itself, not the control valve.

• If reel ceases to unwind or rewind, remove system pressure immediately. Do not pull or jerk on hose!

• Treat and respect the hose reel as any other piece of machinery, observing all common safety practices.

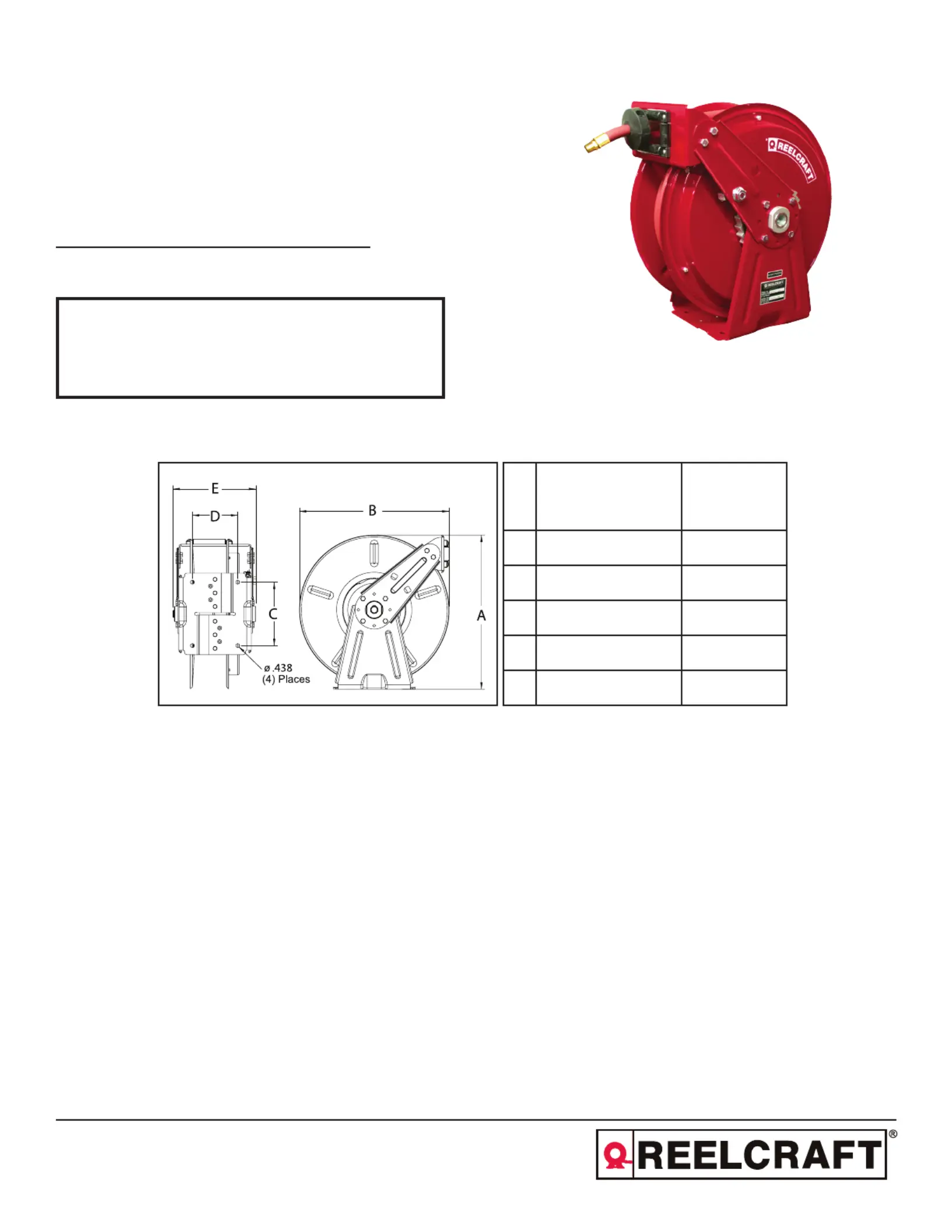

Dimensions

DP7400 / DP7450

DP7600 / DP7650

DP7800

DP7850

A17” 17”

B16 1/2” 16 1/2”

C7” 7”

D4” 5”

E8” 9”

Series DP7000 Spring Driven Hose Reels

Page 2

www.reelcraft.com

Installation Instructions

WARNING: Ensure that reel, hose, and equipment are properly grounded. Use an ohmmeter to check ground continuity.

Mounting

CAUTION: Unless reel was specified differently when ordering, maximum installation height is 16 feet. Do not exceed

this distance.

Maximum Operating Temperature:

Low pressure (300 p.s.i.) = 150 °F (66 °C)

1. Unpack and inspect reel for damage. Turn spool by hand to check for smooth operation. Check for completeness.

2. Configure reel for top, side or bottom hose dispensing by removing bolts from one side of the guide roller bracket

and loosening the four guide arm bolts on each side of the hose reel. Remove each guide arm then reinstall in the

desired configuration.

3. Position reel on floor, wall, or ceiling. Secure into place using four (customer supplied) bolts.

Installing the Input Hose

WARNING: Ensure that supply line pressure does not exceed maximum working pressure rating of reel. Apply pipe

thread sealant to all threads on standard reels. Do not overtighten connection. Recommended torque not to exceed

70 ft. lb.

CAUTION: Use flexible hose connection at input. Do not use rigid plumbing. The use of rigid plumbing may void war-

ranty.

1. Apply thread sealant as shown in Figure B and connect input hose to main shaft input Figure C.

2. Tighten securely, ensuring a sealed connection has been made.

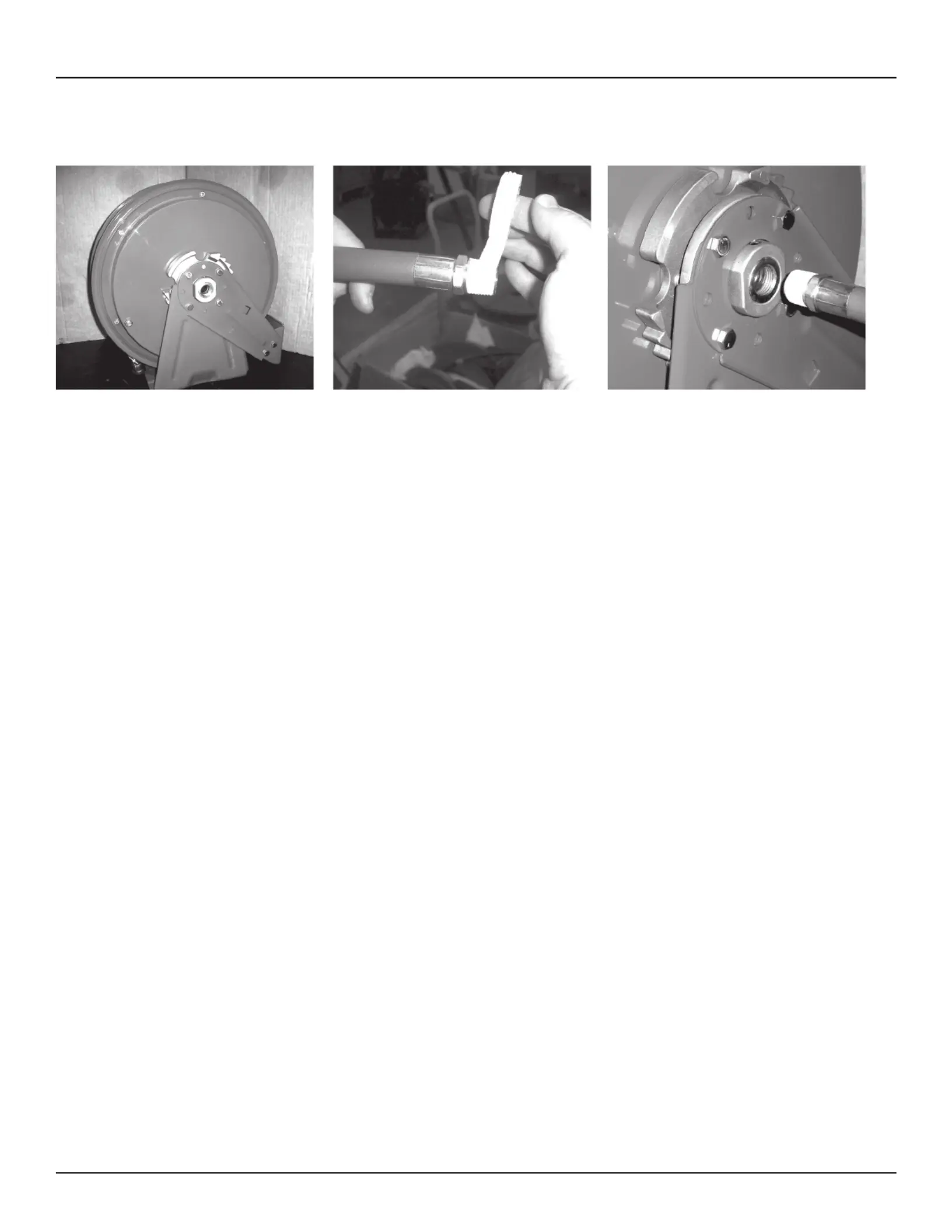

Figure A Figure B Figure C
