Operating Instructions

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

Series RT Spring Driven Hose Reels

Low Pressure Model Numbers:

RT405-OLP RT605-OLP RT805-OLP

RT425-OLP RT625-OLP RT835-OLP

RT435-OLP RT635-OLP RT850-OLP

RT450-OLP RT650-OLP

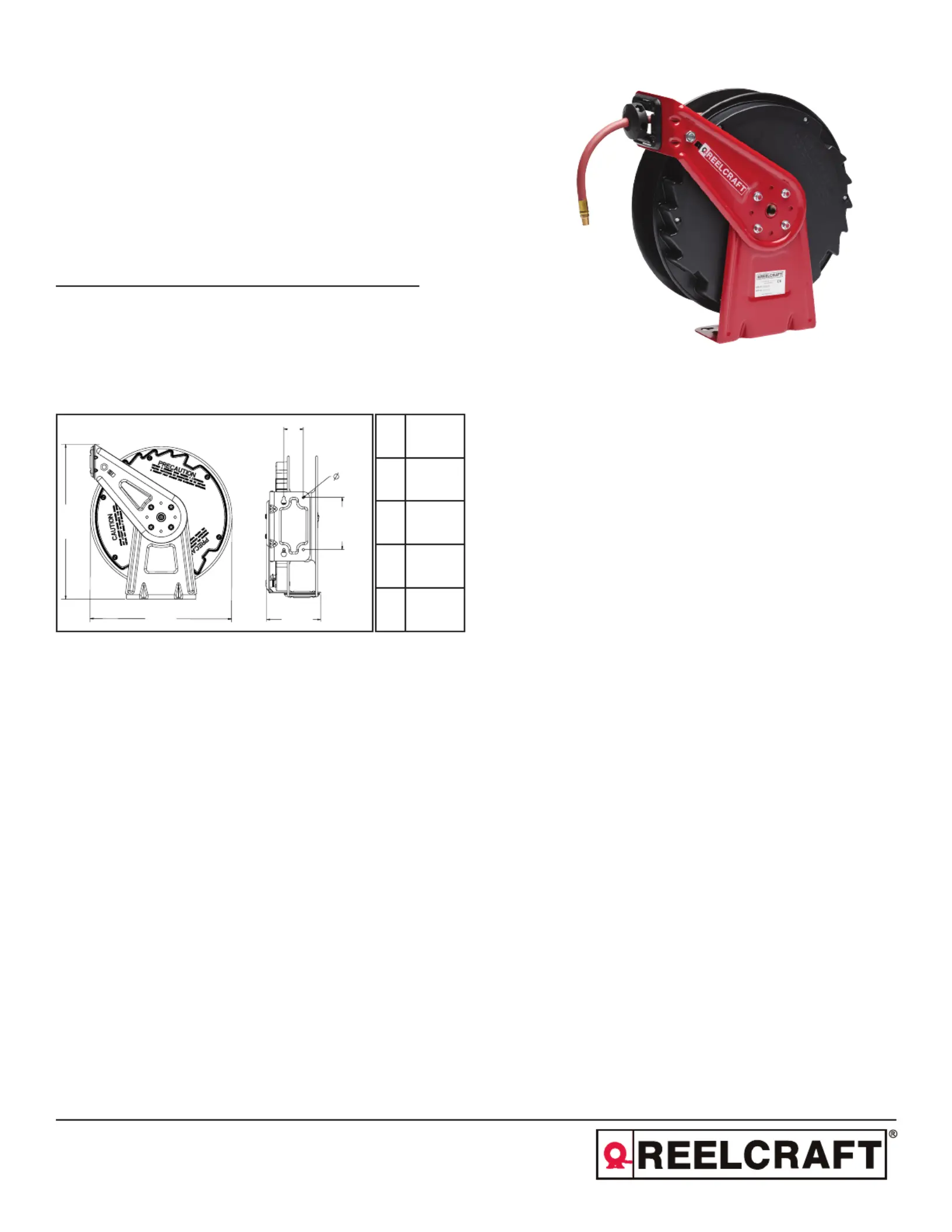

Dimensions

• Ensure that reel is properly installed before connecting input and

output hoses.

• Bleed fluid/gas pressure from system before servicing reel.

• Before connecting reel to supply line, ensure that pressure does

not exceed maximum working pressure rating of reel.

• Remember, even low pressure is very dangerous and can cause

personal injury or death.

• Be aware of machinery and personnel in work area.

• If a leak occurs in the hose or reel, remove system pressure

immediately.

• A high tension spring assembly is contained within the reel.

Exercise extreme caution.

• Pull hose from reel by grasping the hose itself, not the control

valve.

• Ensure that reel, hose, and equipment being serviced are

properly grounded. Use an ohmmeter to check ground

continuity.

• If reel ceases to unwind or rewind, remove system pressure

immediately. Do not pull or jerk on hose!

• Treat and respect the hose reel as any other piece of machinery,

observing all common safety practices.

SAFETY

Personal injury and/or equipment damage may result if proper safety

precautions are not observed.

Form# 1121-802A Rev: 2/2023

17 7/8”

16 1/2”

6”

2 1/4”

See

page 6

.325

(4) PLACES

Series RT Spring Driven Hose Reels

Page 2

www.reelcraft.com

Installing the Input Hose

Mounting the Hose Reel

Prior to mounting the hose reel, ensure that the supply line pressure does

not exceed the maximum working pressure of the hose reel.

Do not exceed the maximum installation height of 16’ unless the reel was

specified differently when ordering. The maximum operating temperature

is 150 °F (66 °C).

Unpack and inspect the reel for damage. Turn the spool by hand to check

for a smooth operation.

Position the reel on the floor, wall or ceiling. Secure into place using four

mounting bolts (not included). See the included mounting template for

additional instructions for your specific mounting application. Depending

on where the reel is placed, it may be necessary to adjust the bumper stop

and guide arm to use the hose properly. See the instructions on the next

page to adjust the bumper stop and reposition the guide arm.

Use a flexible hose connection at input. Do not

use rigid plumbing. (input hose not included)

Apply pipe thread sealant to threads on stan-

dard reels.

Do not over tighten the connection.

Recommended torque should not exceed 70

ft./lb.

Mounting Applications

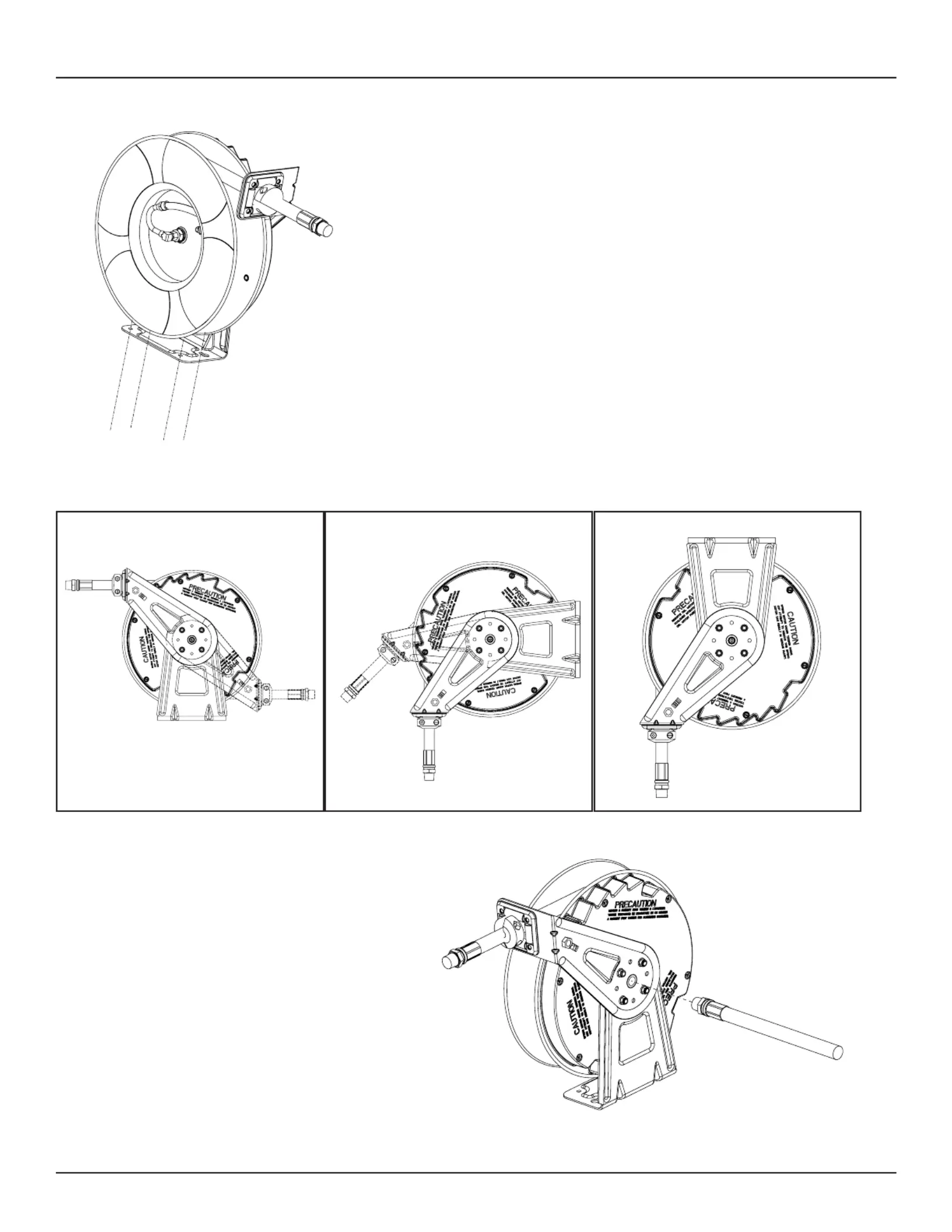

figure 1

figure 2

figure 3 figure 4

figure 5
