Coconutz™

INSTALL INSTRUCTIONS

Ultra-Fidelity Outdoor Speakers

Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com

Please read the following instructions carefully before installing

your Rockustics® Coconutz™ speaker. If you have any questions

regarding installation that are not answered in the following

directions, please contact your local sound contractor, or the

Rockustics®/MSE Audio® technical support team.

Basic Wiring

( Diagram A) Locate speaker wire on the top of the Coconutz.

If necessary, strip the wire ends and trim the wire to the

appropriate length. Use the supplied silicone wire nut to

connect the positive (red) leads of the speaker and input wires.

Repeat this step with the negative (black) leads.

NOTE: The provided wire nuts are meant for permanent installa-

tion use only. If you are temporarily wiring the speakers, do not

use these wire nuts. In the event you have used the wire nuts,

and need to re-wire your system, do not attempt to unscrew the

nuts. Instead, clip the wires below the nut, and follow the steps

in the section with a new pair of waterproof wire

Basic Wiring

nuts (these are available at most hardware stores).

Mounting Instructions

NOTE: You will need one (1) mounting hook or eyelet rated for

30lbs (not supplied) per pair of Coconutz.

1) The Coconuts speakers are intended to be mounted using

the supplied hanging cable assembly (Diagram B).

2) It will be necessary to install a hook, loop, or eyelet (not

supplied) (Diagram C) that can adequately support the combined

weight of speakers being installed. Be sure to use hardware that

is rated for the combined total load of the speakers (30 lbs) and

ensure it is properly secured to the mounting surface.

3) (Diagram D) Clip one each of the cable ends to each of the

eyebolts in the Coconutz speaker.

5) Wire the speaker as described in the Basic Wiring section,

ensuring the weight of the speaker is supported by the hanging

cables, as opposed to the speaker wires.

Diagram A

Diagram B Diagram C

Diagram D Diagram E

Coconutz™

INSTALL INSTRUCTIONS

Ultra-Fidelity Outdoor Speakers

Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com

Optimizing Speaker Placement for Best Sound

and Aesthetics

Rockustics recommends hanging your Coconutz in bunches of

2 or 4 units. To ensure your lovely bunch of Coconutz sounds

as good as it looks, hang them between 8’ and 12’ above

ground level.

Be sure to account for the wires which will run from the speaker

to your stereo or audio source. Camouage wires by running

them behind dense tree leaves or wrapping them in colored tape.

Cautions and Maintenance

All Rockustics speakers are sealed and fully weatherproof.

However, DO NOT place speakers where the grille will be in the

path of a sprinkler system. Sprinklers typically have a high water

pressure level that can damage speaker cones if hit directly.

In the rare event the speaker grille holes accumulate build up

of debris (such as soil, dust or sand), the speaker may become

damaged. If build up does occur, simply rinse the grille holes

with a garden hose set to a low pressure level. Accumulated

debris may also promote undesired insect trafc into the

speaker. Insects may eat through the speaker cone.

Chemical sprays may also cause damage to the rubber of the

speaker cone. This includes bug spray, deck sealant, some

fertilizers and oil based products. Speakers MUST be covered

when applying these treatments or chemicals in your yard.

For environments that get snow and ice during the winter months,

be sure to check that the openings and woofer cone are clear

and there is no hard-packed snow or ice built up in these areas

before playing. If there is ice or snow present on the cone, use a

hair dryer set on a low setting to melt it away. If the speakers are

not going to be used during winter months, it is recommended

that they either be disconnected and brought indoors, or cov-

ered with a plastic bag to help protect the speaker components.

Wiring Coconutz in Series

If installing 2 units of the Coconutz, follow the wiring instructions

in Diagram F for 2 speaker connection. Wire one of each

speaker to the left and right channels of the amplier, respectively.

If installing 4 units of the Coconutz, then each pair must be

wired together in a series connection to each channel of the

amplier. Follow the wiring instructions in Diagram G for 4

speaker connection.

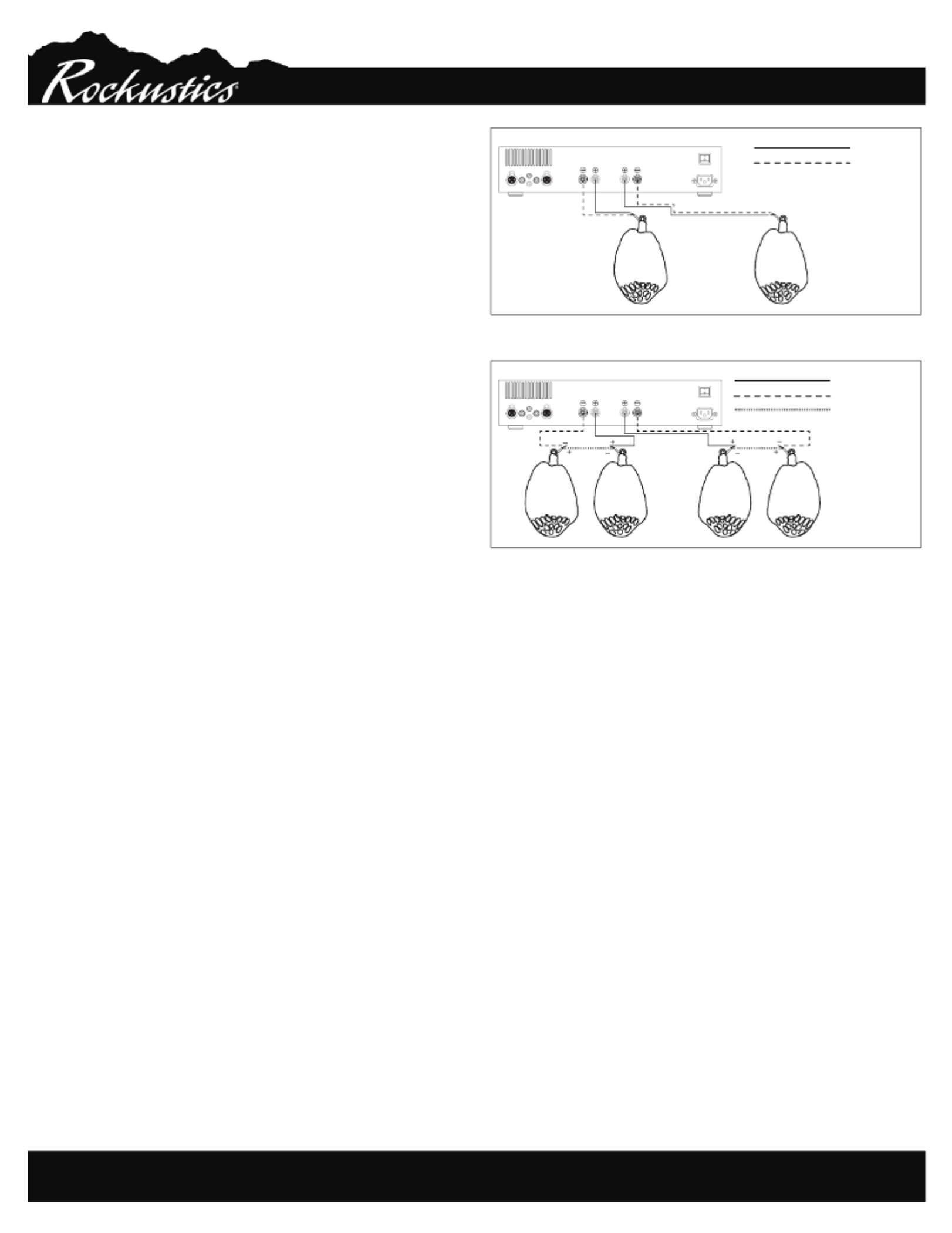

2 Speaker Wiring Diagram

PUSH PUSH

Channel 1 Channel 2

Channel 1 Channel 2 =(-) Negative

=(+) Positive

4 Speaker Series Wiring Diagram

PUSH PUSH

Channel 1 Channel 2

Channel 1 Channel 2 =(-) Negative

=(+) Positive

=Series Connection

Diagram G

Diagram F

Produkt Specifikationer

Mærke:	Rockustics
Kategori:	Højttaler
Model:	Coconutz
Højde:	355.6 mm
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Sand
Pakkevægt:	21180 g
Pakkedybde:	635 mm
Pakkebredde:	622.3 mm
Pakkehøjde:	546.1 mm
Bluetooth:	Ingen
Udgangseffekt (RMS):	70 W
Strømforbrug (typisk):	64 W
Husmateriale:	Elastomer
Pakketype:	Kasse
Anbefalet brug:	Have
Frekvensområde:	38 - 22000 Hz
Lydtryksniveau (maks.):	106.5 dB
Impedens:	4 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Gulv
Strømkilde type:	Vekselstrøm
Diameter:	438.1 mm
Farvenavn:	Sandsten
Bæredygtighedscertifikater:	CE, RoHS, Trade Agreements Act (TAA)
Diskanthøjttaler:	Ja
Antal drivere til diskant:	1
Peak Music-Udgangseffekt (PMPO):	140 W
Sensitivitet:	91 dB
Diskant diameter:	0.75 "
Bashøjttaler:	Ja
Antal bashøjttalerdrev:	1
Woofer diameter:	203.2 mm
Højttaler kabinet:	Lukket
Woofer diameter (britisk mål):	8 "
Egnet til udendørs brug:	Ja
