Features

VGA p1-x1 Female

• Supports VGA resolution up to 1920x1200@60Hz

Introduction

Package Contents

This is a premium Rocstor DisplayPort to HDMI and VGA Adapter. allows you to

transmit signals from a DisplayPort display to a high denition HDMI or VGA display

(TV sets, projectors, etc). With this product, you can watch videos or slideshows

together on the big screen

HDMI p1-x1 Female

• Supports HDMI resolution 4Kx2K@60Hz

Upstream:

Downstream:

Before attempting to use this unit, please check the packaging and make sure

the following items are contained in the Packaging:

• Main unit x1

• User Manual x1

DisplayPort Male

(Connect to host computer)

• Supports DP1.2

Features

• Support DisplayPort input, HDMI, VGA output

• Compliant with DP1.2 specication，and downward compatible with

lower versions

•18Gbps bandwidth

• Support HDR

• Support HDMI and VGA to output simultaneously with max

1920x1080p@60Hz under SST mode

• HDMI support content protection of HDCP

• EDID pass-through from PC source to display

• Support 3D format and compliant with lower versions

• Support power automatic management

Specication

How to Use

Input / Output Connector

Input

Output

HDMI Female x1

VGA Female x1

DisplayPort Male x1

Warranty

Limited Warranty 3 Year

Environmental

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

Regulatory Approvals

Certications

Power Requirement

Power Source Bus Power

Max Resolution

HDMI Resolution 3840*2160@60Hz，

4096*2160@60Hz

VGA Resolution 920*1200@60Hz

FCC, CE

Mechanical

Size (H-W-L) 14.5x42x60 mm - 0.57"x1.65"x2.36"

Weight (Net) 39 gr - 1.2 oz

Accessories

User Manual English Version

1 - Connect the Mini DisplayPort male port of this adapter to the host computer.

2 - Connect the HDMI port of this multiport adapter to an HDMI monitor.

3 - Connect the VGA port of this multiport adapter to a VGA monitor.

0°C to + 45°C - (32°F to + 113°F)

10% to 80 % RH (no condensation)

-10°C to + 70°C - (14°F to + 158°F)

5% to 90 % RH (no condensation)

Y10A295-B1

Congratulations

Thank you for purchasing this premium Rocstor this product. For optimum performance

and safety, please read these instructions carefully before connecting, operating or using

this product. Please keep this manual for future reference.

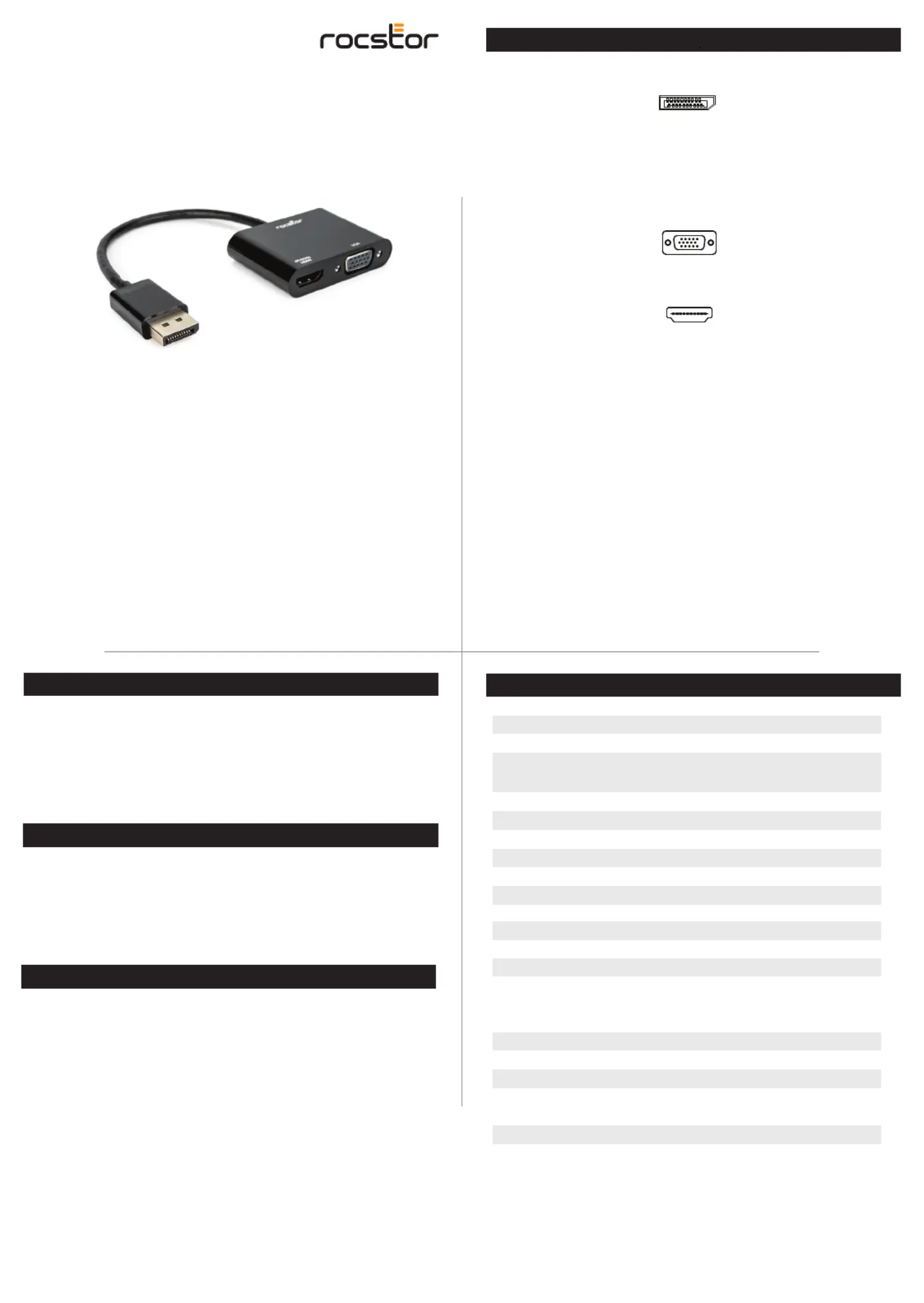

DisplayPort 1.2 to HDMI & VGA Multiport

Active Video Adapter - 4K/60Hz

User Manual

Technical Support / RMA

Hours: 9:00 am - 5:00 pm PST

Monday to Friday (except holidays)

Tell: +1 (818) 727-7000

( )National and international

Fax: +1 (818) 875-0002

Email: support@Rocstor.com

Support

Warranty Information

Technical support is available to all the registered users of Rocstor products.

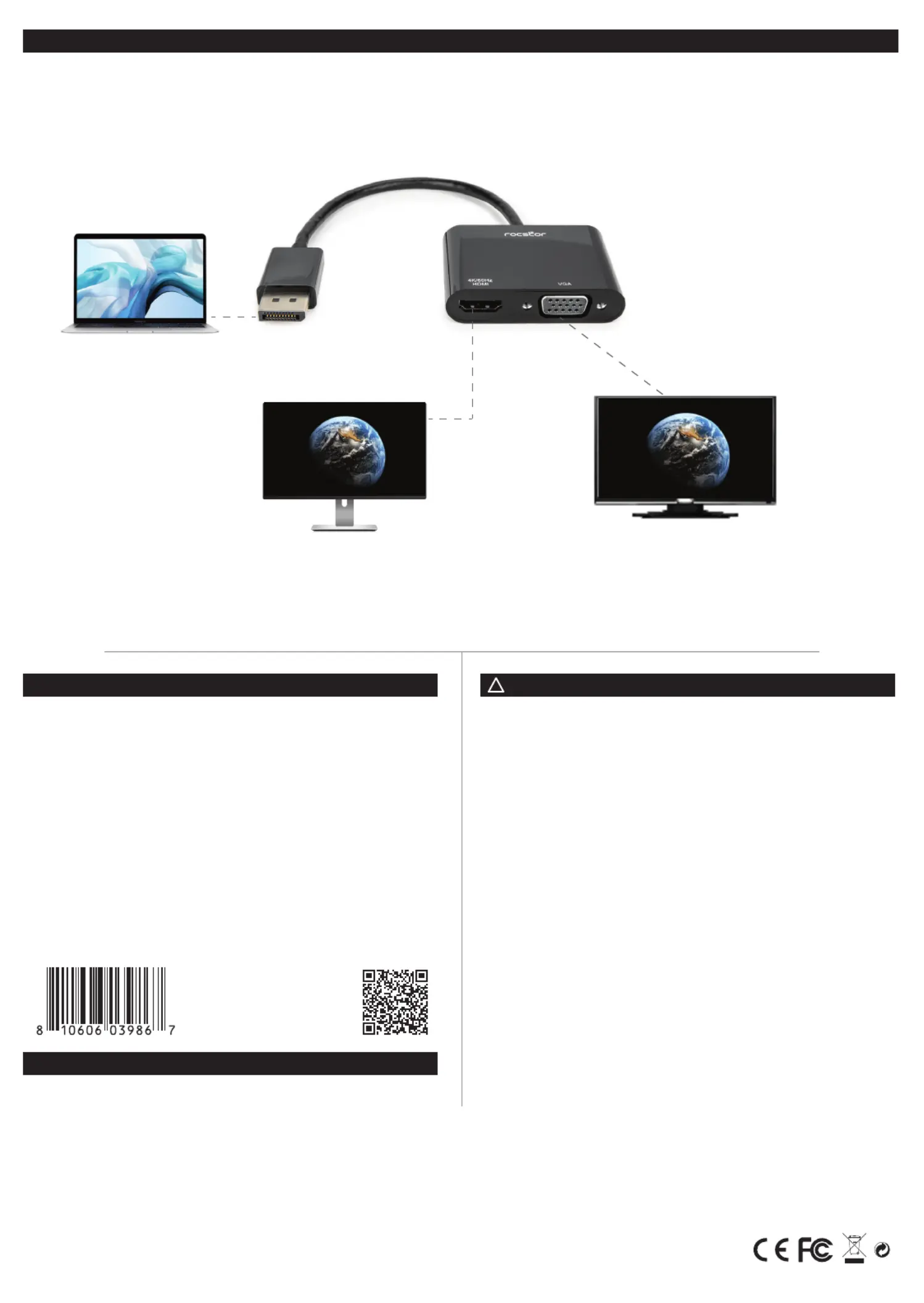

Connection Diagram

Safety Information:

Apple®, the Apple logo, Mac®, MacBook®, MacBook Pro®, MacBook Air®, iPad®, iPad Air®, iPad mini®,

iPad Air®, iPhone®, MacOS® are registered trademarks of Apple, Inc. Google® and Chromebook™ are

registered trademarks of Google, LLC. Microsoft® is registered trademarks of Microsoft corporation. Al

other product names and logos mentioned herein may be trademarks of their respective companies.

USB Type-C® and USB-C® are registered trademark of USB Implementers Forum. Feature and

specication are subject to change without notice. All trademarks and registered trademarks are the

WARNING: Please follow these safety instructions. Failure to do so may result damages or injury.

It is normal that the Rocstor Multi-port Hub adapter becomes very warm during use.

Please note that:

continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to

reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around

the Rocstor Multi-port Hub adapter and use care when handling it. Avoid instances where your skin is

in extended contact with the hub when plugged into the host computer. It is not recommended to

sleep with the adapter when plugged into a host computer. Avoid placing the hub adapter under a

pillow, blanket, or your body when connected to a host computer. If you have a medical condition

that aects your ability to detect heat against the body, extra care should be used. Never use the

adapter in locations with water, such as a sink, bathtub, or shower stall. Never connect or disconnect

the adapter with wet hands.

Limitation of Liability

In no event shall the liability of Rocstorage, Inc. and Rocstor (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of

the product exceed the actual price paid for the product. Some states do not allow the exclusion or

limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Warranty Information

This product is backed by a (3) three-year warranty. Rocstor warrants its products against defects in

materials and workmanship for the periods noted, following the initial date of purchase. During this

period, the products may be returned for repair, or replacement with equivalent products at our

discretion. The warranty covers parts and labor costs only. Rocstor does not warrant its products from

defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

HDMI Display

VGA Display

Host Computer with

DP port
