MB15b ProMatch

Connection guide

Rolls Corporation

Salt Lake City, UT

9/18

Made in USA

ww.rolls.com

What's in the box?

1 - Made in USA MB15b

1 - 15V power supply PN PS27s

1 - This owners manual

Made in USA

ww.rolls.com

CONSUMER LEVEL VS PROFESSIONAL

LEVEL:

The purpose of the MB15b is to connect

consumer level equipment to professional

level equipment.

Consumer level signals typically come from

devices such as phones, tablets, CD play-

ers and DVD players. Professional level

signals are associated with devices found

in recording studios and sound reinforce-

ment systems like mixing boards, signal

processors, and their associated ampli-

ers.

- Studio

- Install

- Broadcast

... Anywhere you need to convert consumer-level

audio to pro-level and/or vice-versa.

MB15b PROMATCH

The MB15b converts stereo consumer level

signals to professional line level signals -

and vice versa.

It may also serve as a balanced, in line,

level control by patching the four RCA jacks

together.

- Stereo Direct Box

- Stereo RCA to stereo XLR

- Stereo Level control for each channel

- Works as stereo balanced line level control

- 1/8” Headphone level to line level adaptor

SPECIFICATIONS:

Max Out: Bal: +18 dB

Unbal: +12 dB

Max In: Bal: +22 dB

Unbal: +22 dB

Input Impedance: RCA : 100k Ohm

XLR: 10k Ohm

1/8” stereo: 10k Ohm

Output Impedance: RCA: 100 Ohm

XLR: 100 Ohm balanced

Noise Floor: -88 dB

Gain: +4 dB In: -8 dB

-10 dB In: + 20 dB

THD: .003%

Power: 15 VDC adapter (center negative)

Weight: 1 lbs. (.45 Kg)

Size: 4.15” x 2.46” x 1.55”

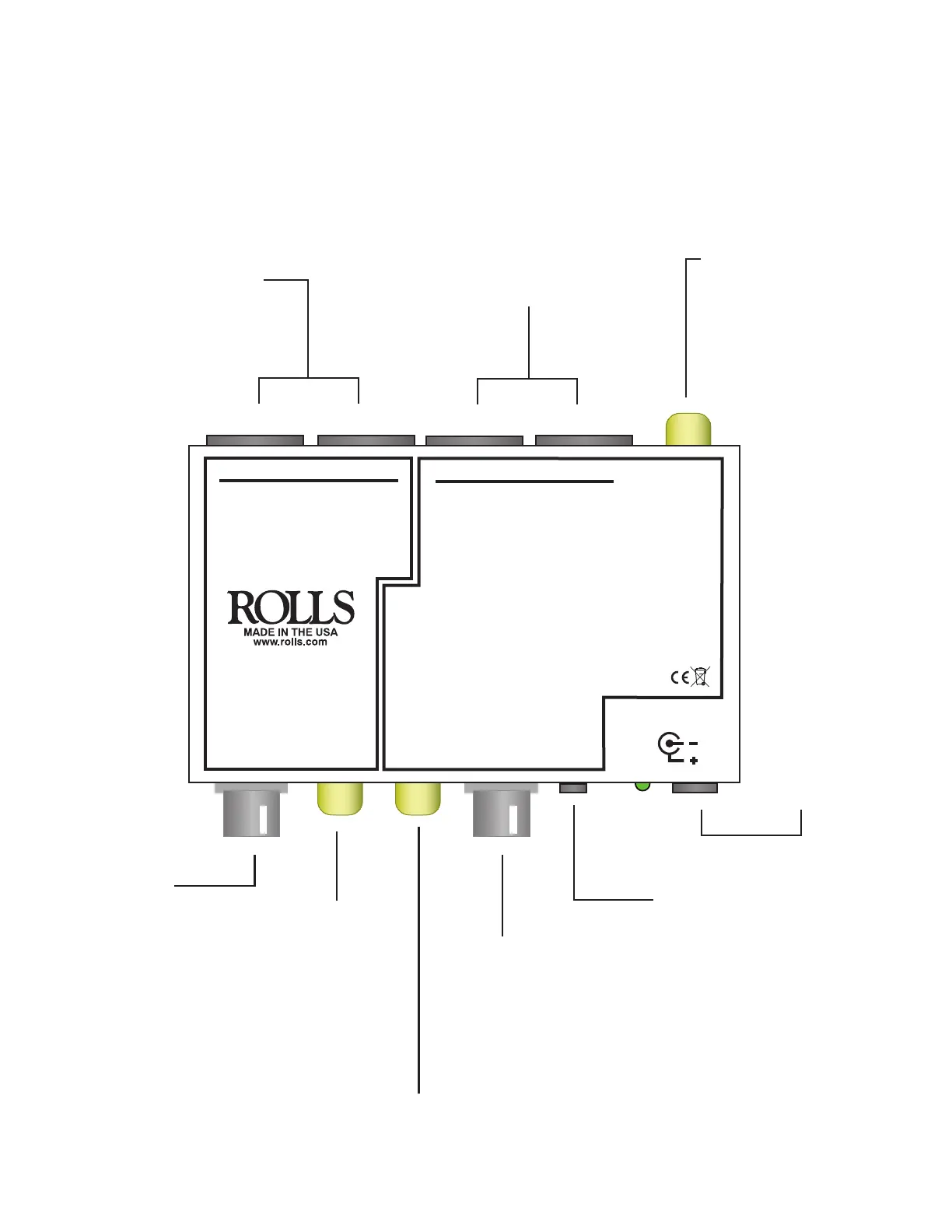

DC jack for

connection to

the included

Rolls PS27s

power supply

RCA Line Out:

The RCA out can

be used with any

input on CH2. The

most common use

is to convert a 1/8”

Stereo (3.5mm)

headphone signal

to RCA line level.

+4 dB OUT LEFT and

RIGHT XLR jacks:

Male XLR jacks to be

connected to the input

of a professional line-

level device such as a

mixer, recording device

or amplier.

+4 dB IN LEFT and

RIGHT XLR jacks: Fe-

male XLR jacks to be

connected to the out-

put of a professional

line-level device such

as a sound reinforce-

ment mixing board or

recording device.

+ 4 dB IN

+ 4 dB OUT

LEFT

RIGHT

LEFT

RIGHT

-10 dB

OUT

-10 dB

LEVEL

PWR

15 VDC

PROMATCH

Two-Way Stereo Converter

MB15b

RCA

LINE

OUT

3.5mm

INPUT

-10 OUT Stereo

RCA jacks: For

connection to

the input of a

consumer level

device,mixer or

preamplier.

-10 IN Stereo RCA jacks: For

connection to the output of any

consumer level device such as

a phone, tablet or CD player.

LEVEL 1:

Adjusts the

signal level of

channel one.

LEVEL 2: Adjusts

the signal level of

channel two.

1/8” Stereo input: For

connection to the output

of a phone, tablet or

computers output. It also

will work with a mixers

headphone output.

The MB15b is essentially two units in one chassis. Channel 1 takes XLR inputs and converts them to

RCA outputs. Channel 2 takes an RCA or 3.5mm stereo input, and converts it to XLR output. With the

addition of an RCA output on channel 2.
