Side 1/2

SPECIFICATIONS:

Output Level: +11 dB Sine

+14 dB Square

Output Impedance: 100 Ω

THD (Sine): <1%

Size: 4.25" x 3.75" x 1.75"

Power: 12 - 15 Volts DC

Rolls Corporation

Salt Lake City, UT

11/19

Made in USA

ww.rolls.com

Made in USA

ww.rolls.com

MO2020se

TESTOSCILLATOR

Signal Generator

What's in the box?

1 - Made in USA MO2020se

1 - This owners manual

1 - Rolls PS27s Power supply

The MO2020se is a signal generator for electronic testing

in the audio frequency range. It has XLR, RCA and 1/4"

unbalanced sine wave outputs, and a 1/4" unbalanced

square wave output. For external control or sweeping

of the frequency range, a 1/4" VCO input is provided to

receive 1.2 to 5 volts dc.

• Frequency range from 20Hz to 24kHz

• Balanced XLR, RCA and 1/4" unbalanced Outputs

• Sine and Square wave outputs

• -30 dB pad for referencing

12-15 VDC: Connects to the included

Rolls PS27s power adapter.

SQR LEVEL

+14

SINE LEVEL

+10

FREQUENCY

100

250

500

24K

10K

SQR OUT

SINE OUTPUTS

VCO INPUT

1.2 - 5 VDC

12 - 15 V

MO2020se

TESTOSCILLATOR

SINE/SQUARE WAVE GENERATOR

PAD

-30 dB

NORMAL

OUTPUT

PAD

MO2020se

TESTOSCILLATOR

pwr

-10

+10

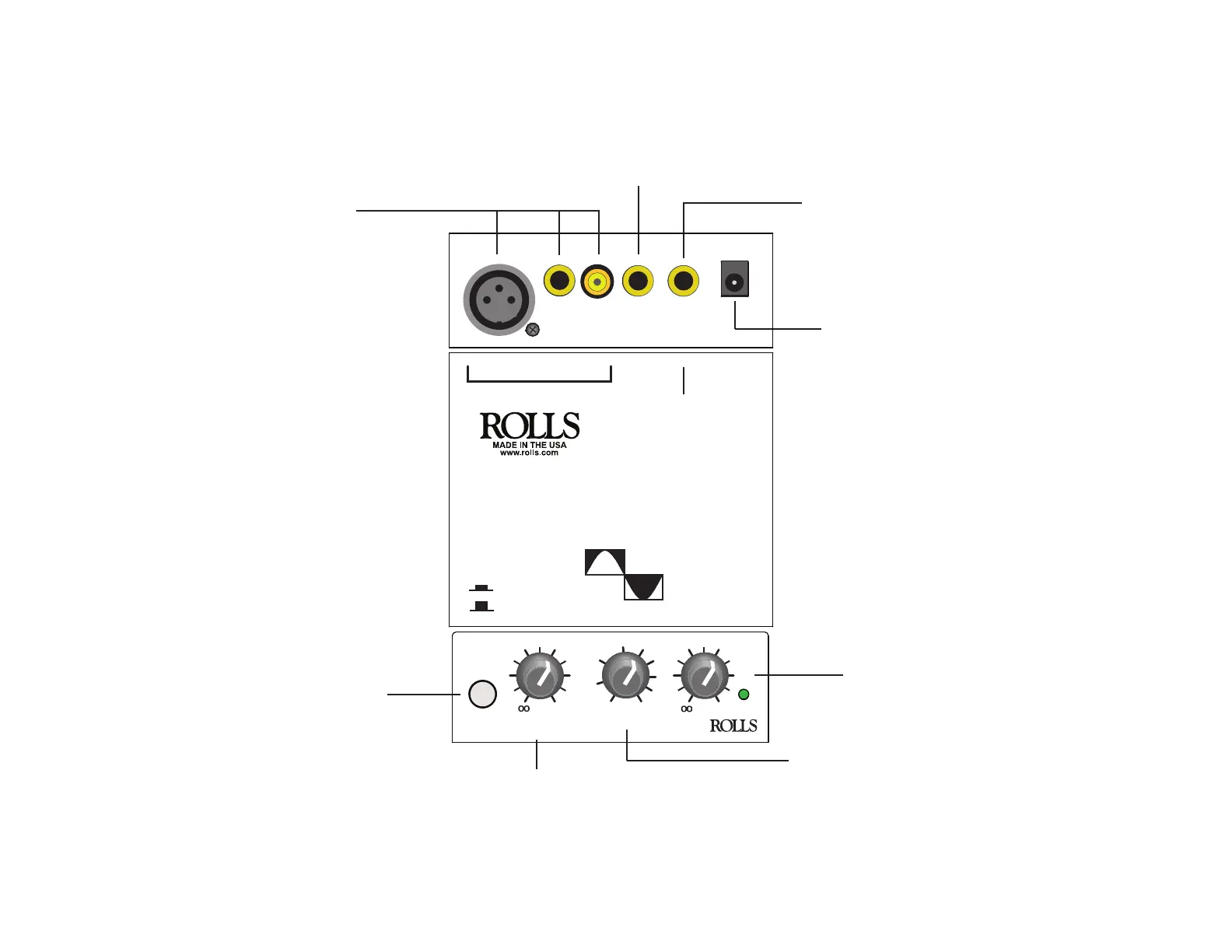

The MO2020se is designed to provide a sine wave, or square wave outputs, for testing audio devices. The units frequency output var-

ies from 20Hz to 24kHz.

Output Pad: When depressed, the

output level is dropped by 30 dB.

SQR Out: 1/4" unbal-

anced jack containing

the square wave signal.

VCO Input: 1/4" jack for connection to a Volt-

age Control source which may vary from 1.2

volts to 5 volts dc. This voltage allows for ex-

ternal control of the MO2020se's frequency.

THE FREQUENCY CONTROL MUST BE-

SET TO MAXIMUM FOR PROPER OPERA-

TION OF THE VCO CONTROL.

Sine Out: Balanced XLR, RCA

and 1/4" unbalanced jacks con-

taining the sine wave signal.

Frequency: Varies the frequency generated by

the MO2020se from 20Hz to 24kHz.

PLEASE NOTE: THE FREQUENCY MARKINGS ON THE MO2020 ARE APPROXIMATE AND MAY VARY. FOR ACCURATE FRE-

QUENCY SELECTION, USE A RELIABLE FREQUENCY COUNTER.

Sine Level: Controls the output

level of the Sine Out jack.

SQR Level: Controls the output level of

the SQR (square) Out jack.
