User Guide
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a
period of one (1) year from the date of purchase as shown on the purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited to
repair or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided
the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PRE-
PAID. Products returned to us or to an authorized Service Center must be accompanied
by a copy of the purchase receipt. In the absence of such purchase receipt, the warranty
period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of deface-
ment, misuse, abuse, neglect, accident, destruction or alteration of the serial number,
improper electrical voltages or currents, repair, alteration or maintenance by any person
or party other than our own service facility or an authorized Service Center, or any use
violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, IN-
CLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN
DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN LIMITED WAR-
RANTY. Some states do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow
the exclusion or limitation of special, incidental or consequential damages so the above
limitation or exclusion may not apply to you. This warranty gives you specifi c legal
rights, and you may also have other rights which vary from state to state.
Rolls Corporation
Salt Lake City, UT
10/04

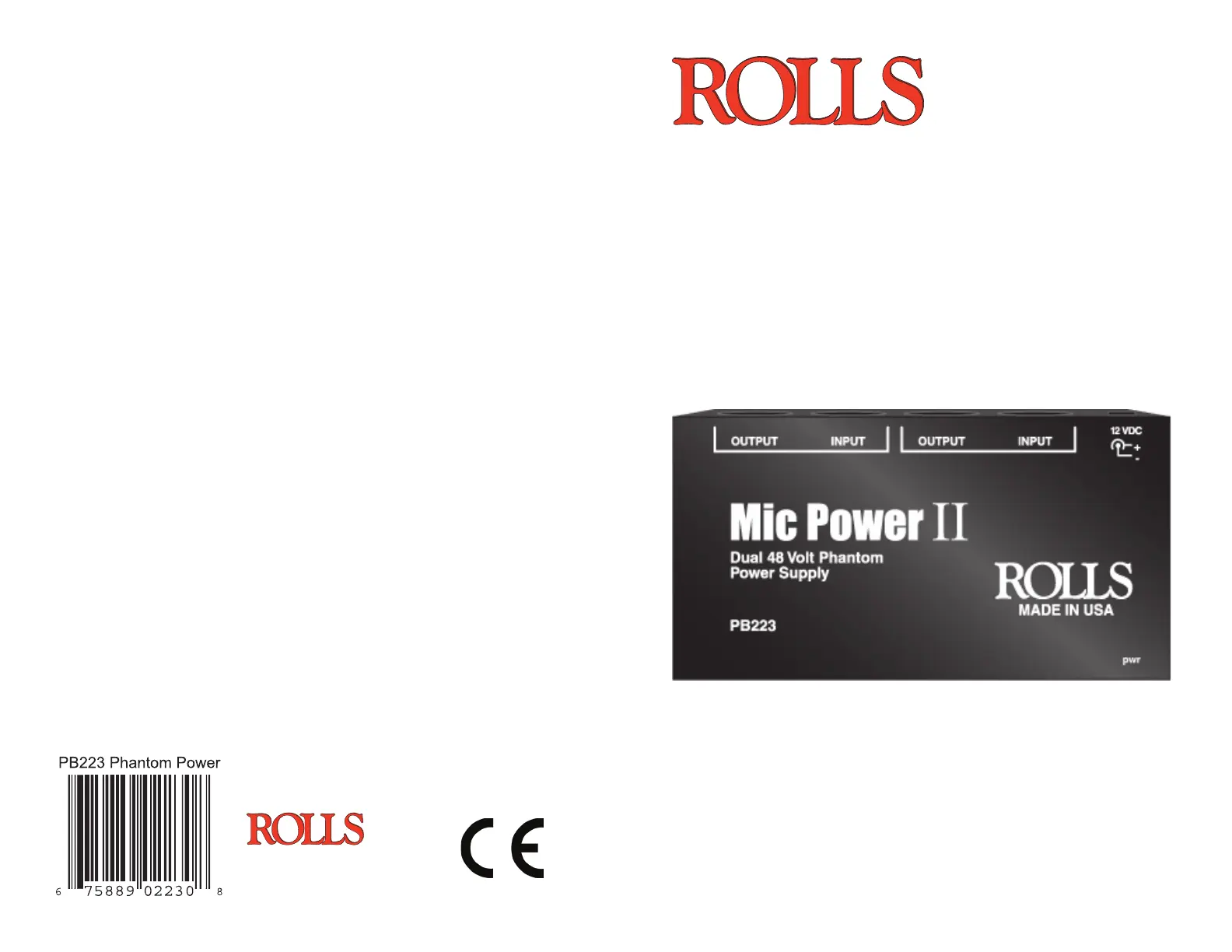

PB223 Mic Power II
Dual 48 Volt Phantom Power Supply
- Power condenser microphones requiring phantom
power
- Operates on the included Rolls PS27 12VDC adapter
- High frequency switching power supply to
eliminate noise
The PB223 is for powering two phantom powered microphones. The unit
uses a 100kHz switching power supply to eliminate noise generated by
common power supplies. The unit has pull-down resistors so it will work
with any mixer.
PB223
MIC POWER II
Dual 48 Volt Phantom
Power Supply
INTRODUCTION
Thank you for purchasing the PB223 Mic Power II Dual 48 Volt Phantom
Power Supply. This unit is designed and manufactured to provide 48
volts of clean dc power for two of your favorite condenser microphones.
Powered microphones provide much greater dynamic range, lower noise,
and better sound quality.
OPERATION
As shown in Figure 1, connect the two condenser microphones to three
conductor XLR cables, and to each Input connector on the PB223. Con-
nect the PB223 Outputs to a mixer or other audio input devices via other
XLR cables.
Make sure the Rolls PS27 adapter is connected to an AC outlet and to
the 12VDC input.
T
he LED on the front of the unit will light when power
is applied. The PB223 provides no audio gain as it is not a microphone
preamp.
SPECIFICATIONS
Phantom Voltage: 48V
Jacks: 2 ea: Male and Female XLR jacks,
5mm DC input jack
Power Input 12 - 18 VCD (Rolls PS27)
Size: 5.45" x 2.875" x 2.25"
Weight: 2 lb (.9 Kg)

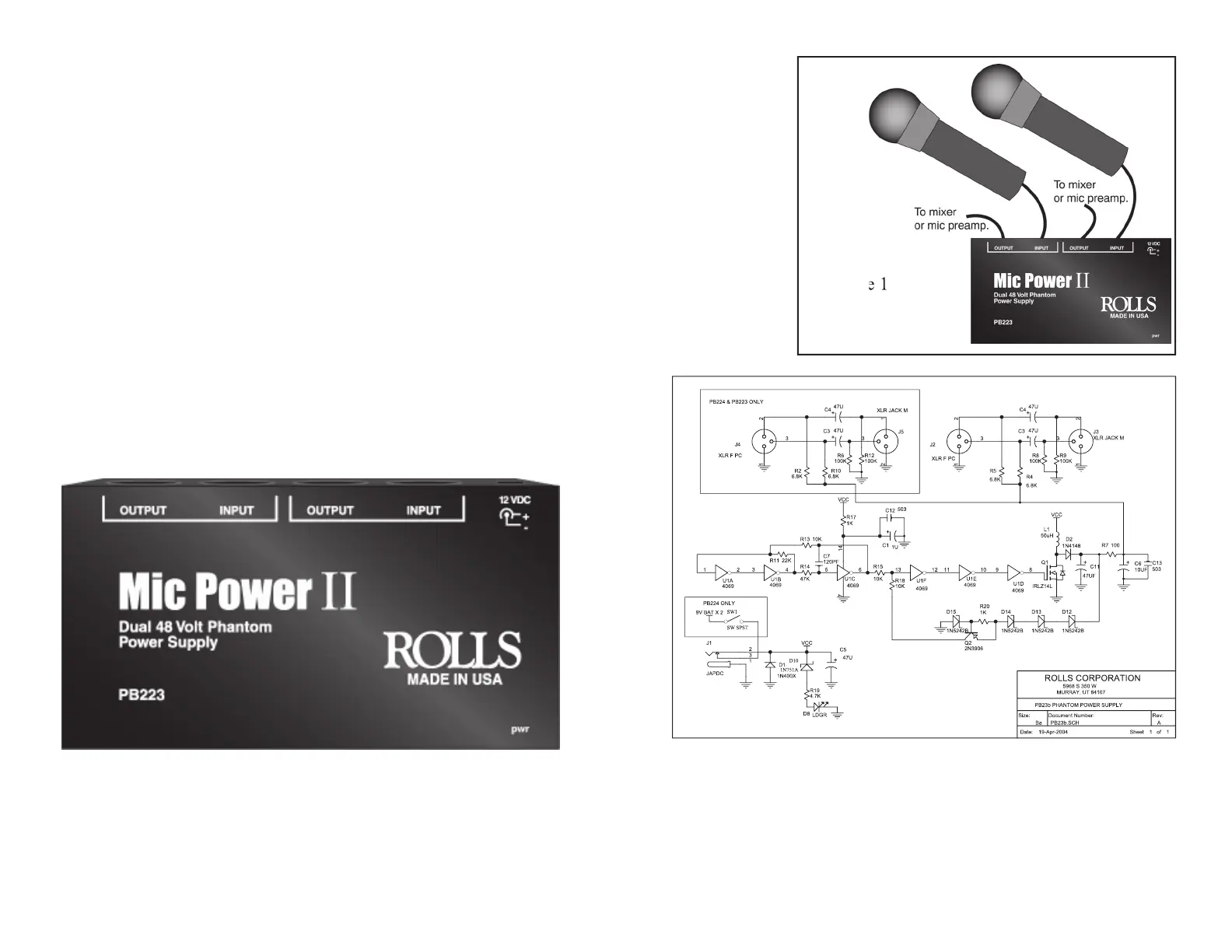

SCHEMATIC
CONNECTION
Figure 1
Figure 1
