Rolls MS111 Mic Switch
Thank you for purchasing the MS111 professional microphone switch. The MS111 enables
remote switching to either activate or mute a microphone.
FEATURES
• Balanced Female XLR Input and Male XLR Output jacks
• Activation Switch can be either Latching or Momentary Mute
• Reversible Activation Switch “Up” position can be mic on or off
• Can be stand mounted with the Rolls MSC106 mic mount accessory
OPERATION
To switch a microphone signal on or off connect the balanced XLR cable coming from your
microphone to the female Input jack on the MS111 and connect the male Output jack with a
balanced XLR cable to the input of your mixer, or the next device in the signal path. Press
the switch on the MS111 once to activate the microphone, press the switch again to mute
the microphone.
ASSIGNMENT SWITCH
The assignment switch is used to reverse the operation of the active switch. The MS111
ships from the factory set such that the microphone is on when the switch is in the UP
position and the mic is off when the switch is in the DOWN position. You can reverse this
if you wish so that the microphone is off when the switch is in the Up position and on when
the switch is in the DOWN position. To reverse the switch, nd the internal switch on the
right side of the MS111 as you are looking at it from the top. Simply move the internal
switch to the next position to reverse the operation of the active switch.
MOMENTARY OR LATCHING SWITCH OPTION
The active switch may be set to either latch the microphone in the On or Off position, or the
active switch may be changed so it functions as a Momentary switch. When functioning as
a Momentary switch the microphone is off only as long as you hold down the active switch.
The MS111 ships from the factory in Latching mode. To change to Momentary mode do the
following:
Remove the screws that hold the chassis and the cover together and separate the 1)
two sections.
After the top is removed, locate the switch wire that makes the switch latch. 2)
Currently in the vertical position.
Move the latching wire to one side. The switch is designed such that you do not 3)
remove the wire completely.
Reassemble the MS111 by screwing the chassis and the cover back together.4)
The MS111 can be reset back to Latching mode by simply reversing the process.

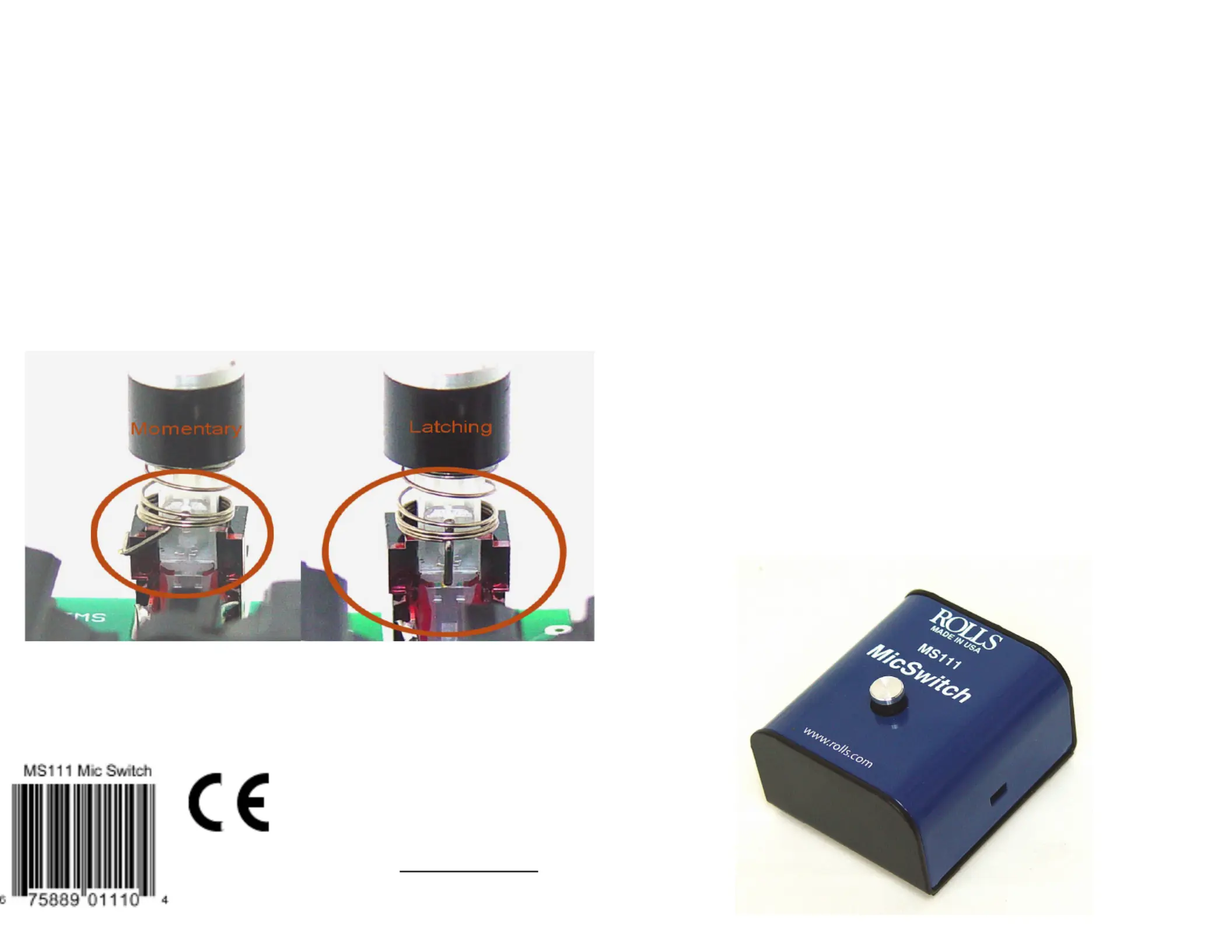

The pictures below show how the active switch will appear in the Momentary and latching Positions.
