PM60 Personal Monitor Mic Preamp

Connection guide

SPECIFICATIONS:

Gain: 10 dB 1/4” or 1/8”

48 dB XLR “MIC”

Input Impedance: 600 Ohms XLR

22K 1/4” or 1/8”

Output Impedance: 10 Ohms

Frequency Response: 3Hz to 100kHz

THD: .05% @ 1kHz

S/N Ratio: 90 dB

PWR: 9-15 VDC

Size: 4” x 3.25” x 1.6”

Weight: 1.1 lbs

Indicator: 1 Power LED

Rolls Corporation

Salt Lake City, UT

2/20

Made in USA

ww.rolls.com

What's in the box?

1 - Made in USA PM60

1 - 15V power supply PN PS27s

1 - This owners manual

1 - Love for audio and decades of ex-

perience in building and design.

- Studio

- Live

- Broadcast

Anywhere you need to mix a mic with a

stereo or mono signal.

Made in USA

ww.rolls.com

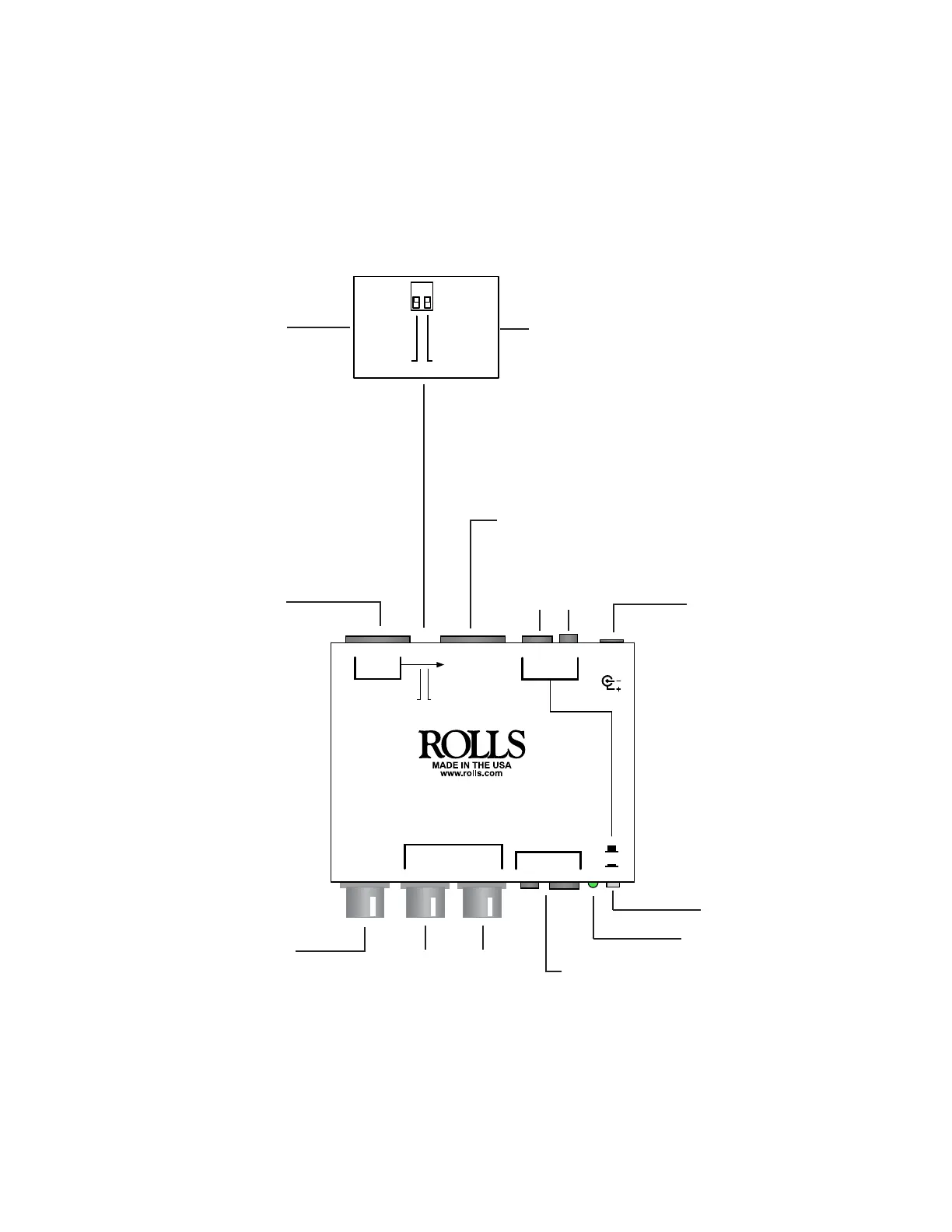

The PM60 allows you to mix a microphone with a stereo or mono 1/4” or 1/8” signal, and hear them all

via headphones. It will also work as a stand alone Mic Preamp for Microphones at the same time.

Ground lift for XLR output.

Line Level XLR Mic out-

put. The Mic Gain knob

will adjust the level of

this output.

1/4” or 1/8”

monitor Input.

1/4” and 1/8” headphone outputs.

Mono or Stereo switch for

1/4” or 1/8” monitor input.

DC jack for connection to

the included Rolls PS27s

power supply.

MIC

GAIN

6 dB 50

9-15

VDC

MIC

INPUT

MIC OUTPUT

LINE LEVEL

MIC

LEVEL

MONITOR

LEVEL

PM60

PERSONAL MONITOR MIC PREAMP

pwr

HEADPHONES

HEADPHONE OUTPUT

MONITOR

INPUT

Mono

Stereo

phantom

mic

power

gnd (down)

lift (up)

Mic input.

LED indictor

Switches on the rear of the PM60

Phantom power for

microphone input. ON is

in the down position.

Level controls

for headphone

outputs.

Mic Gain. This will control the

level of gain for mic pre-

amp inside the PM60. It will

increase the level of the MIC

OUTPUT XLR on the rear,

and increase the level sent to

the MIC LEVEL knob on the

front for headphone monitor-

ing. NOTE: Mic gain is not

a volume/level control it will

not turn o󰀨 the mic signal

completely.

phantom

mic

power

gnd (down)

lift (up)
