RM65b HEXMIX
Professional Audio Mixer
OWNERS MANUAL
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a
period of one (1) year from the date of purchase as shown on the purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited to repair
or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided
the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PRE-
PAID. Products returned to us or to an authorized Service Center must be accompanied by
a copy of the purchase receipt. In the absence of such purchase receipt, the warranty
period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of deface-
ment, misuse, abuse, neglect, accident, destruction or alteration of the serial number,
improper electrical voltages or currents, repair, alteration or maintenance by any person or
party other than our own service facility or an authorized Service Center, or any use
violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN
LIMITED WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow
the exclusion or limitation of special, incidental or consequential damages so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
ROLLS CORPORATION
SALT LAKE CITY, UTAH
5/03
FEATURES
• 6 XLR and 1/4” Inputs
• 1/4” Inputs may be configured as Insert jacks
• Individual 36 V Phantom Power
• Clip LEDs on each channel
• Input Trim, Monitor, FX Send and Pan on each channel
• Treble & Bass control on each channel
• Mono send, stereo return effects loop
• Stereo Aux Bus Input
• Headphone Output
FX
SEND
PA NTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
FX
SEND
PA NTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
VOLUME
VOLUME
CLIP
CLIP
FX
SEND
PA NTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
FX
SEND
PA NTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
VOLUME
VOLUME
CLIP
CLIP
CLIP
CLIP
PWR
+17
+8
0
-4
-13
LEFT RIGHT
EFFECTS
RETURN
MASTER VOLUME
HEADPHONE
OUTPUT
Professional
Audio Mixer
RM65b
FX
SEND
PA NTREBLE
BASS
MONITOR
010 0 10
-
+
-
+
L
R
FX
SEND
PA NTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
VOLUME
VOLUME
IP
L
IP
LR
INTRODUCTION
Thank you for your purchase of the Rolls RM65b HexMix Professional Audio
Mixer. This unit is a breakthrough in size/performance for an audio mixer. It’s a full-
function 6 channel mic/line mixer in a single space 19” rack chassis. It is intended
for sound reinforcement, studio, choir, and other applications where high channel
to size ratio is desired. Each mic input has individual phantom power switches and
input gain trims located on the rear panel. Each channel features a Monitor send,
stereo Effects loop (mono send / stereo return), Bass, and Treble controls. This
manual assumes the user has some familiarity with audio mixers.
INSPECTION
1. Unpack and inspect the RM65b box and package.
If obvious physical damage is noticed, contact the carrier immediately to make a
damage claim. We suggest saving the shipping carton and packing materials for
safely transporting the unit in the future.
2. Please visit our website at www.rolls.com, and clickon the Register Warranty
Here text. Complete the warranty page to register your RM65b. If you do not have
access to the internet, complete the Warranty Registration Card and return it to
the factory.
TABLE OF CONTENTS
1. INTRODUCTION
INSPECTION
TABLE OF CONTENTS
DESCRIPTION
FRONT PANEL
2. FRONT PANEL (Continued)
REAR PANEL
3. OPERATION
4. OPERATION (Continued)
5. SPECIFICATIONS
6. SCHEMATIC
DESCRIPTION
FRONT PANEL
FX
SEND
PANTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
PWR
+17
+8
0
-4
-13
FX
SEND
PANTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
VOLUME
VOLUME
CLIP
CLIP
LEFT RIGHT
EFFECTS
RETURN
MASTER VOLUME
FX
SEND
PANTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
FX
SEND
PANTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
VOLUME
VOLUME
CLIP
CLIP
HEADPHONE
OUTPUT
Professional
Audio Mixer
RM65b
FX
SEND
PANTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
FX
SEND
PANTREBLE
BASS
MONITOR
010 010
-
+
-
+
L
R
VOLUME
VOLUME
CLIP
CLIP
LR
CHANNEL CONTROLS
VOLUME: Adjusts the amount of signal sent through the channel and to the FX
send and output.
CLIP LED: Indicates that the channel is being overdriven. This LED lights 3 dB
before clipping.
MONITOR: Adjusts the amount of signal sent from that channel to the Monitor
Send jack. The signal is pre-fader (pre-Volume control)
BASS: Controls the boost or cut of frequencies below 400 Hz for each channel.

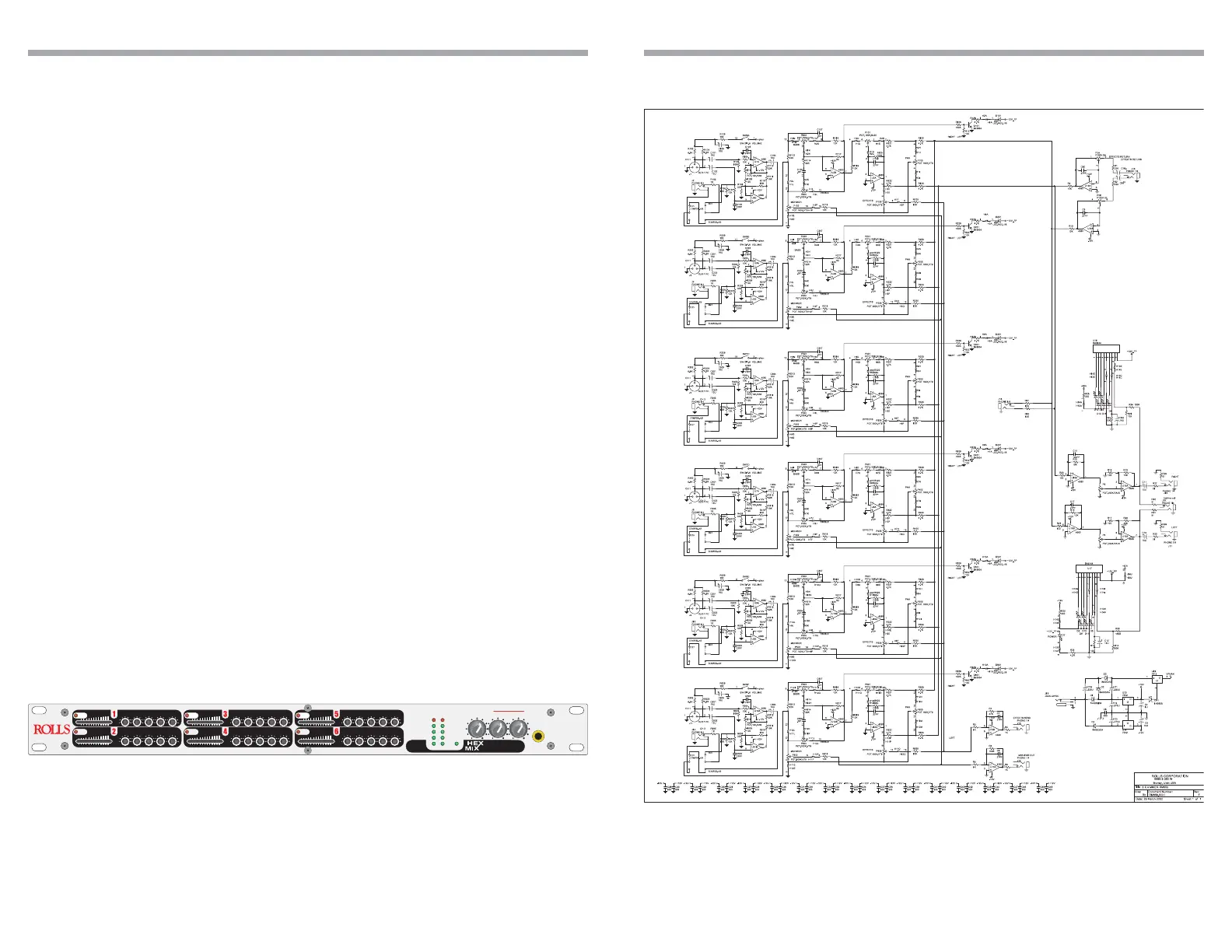

SCHEMATIC
1 6
