Rolls RA-53b Manual

Rolls Hovedtelefoner RA-53b

Læs gratis den danske manual til Rolls RA-53b (2 sider) i kategorien Hovedtelefoner. Denne vejledning er vurderet som hjælpsom af 6 personer og har en gennemsnitlig bedømmelse på 4.5 stjerner ud af 3.5 anmeldelser. Har du et spørgsmål om Rolls RA-53b, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

RA53b

Stereo Headphone Ampli er

Quick Start Guide

ROLLS CORPORATION

SALT LAKE CITY, UTAH

06/2011

PS12

12V AC

www.rolls.com

SPECIFICATIONS

Input Impedance: 10 K ohms

Max Input Level: +18 dBV

Max Gain: 26 dB per channel

Output Power: 221 mW per side, 442 mW per channel

(@ 32 Ohms)

Output Impedance: 10 Ohms

S/N Ratio: >90 dB

THD: <.08%

IMD (SMPTE): <.08%

Power: ROLLS PS12 - 12V AC

(Adapter Provided)

Size: 8.4” x 1.7” x 5”

(21.3 x 4.3 x 13 cm)

Weight: 2.5 lbs (1.14 kg)

ROLLS CORPORATION

5968 S 350 W

MURRAY, UTAH 84107

RA53b.SCH C

2 March 2003

Title

Size: Document Number:

Date:

Rev:

Sheet of

RA53b 5CH PRO HEADPHONE AMP

POWER

CHANNEL 1

CHANNEL 2

CHANNEL 3

CHANNEL 4

CHANNEL 5

VCC

VEE

VCC

VEE

VCC

VEE

VCC

VEE

VCC

VEE

VCC

VEE

VCC

VEE

VCC

MONO/RIGHT

STEREO/LEFT

VEE

VCC

J13

JAPDC

PHONE 1/4

R712

47K

R711

47K

R107

10K

R108

10K

R207

10K

R208

10K

R307

10K

R308

10K

R507

10K

P508

10K

R407

10K

R708

10K

R101

R102

U1A

4560

U8A

4560

U8B

4560

U5B

4560

U4A

4560

U4B

4560

R401

PHONE 1/4

R402

MPSA06

U1B

4560

R201

R202

U2B

4560

U2A

4560

R302

R301

U3B

4560

U3A

4560

Q20

2N2907

U5A

4560

R502

R501

LDSG

1 3

P1A

P100K X2

4 6

P1B

P100K X2

R408

10K

1 3

P2A

P100K X2

4 6

P2B

P100K X2

1 3

P3A

P100K X2

4 6

P3B

P100K X2

1 3

P4A

P100K X2

4 6

P4B

P100K X2

1 3

P5A

P100K X2

4 6

P5B

P100K X2

2N2907

MPSA06

2N2907

MPSA06

2N2907

MPSA06

2N2907

MPSA06

Q10

2N2907

Q11

MPSA06

Q12

2N2907

Q13

MPSA06

Q14

2N2907

Q15

MPSA06

Q16

2N2907

Q17

MPSA06

Q18

2N2907

Q19

MPSA06

120PF

C10

120PF

C13

10U

C16

10U

R703

10K

R704

10K

R707

10K

R709

10K

R710

10K

PHONE 1/4

J11

PC 1/4

J12

PC 1/4

R701

10K

R702

10K

U7A

4560

R705

10K

R706

10K

U7B

4560

C11

120PF

C12

120PF

1N4001

10K

R503

R504

R403

R404

R104

R103

R204

R203

R304

R303

C18 503

4.7K

R57

4.7K

J10

PHONE 1/4

1N4001

C14

1KUF

C15

1KUF

C19

10UF 16V NP

J13

PC 1/4

J19

XLR JACK F

J20

XLR JACK F

10K

R10

10K

J8A

RCAX2

J8B

RCAX2

J14

PHONE 1/8

J15

PHONE 1/8

J16

PHONE 1/8

J18

PHONE 1/8

J17

PHONE 1/8

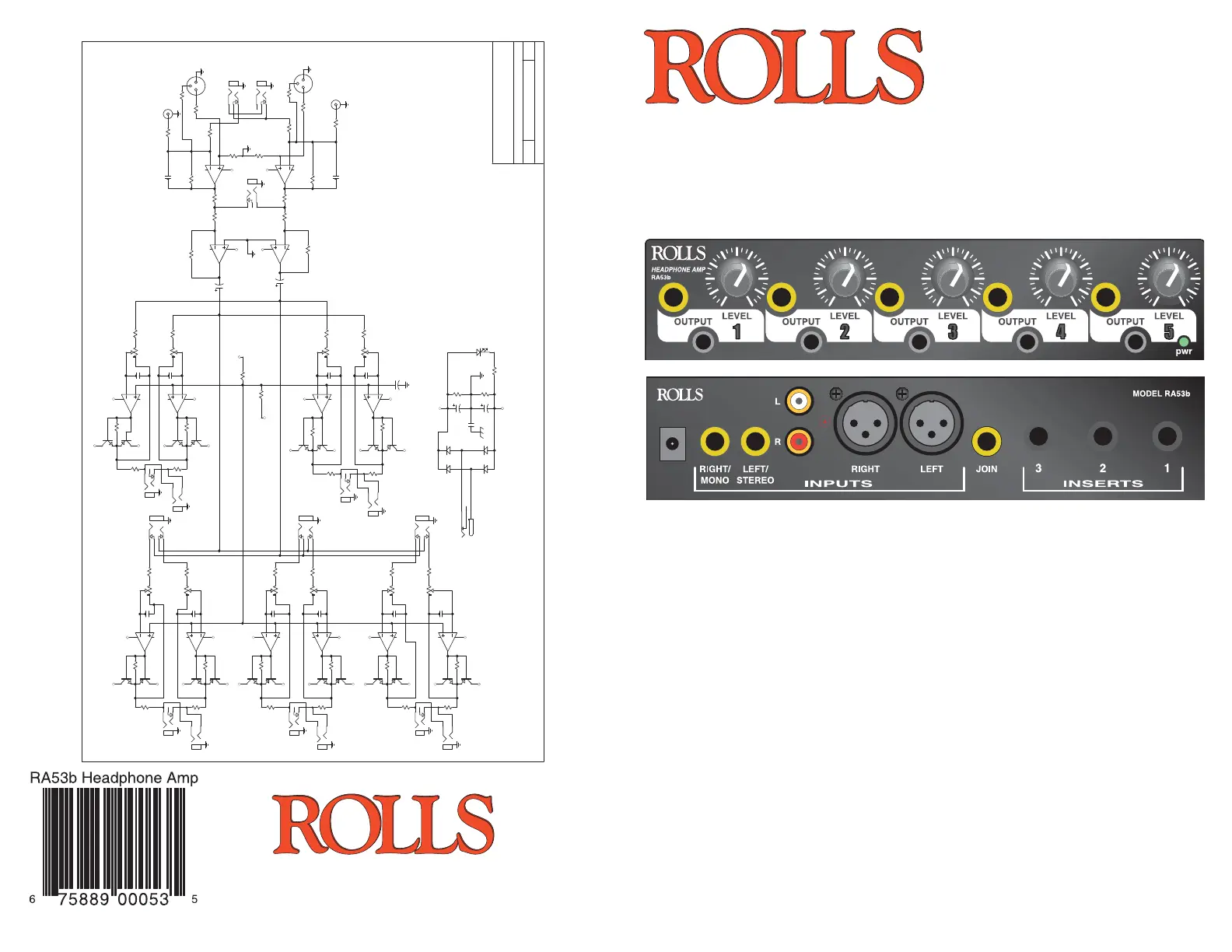

SCHEMATIC

INTRODUCTION

Thank you for your purchase of the Rolls RA53b Stereo Headphone Ampli er. This unit

was designed to provide years of dependable service. Please read this manual carefully to

ensure proper operation.

The RA53b is a  ve-channel headphone/earphone ampli er with a variety of input options.

In addition to the four master mix inputs, four separate mixes may be monitored using the

main inputs and the three Insert jacks on Channels 1, 2, and 3.

A 1/4” JOIN Input/Output jack is provided for connecting two RA53b units together, provid-

ing up to ten channels of headphone monitoring.

Finally - the RA53b is loud. It has plenty of gain for operation in noisy environments, and

works with most any headphone impedance.

INSPECTION

Unpack and inspect the RA53b box and package.

If obvious physical damage is noticed, contact the carrier immediately to make a damage

claim. We suggest saving the shipping carton and packing materials for safely transporting

the unit in the future.

WARRANTY

For complete Warranty information and registration, please visit our website; www.rolls.

com. Click on the REGISTER YOUR WARRANTY HERE line. Or, complete the Warranty

Registration Card and return it to the factory.

DESCRIPTION

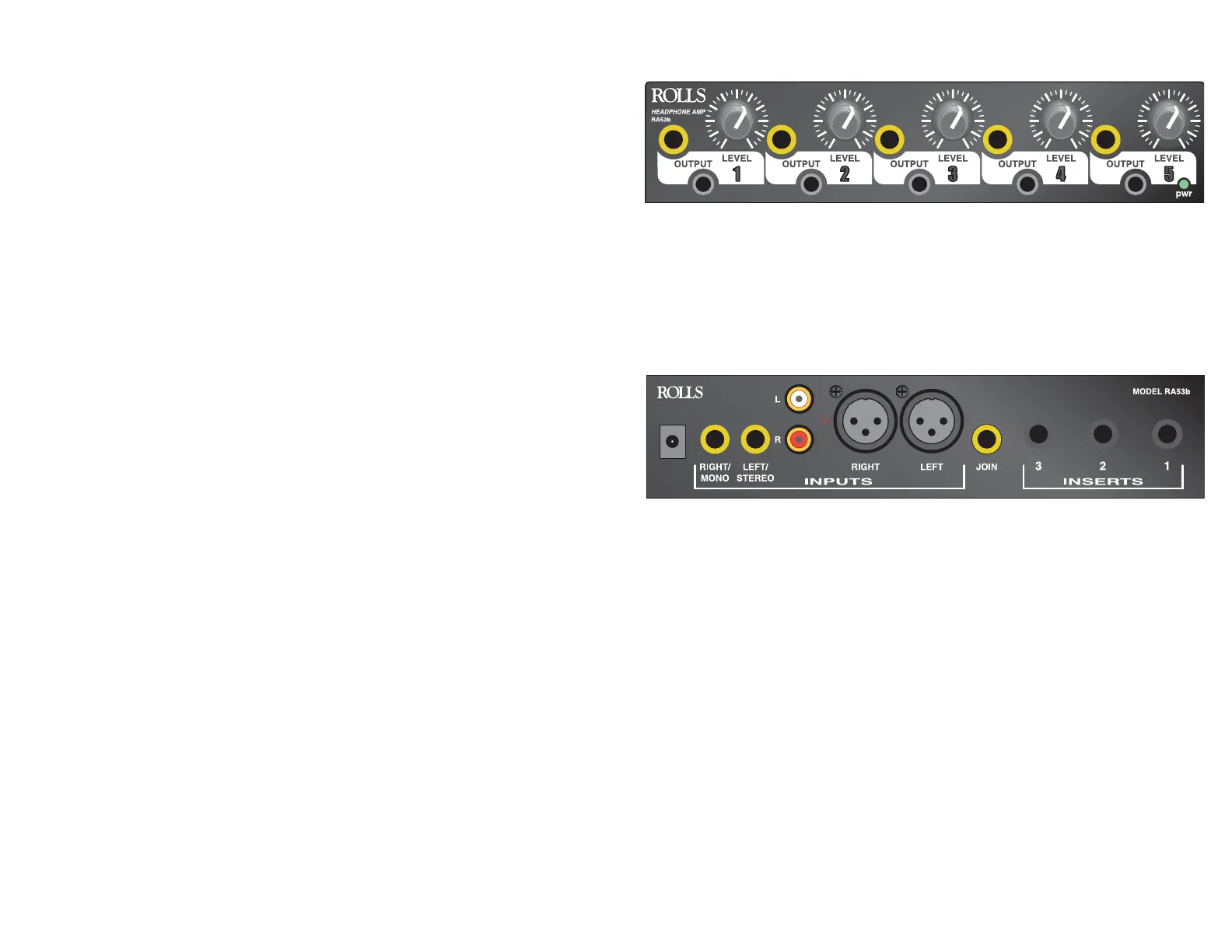

FRONT PANEL

Note: Descriptions for Channel One through Channel Five are identical.

OUTPUT: 1/4” and 1/8” (3.5mm) Tip-Ring-Sleeve jacks for connection to a stan-

dard pair of headphones or earphones. Output impedance is 10 Ohms.

LEVEL: Controls the amount of output signal from the indicated channel.

POWER LED: Indicates that the RA53b is connected to the power supply and is

on.

REAR PANEL

PS12

12V AC

www.rolls.com

POWER: For connection to a Rolls #PS12 - 12V AC power supply ONLY!!!

RIGHT/MONO INPUT: 1/4” TS jack for connecting the “Right” side of a stereo

signal. If used alone (nothing connected to the LEFT/STEREO jack), a 1/4” TS

plug with a mono signal will feed both sides of the RA53b Outputs.

LEFT/STEREO INPUT: 1/4” TRS jack for connecting to the “Left” side of a stereo

signal. If used alone,(nothing connected to the RIGHT/MONO jack) a 1/4” TRS

plug with the “Right” side of the program material on the tip, and the “Left” side

on the ring may be connected for stereo operation. For example, a stereo head-

phone output from a mixing console may be directly connected to the Left/Stereo

jack via a stereo TRS cable.

L /R INPUTS: RCA input jacks for connection to a signal source such as a CD or

cassette player.

BALANCED INPUTS: XLR input jacks for connection to a balanced line level

source such as the output of a mixer.

JOIN: 1/4” TRS jack for connection to another RA53b JOIN jack. Linking two

units together provides 10 channels of monitoring from a master stereo signal,

with six channels having an insert option.

CHANNEL INSERTs: 1/4” TRS jacks for receiving a stereo signal and directly ac-

cessing the indicated channel’s circuitry.

CONNECTION

Connect the Rolls Power Supply to the POWER jack on the RA53b rear panel. Connect

the power supply to an ac outlet.

Determine which input con guration you will use; either discreet right/left, TRS stereo, or

mono.

For a discreet right/left input con guration, connect a 1/4” TS plug containing the “Right”

portion of the stereo signal to the Right/Mono Input. Connect a 1/4” TS plug containing the

“Left” portion of the stereo signal to the Left/Stereo Input.

If connecting a balanced signal, use the XLR inputs instead of the 1/4” inputs and connect

as indicated above.

For a TRS stereo input con guration, connect a Tip-Ring-Sleeve stereo plug into the Left/

Stereo input. This cable may come from a mixer’s headphone output for example. Make

sure nothing is connected to the Right/Mono Input.

To send a mono signal to the RA53b, connect a 1/4” Tip-Sleeve plug into the Right/Mono

Input. This mono signal will be fed to both the right and left sides of the headphone out-

puts. Make sure nothing is connected to the Left/Stereo Input.

The RCA Aux Inputs are connected in the same manner as the discreet right/left input

con guration listed above.

To link another RA53b, simply connect a 1/4” TRS stereo cable to both JOIN jacks on two

RA53b units.

INSERTS

The Channel 1, 2 and 3 inserts have been provided so you can directly access Channel

1, Channel 2 and Channel 3 headphone and earphone outputs with their own program

material.

The inserts require Tip-Ring-Sleeve connectors, with right and left signals on the tip and

ring respectively.

When these insert jacks are used, the main Right/Stereo and Left/Mono, as well as the

RCA and XLR Inputs - are disconnected to that channel. Only the stereo signals sent to

the Insert jacks go to the corresponding outputs.
