SX21 Tiny Two-Way Crossover

Connection guide

SPECIFICATIONS:

Input Impedance: 10K Ohm

Output Impedance: 1K Ohm

Headroom: +10 dBV

Power Requirements: 12 - 15 VDC, 150-500 mA;

Rolls part number PS27s

Size: 4.25” x 3.625” x 1.5”

Weight: 1 lb.

Rolls Corporation

Salt Lake City, UT

10/19

Made in USA

ww.rolls.com

What's in the box?

1 - Made in USA SX21

1 - 15V power supply PN PS27s

1 - This owners manual

• 24 dB/Octave roll o

• 1/4” Input and Output

• 50Hz to 2.5 kHz crossover range

Made in USA

ww.rolls.com

SX21

Tiny Two-Way Crossover

The SX21 is a unique frequency dividing device for small sound

reinforcement applications. The unit features a 24 dB/Octave

rollo rate, a frequency dividing range of 50Hz to 2.5kHz, and an

external power supply for noise reduction.

• 24 dB/Octave rollo

• 1/4" unbal. Input and Outputs

• 50Hz to 2.5 kHz crossover range

• External power supply for low noise operation

OPERATION

Connect the Input of the SX21 to the output of a mixer or other device that has the signal to be divided. The High and Low Outputs of the SX21 should be

connected to the proper amplier and speaker combination. Check speaker specications to ensure that the speakers are receiving the proper frequen-

cies.

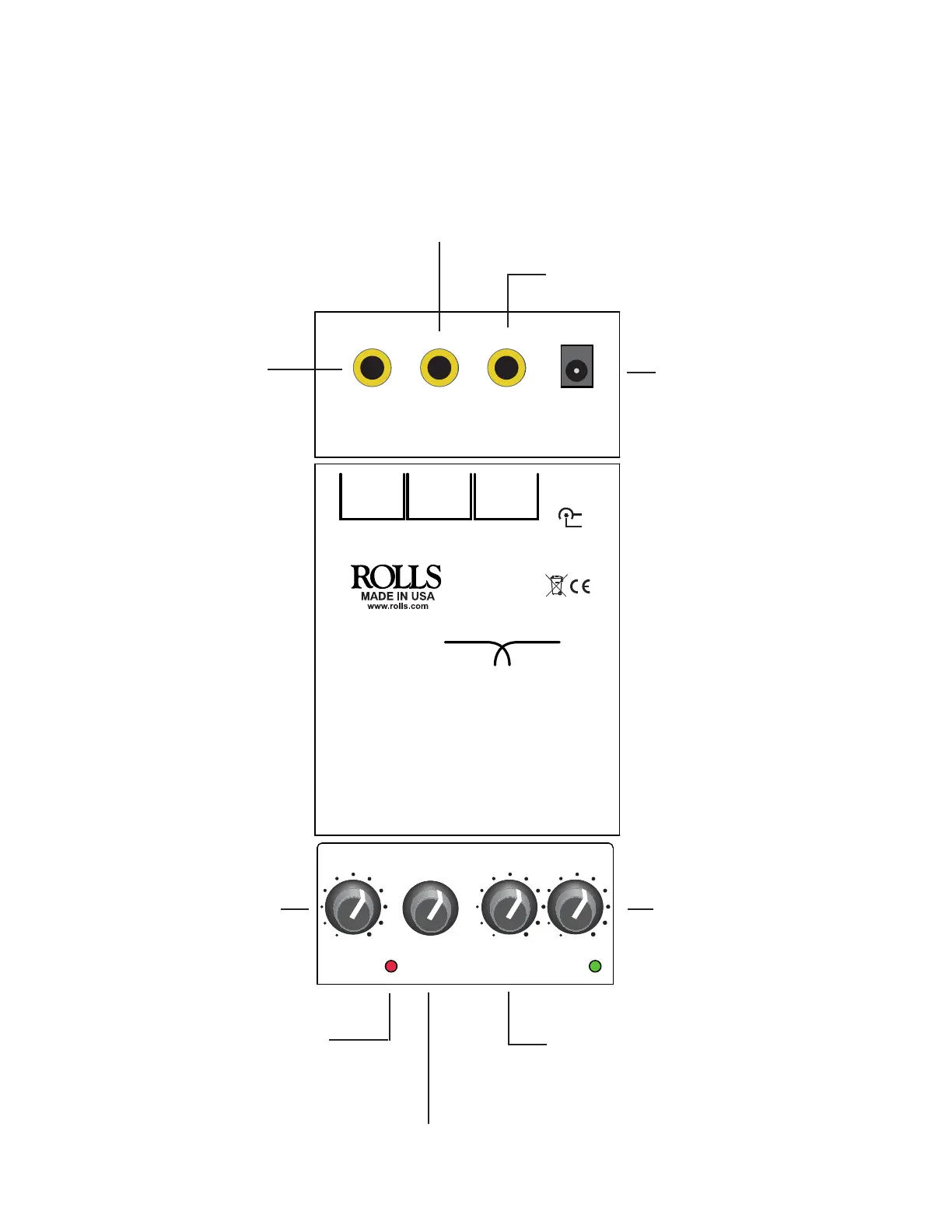

DC IN

VDC

INPUT LOW

OUTPUT

HIGH

OUTPUT

INPUT FREQUENCY LOW

LEVEL

HIGH

LEVEL
