Innovating the Future of Global Communications

User Instructions

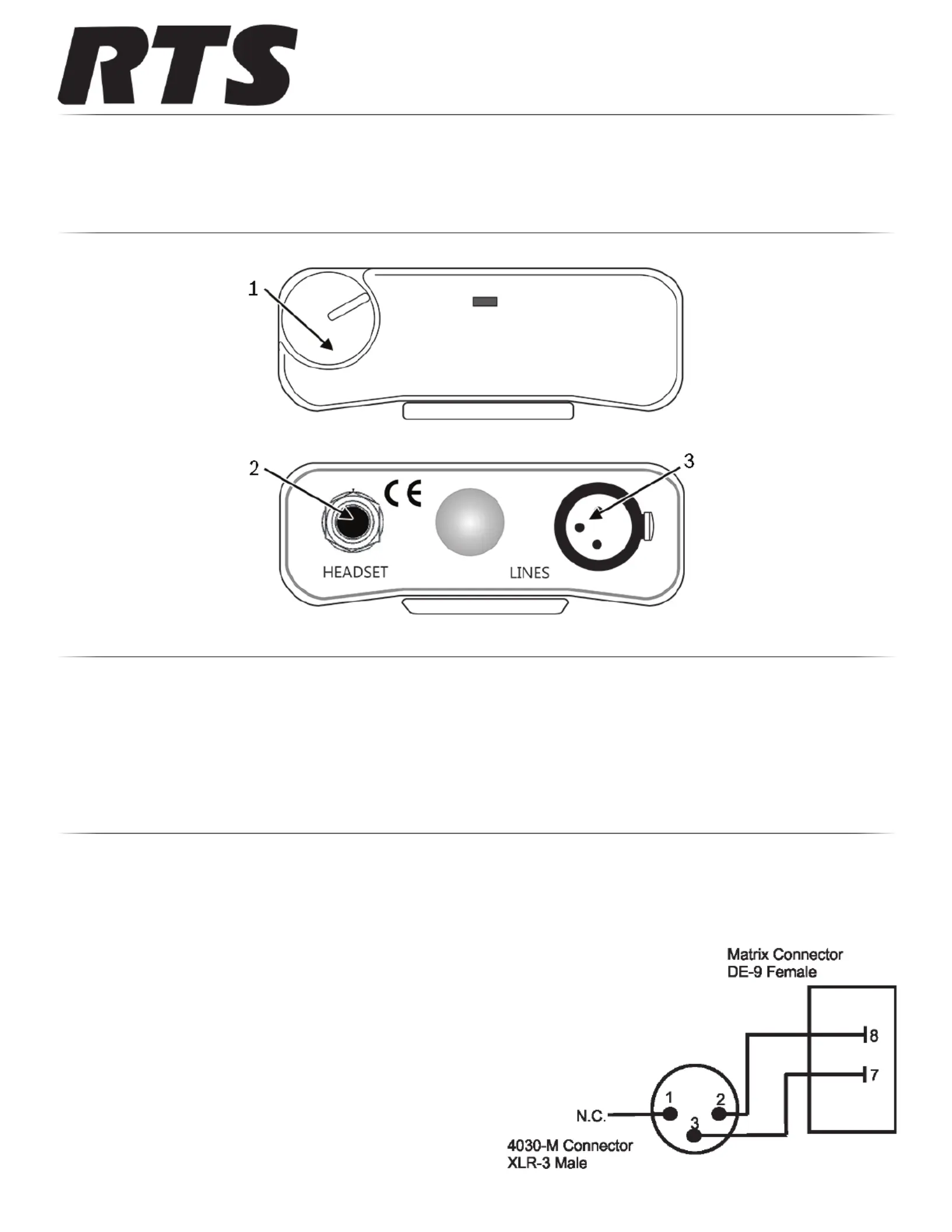

The IFB 4030-M is a passive beltpack intended for use with RTS digital matrix intercom systems.

1. Controls headset/earset output audio level

2. 1/4” Monaural headset/earset output

3. XLR-3F Balanced input

Description

IFB 4030-M

Passive IFB beltpack with 1/4” (6.3mm) Jack

Installation

1. Connect the belpack to an unused intercom system port (see cable diagram below).

2. Conﬁgure the unused intercom system polrt (via AZedit) for IFB.

3. Set the port output level (via System|Gains|Analog Input/Output Gains) to -4 dB.

4. Send the changes to the intercom.

5. Connect the headset/earset to the unit

Innovating the Future of Global Communications

www.rtsintercoms.com

Specications

Order Information

Earset/Headset: 50 to 600 Ohms

Weight: 6.2oz (303g)

Headset Connectors:

Type: ¼” (6.3mm) Monaural Plug

Tip: Headset audio high

Sleeve: Headset audio low

Line (Intercom) Connectors:

Type: XLR-3F

Pin 1: Not Connected

Pin 2: Intercom audio high (+)

Pin 3: Intercom audio low (-)

4030M • 4030M • Passive IFB beltpack with ¼” (6.3mm) jack

The specication information is preliminary and is subject to change without notication.

Brand names mentioned are the property of their respective companies.

Bosch Security Systems, Inc. | 12000 Portland Avenue South | Burnsville, Minnesota 55337

Telephone: 877·863·4169 | Fax: (800) 323-0498

Form Number: F.01U.247.078 Rev 03

Date: May 2015

Proprietary Notice

The RTS product information and design disclosed herein were originated by and are the property of Bosch Communications, Inc. Bosch reserves all

patent, propretary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are

expressly granted to others.

prohibited.

Warranty and Service Information

RTS Intercoms .....................................................................................................................................................................www.rtsintercoms.coms/warranty

Customer Support

Technical questions should be directed to:

Customer Service Department

Bosch Security Systems, Inc.

www.rtsintercoms.com

Technical Questions EMEA

Bosch Security Systems Technical Support EMEA

www.rtsintercoms.com/contact_main.php

Disclaimer

The manufacturer of the equipment described herin makes no expressed or implied warranty with respect to anything contained in this manual and shall

not be held liable for any implied warranties of tness for a particular application or for any indirect, special, or consequential damages. The information

contained herein is subject to change without prior notice and shall not be construed as an expressed or implied commitment on the part of the manu-

facturer.
