Side 1/5

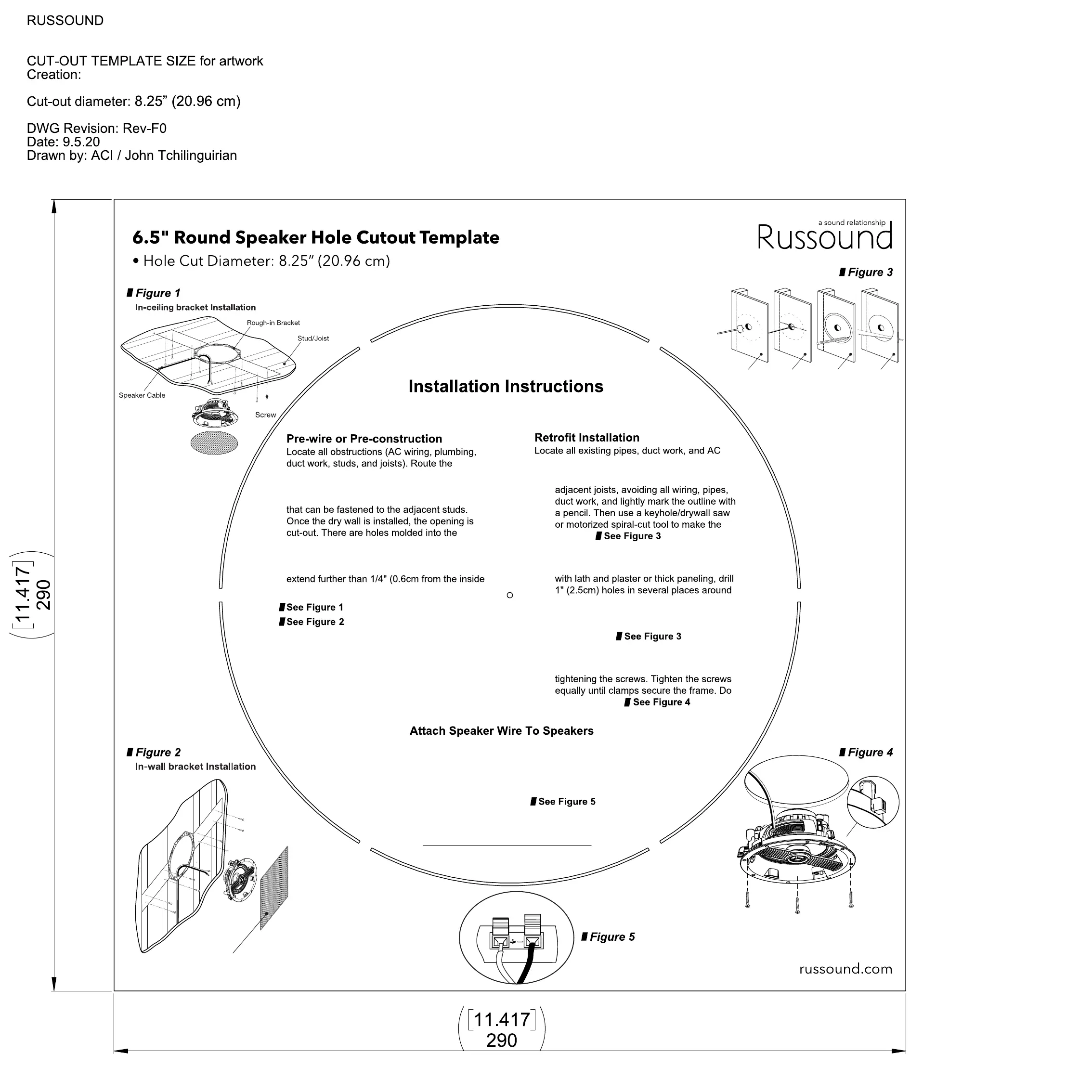

IC-605

Magnetic square grille

ICG-6S (sold separately)

Drill Pilot Hole

Mark Template

Outline

Test for

stud

clearance

Score

template

outline

Cut out

opening

Note:

Drill shallow to avoid damage to

wiring, pipes & ductwork.

For warranty information go to

www.russound.com/warranty-registration

speaker wire to the speaker location avoiding

all obstacles.

Russound offers Speaker Rough-In Brackets

bracket for speaker wire tie-off to keep the wire

from being lost during construction.

Make sure the speaker cut-out (hole) doesn't

of the mounting bracket.

for In-ceiling bracket installation.

wiring before cutting any holes in the ceiling.

for In-wall bracket installation

1. Center the cardboard template between

opening.

2. Score the outline of the template with a

utility knife to prevent chipping. If dealing

the pencil outline. Use a fine-toothed

keyhole saw or hacksaw blade with slow

strokes to saw through and remove the

inner surface.

3. Center the Speaker in the the cutout.

Rotate the frame as needed before

not overtighten.

Attach the speaker wires to the red and black

speaker terminals. Connect the Positive (+)

conductor to the Red terminal and the Negative

(-) conductor to the Black terminal. Make sure

that no stray strands of wire are touching the

other conductor or terminal.

10.15.20 | Rev 1

The All New Speakers from RussoundArchitectural

The innovative IC-Series of Speakers from Russound incorporates the latest advances in material Architectural

technologies and audio engineering to provide the best sounding speaker lineup in Russound’s 50-year history. Each

of these new speakers has been designed, manufactured and tuned with great care so that your listening experience

is truly exceptional. Our range of speaker solutions provide excellent choices in any application - from background

music listening to premium performance in your favorite listening areas at home.

While designed for premium sound quality, Russound also included features that will make

these easier to install, saving time and money for all involved. For that, Russound included

its unique Easygrip™ tweeter posts and bridges to make all of the IC-Series speakers easy to

hold at the top of a ladder, and most importantly, for its premium models, the IC-620,

IC-620T, IC-820T, IC-630 8 and IW-630IC-820, and IC- 30, as well as the in-wall IW-620 ,

Russound incorporated its proprietary, patented SwiftLock technology for effortless ®

installation at the push of a button.

The IC-Series of speakers provides excellent options for all of the speakers in the home, from

complete multi-room audio solutions to dedicated home theaters and everything in between .

From the kitchen to the living room to the bedroom, there is a perfect speaker for every room.

Engineered Innovation

Extraordinary Sound

IC-Series Loudspeakers
