Side 1/5

PartySpeaker XXL1

Outdoor Mobile Speaker

User Manual

I. Features

1. Ultra-large magnetic circuit high-sensitivity speaker with high penetrating power,

low-frequency vibration and perfect medium/high frequency representation.

2. The latest decoding chips supporting stable playback of MP3 from U /TF card of up to 32GB. SB

3. 3.5mm audio input for connection to a wide range of sound sources.

4. Built-in high capacity battery for up to 2 hours of consecutive playback.

5. Connect the microphone and use adjustable reverberation, voice and Karaoke function for

outstanding performances.

6. Battery with built-in recharging protection to ensure a long and stable service life.

7. Built-in low battery and full recharging indication. Human-oriented use.

8. With belt/handle design for best choice of mobile speak er.

9. Microphone recording input can be used as your personal business assistant.

10. Supports Bluetooth and TWS function.

II. Recording

Recording via External Microphone:

Connect a storage device (USB/TF card) and briefly press RECORD to start recording for a

duration that depends on the storage capacity. During recording, tune the “-ECHO+” button to

minimum. Note that the microphone should be located a proper distance away from the speaker to

prevent any feedback or noise.

Note: This product starts recording from the time as displayed on the LED screen.

III. Bluetooth pairing operation and related parameters:

1.Power: switch the power, press “MODE” to enter Bluetooth mode. The display screen will ON

show “BLUE”.

2.Switch on the Bluetooth function of your mobile phone and start searching. Wh the mobile en

phone shows “ ”, immediately click on connect. The mobile phone connection PartySpeaker XXL1

does not require a password. If a password is asked, please enter ”0000” to continue pairing. After

successful pairing, the speaker sends out a prompt message. This means that the pairing between

mobile phone and Bluetooth speaker has been successful.

3.Play the music on your mobile phone and you will hear a good sound from the speaker.

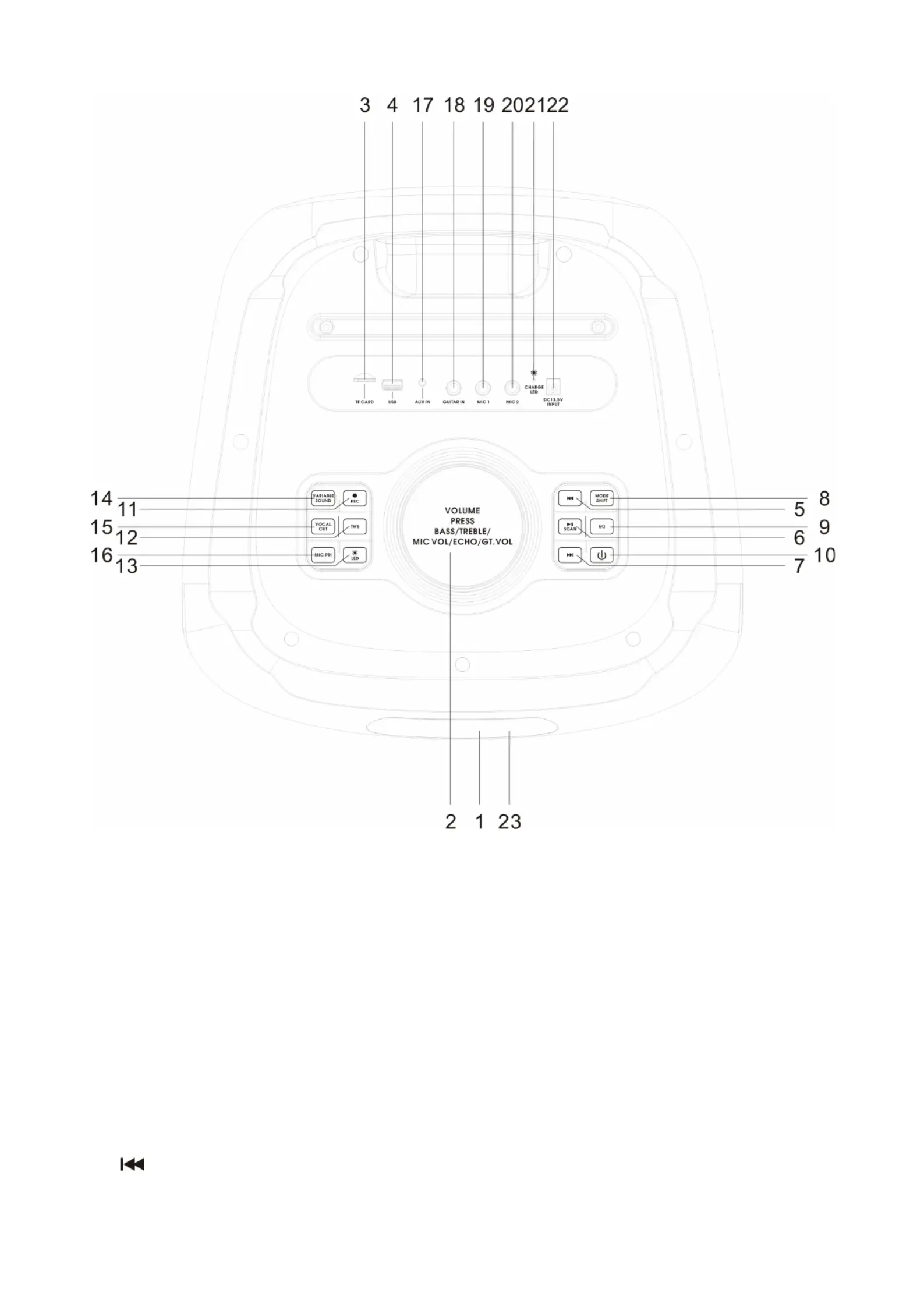

IV. Functional Operations and Features

1. screen. LED

2. LUME PRESS BASS/TREBLE/MIC VOL/ECHO/GT.VOL By default, this button VO ：

regulates the master volume. Press once briefly for bass adjustment. Press twice

briefly for high pitch adjustment. Press three times briefly for microphone volume adjustment. Press

four times briefly for microphone reverb adjustment. five times briefly Press

for guitar volume adjustment. Adjust within four seconds, without operation the function each time

of the button automatically jumps back to the master volume mode after four seconds. In mode, each

adjust the button control the volume. to

3. TF Port: Read audio files in MP3 format from TF card with a capacity of up to 32GB (FAT32).

4. USB Port: Read audio files in MP3 format from USB storage device with a capacity of up to

32GB (FAT32).

5. : the play mode of USB/TF Card/Bluetooth, briefly press this key to select the previous In

channel.

Produkt Specifikationer

Mærke:	Salora
Kategori:	Vugge/dockingstation
Model:	XXL1
Tænd-/slukkontakt:	Ja
Bredde:	400 mm
Dybde:	365 mm
Højde:	1010 mm
Vægt:	19500 g
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Sort
Batterispænding:	11.1 V
Batterikapacitet:	8000 mAh
Indbygget skærm:	Ja
Skærmtype:	LED
Produkttype:	Bærbar stereohøjttaler
Pakkevægt:	21560 g
Pakkedybde:	421 mm
Pakkebredde:	441 mm
Pakkehøjde:	1063 mm
Kompatible hukommelseskort:	MicroSDHC
Wi-Fi:	Ingen
Bluetooth:	Ja
FM radio:	Ingen
Batteriteknologi:	Lithium-Ion (Li-Ion)
Antal højttalere:	2
Udgangseffekt (RMS):	120 W
Antal USB 2.0-porte:	1
Volumenkontrol:	Dreje
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Frekvens for vekselstrømsadapter:	50 - 60 Hz
Kabler inkluderet:	DC
Pakketype:	Kasse
Bluetooth-version:	5.0
Fjernbetjening inkluderet:	Ja
Anbefalet brug:	Universel
Frekvensområde:	100 - 20 Hz
Forbindelsesteknologi:	Kabel & trådløs
Indbygget kortlæser:	Ja
Styrehjul:	Ja
Batterilevetid (maks.):	5 t
3,5 mm stik:	Ja
USB-tilslutning:	Ja
Batteritype:	Indbygget batteri
Antal understøttede batterier:	1
AUX-indgang:	Ja
Indbygget mikrofon:	Ingen
Peak Music-Udgangseffekt (PMPO):	1200 W
Bærehåndtag:	Ja
DC indgangsspænding:	13.5 V
Maksimal størrelse på hukommelseskort:	32 GB
Signal/støjforhold:	80 dB
Bas indstillinger:	Ja
Diskant diameter:	12 "
Woofer diameter (britisk mål):	12 "
Strømadapter inkluderet:	Ja
Mikrofon inkluderet:	Ja
Indbygget oplader:	Ingen
Belysning LED:	Ja
Justerbar diskant:	Ja
