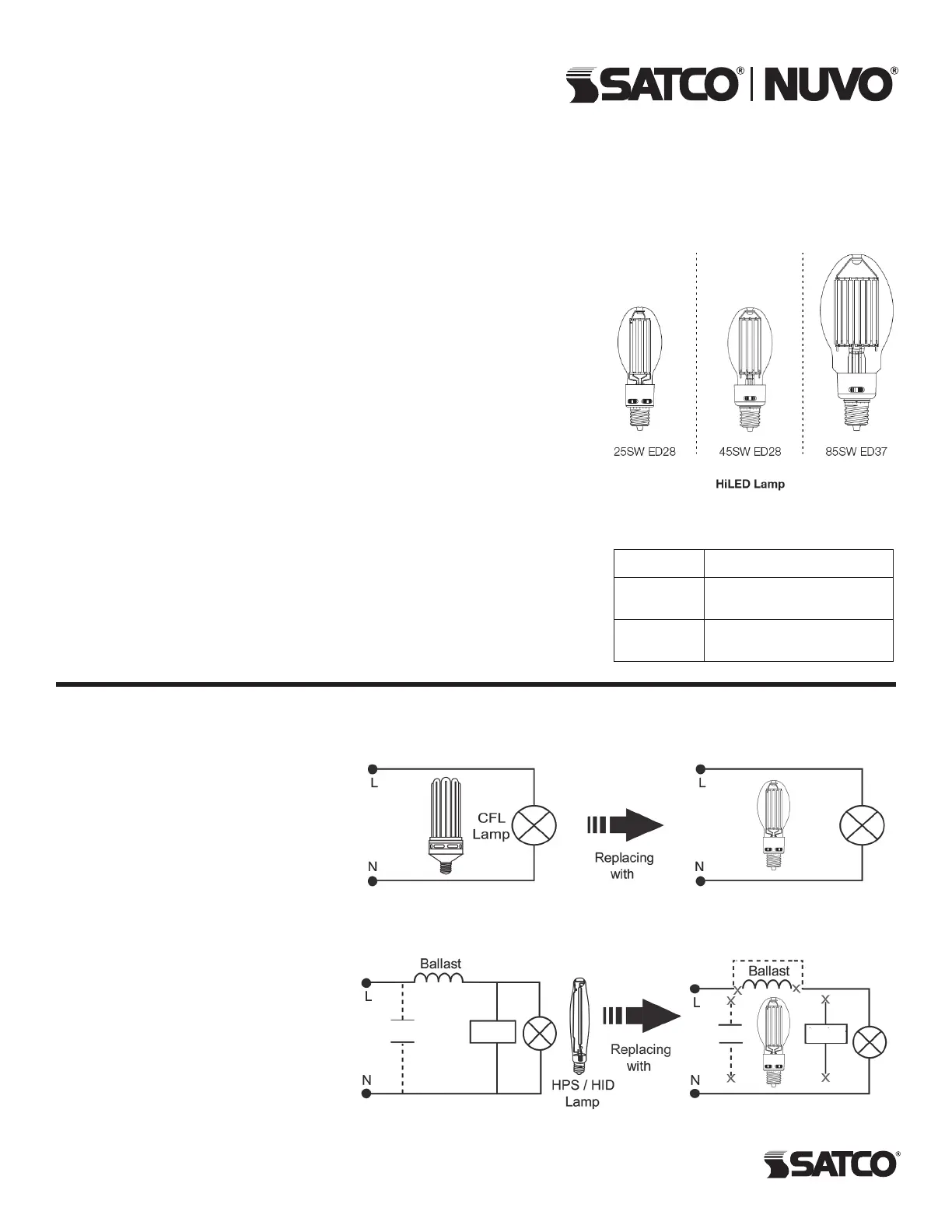

LED FILAMENT HID

REPLACEMENT LAMPS

Satco Products, Inc.

Bre n t wood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

IMPORTANT:

• Added weight of the device may cause instability of a free-standing

portable luminaire.

• Installers should not disconnect existing wires from lampholder terminals to

make new connections at lampholder terminals. Instead installers should cut

existing lampholder leads away from the lampholder and make new electrical

connections to lampholder lead wires by employing applicable connectors.

INSTALLATION

STEP 1: Turn off the power before

installing.

STEP 2: Remove the diffuser or lens

or reﬂector of the ﬁxture to have clear

exposer of internal wiring.

STEP 3: Remove the existing lamp.

STEP 4: Bypass the gear including

ballast/capacitor/ignitor and connect

lamp-holder wires directly to 120-277V.

STEP 5: Secure wiring properly by

routing away from all sharp edges.

STEP 6: Choose the Lumen and CCT

Switch according to your requirement.

STEP 7: Install the HiLED lamp into the

lamp holder ﬁrmly.

STEP 8: Install back the diffuser or lens

of the ﬁxture.

NOTE: Compatible with post top,

low/high bay, wall pack, shoe

box and LED rated dusk to dawn

xtures.

Please be sure to check the

Minimum Compartment Size chart

above for enclosed luminaries.

Models: S13195, S13196, S13197

WARNING: Risk of Fire or Electric Shock

• Luminaire wiring and electrical parts may be damaged when drilling for

installation of LED retrot. Check for enclosed wiring and components.

• LED Retrot installation requires knowledge of luminaires electrical systems.

If not qualied, do not attempt installation. Contact a qualied electrician.

• Install this lamp only in luminaires that have the construction features and

dimensions shown in the photographs and/or drawings and where the input

rating of the retrot does not exceed the input rating of the luminaire.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• To prevent wiring damage or abrasion, do not expose wiring to edges of

sheet metal or other sharp objects.

• Disable all power to the Luminaire. The lamp holder must be disconnected

from the wiring to the ballast, capacitor, or ignitor. Verify that voltage does

not exceed 277V. Please see “Wiring Diagram”.

• Failure to follow instructions can result in a damaged product and will void

warranty. It could also result in an electric shock or re.

Replacing CFL Lamp

WIRING DIAGRAM

HPS/HID Wiring Diagram HiLED Wiring Diagram

Replacing HPS/HID Lamp

(L1)

100-277V

CFL Wiring Diagram HiLED Wiring Diagram

100-277V

(L1)

100-277V

Capacitor

Ignitor

100-277V

Minimum Compartment Sizing

Model No. Min. Comp. Size (LxWxH)

ED28 14.02 x 8.03 x 8.03 inches

(356 x 204 x 204 mm)

ED37 (85SW) 13.74 x 16.97 x 16.97 inches

(349 x 431 x 431 mm)
